Product Description

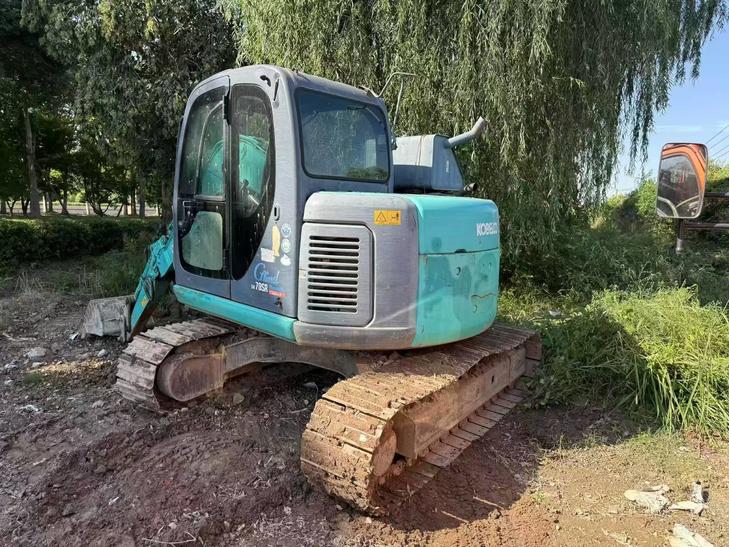

This 2020 Kobelco SK70 midi excavator represents a proven solution for contractors seeking reliable performance in a compact footprint. Sourced from Hunan, China, this unit features newly installed track chains that minimize immediate maintenance requirements and extend operational readiness.
The SK70 delivers a balanced combination of digging force and maneuverability, making it well-suited for urban construction, utility work, and site development projects where space constraints demand precision. Kobelco's hydraulic efficiency and fuel management systems contribute to lower operating costs over the machine's service life.
Key attributes include:
- Recent track chain replacement for extended wear life
- Compact design with zero tail swing capability
- Inspected and ready for immediate deployment
- Suitable for contractors requiring versatile excavation equipment
Available for inspection at our Hunan location. Contact our sales team for detailed specifications and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1173460 |
| Tonnage (tons) | 7 |
| Boom length (mm) | 5830 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 11.5 |
| Travel speed (km/h) | 2.8/5.3 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
