Product Description

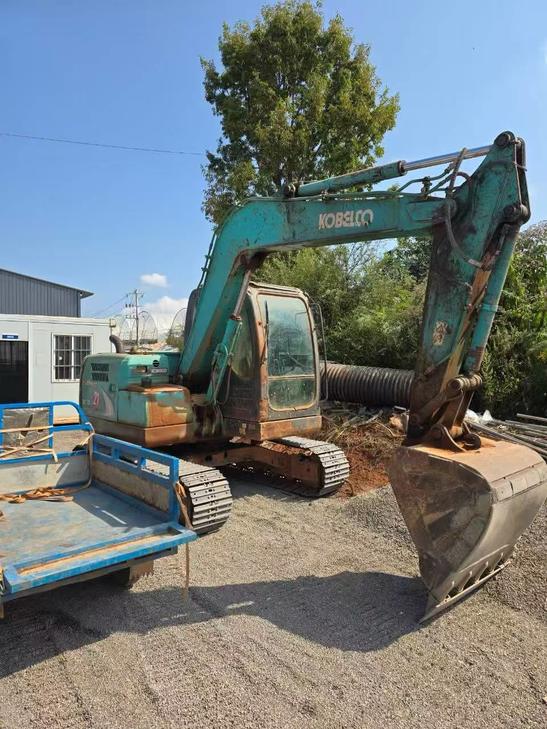

This 2011 Kobelco SK75 excavator is a reliable mid-size machine sourced from Yunnan, China. With over 40,000 operating hours, this unit has been actively deployed on construction sites and demonstrates consistent field performance. The SK75 is known for its compact footprint combined with capable digging force, making it suitable for urban construction, landscaping, and utility work.
- Year: 2011
- Make: Kobelco
- Model: SK75
- Operating Hours: 40,000+
- Location: Yunnan, China
- Condition: Active worksite machine with functional performance
This excavator has been maintained for continuous operation and is ready for immediate deployment. The SK75's hydraulic system and undercarriage have supported demanding job site conditions. Ideal for contractors seeking a proven workhorse for medium-duty applications. Inspection reports available upon request.
| Specifications | Value |
|---|---|
| No. | 1163155 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
