2013 Kobelco SK75

1/5
Buy Kobelco SK75 Used Excavator / 1

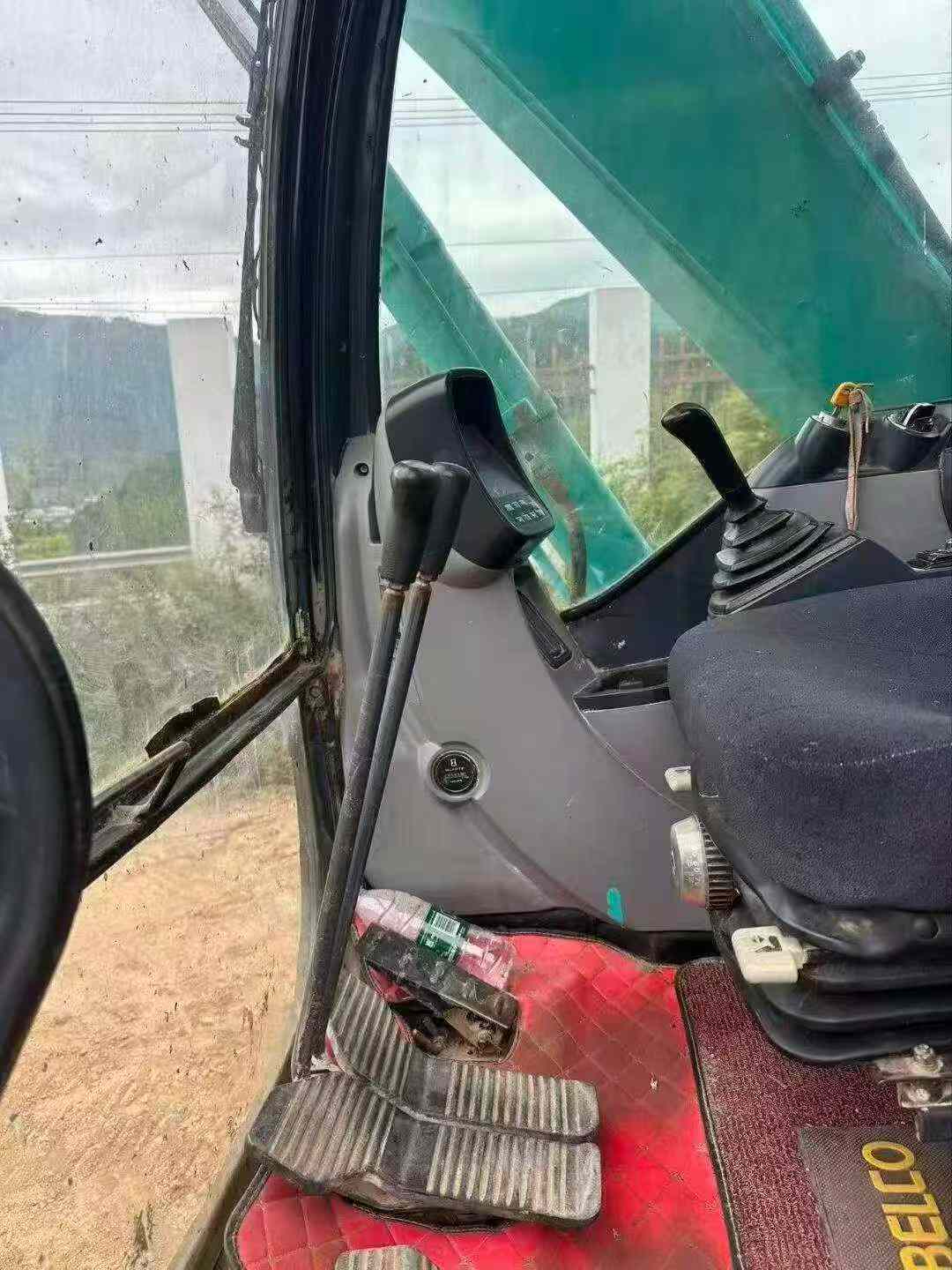

Buy Kobelco SK75 Used Excavator / 2

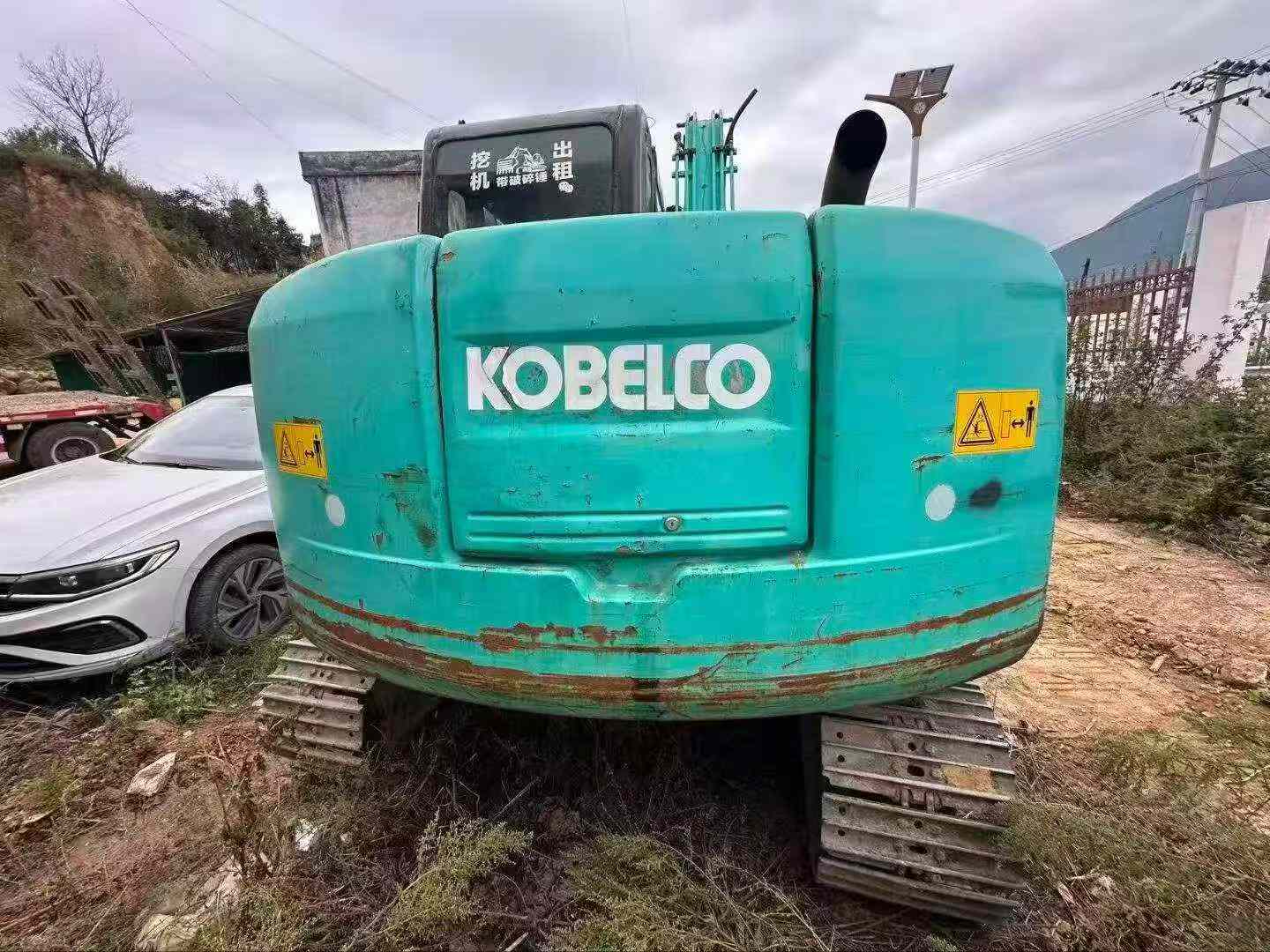

Buy Kobelco SK75 Used Excavator / 3

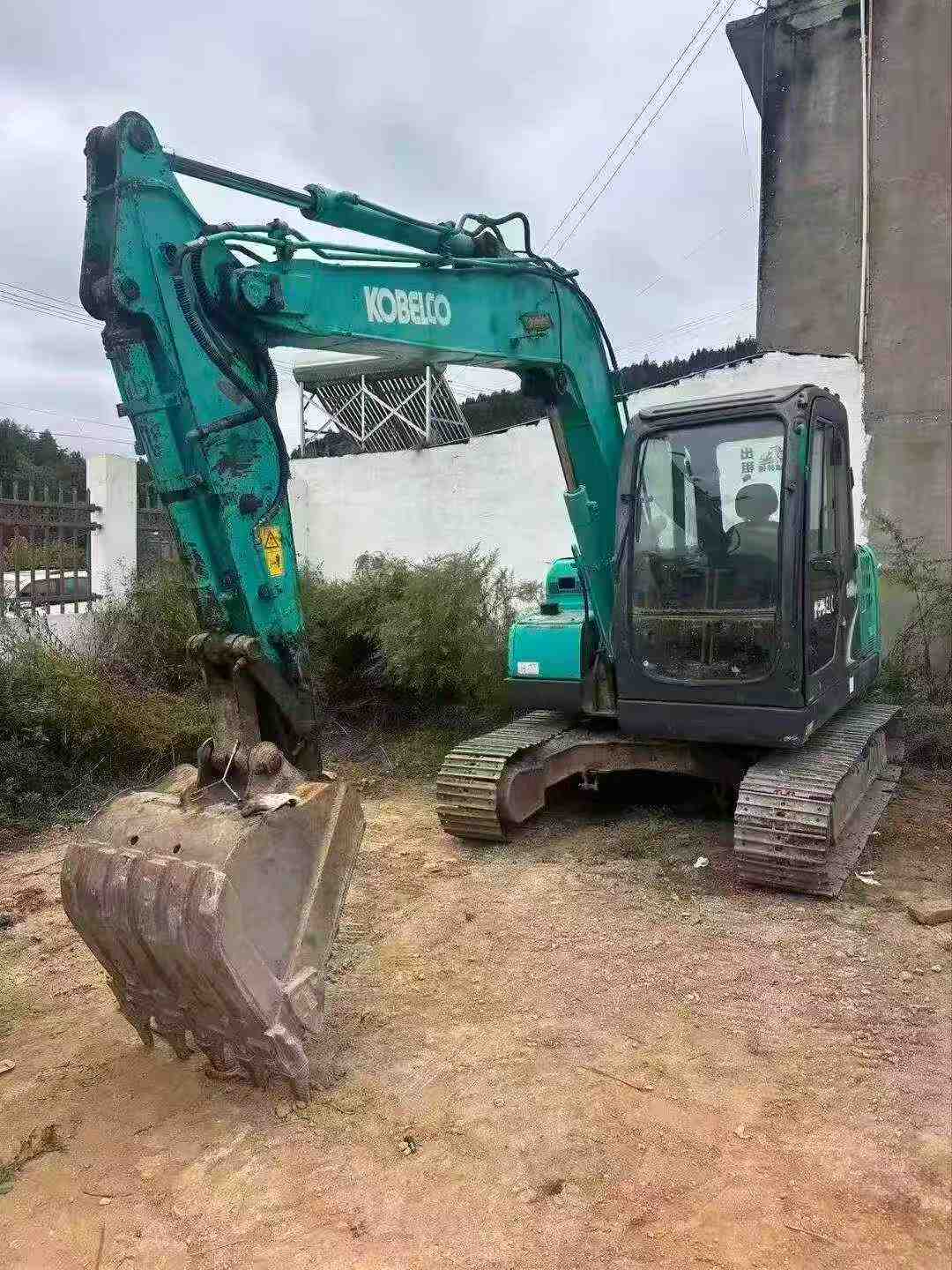

Buy Kobelco SK75 Used Excavator / 4

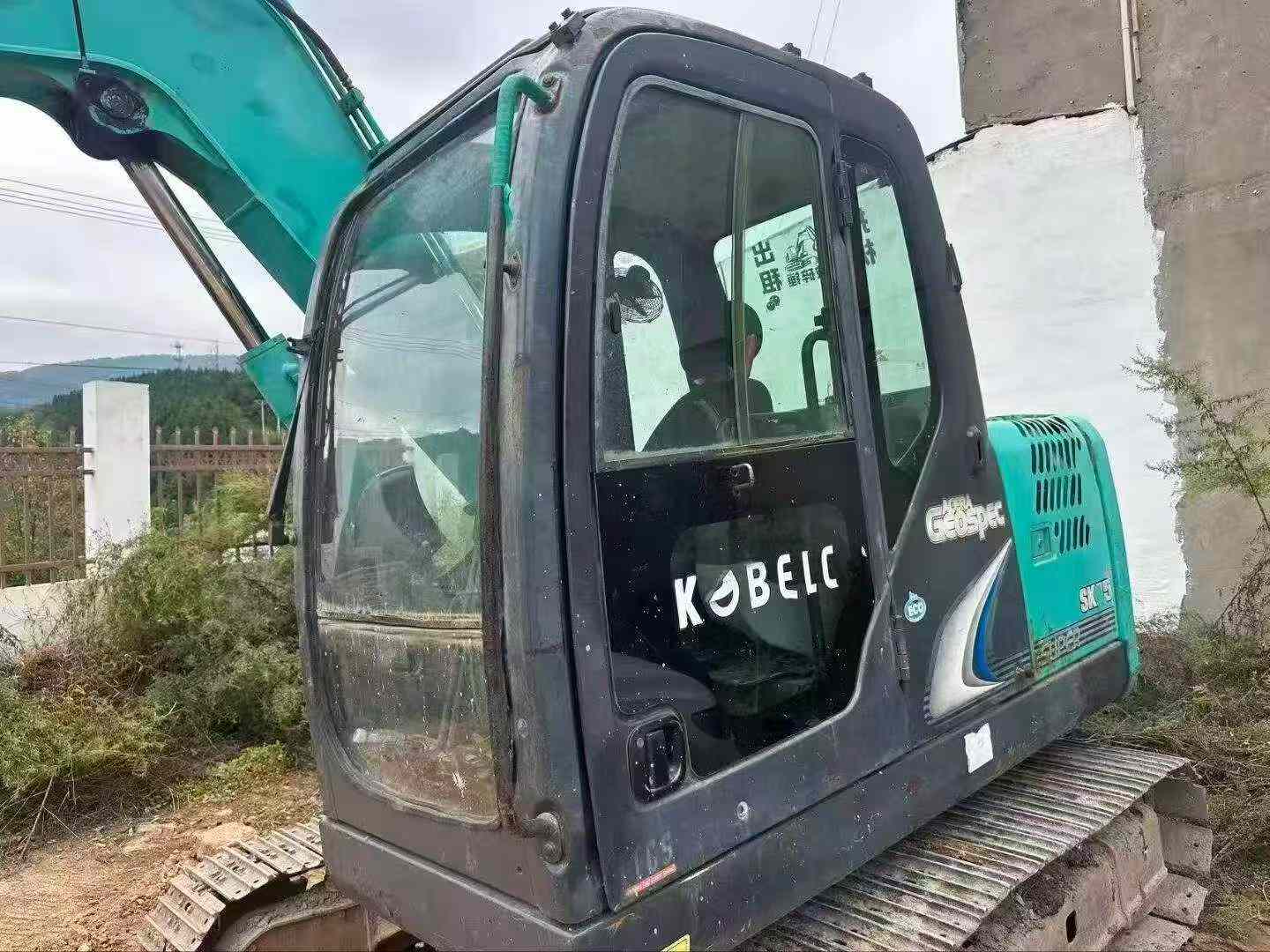

Buy Kobelco SK75 Used Excavator / 5

Product Description

This 2013 Kobelco SK75 midi excavator offers reliable performance for construction and earthmoving applications. Operating at approximately 7.5 metric tons, this compact machine delivers solid digging力 and maneuverability in confined job sites. The SK75 features Kobelco's fuel-efficient engine technology and durable undercarriage components designed for extended service life.

Currently located in Sichuan, China, this unit represents an economical entry point for contractors seeking dependable Japanese engineering at competitive pricing. The SK75's compact dimensions make it suitable for urban construction, utility work, and landscaping projects where space constraints demand a smaller footprint without sacrificing productivity.

  • Year of Manufacture: 2013
  • Operating Weight: Approximately 7.5 tons
  • Location: Sichuan Province, China
  • Condition: Used, operational

Interested buyers should arrange inspection to verify current machine condition and maintenance history.

SpecificationsValue
No.1173951
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1173951

Brand Name:

Kobelco

Model Number:

SK75

Year:

2013

Location:

Sichuan China

Pub Date:
