HOME>>Kobelco>>Kobelco SK75

2014 Kobelco SK75

1/9
Buy Kobelco SK75 Used Excavator / 1

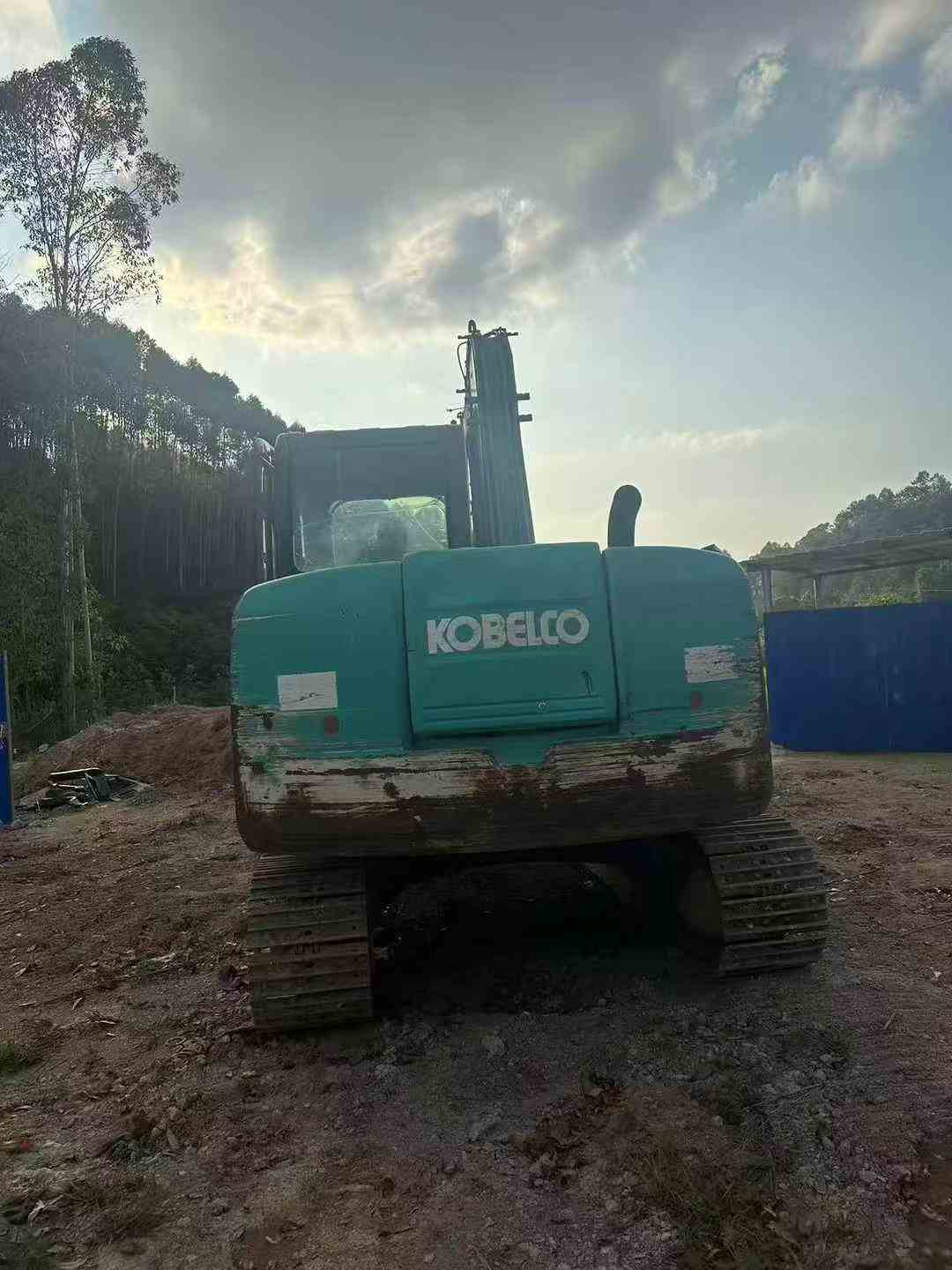

Buy Kobelco SK75 Used Excavator / 2
Buy Kobelco SK75 Used Excavator / 3
Buy Kobelco SK75 Used Excavator / 4
Buy Kobelco SK75 Used Excavator / 5
Buy Kobelco SK75 Used Excavator / 6
Buy Kobelco SK75 Used Excavator / 7

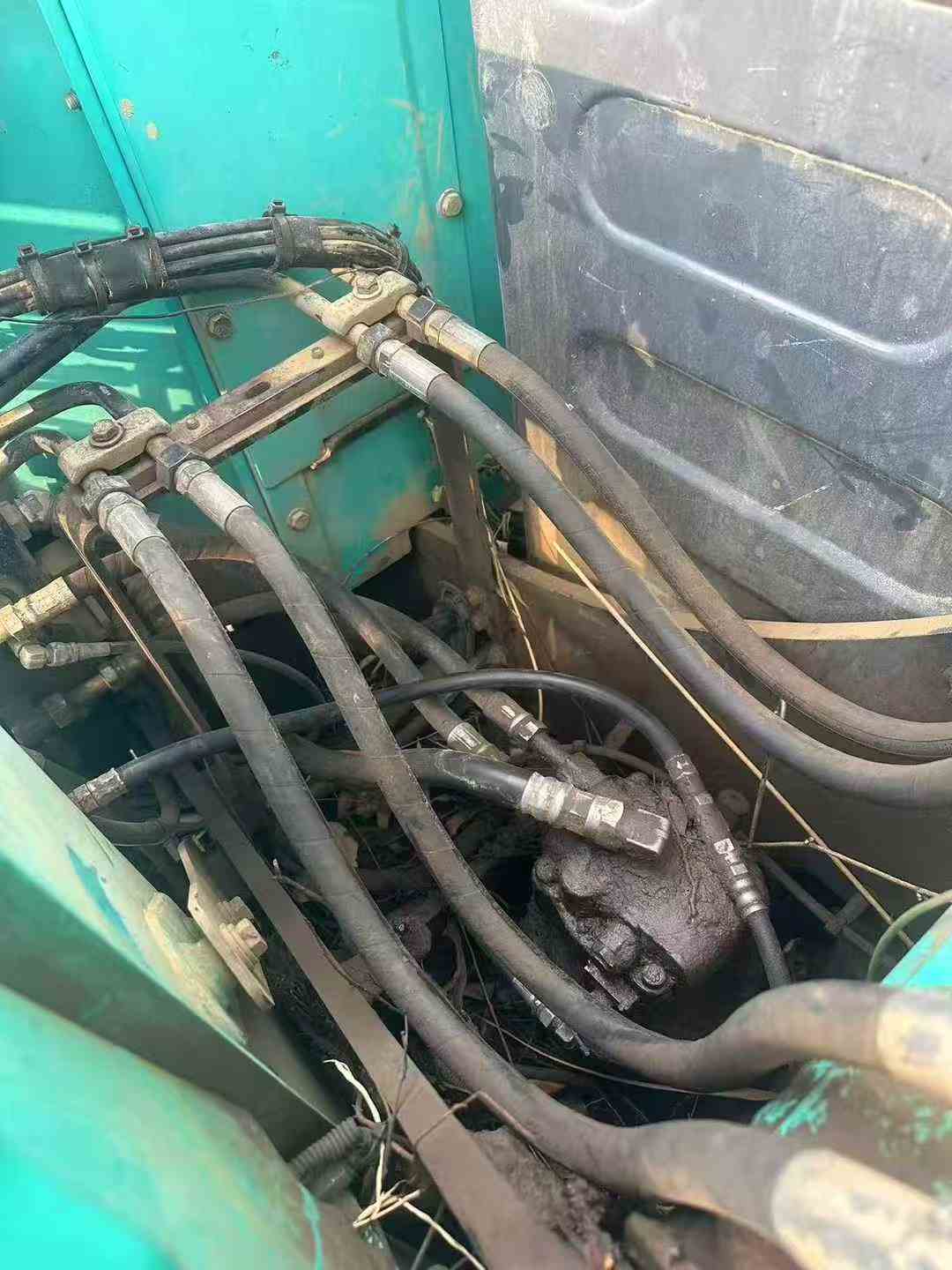

Buy Kobelco SK75 Used Excavator / 8
Buy Kobelco SK75 Used Excavator / 9

Product Description

This 2014 Kobelco SK75 midi excavator is currently available from our Guangxi, China location. The machine comes equipped with a ditching bucket, making it suitable for trenching, grading, and general excavation applications. With approximately a decade of operational history, this unit represents an economical entry point for contractors and operators seeking reliable Kobelco performance at a competitive price point.

The SK75 is known for its 7.5-ton operating weight class, offering an optimal balance between maneuverability and digging capability. This model features Kobelco's efficient hydraulic system and compact design, making it well-suited for urban construction, utility work, and landscaping projects where space constraints are a factor.

  • Year of Manufacture: 2014
  • Model: Kobelco SK75
  • Configuration: Includes ditching bucket
  • Location: Guangxi, China
  • Condition: Used, operational

Inspection and export assistance available upon request.

SpecificationsValue
No.1077436
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1077436

Brand Name:

Kobelco

Model Number:

SK75

Year:

2014

Location:

Guangxi China

Pub Date
