2014 Kobelco SK75

1/9

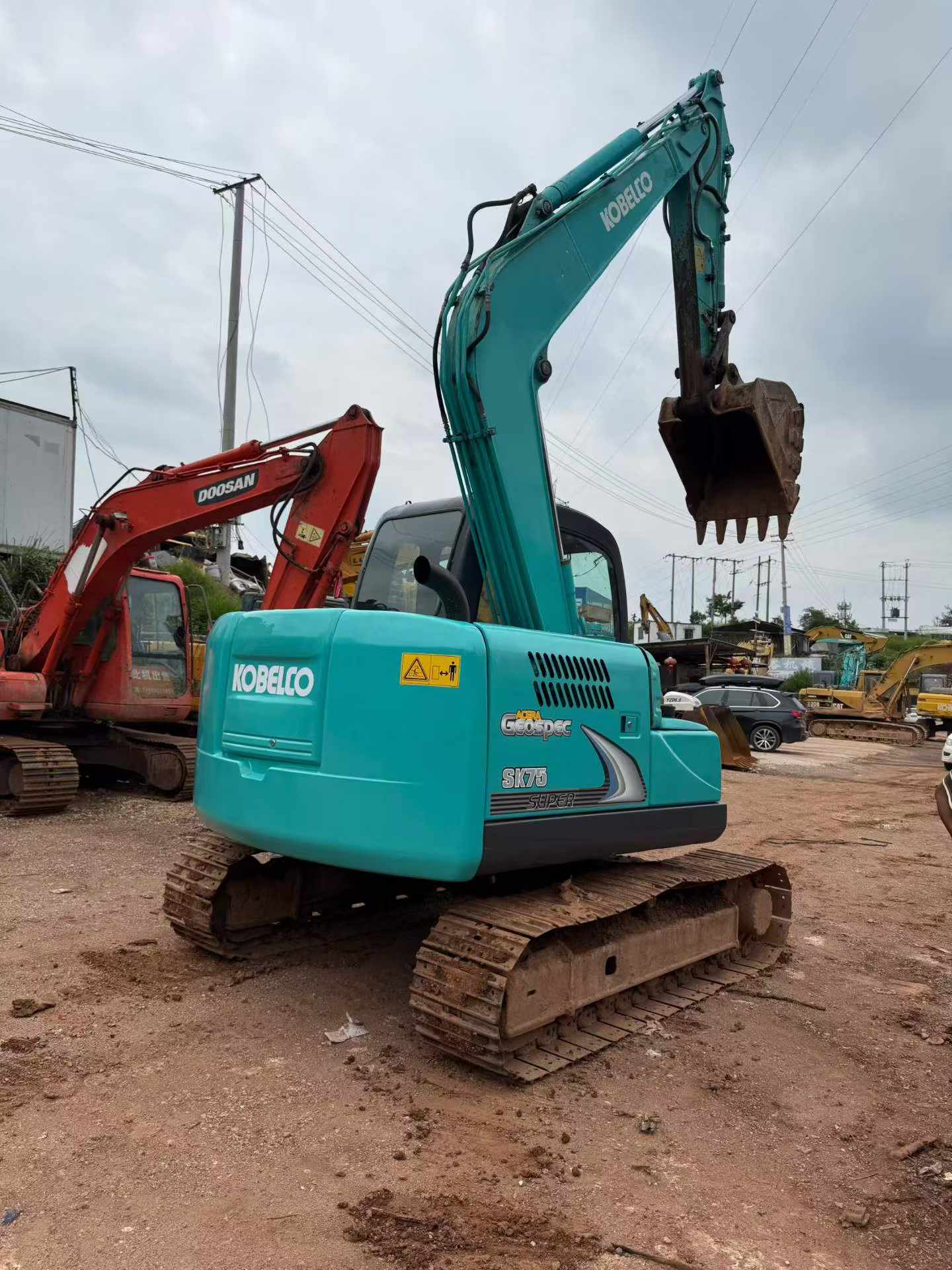

Buy Kobelco SK75 Used Excavator / 1

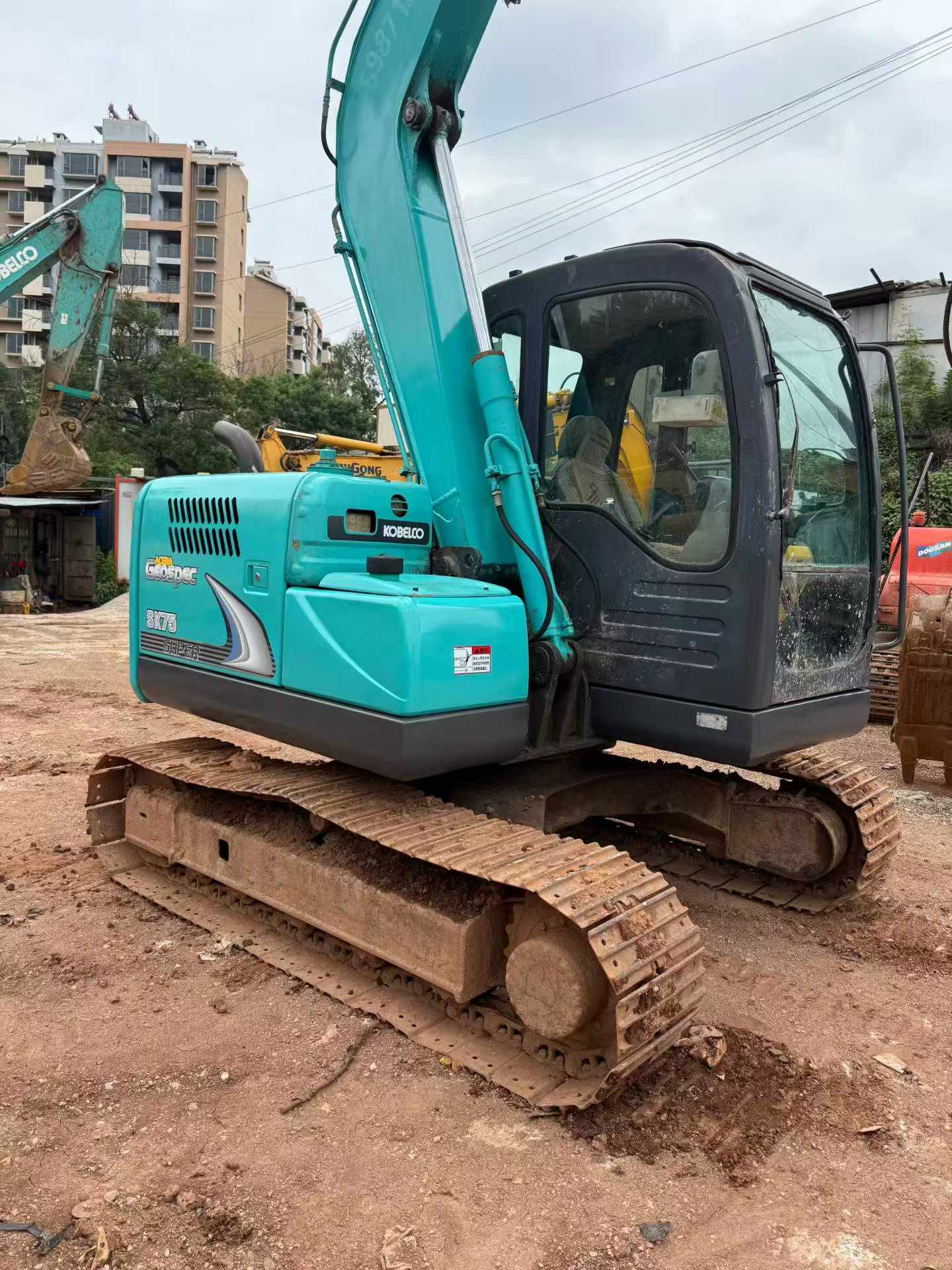

Buy Kobelco SK75 Used Excavator / 2

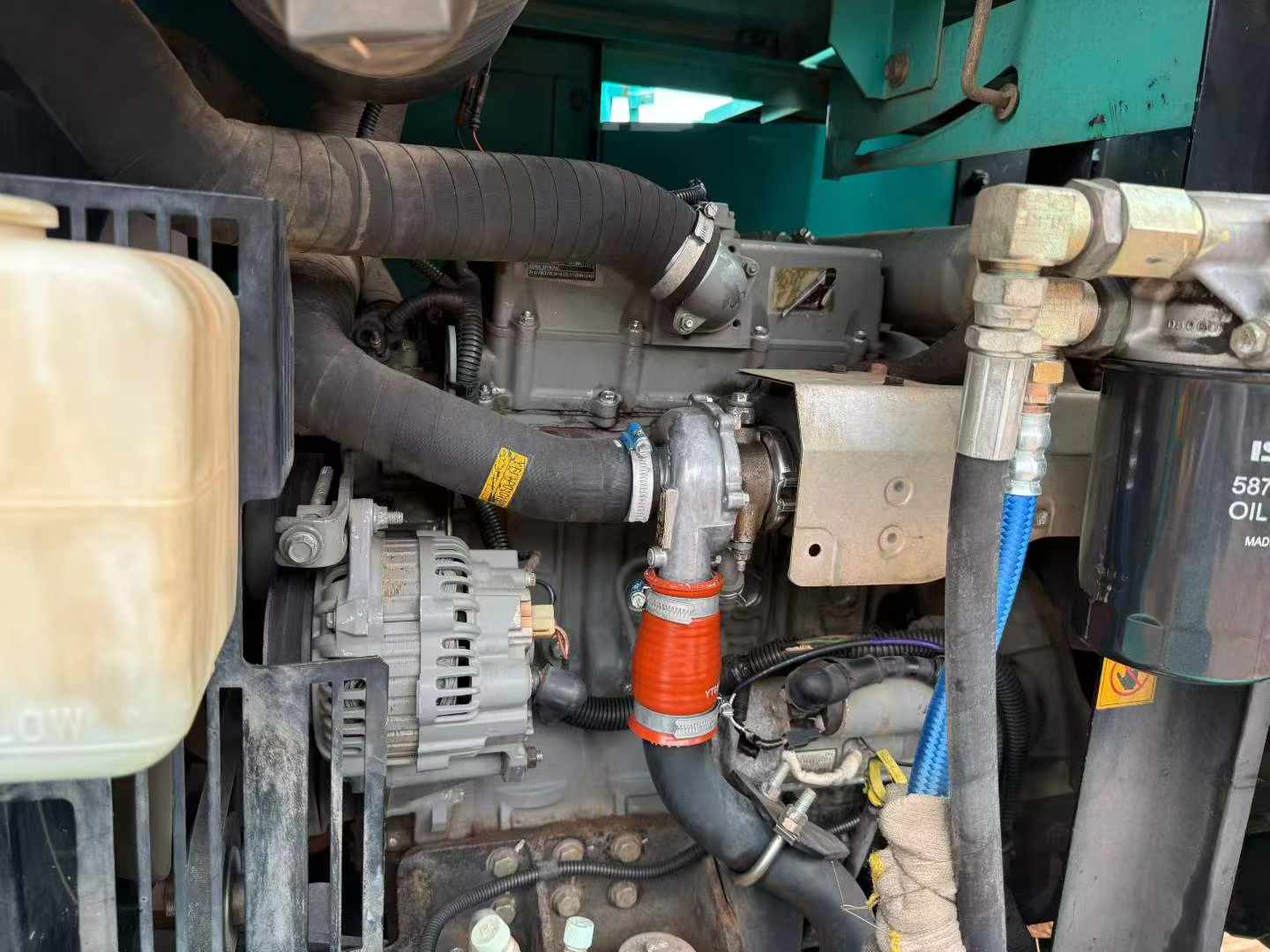

Buy Kobelco SK75 Used Excavator / 3

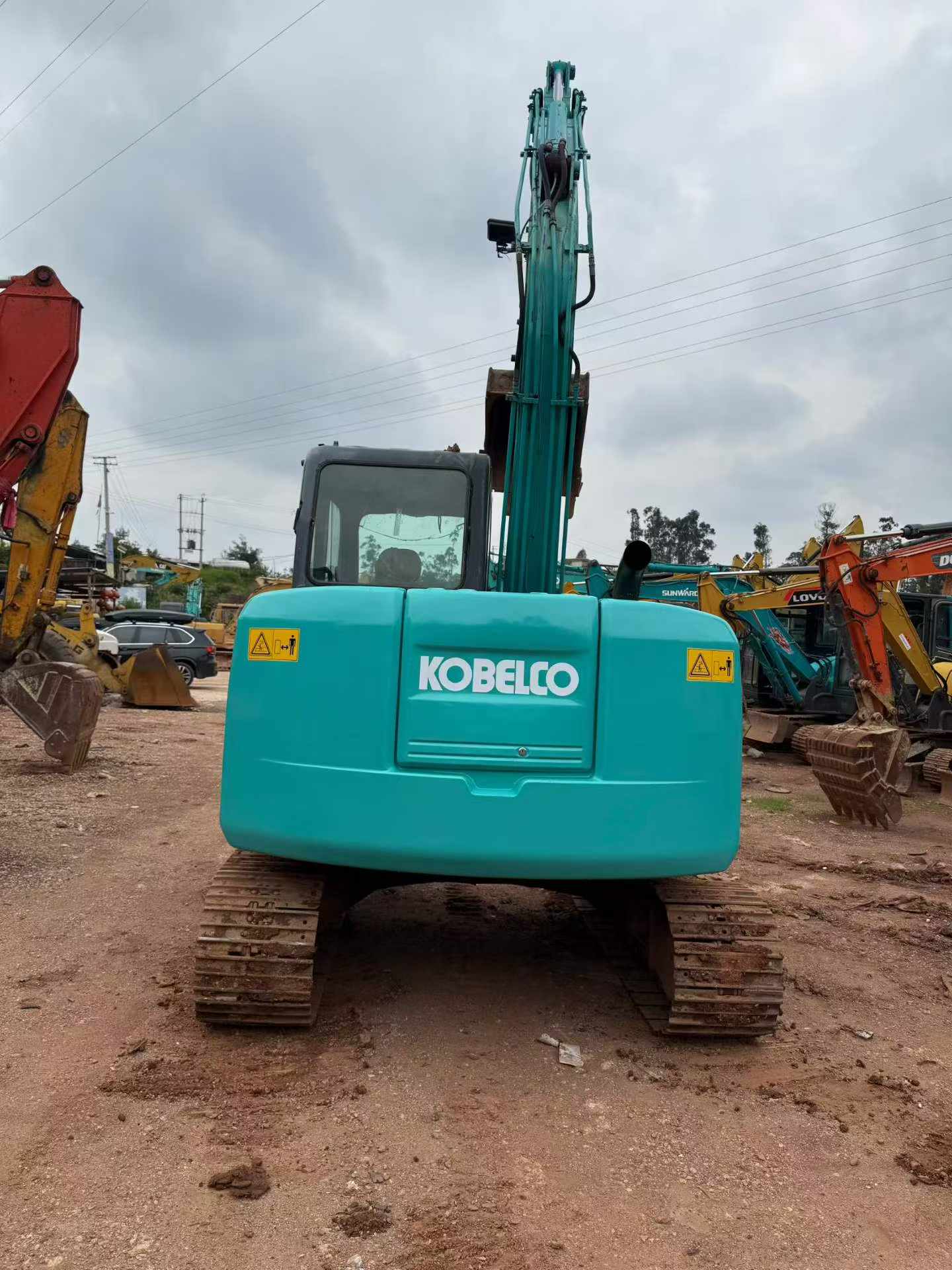

Buy Kobelco SK75 Used Excavator / 4

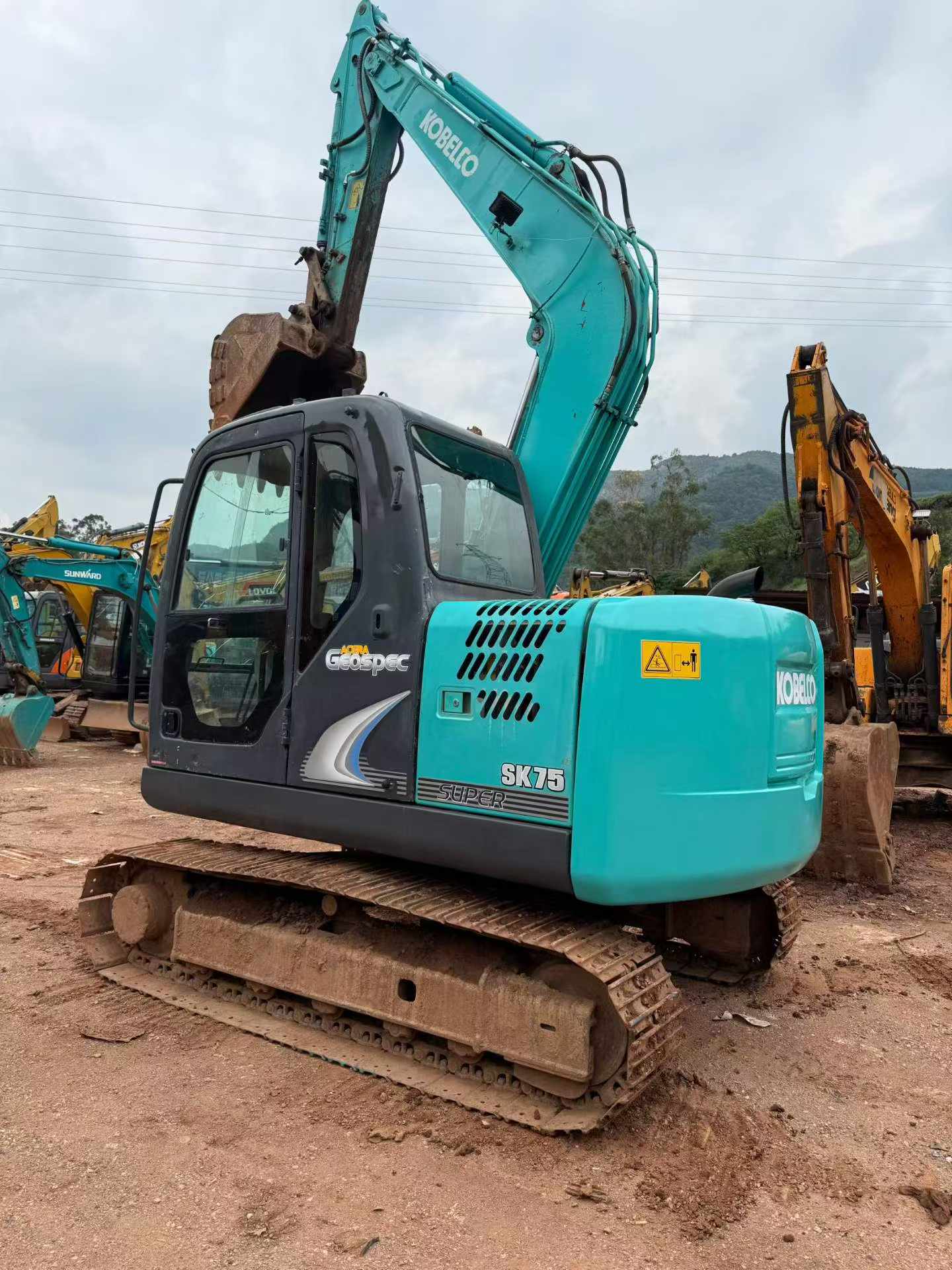

Buy Kobelco SK75 Used Excavator / 5

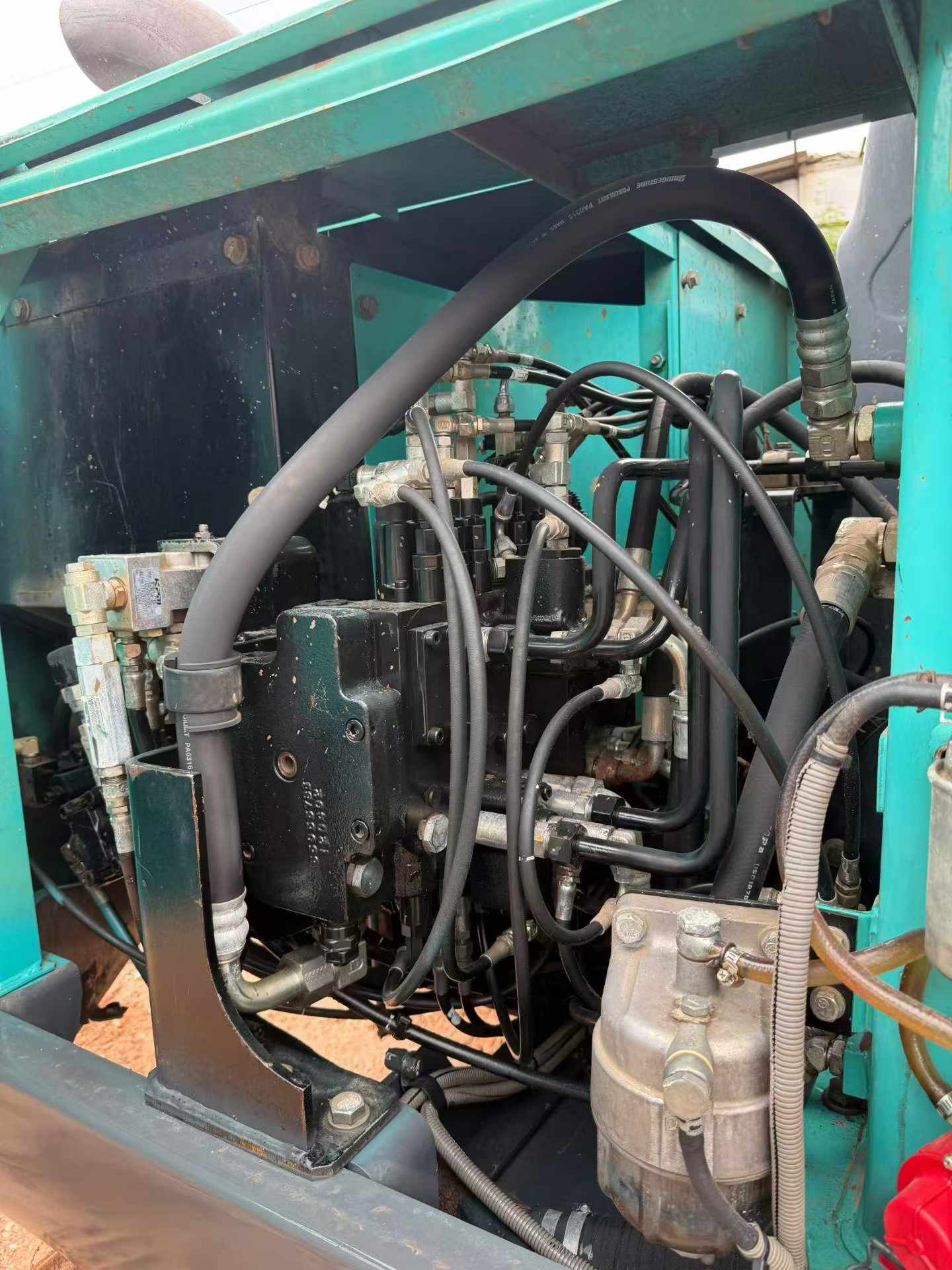

Buy Kobelco SK75 Used Excavator / 6

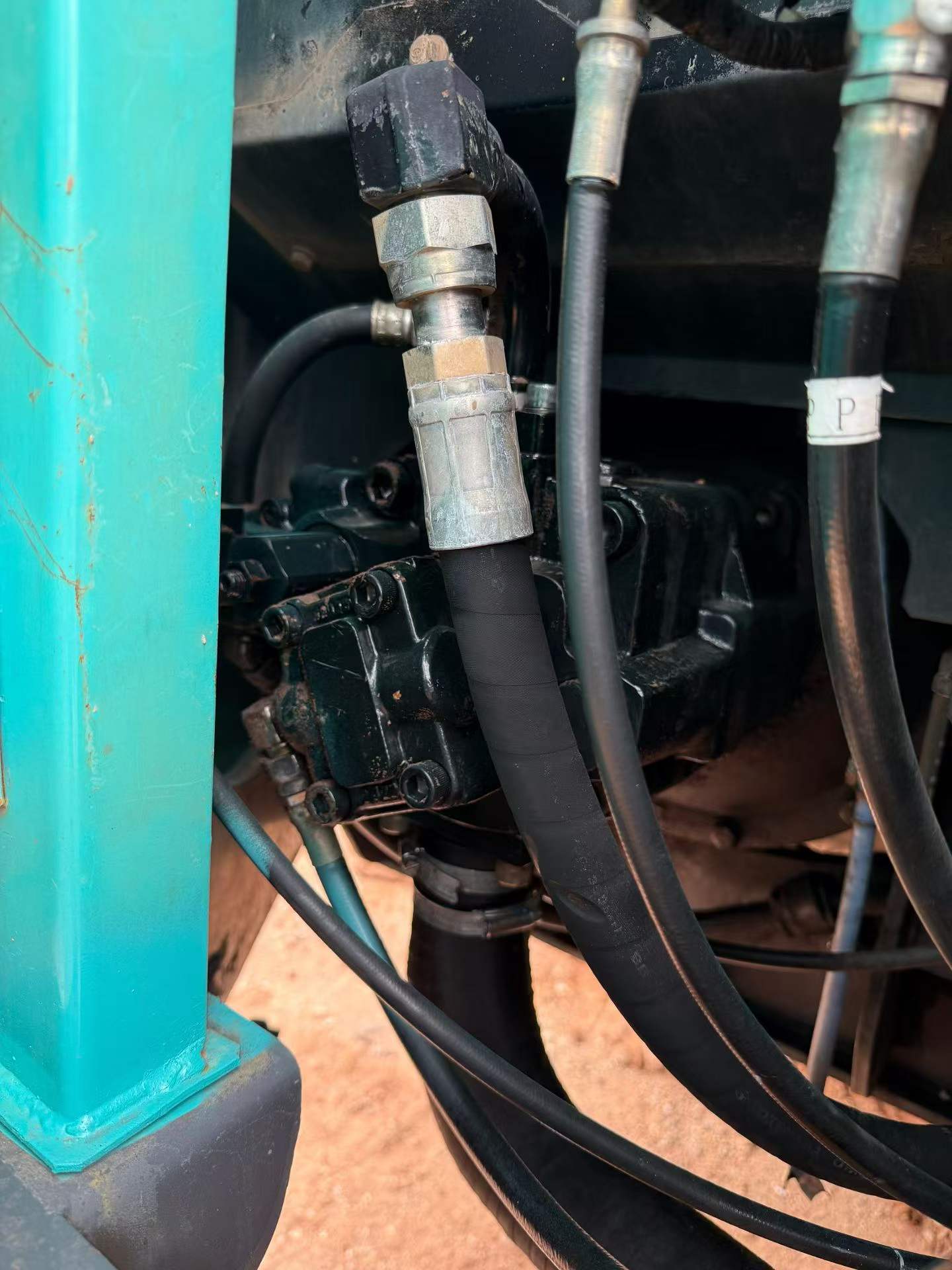

Buy Kobelco SK75 Used Excavator / 7

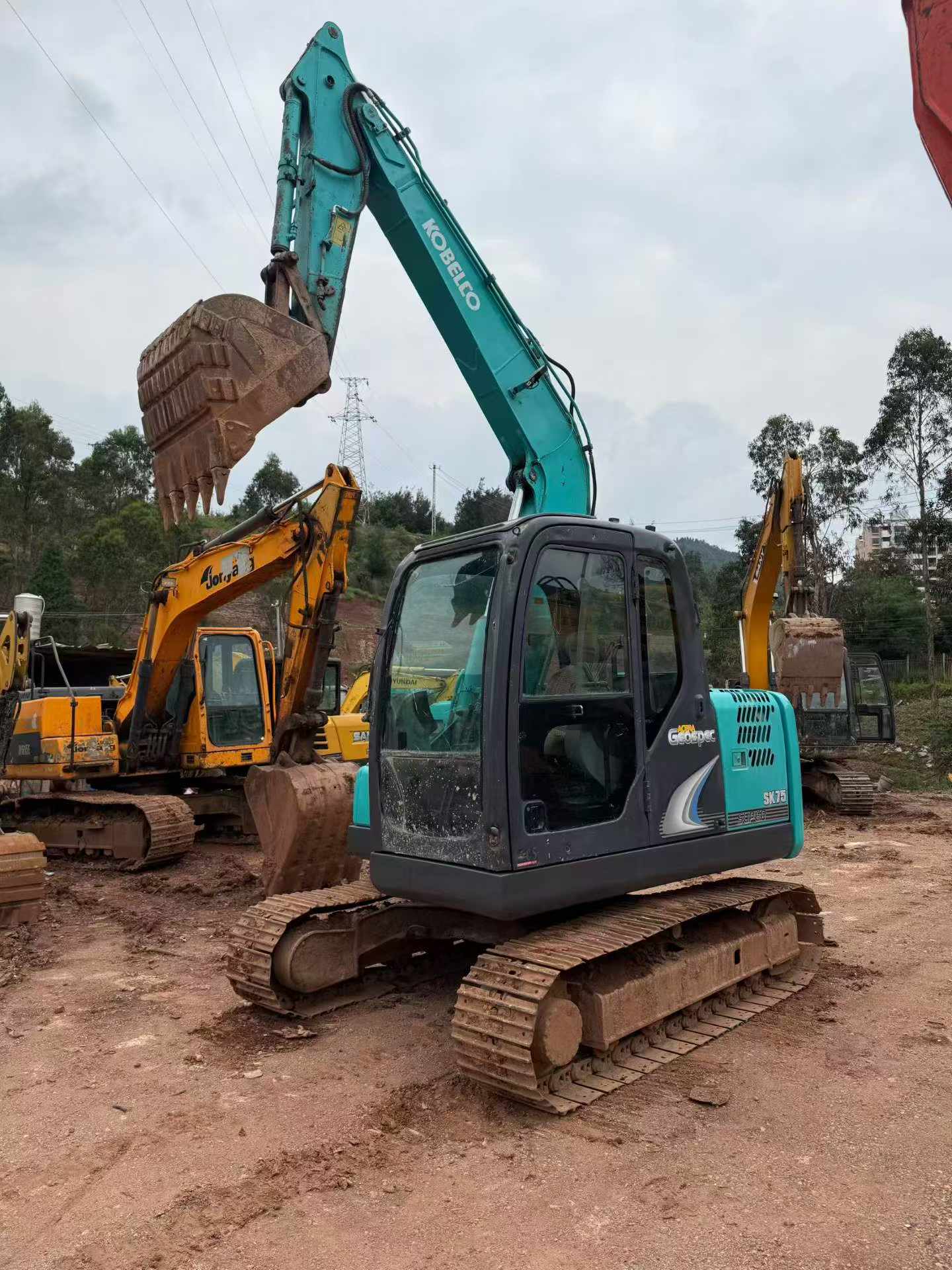

Buy Kobelco SK75 Used Excavator / 8

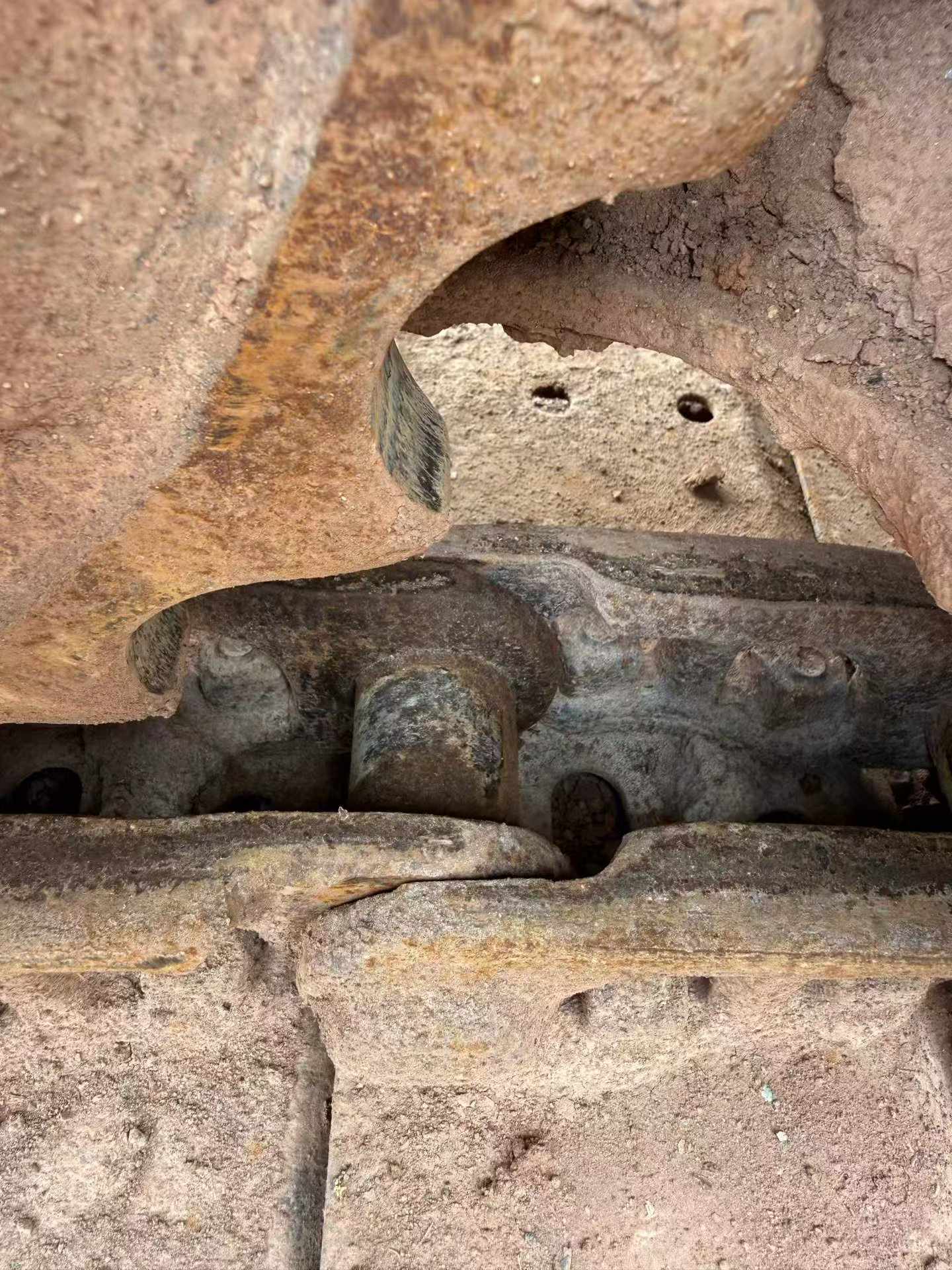

Buy Kobelco SK75 Used Excavator / 9

Product Description

2014 Kobelco SK75 hydraulic excavator available in Yunnan, China. This mid-size crawler excavator from Kobelco's proven SK series delivers reliable performance for construction, demolition, and earthmoving applications. The machine is currently operational with verified working condition.

  • Year: 2014
  • Model: Kobelco SK75
  • Type: Hydraulic crawler excavator
  • Operating weight class: 7.5 metric tons
  • Location: Kunming, Yunnan Province, China
  • Condition: Operational, performance verified
  • Inspection: Available for on-site viewing in Kunming

The SK75 features Kobelco's efficient hydraulic system and durable undercarriage design. Suitable for contractors and operators seeking a dependable machine in the 7-8 ton class. Physical inspection recommended before purchase. Contact us to arrange viewing in Kunming.

SpecificationsValue
No.1084490
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
