Product Description

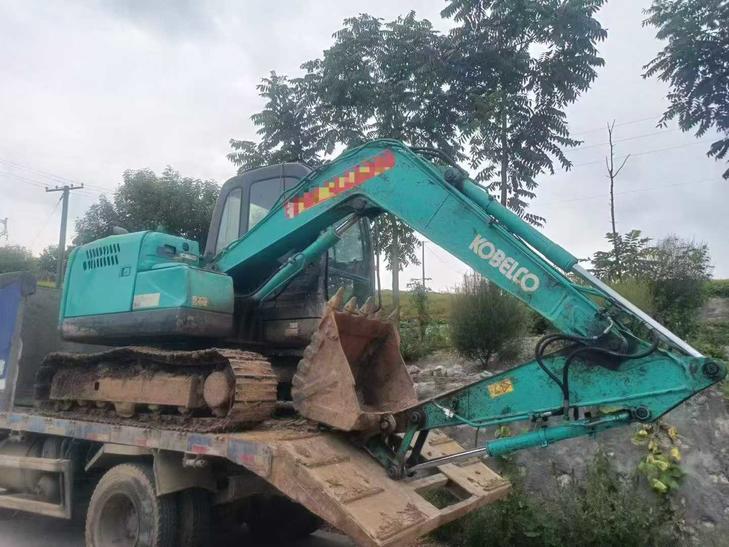

This 2014 Kobelco SK75 excavator offers reliable performance for medium-duty construction and earthmoving applications. Currently located in Hubei, China, this machine represents solid value in the 7-ton class excavator segment.
The SK75 is known for its compact footprint combined with efficient hydraulic systems, making it suitable for urban construction sites, utility work, and general excavation tasks. Kobelco's reputation for fuel efficiency and operator comfort makes this model a practical choice for contractors seeking dependable used equipment.
Key features include:
- Compact design for confined work areas
- Efficient hydraulic system
- Operator-friendly cab layout
- Versatile attachment compatibility
Comprehensive documentation including detailed photos and video available for buyer review. Contact us for additional information, current machine condition assessment, and export arrangements from Hubei, China.
| Specifications | Value |
|---|---|
| No. | 1141195 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
