2014 Kobelco SK75

1/9
Buy Kobelco SK75 Used Excavator / 1
Buy Kobelco SK75 Used Excavator / 2
Buy Kobelco SK75 Used Excavator / 3
Buy Kobelco SK75 Used Excavator / 4

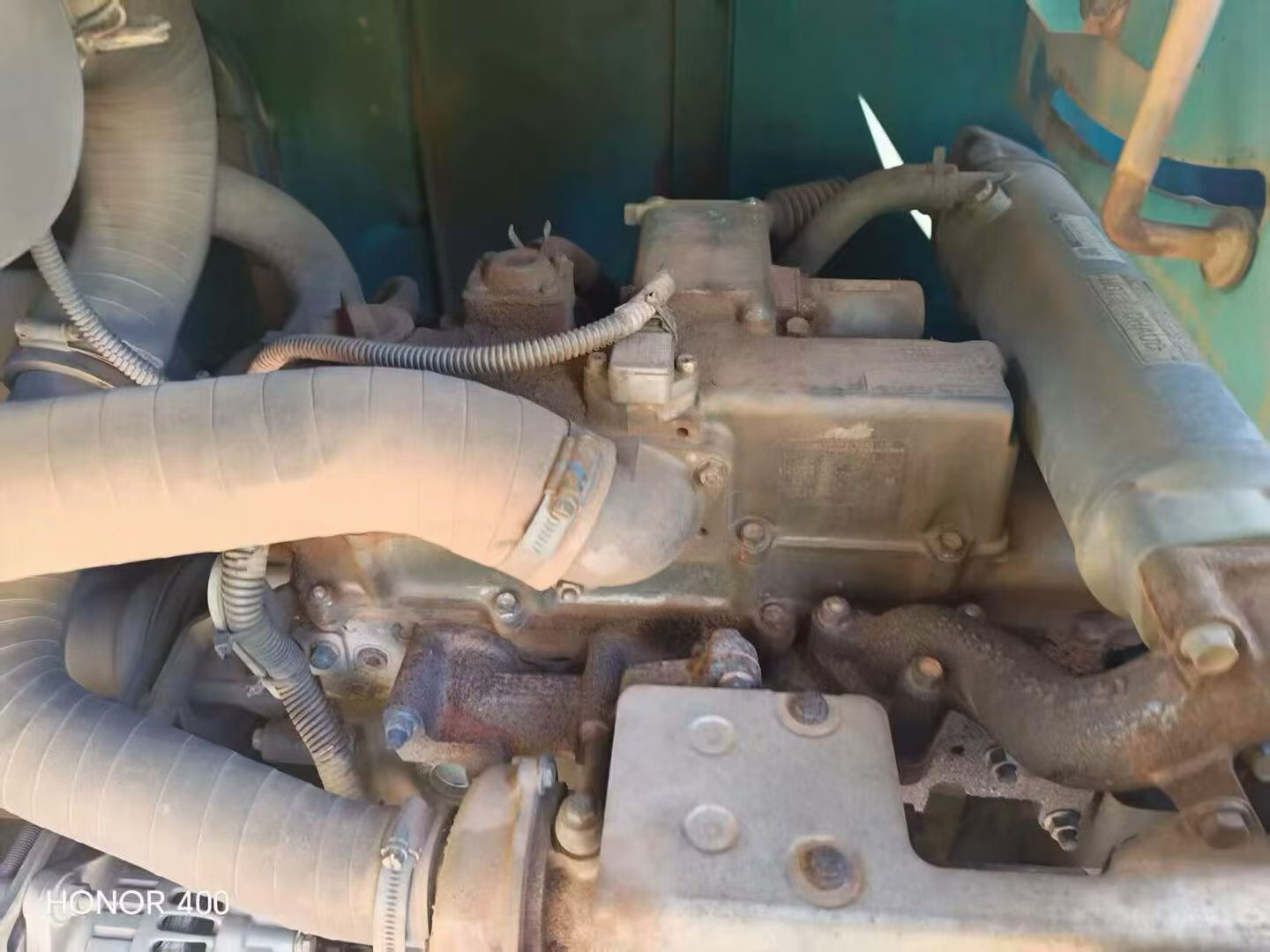

Buy Kobelco SK75 Used Excavator / 5
Buy Kobelco SK75 Used Excavator / 6
Buy Kobelco SK75 Used Excavator / 7
Buy Kobelco SK75 Used Excavator / 8
Buy Kobelco SK75 Used Excavator / 9

Product Description

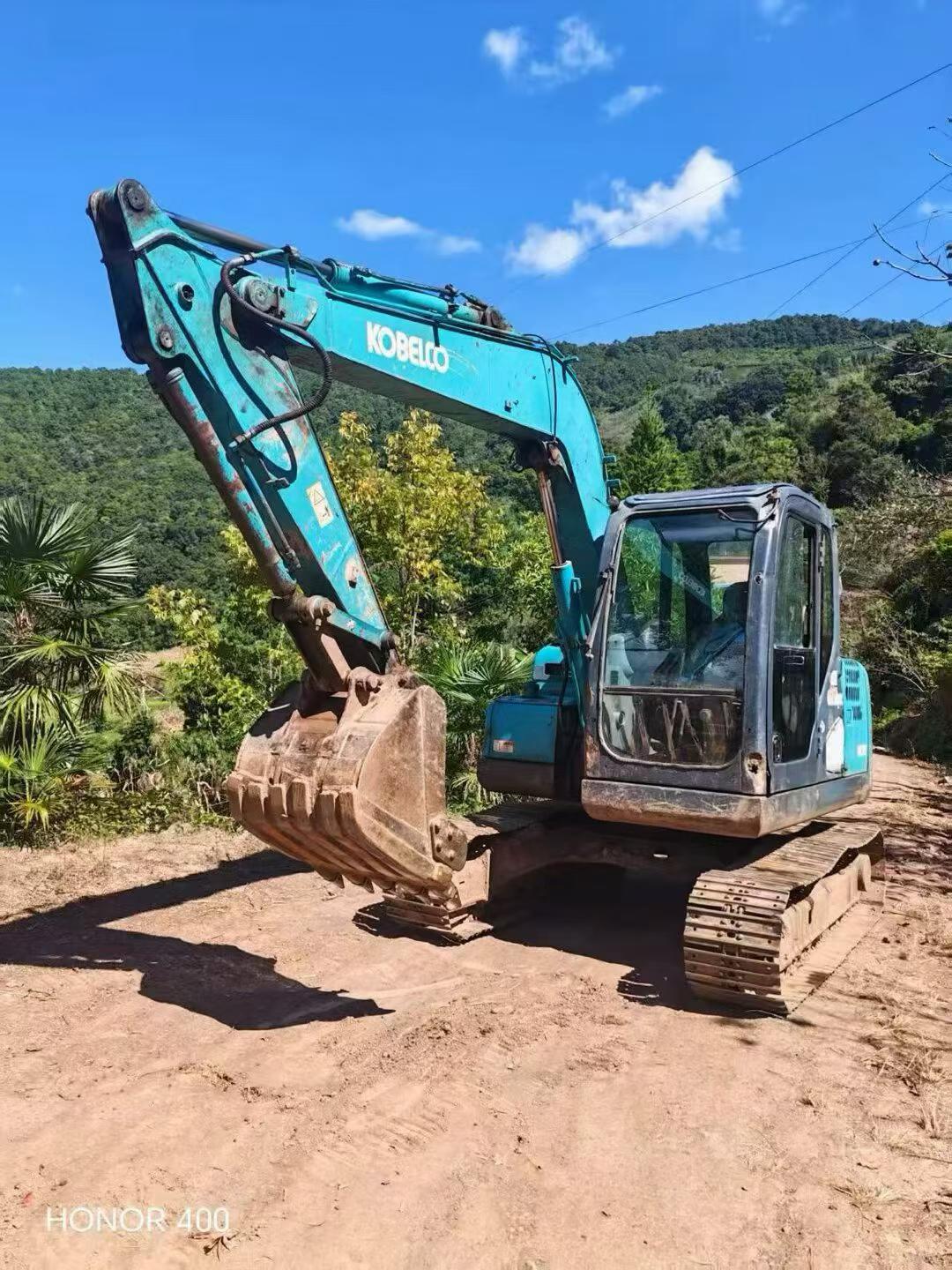

This 2014 Kobelco SK75 excavator is available from Yunnan, China. Originally owned and operated by a single owner, this 7.5-ton class machine comes with complete documentation and proper paperwork in order. The SK75 is recognized in the compact excavator segment for reliable hydraulic performance and operational efficiency on confined jobsites.

Key features include:

  • Single owner history with documented maintenance records
  • Approximately 50,000+ operating hours logged
  • Complete legal documentation for international transfer
  • Kobelco hydraulic system with proven durability
  • Compact footprint suitable for urban construction and utility work

This unit represents an economical entry point for contractors seeking dependable used excavation equipment. Immediate availability for inspection and purchase. Contact us for shipping arrangements and technical specifications tailored to your operational requirements.

SpecificationsValue
No.1167427
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

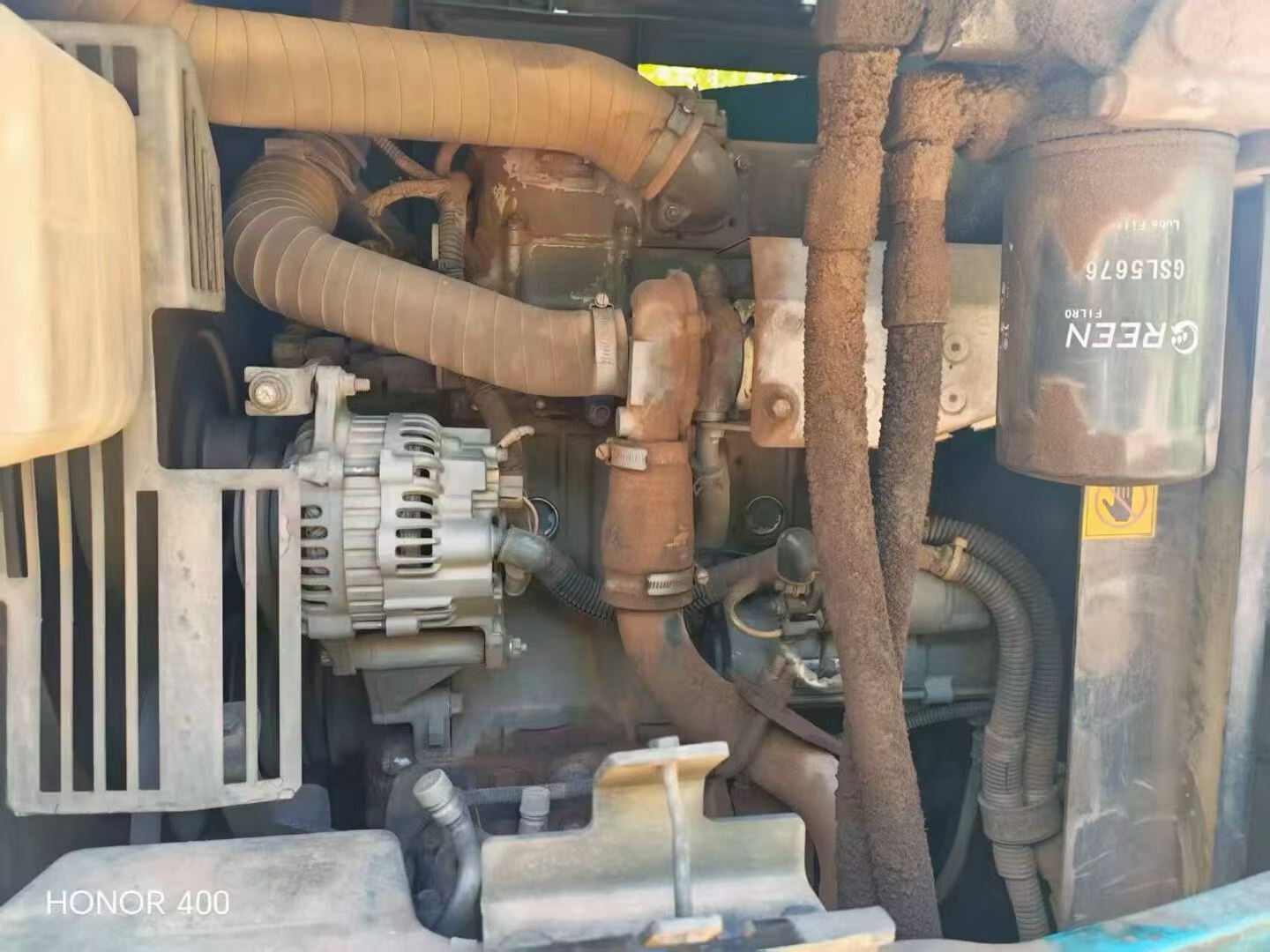

Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1167427

Brand Name:

Kobelco

Model Number:

SK75

Year:

2014

Location:

Yunnan China

Pub Date:
