Product Description

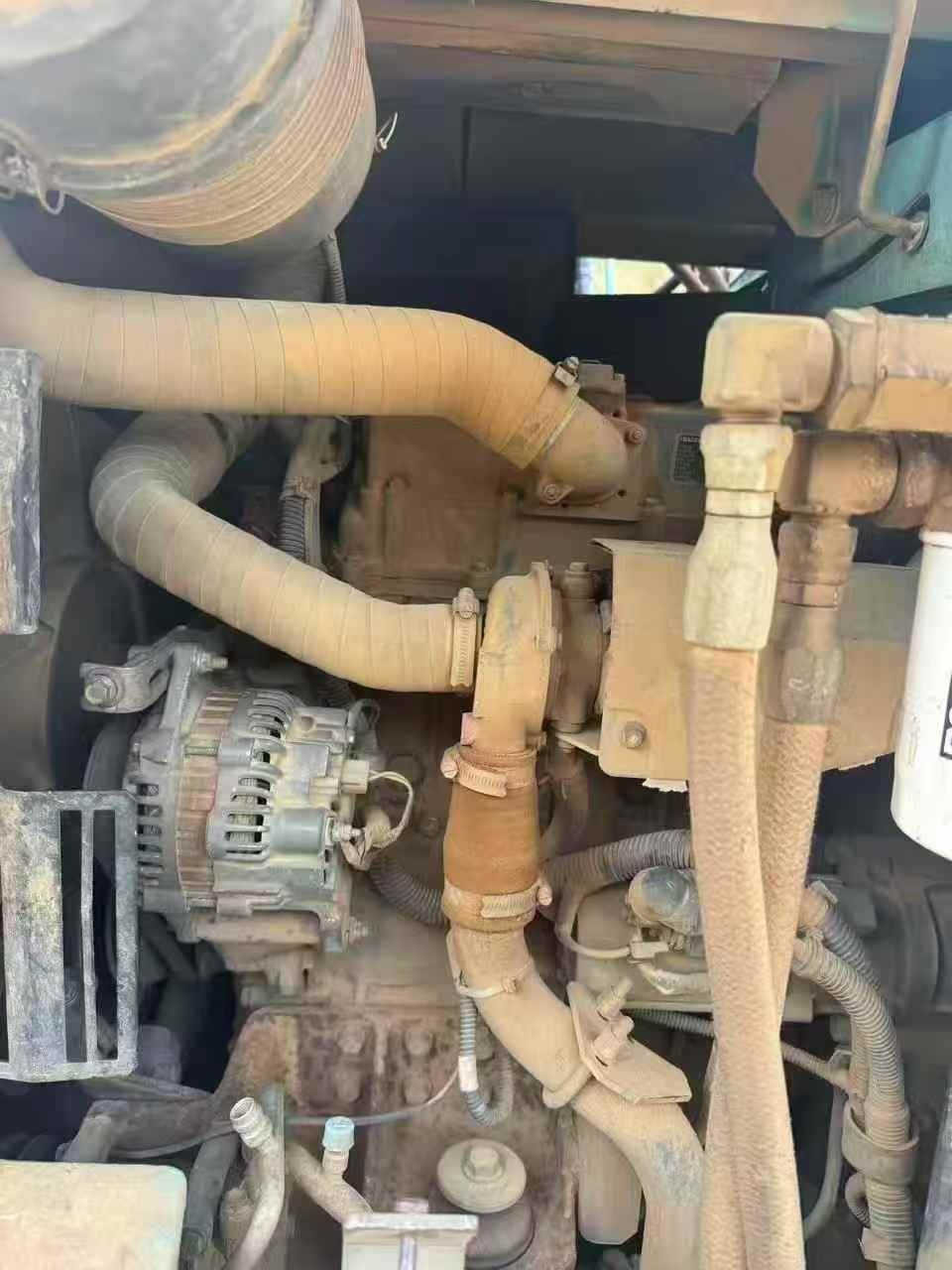

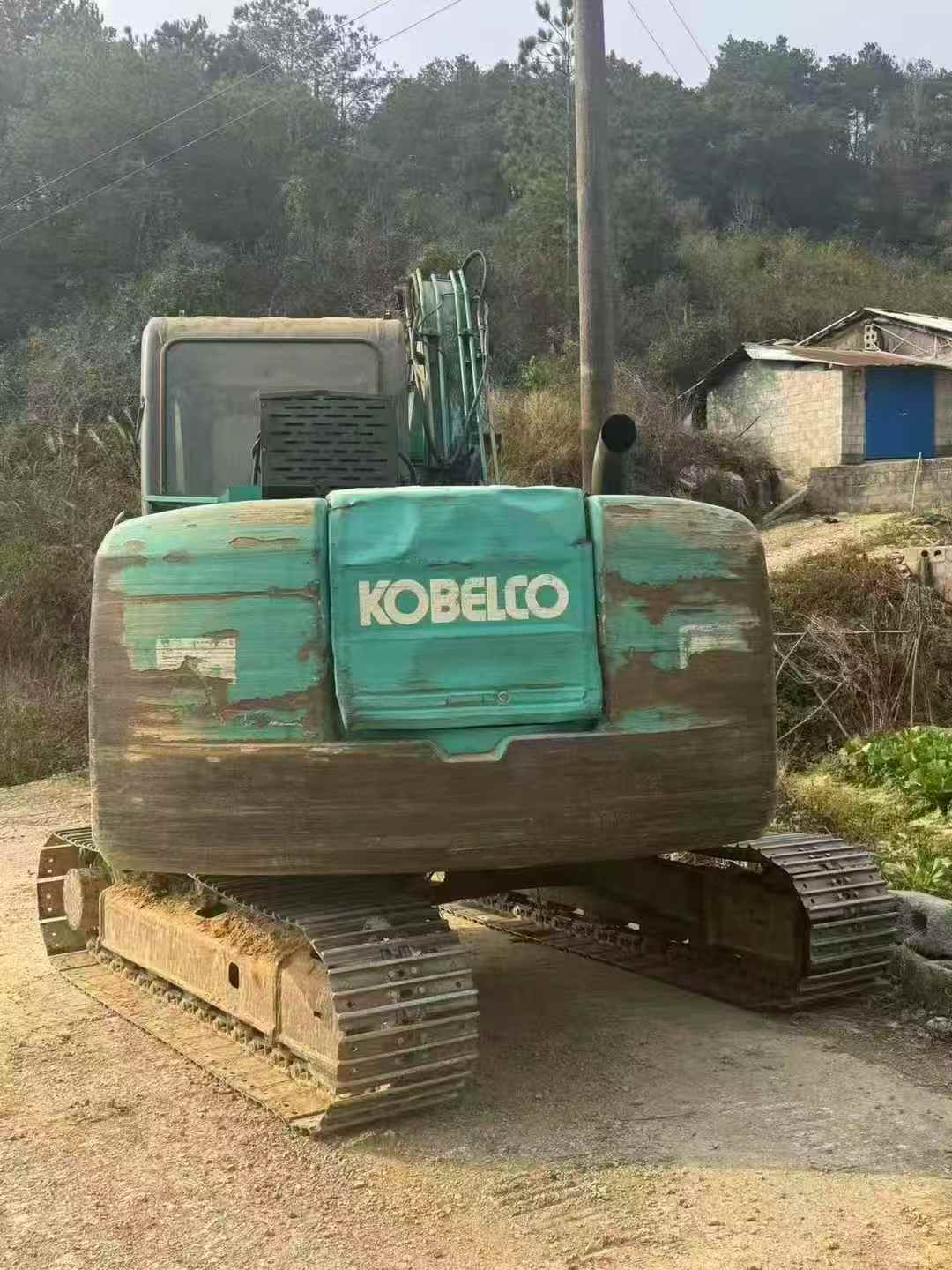

Proven performance meets exceptional durability in this 2014 Kobelco SK75 excavator, currently located in Guizhou. With nearly a decade of operational history, this 7-ton workhorse demonstrates the legendary build quality that Kobelco is renowned for. Powered by a reliable ISUZU AU4LE2X engine delivering 41kW at 2200 rpm, this machine combines robust construction with efficient hydraulics to tackle demanding excavation tasks day after day.

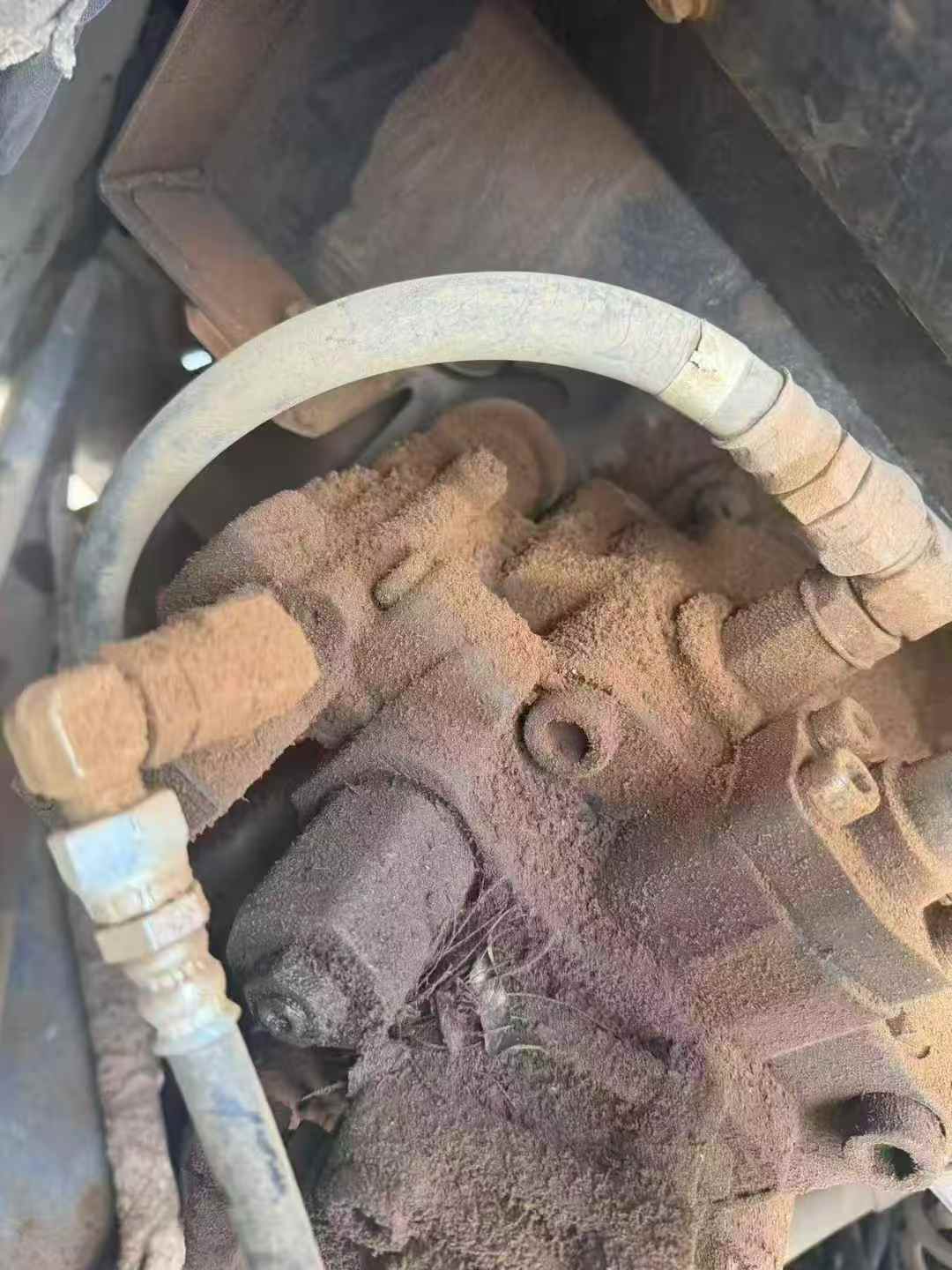

Built to last through challenging conditions, this SK75 features a sophisticated double variable displacement axial piston pump system and water-cooled engine technology. Key performance specifications include:
- Maximum digging depth of 4,160mm with 6,460mm reach
- Working hydraulic circuit rated at 29.4 Mpa for consistent power delivery
- Compact design with 1,290mm rear turning radius for confined spaces
- Dual travel speeds (2.8/5.3 km/h) for versatility
- 120L fuel capacity for extended operation
This joint venture/import model represents a proven investment in reliability, backed by years of field-tested performance. A genuine workhorse ready for your next project.
| Specifications | Value |
|---|---|
| No. | 999316 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
