Product Description

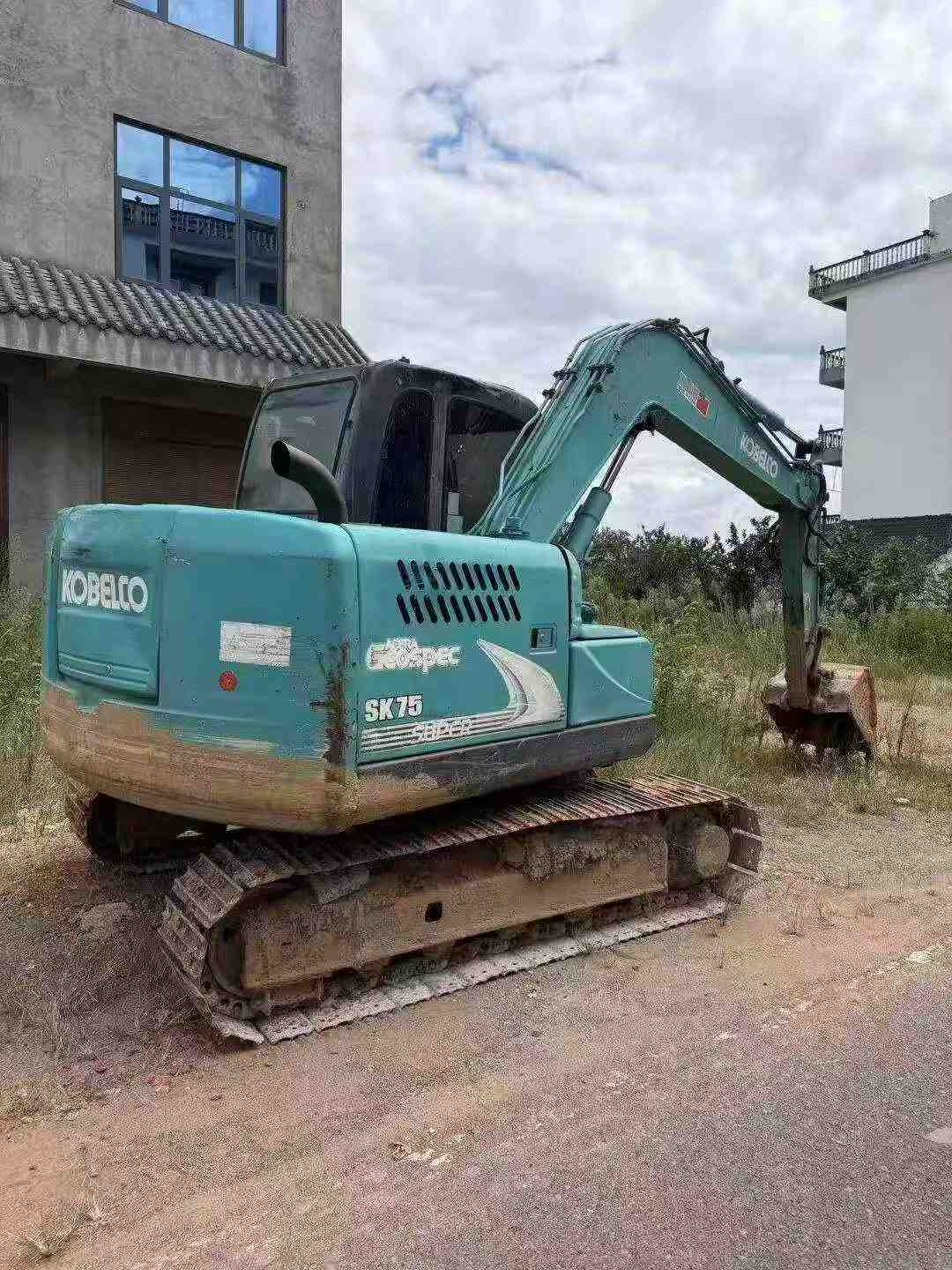

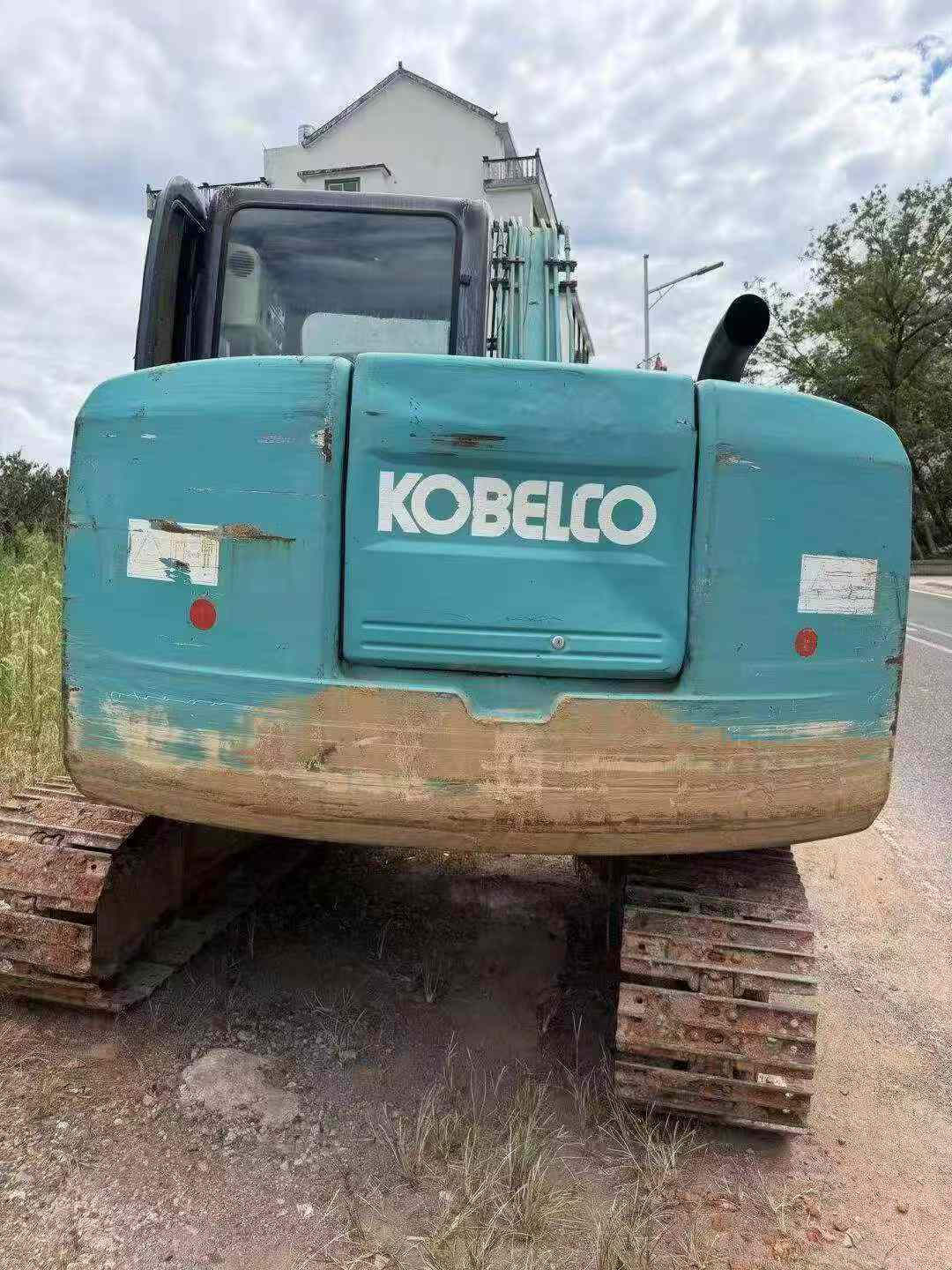

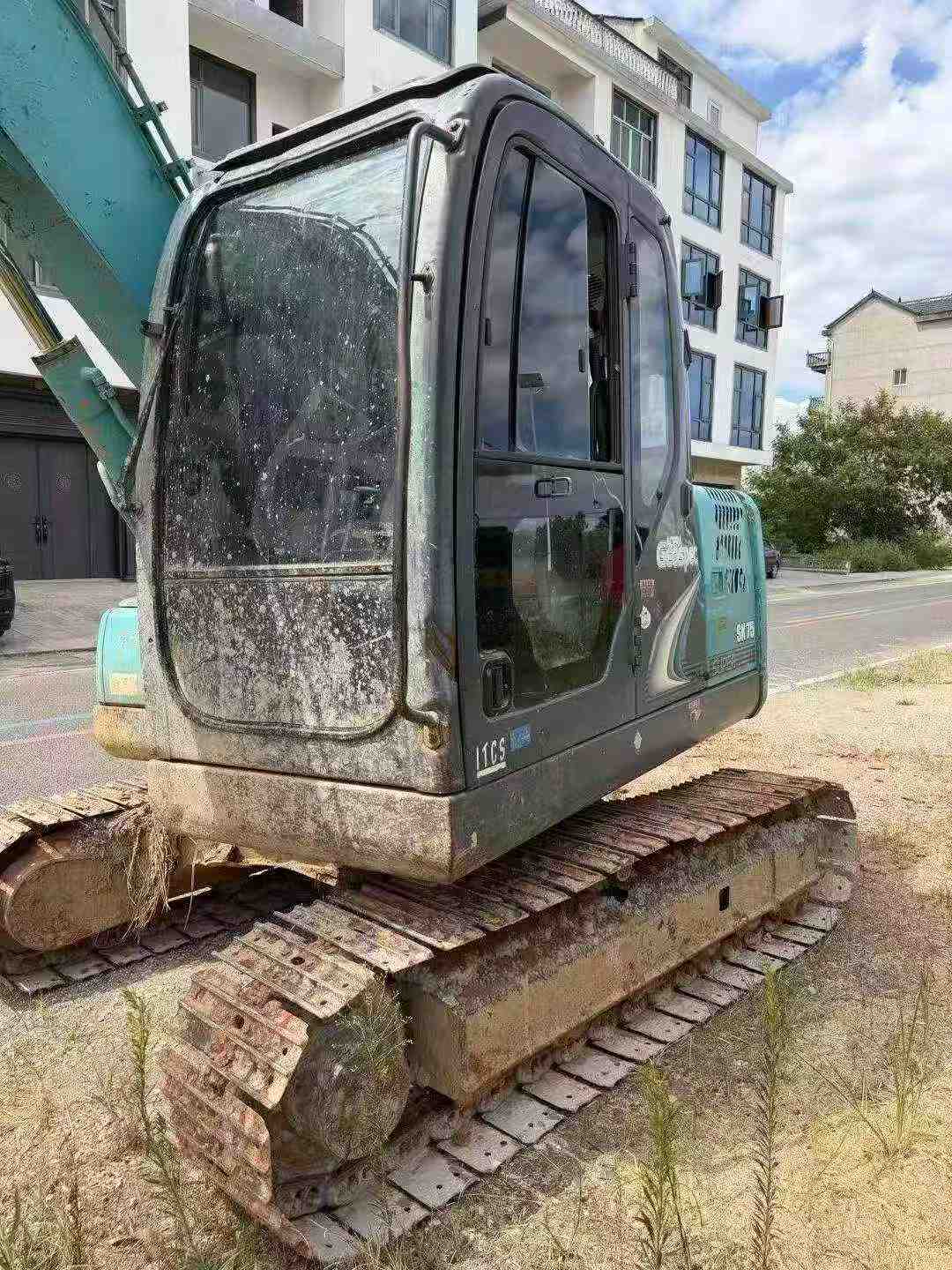

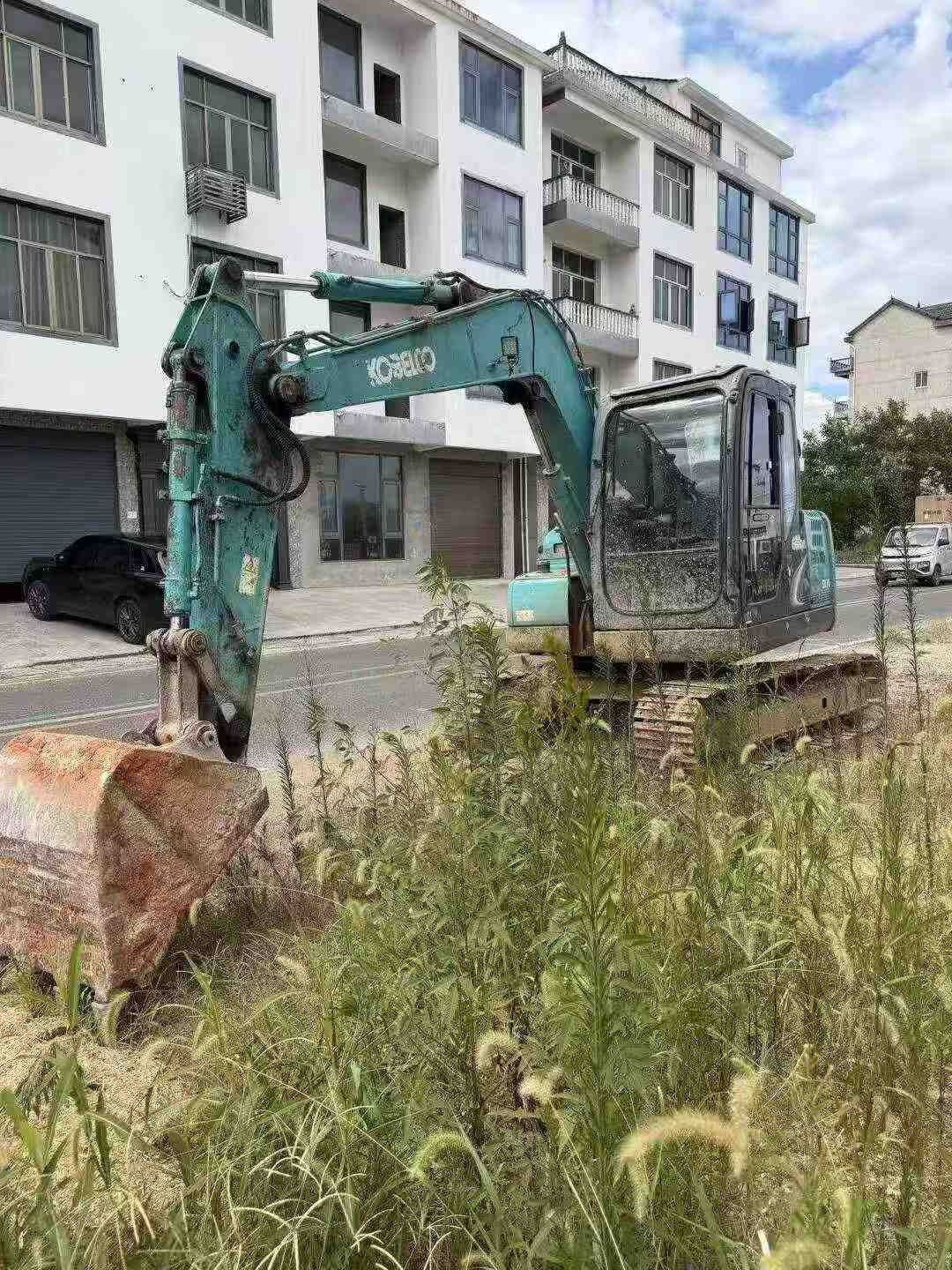

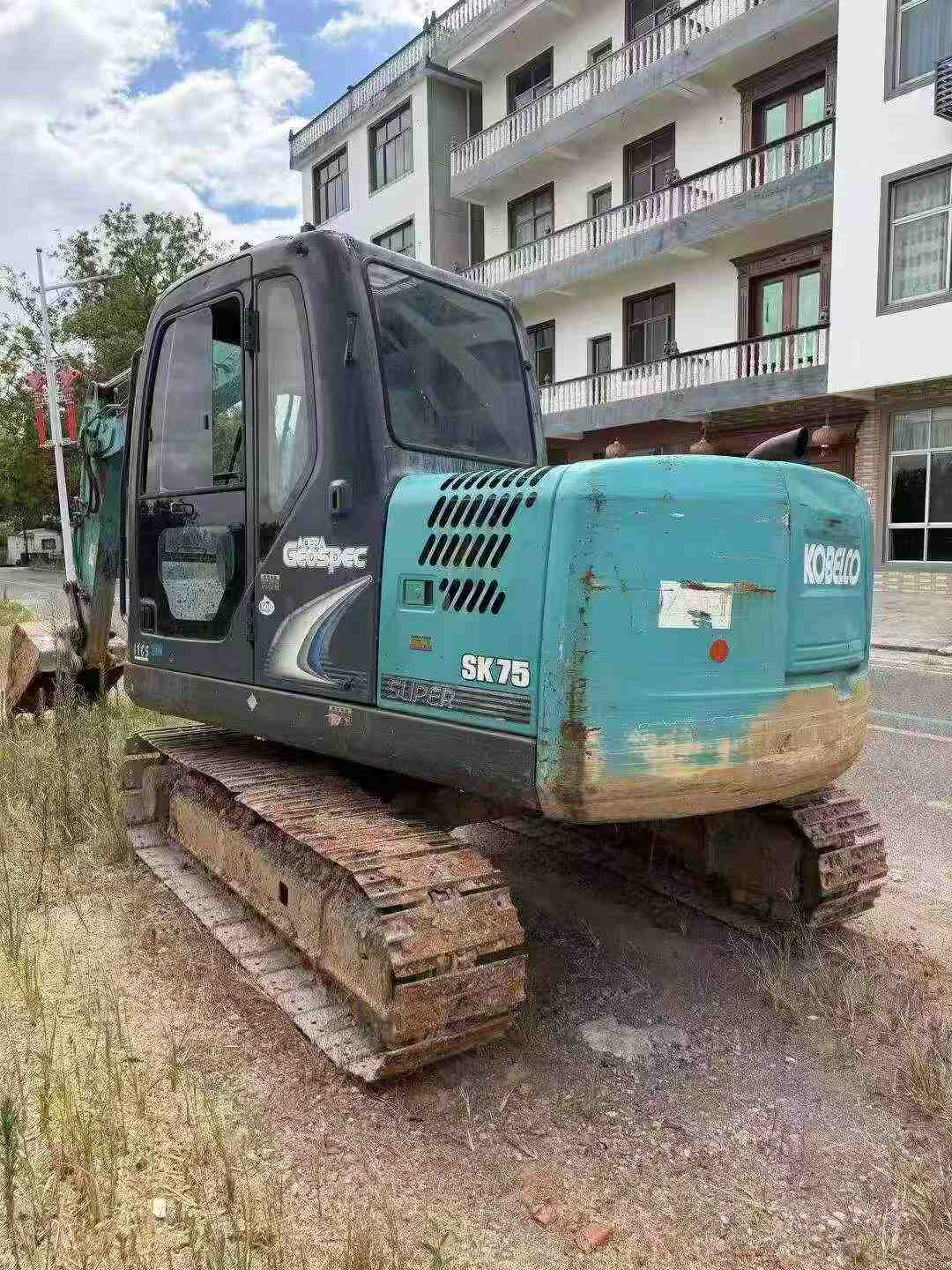

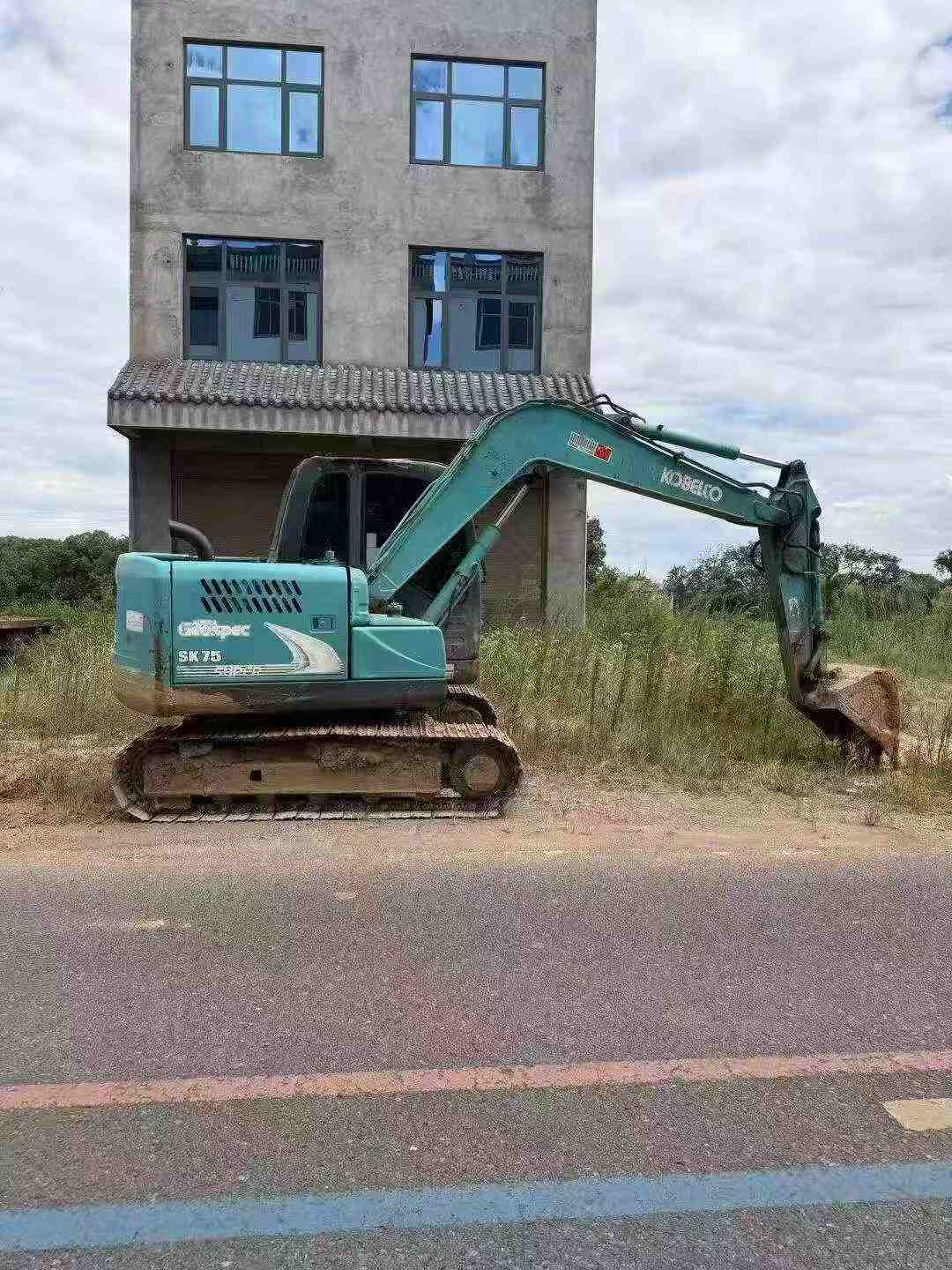

This 2015 Kobelco SK75 excavator represents a solid mid-sized solution for contractors seeking reliable performance in confined job sites. Located in Sichuan, China, this 7.5-ton class machine offers the balanced combination of compact dimensions and capable digging force that Kobelco equipment is known for.
The SK75 features a hydraulic system designed for smooth operation and fuel efficiency, making it suitable for utility work, landscaping, and light construction applications. With its zero tail swing design, this model excels in urban environments where space constraints are a factor.
- Year of Manufacture: 2015
- Operating Weight: Approximately 7.5 tons
- Current Location: Sichuan Province, China
- Condition: Used
- Suitable for: Urban construction, utility installation, landscaping
This machine is available for immediate inspection and represents an economical entry point for buyers seeking proven Kobelco engineering.
| Specifications | Value |
|---|---|
| No. | 1138697 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

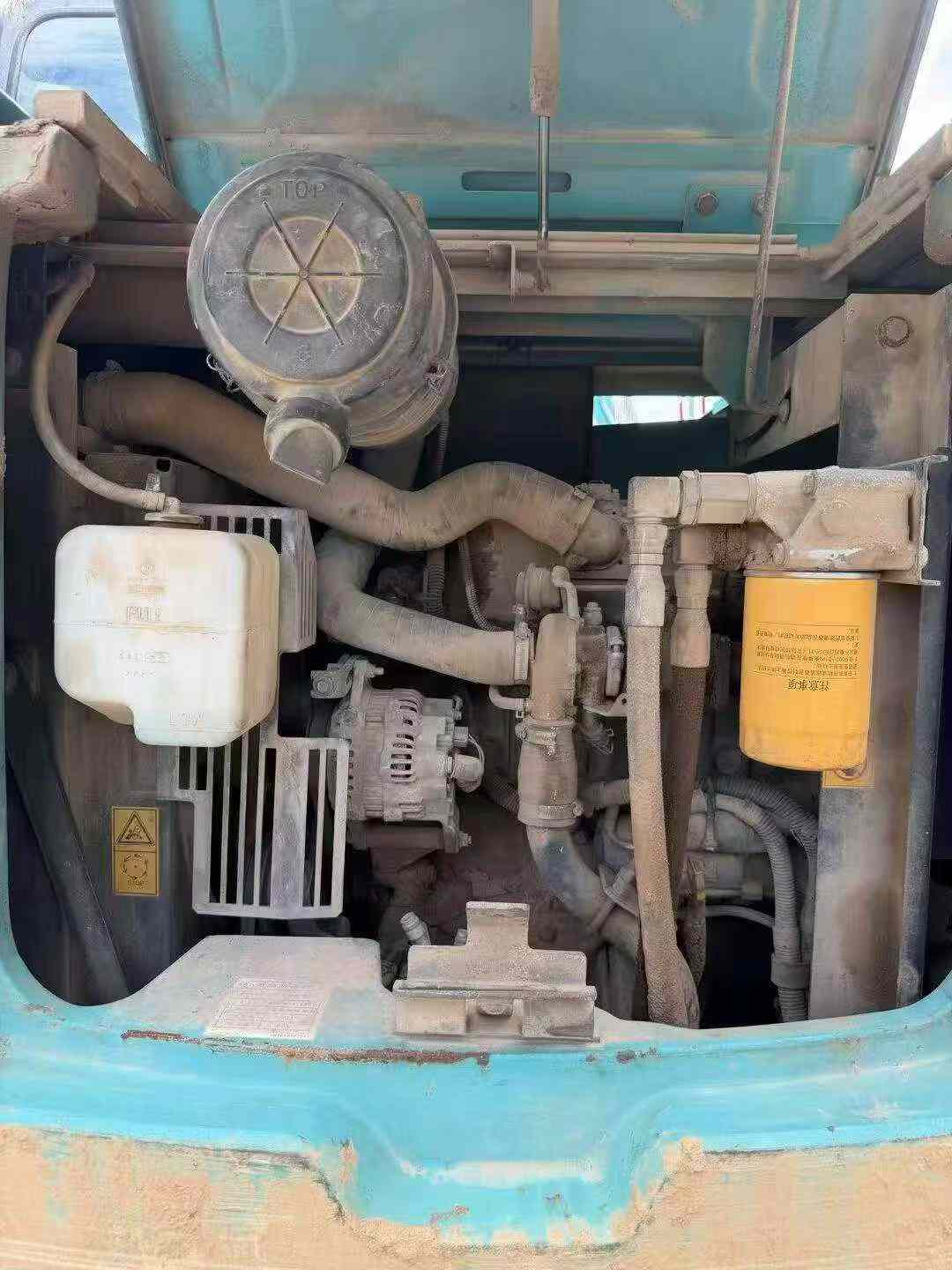

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
