Product Description

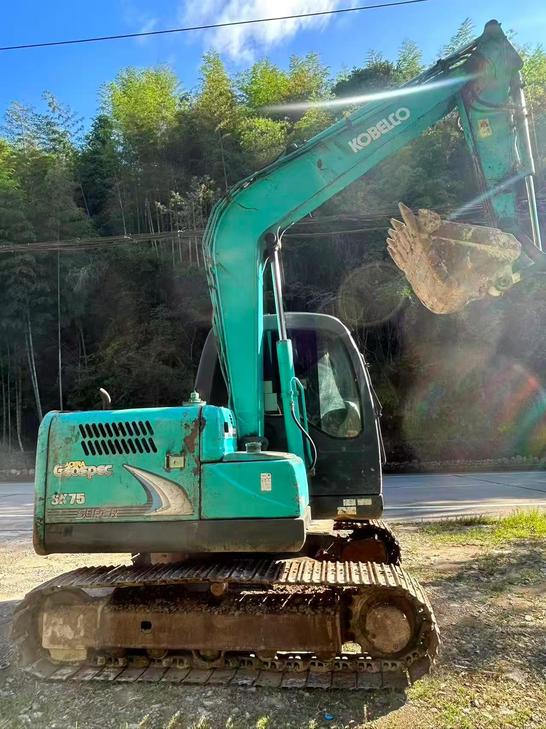

This 2015 Kobelco SK75 excavator is available from Guangdong, China. With approximately 50,000 RMB in value, this mid-size crawler excavator has been actively used on construction sites and offers reliable performance for earthmoving and excavation work.
The SK75 is known for its compact footprint combined with solid digging力 and operational efficiency. This unit has documented site work history and is suitable for contractors seeking dependable equipment at competitive pricing.
- Year: 2015
- Model: Kobelco SK75
- Type: Hydraulic Crawler Excavator
- Condition: Used, job site ready
- Location: Guangdong Province, China
- Application: General excavation, site development, utility work
Inspection welcome. Suitable for domestic and export buyers. Contact us for detailed specifications, current machine condition assessment, and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1145115 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
