Product Description

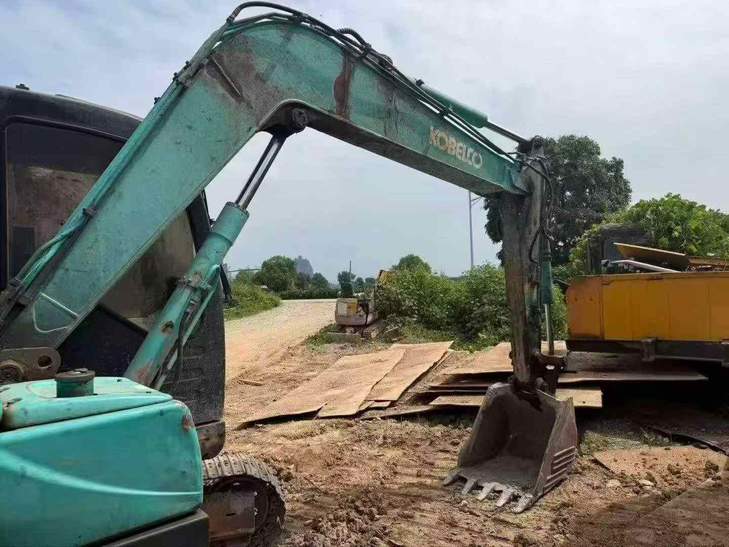

This 2016 Kobelco SK75 midi excavator is currently located in Sichuan, China and available for export. The SK75 is a proven 7.5-ton class machine known for reliable hydraulic performance and fuel efficiency in confined jobsite conditions. With approximately eight years of field service, this unit represents an accessible entry point for contractors seeking Japanese-engineered quality at competitive pricing.
Key attributes of the SK75 platform include:
- Compact footprint suitable for urban construction and utility work
- Kobelco's proprietary hydraulic system for smooth operation
- Robust undercarriage designed for varied ground conditions
- Operator cabin with good sightlines and ergonomic controls
This machine is priced to reflect its operating hours and current condition. Prospective buyers should arrange independent inspection and coordinate international logistics as needed. Suitable for resale markets, rental fleets, or direct deployment in earthmoving operations.
| Specifications | Value |
|---|---|
| No. | 1143736 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
