2017 Kobelco SK75

1/9

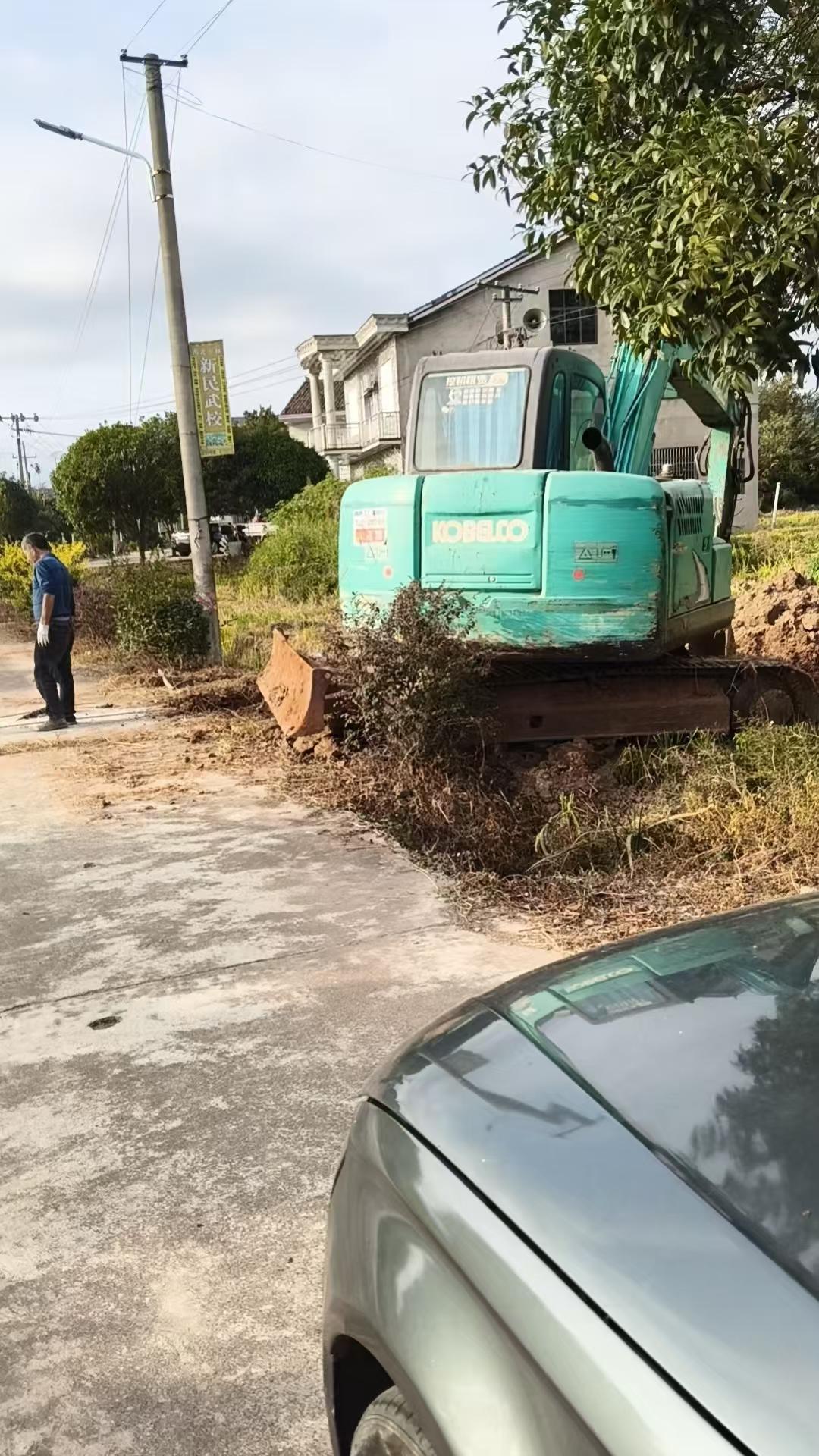

Buy Kobelco SK75 Used Excavator / 1

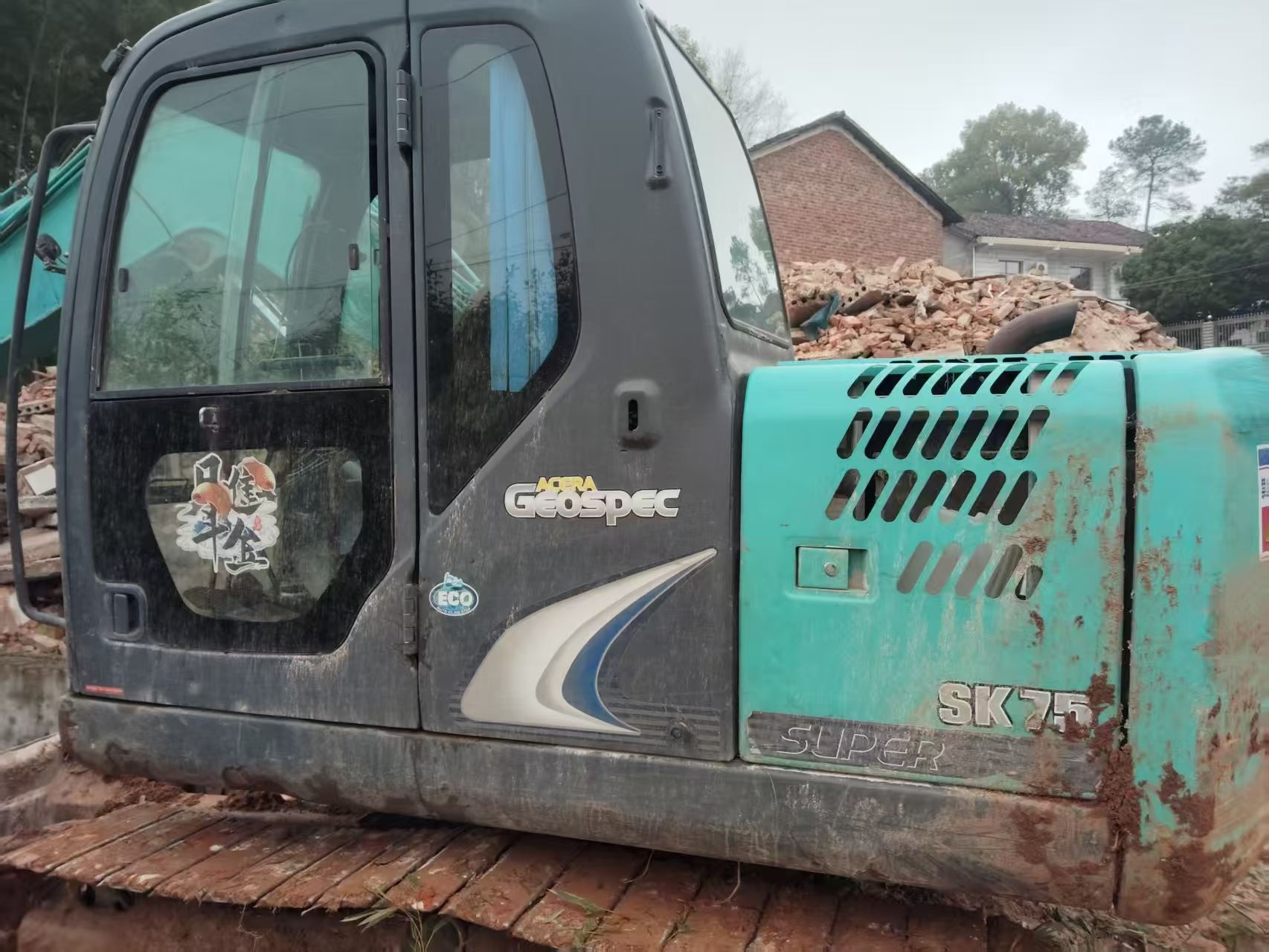

Buy Kobelco SK75 Used Excavator / 2

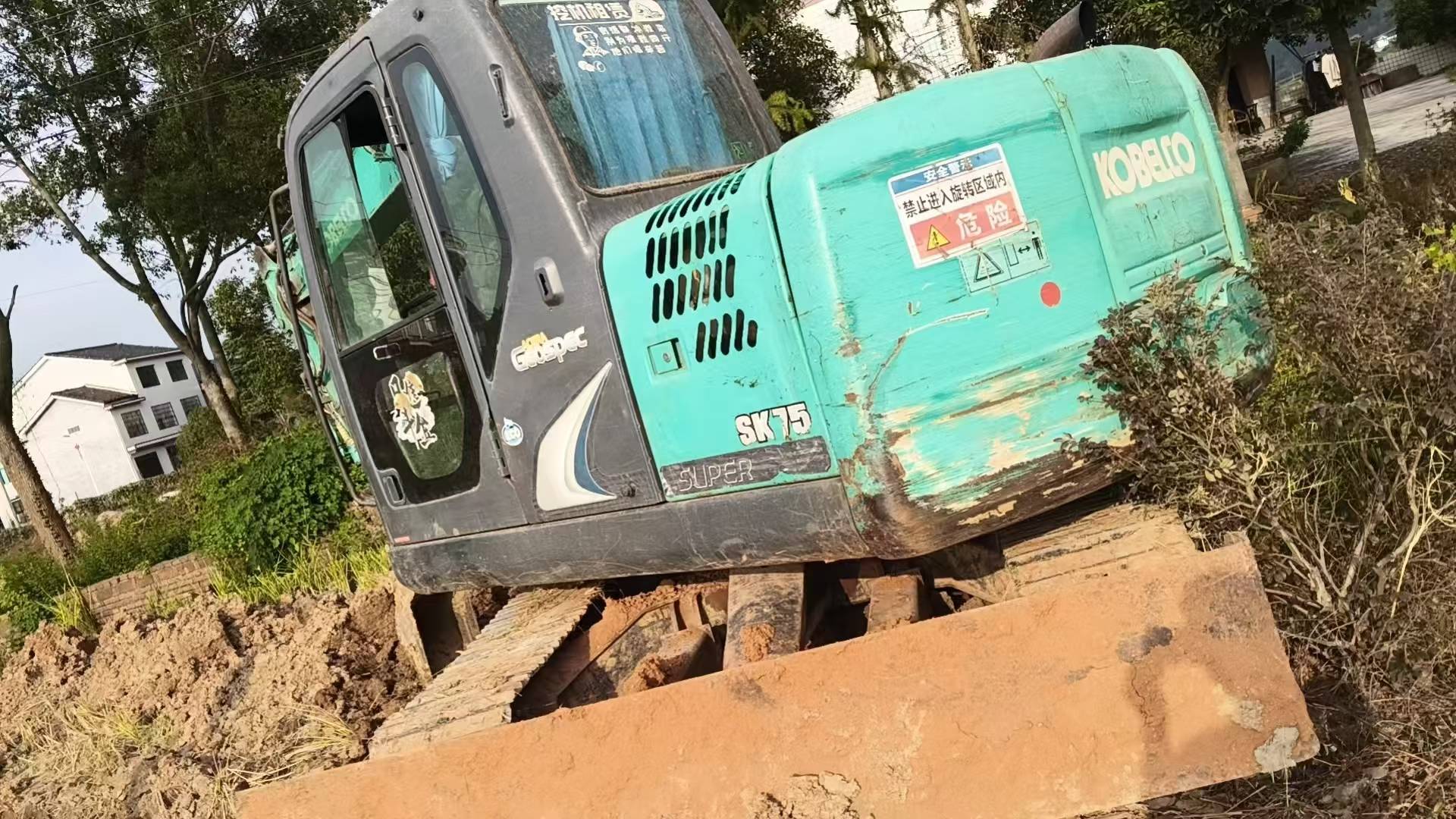

Buy Kobelco SK75 Used Excavator / 3

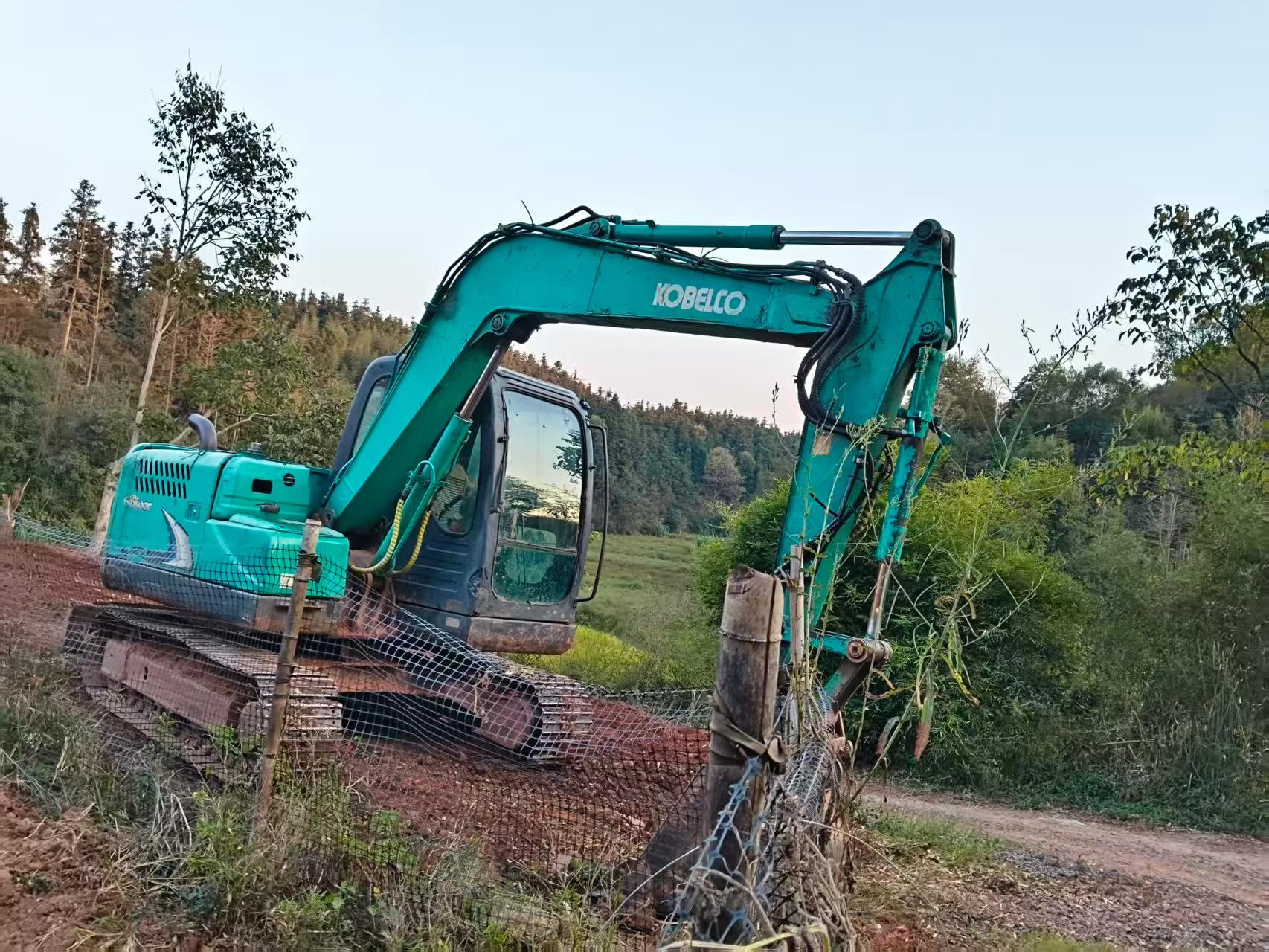

Buy Kobelco SK75 Used Excavator / 4

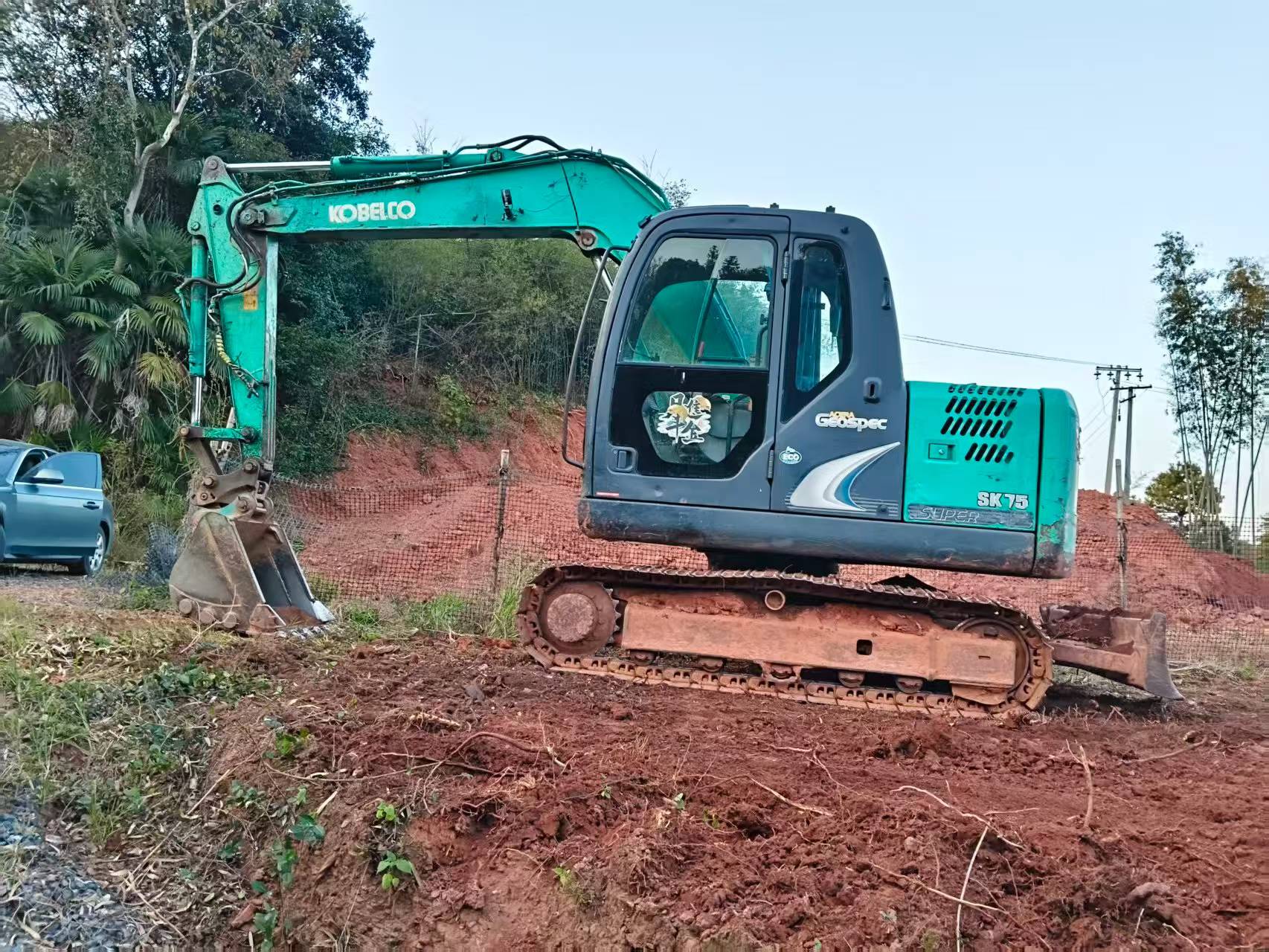

Buy Kobelco SK75 Used Excavator / 5
Buy Kobelco SK75 Used Excavator / 6

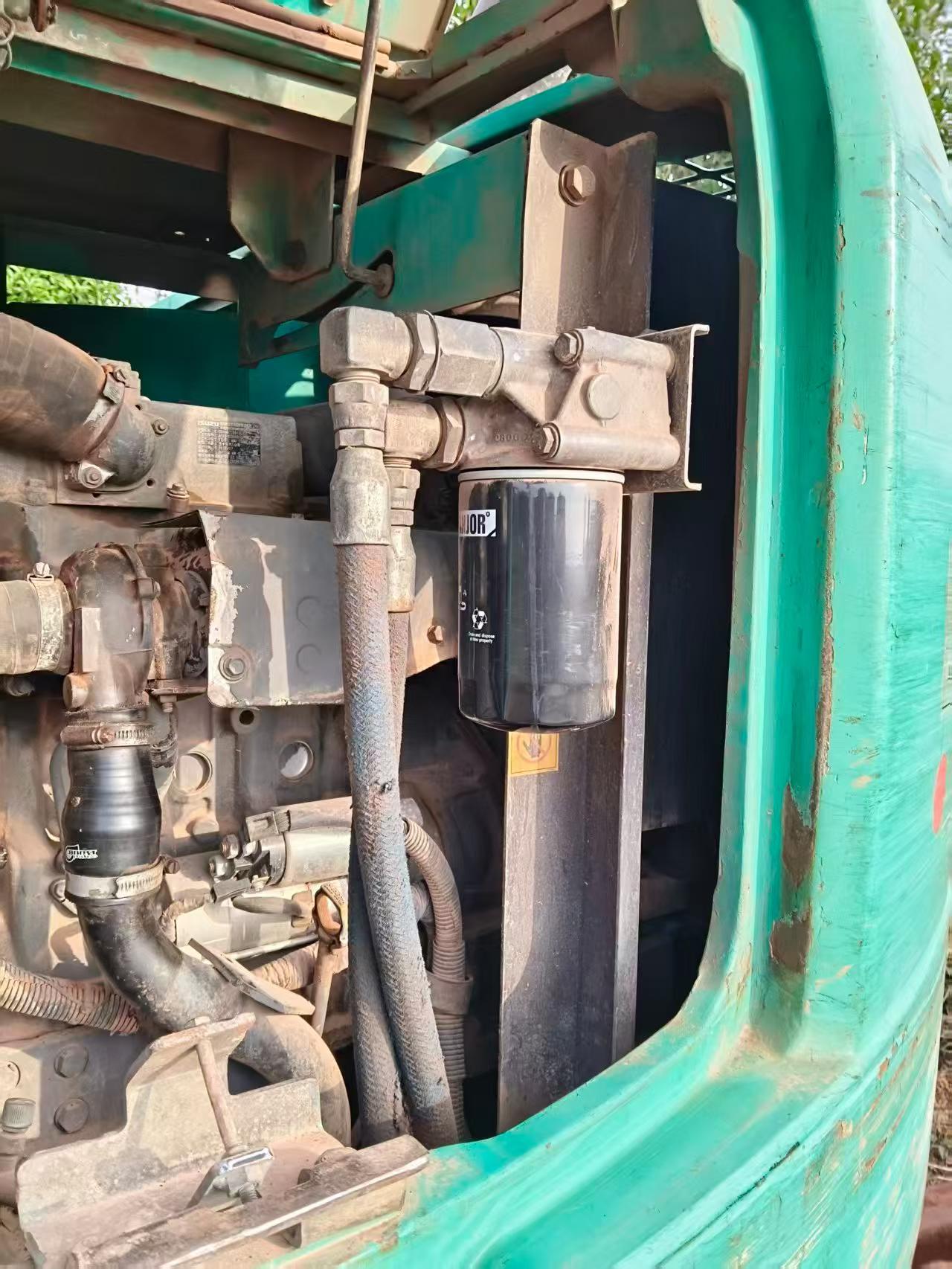

Buy Kobelco SK75 Used Excavator / 7

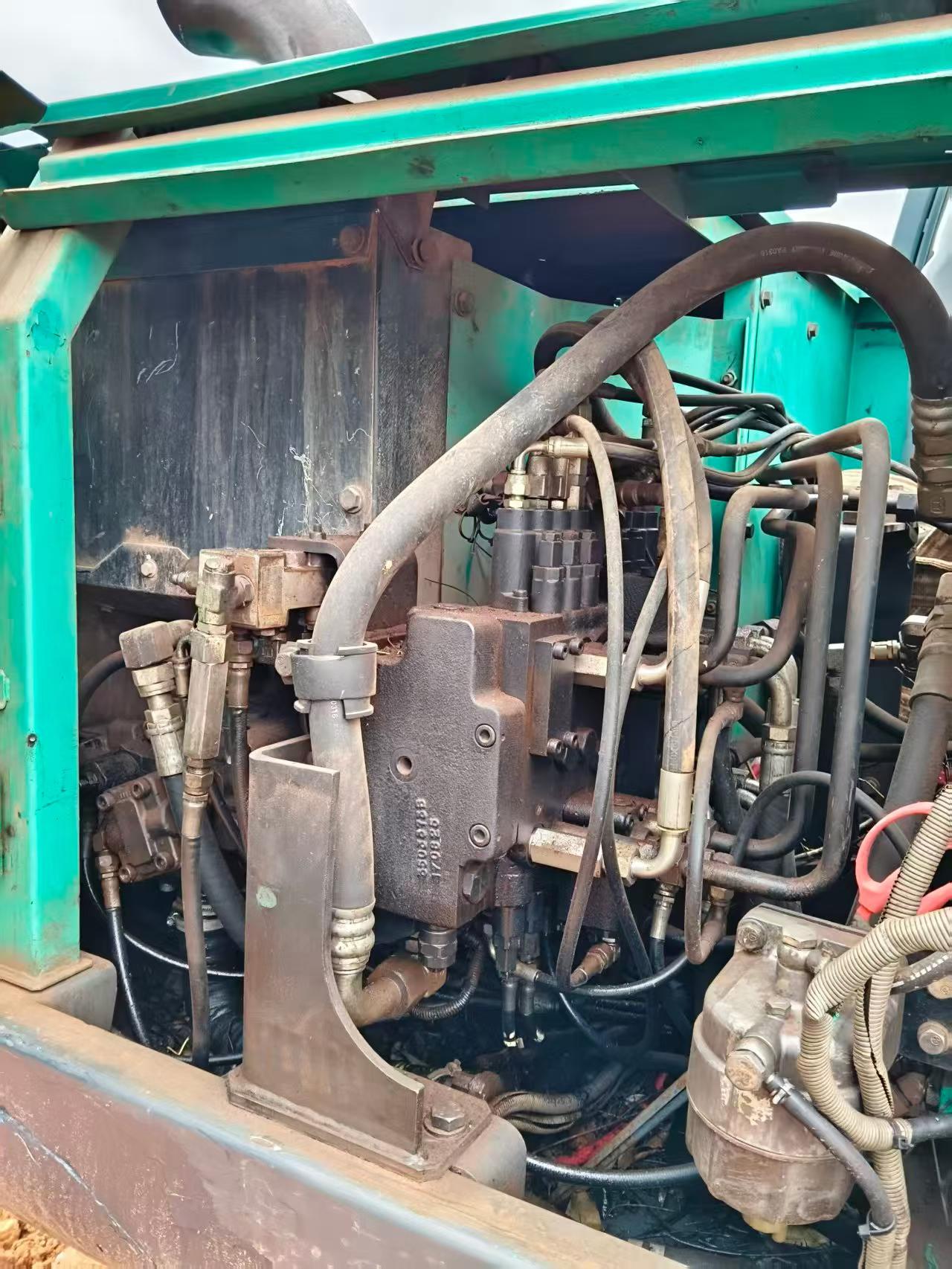

Buy Kobelco SK75 Used Excavator / 8

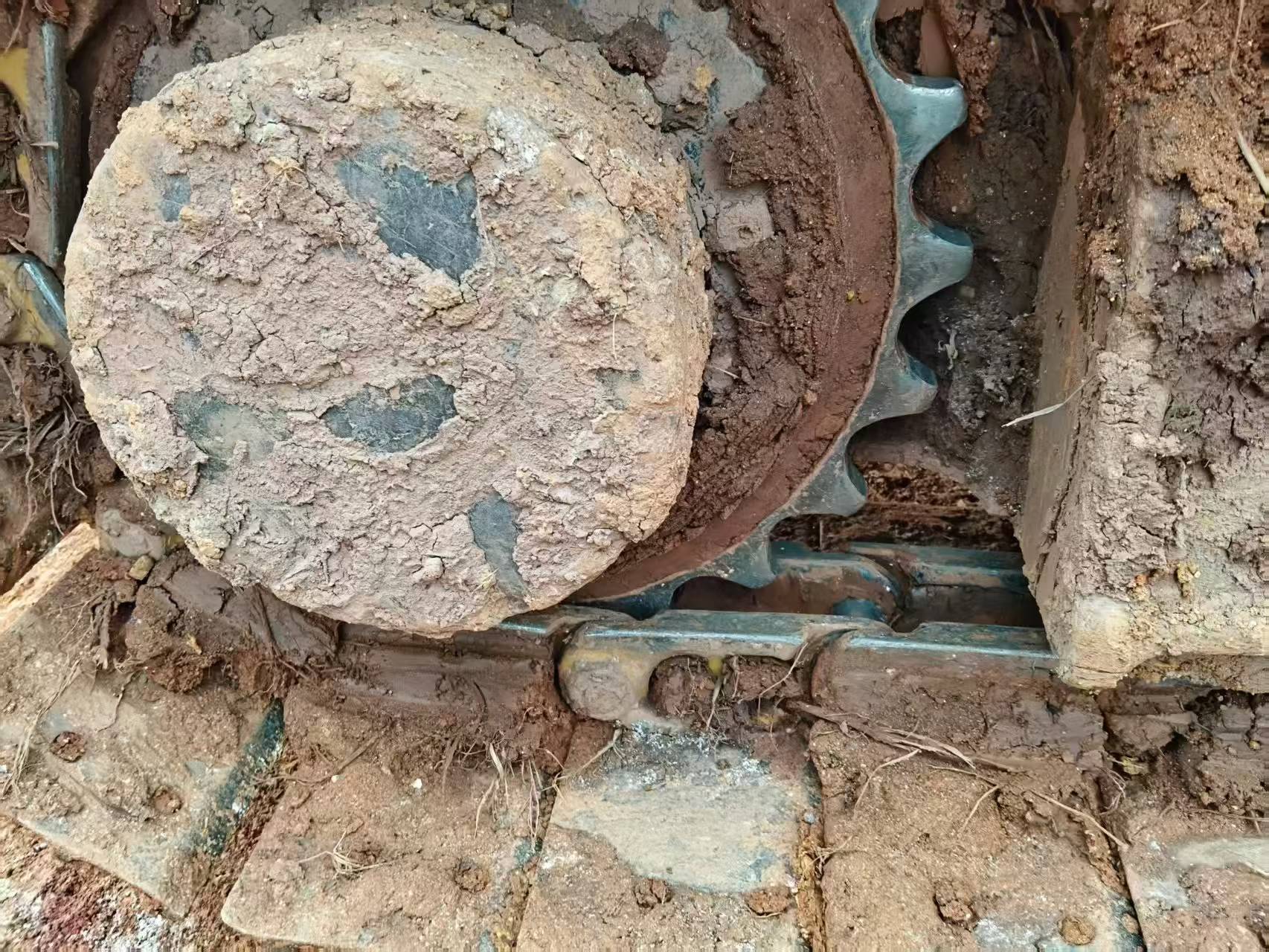

Buy Kobelco SK75 Used Excavator / 9

Product Description

This 2017 Kobelco SK75 compact excavator offers reliable performance for contractors seeking proven Japanese engineering. Currently located in Jiangxi, China, this mid-sized machine delivers the balance of power and maneuverability that has made the SK75 series an industry standard for urban construction, landscaping, and utility work.

Key features of the Kobelco SK75 include:

  • Compact footprint ideal for confined jobsites
  • Fuel-efficient operation reducing daily operating costs
  • Durable undercarriage and structural components
  • Versatile attachment compatibility for multiple applications
  • Proven Kobelco hydraulic system for smooth operation

With approximately seven years of service, this excavator represents a cost-effective solution for businesses requiring dependable equipment without the premium of new machinery. Inspection and detailed specifications available upon request to qualified buyers.

SpecificationsValue
No.1169474
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

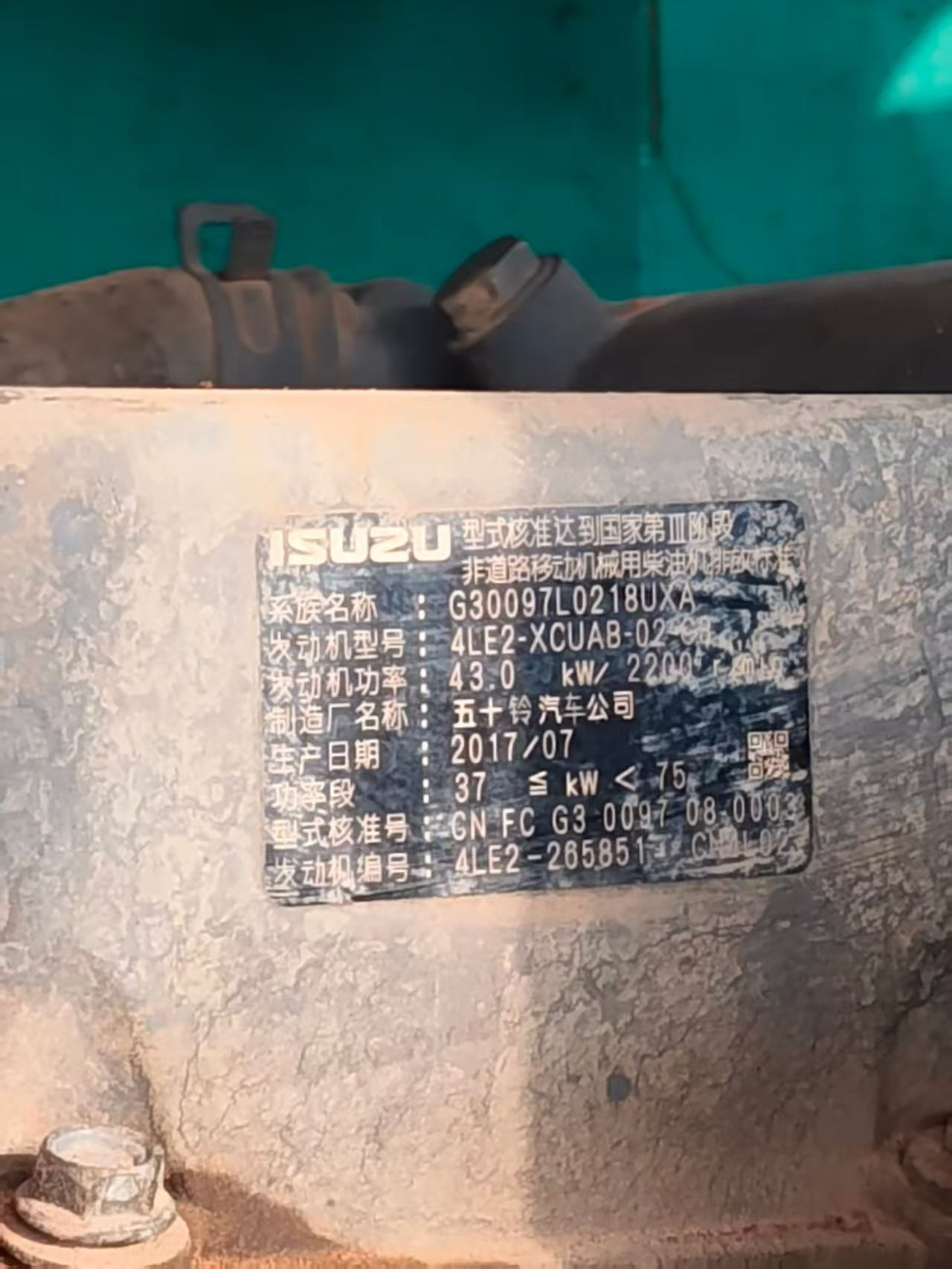

Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1169474

Brand Name:

Kobelco

Model Number:

SK75

Year:

2017

Location:

Jiangxi China

Pub Date:

Are you interested in this machine?

Please contact us
