2017 Kobelco SK75

1/9

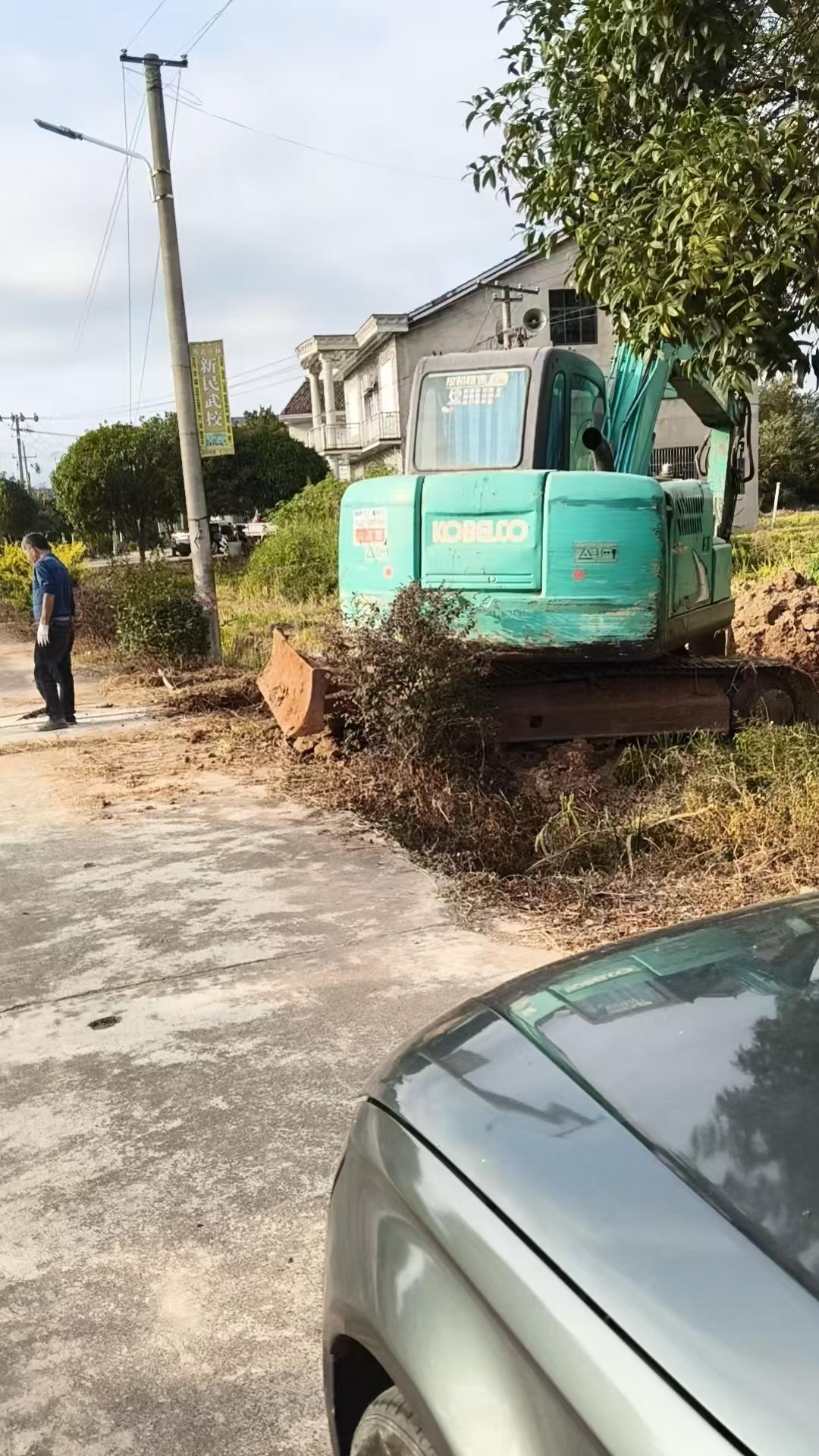

Buy Kobelco SK75 Used Excavator / 1
Buy Kobelco SK75 Used Excavator / 2
Buy Kobelco SK75 Used Excavator / 3

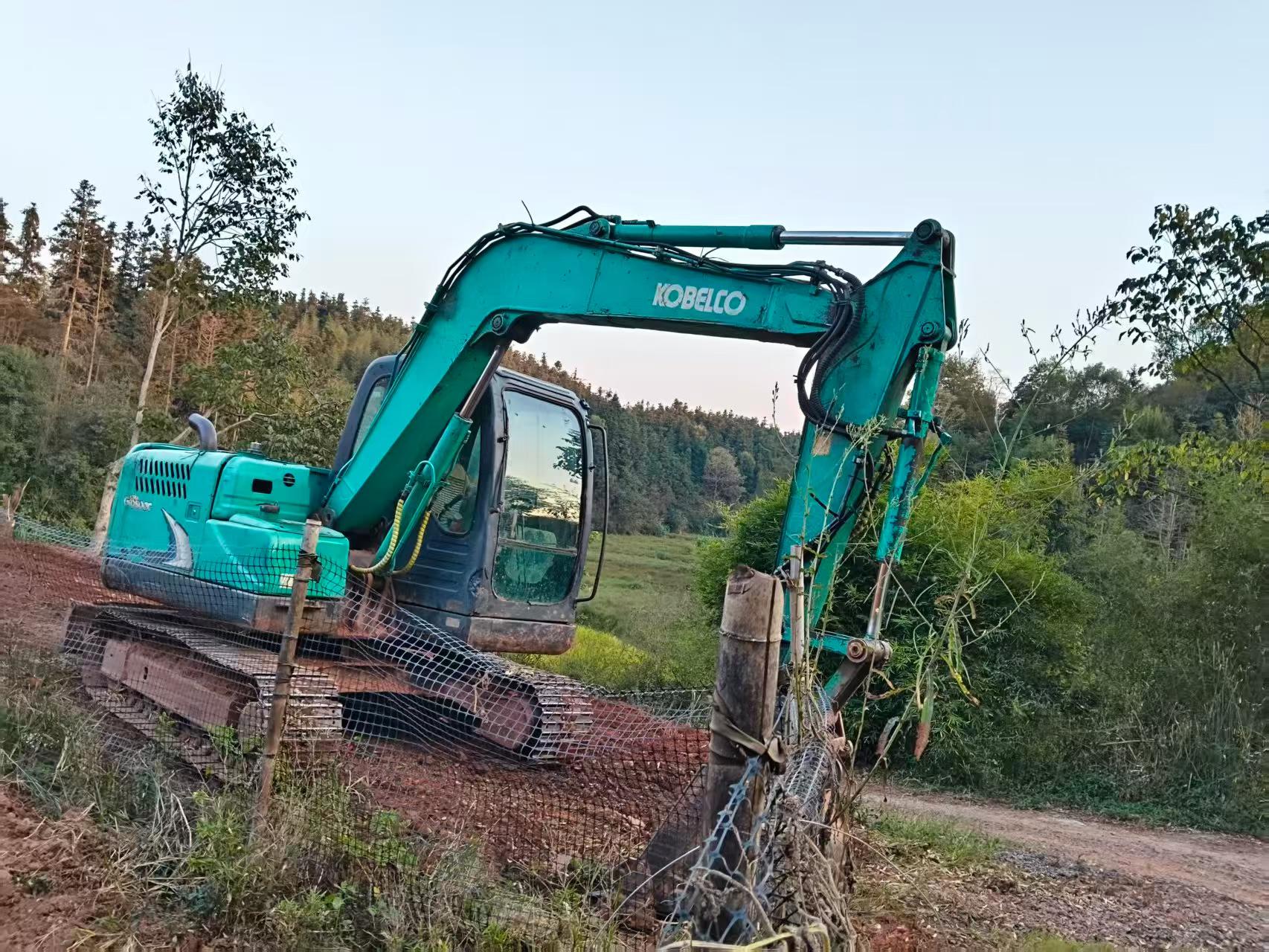

Buy Kobelco SK75 Used Excavator / 4
Buy Kobelco SK75 Used Excavator / 5
Buy Kobelco SK75 Used Excavator / 6
Buy Kobelco SK75 Used Excavator / 7
Buy Kobelco SK75 Used Excavator / 8
Buy Kobelco SK75 Used Excavator / 9

Product Description

This 2017 Kobelco SK75 compact excavator offers reliable performance for construction and earthmoving applications. Manufactured by Kobelco, a trusted name in excavator engineering, the SK75 is designed for versatility in confined job sites while delivering efficient digging power. This model features a compact footprint that enables operation in urban environments and tight spaces where larger machines cannot access.

Currently located in Jiangxi, China, this used excavator is available at a competitive price point. The SK75 is well-suited for contractors and operators seeking dependable equipment for trenching, site preparation, utility work, and general excavation tasks.

  • Year of Manufacture: 2017
  • Manufacturer: Kobelco
  • Model: SK75
  • Location: Jiangxi, China
  • Condition: Used

Contact us for detailed specifications, current machine hours, and pricing information.

SpecificationsValue
No.1169910
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1169910

Brand Name:

Kobelco

Model Number:

SK75

Year:

2017

Location:

Jiangxi China

Pub Date:
