2018 Kobelco SK75

1/3

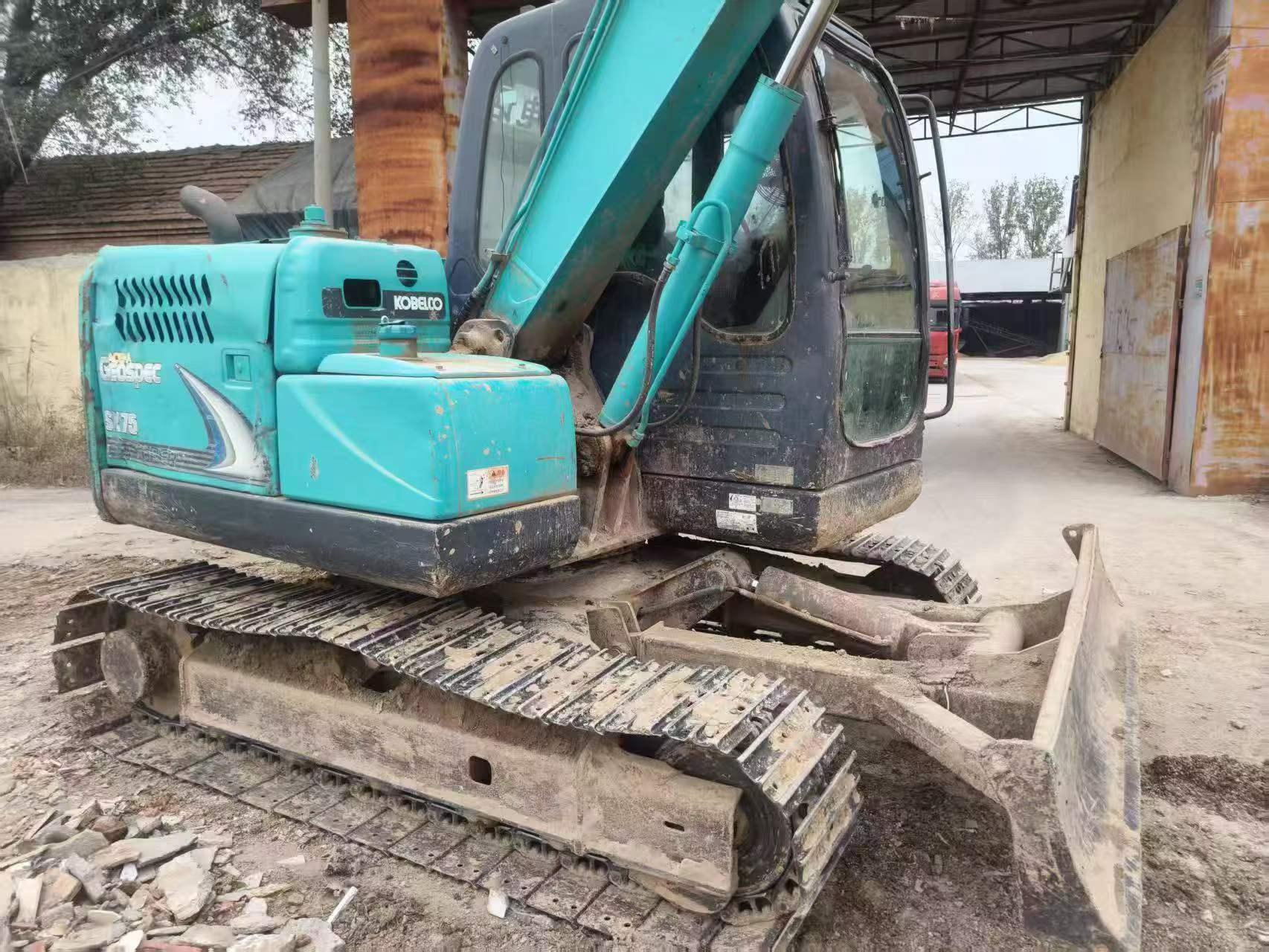

Buy Kobelco SK75 Used Excavator / 1

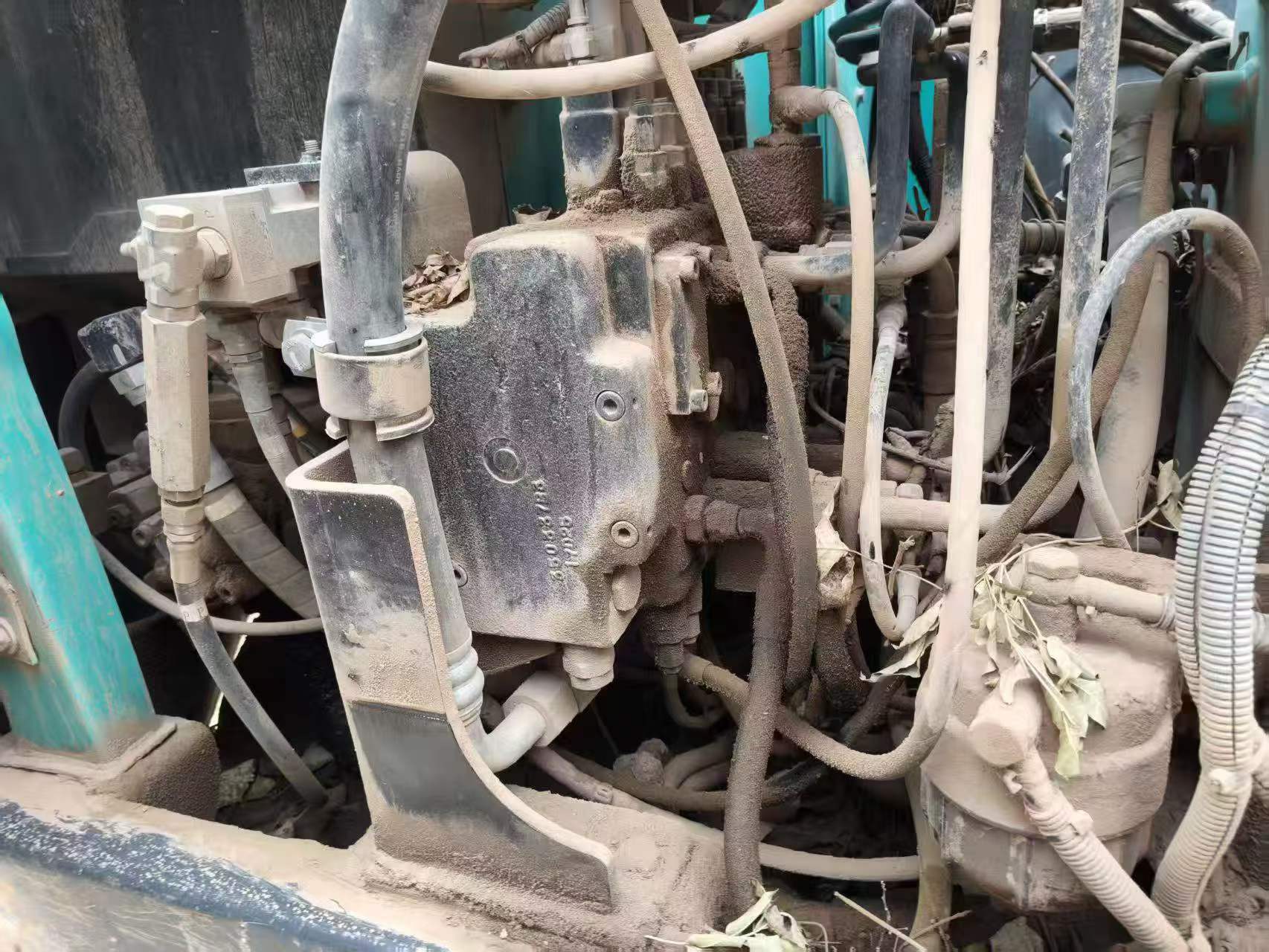

Buy Kobelco SK75 Used Excavator / 2

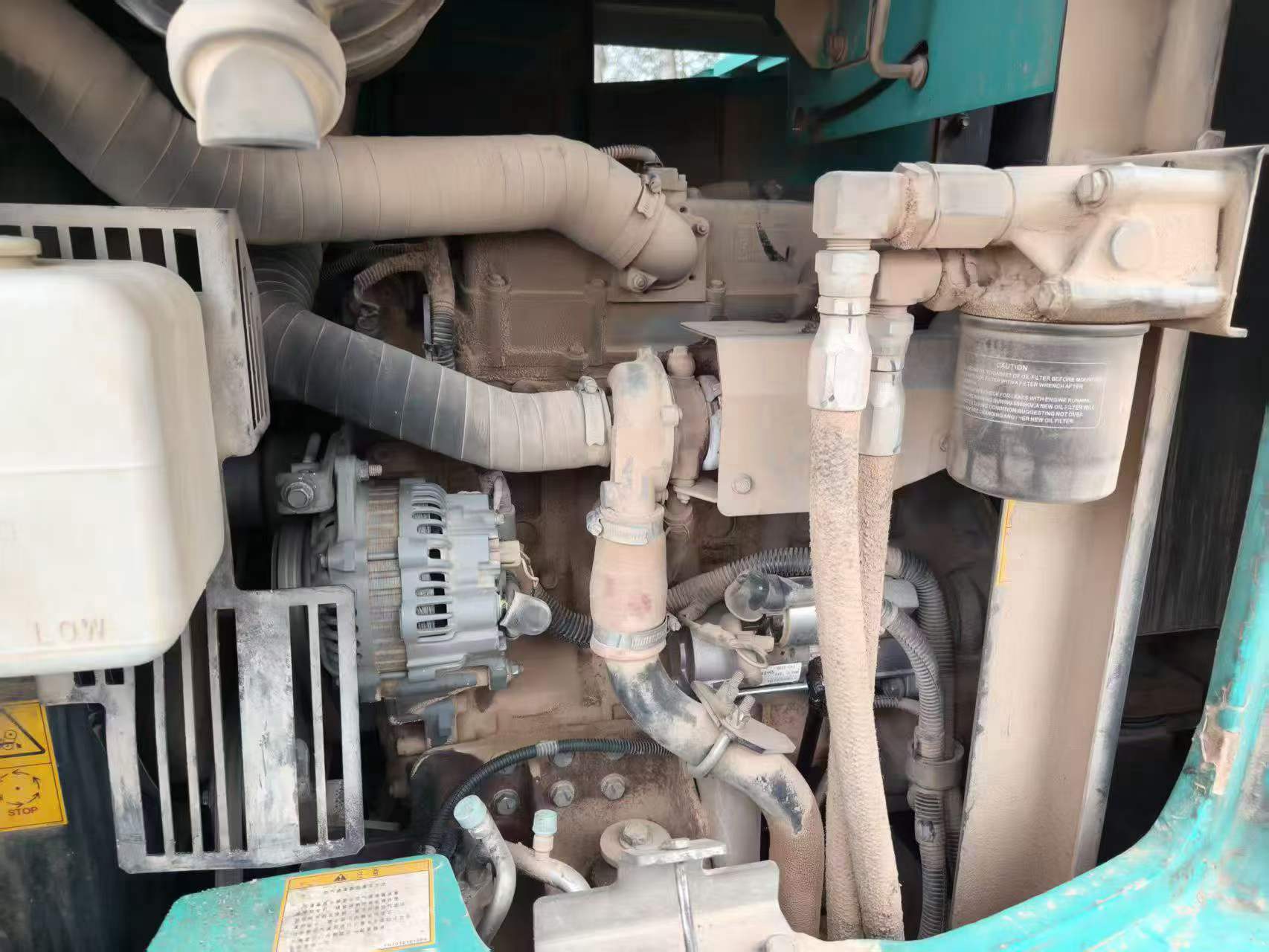

Buy Kobelco SK75 Used Excavator / 3

Product Description

This 2018 Kobelco SK75 compact excavator from Zhejiang, China offers reliable performance for medium-duty construction and excavation projects. The SK75 series is known for its 7.5-ton operating weight class, fuel-efficient engine, and excellent digging depth capabilities suited for urban construction, landscaping, and utility work.

Key features of the Kobelco SK75 include:

  • Compact footprint for maneuverability in confined spaces
  • Hydraulic system designed for smooth operation and precise control
  • Robust undercarriage for stability on varied terrain
  • Operator cabin with ergonomic controls
  • Low fuel consumption for cost-effective operation

This unit comes with detailed documentation and operational video available. The machine has been maintained in working condition and is ready for immediate deployment. Ideal for contractors seeking a mid-range excavator with proven Japanese engineering at competitive pre-owned pricing.

SpecificationsValue
No.1174121
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1174121

Brand Name:

Kobelco

Model Number:

SK75

Year:

2018

Location:

Zhejiang China

Pub Date:
