2019 Kobelco SK75

1/9
Buy Kobelco SK75 Used Excavator / 1

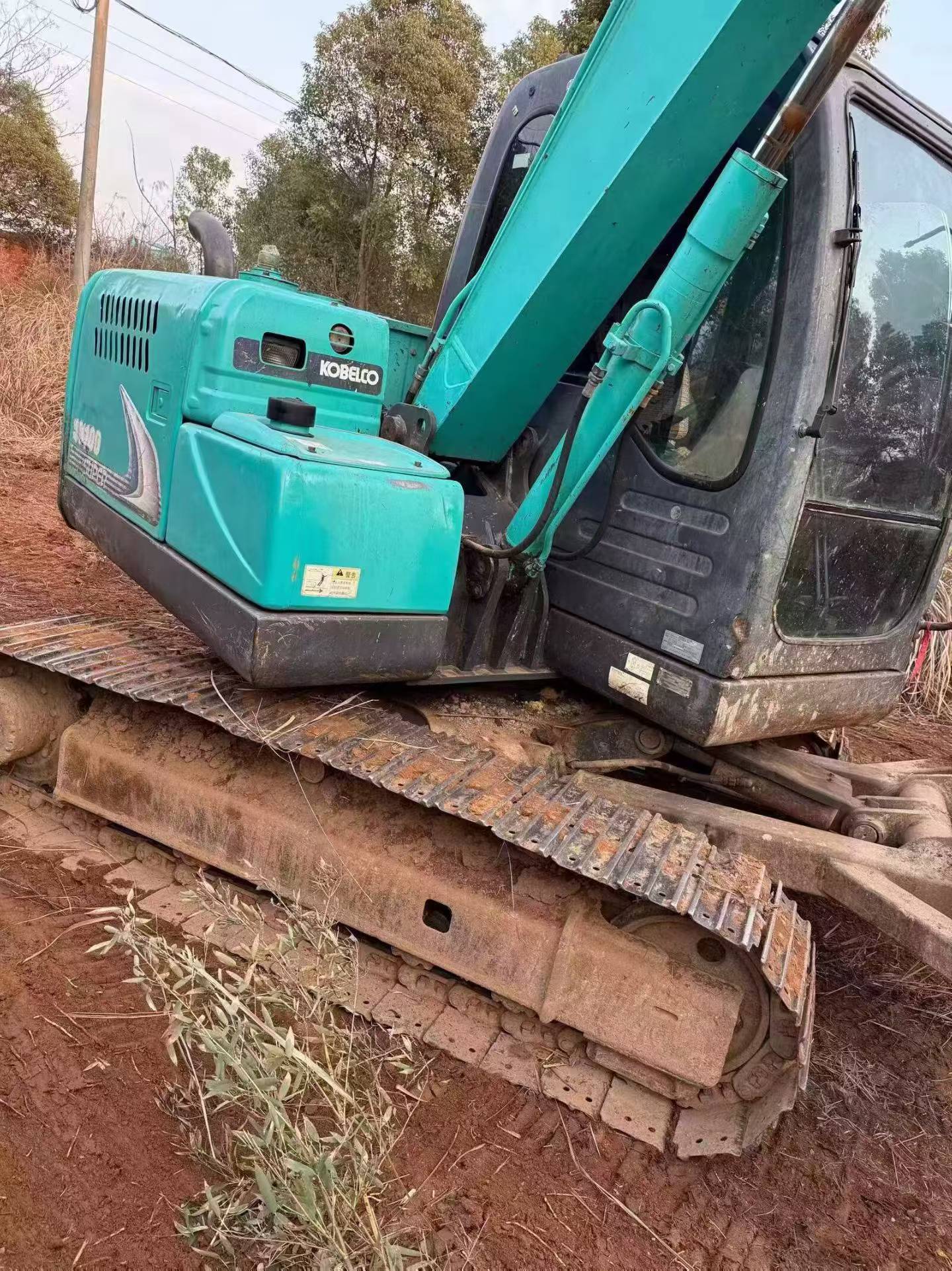

Buy Kobelco SK75 Used Excavator / 2
Buy Kobelco SK75 Used Excavator / 3

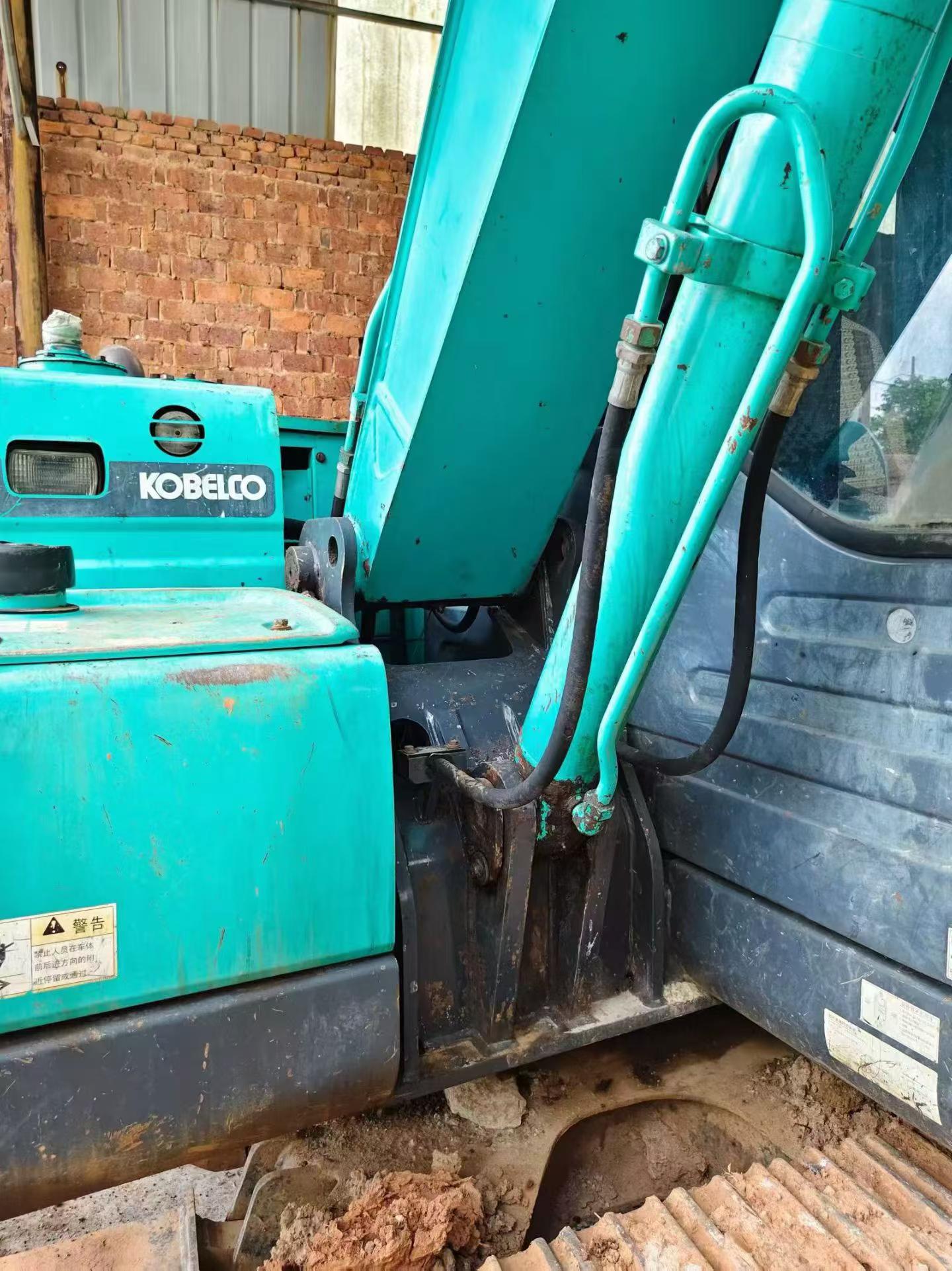

Buy Kobelco SK75 Used Excavator / 4

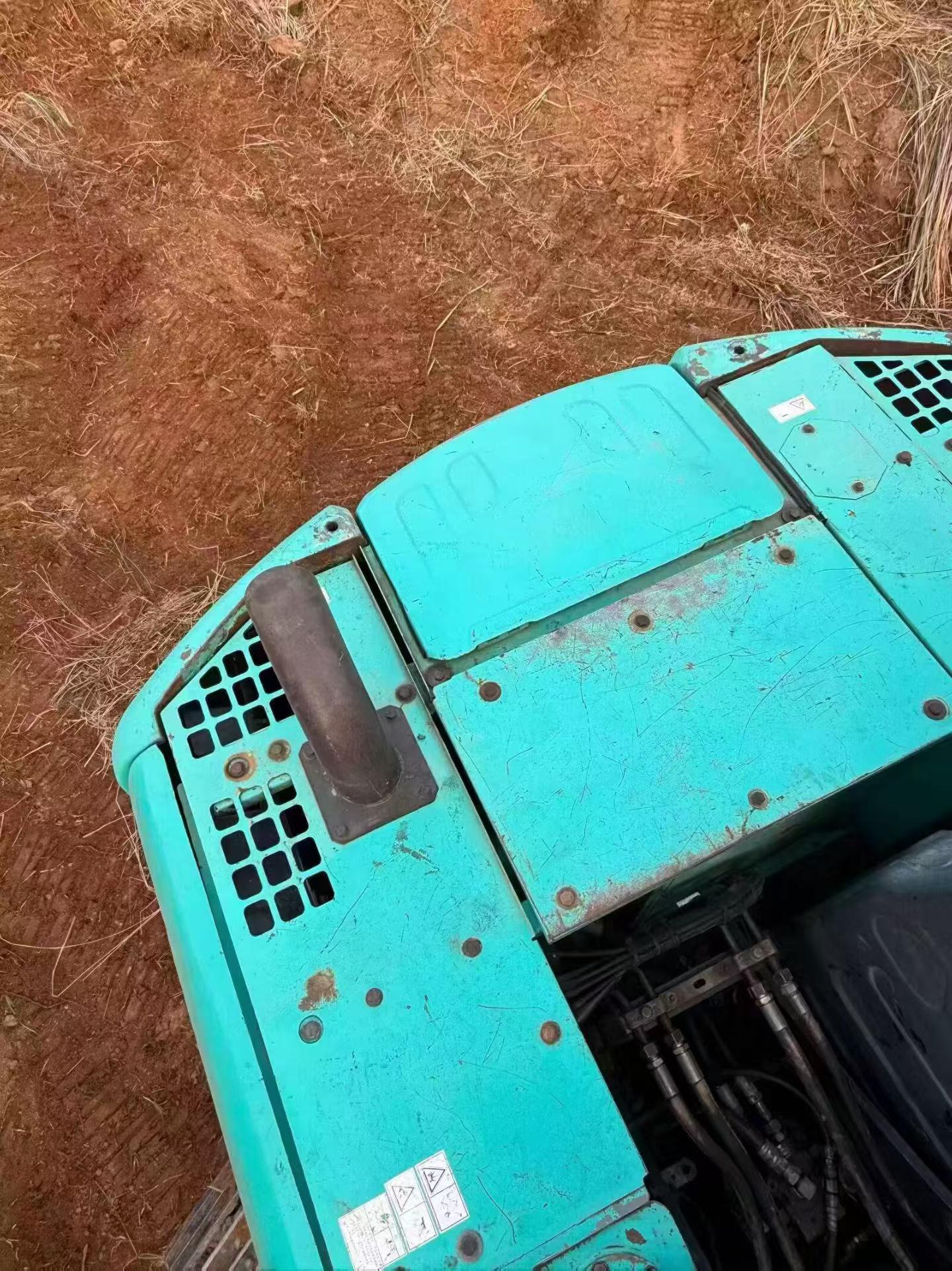

Buy Kobelco SK75 Used Excavator / 5

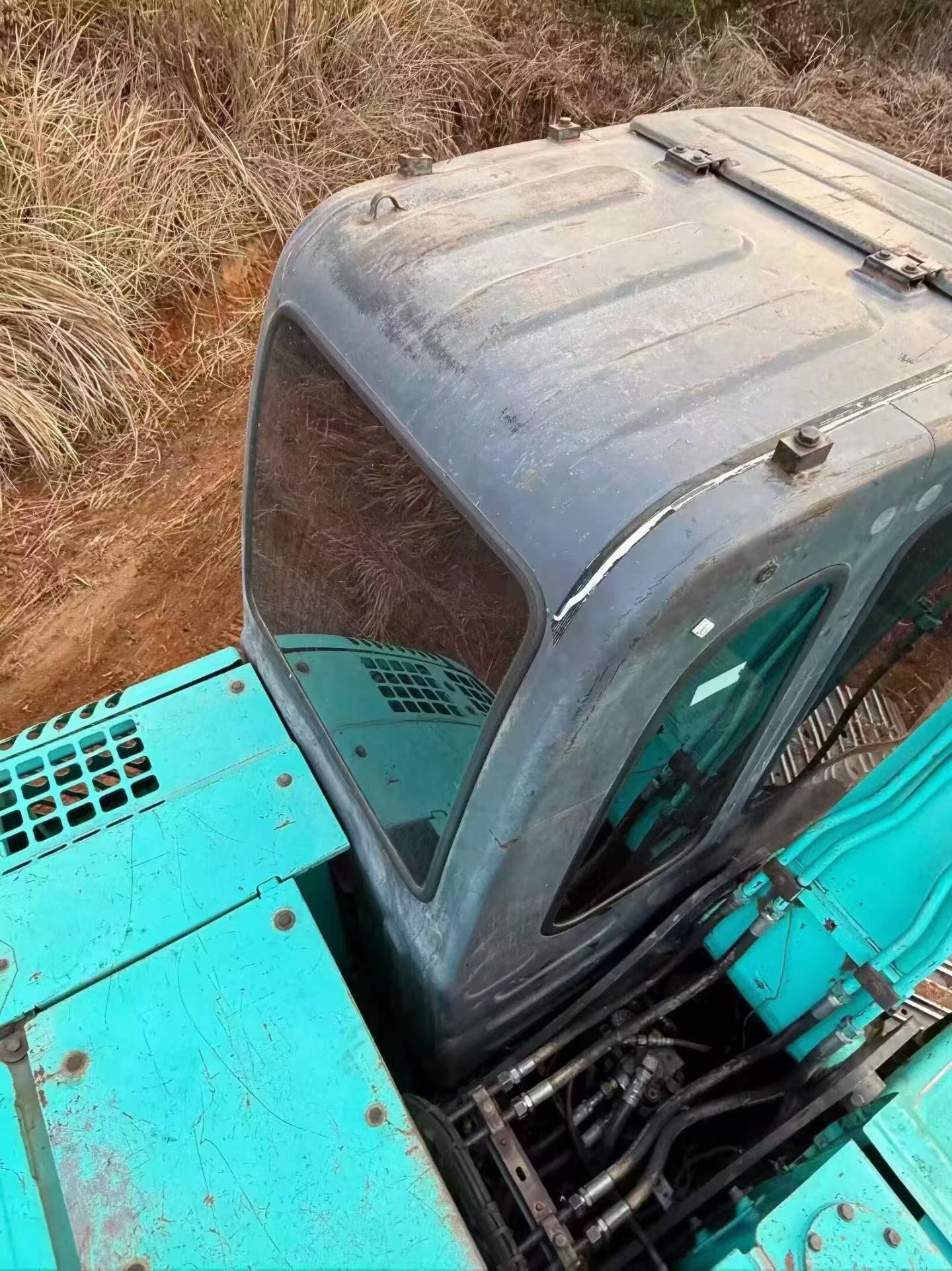

Buy Kobelco SK75 Used Excavator / 6

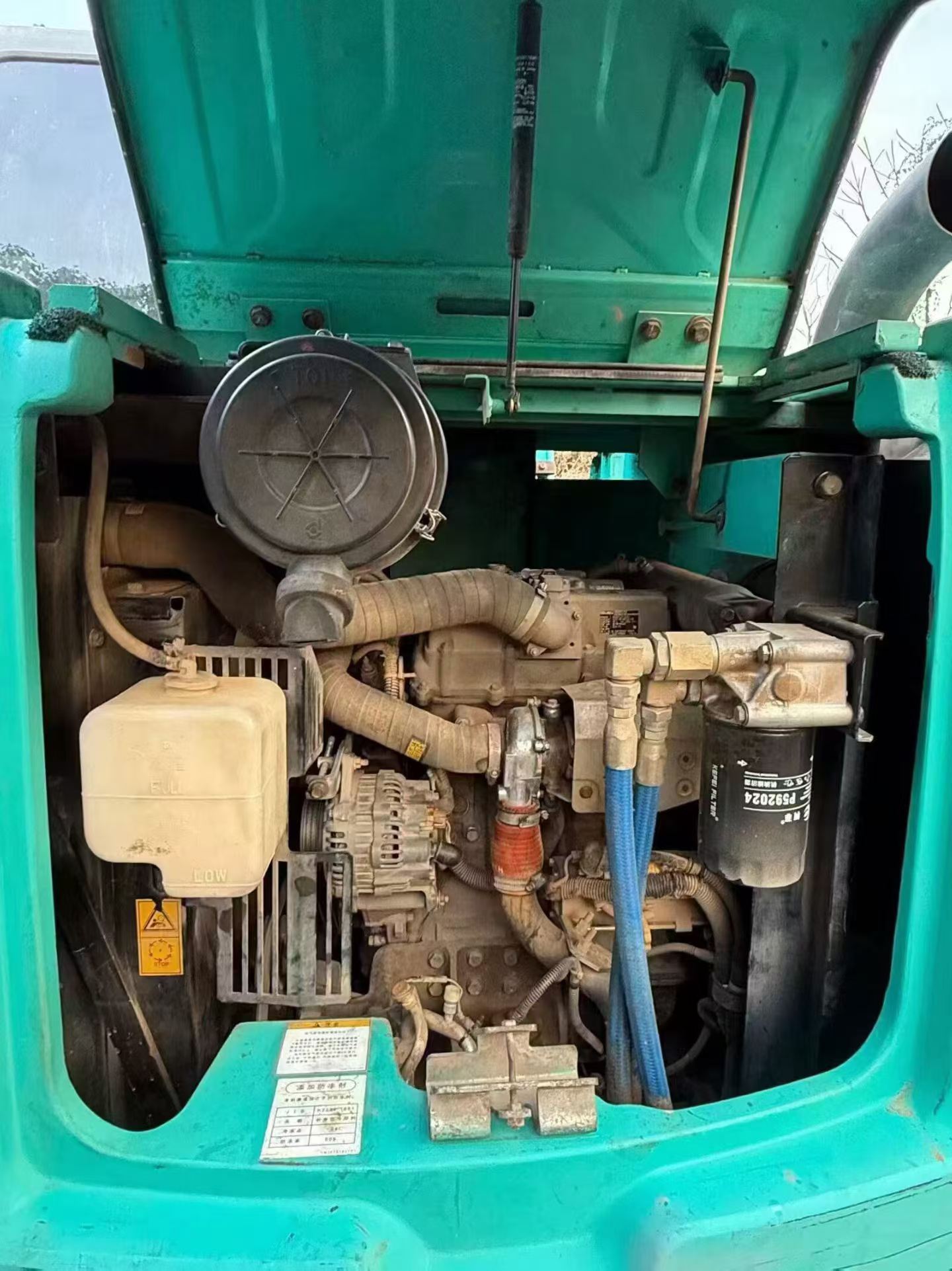

Buy Kobelco SK75 Used Excavator / 7
Buy Kobelco SK75 Used Excavator / 8

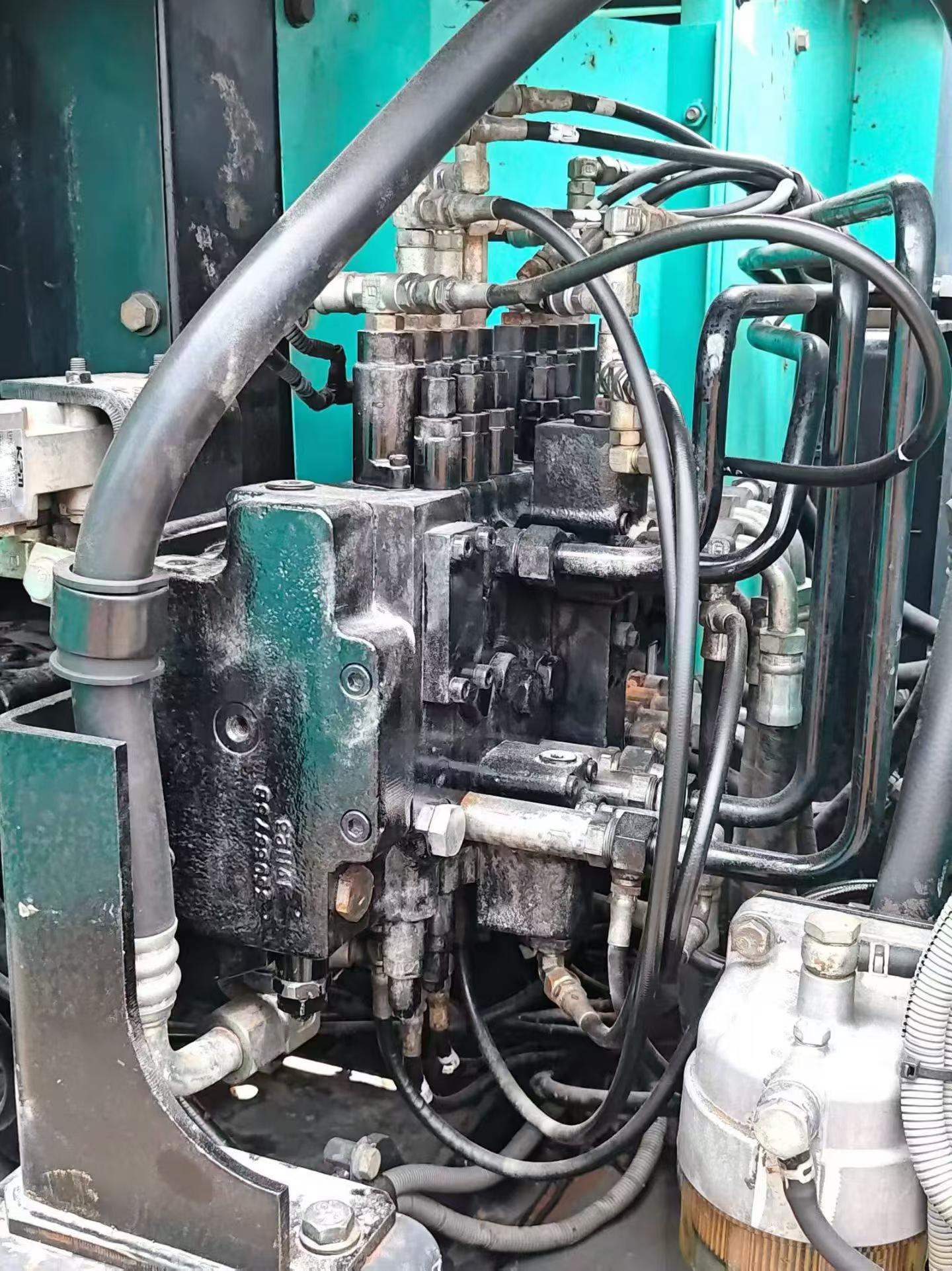

Buy Kobelco SK75 Used Excavator / 9

Product Description

This 2019 Kobelco SK75 midi excavator presents an excellent opportunity for contractors seeking reliable performance in a compact package. Currently located in Jiangxi, China, this machine comes equipped with a bucket attachment and demonstrates strong operational capabilities suitable for construction, landscaping, and utility work.

The SK75 is recognized in the industry for its balanced combination of digging power and fuel efficiency, making it ideal for confined job sites where maneuverability is essential. The 2019 model year ensures modern hydraulic systems and operator controls that meet contemporary productivity standards.

  • Year of Manufacture: 2019
  • Manufacturer: Kobelco
  • Model: SK75
  • Configuration: Includes bucket attachment
  • Current Location: Jiangxi, China
  • Condition: Used, operational performance verified

This unit is available for immediate inspection and export arrangements can be facilitated.

SpecificationsValue
No.1077364
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1077364

Brand Name:

Kobelco

Model Number:

SK75

Year:

2019

Location:

Jiangxi China

Pub Date
