2019 Kobelco SK75

1/9
Buy Kobelco SK75 Used Excavator / 1
Buy Kobelco SK75 Used Excavator / 2
Buy Kobelco SK75 Used Excavator / 3
Buy Kobelco SK75 Used Excavator / 4
Buy Kobelco SK75 Used Excavator / 5
Buy Kobelco SK75 Used Excavator / 6
Buy Kobelco SK75 Used Excavator / 7
Buy Kobelco SK75 Used Excavator / 8
Buy Kobelco SK75 Used Excavator / 9

Product Description

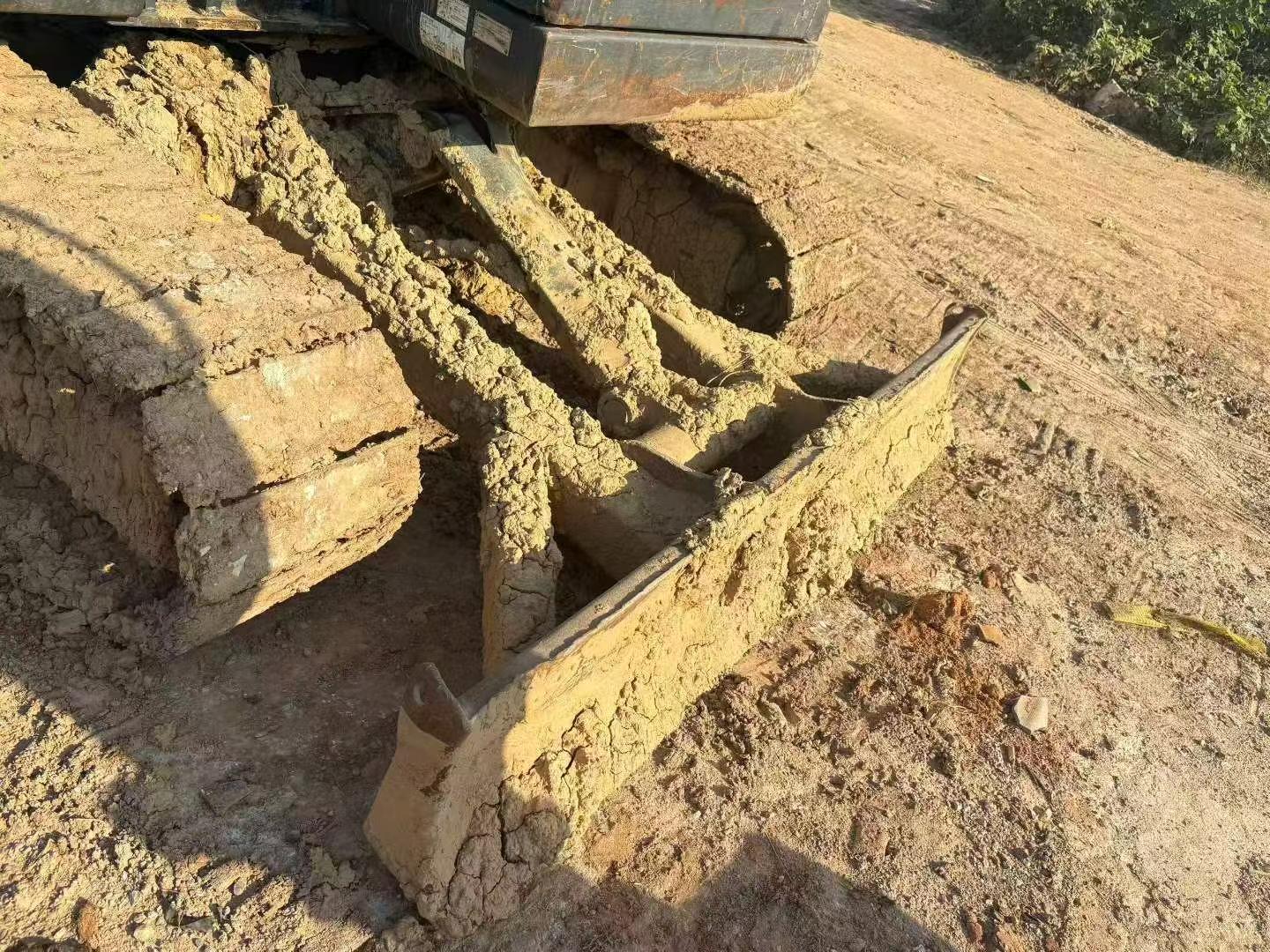

This 2019 Kobelco SK75 midi excavator is available from Jiangxi, China. The machine comes equipped with a dozer blade, adding versatility for grading and backfilling operations on site. With approximately five years of service, this unit represents a cost-effective option for contractors seeking reliable performance in a compact footprint.

The SK75 is known for its balance of power and maneuverability in tight working environments. The integrated dozer blade extends the machine's capabilities beyond standard excavation tasks, making it suitable for site preparation and finish work.

  • Year: 2019
  • Manufacturer: Kobelco
  • Model: SK75
  • Configuration: With dozer blade
  • Current Location: Jiangxi, China

This unit is ready for inspection and immediate deployment. Contact us for detailed specifications, operational history, and shipping arrangements to your location.

SpecificationsValue
No.1142235
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
