2019 Kobelco SK75

1/9

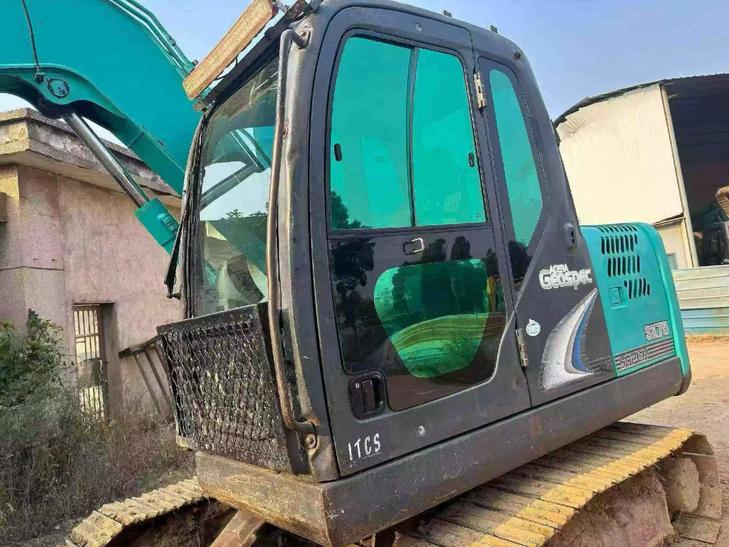

Buy Kobelco SK75 Used Excavator / 1
Buy Kobelco SK75 Used Excavator / 2
Buy Kobelco SK75 Used Excavator / 3
Buy Kobelco SK75 Used Excavator / 4
Buy Kobelco SK75 Used Excavator / 5
Buy Kobelco SK75 Used Excavator / 6
Buy Kobelco SK75 Used Excavator / 7
Buy Kobelco SK75 Used Excavator / 8
Buy Kobelco SK75 Used Excavator / 9

Product Description

This 2019 Kobelco SK75 excavator with bucket attachment is now available from Jiangxi, China. The machine features original major components including engine, hydraulic system, and undercarriage—all untouched and unmodified since factory delivery. Single-owner operation by the proprietor ensures consistent maintenance standards and operational care throughout its service life.

Key highlights include:

  • 2019 model year Kobelco SK75 mini excavator
  • Original factory configuration with no aftermarket modifications
  • Single owner-operator usage history
  • Complete with bucket attachment
  • Comprehensive documentation and detailed imagery available
  • Competitively priced for the current market

Located in Jiangxi Province, this machine represents a reliable option for contractors seeking proven Kobelco quality in the 7-ton excavator class. Detailed photographs documenting current condition are available upon request.

SpecificationsValue
No.1172463
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1172463

Brand Name:

Kobelco

Model Number:

SK75

Year:

2019

Location:

Jiangxi China

Pub Date:
