Product Description

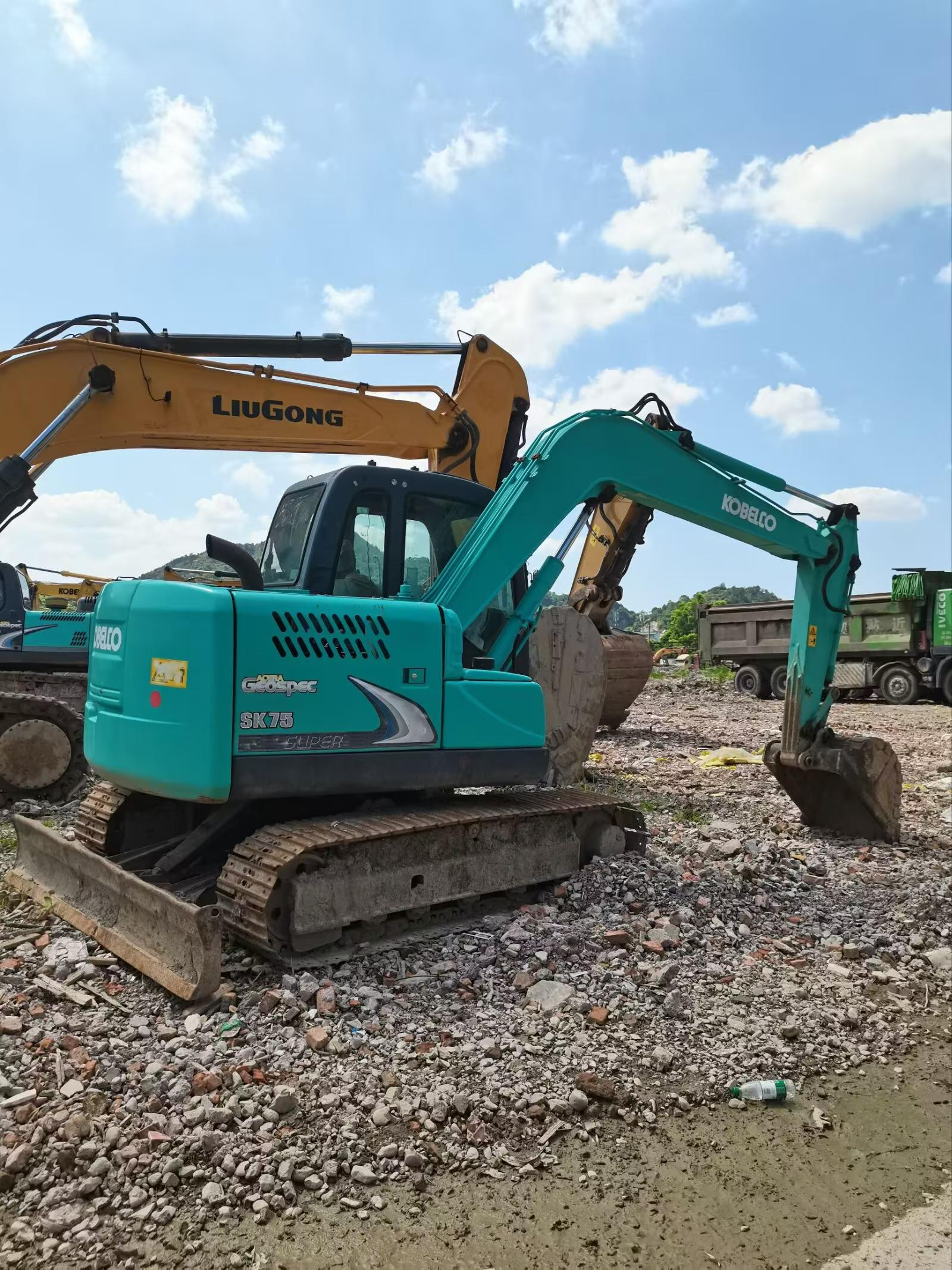

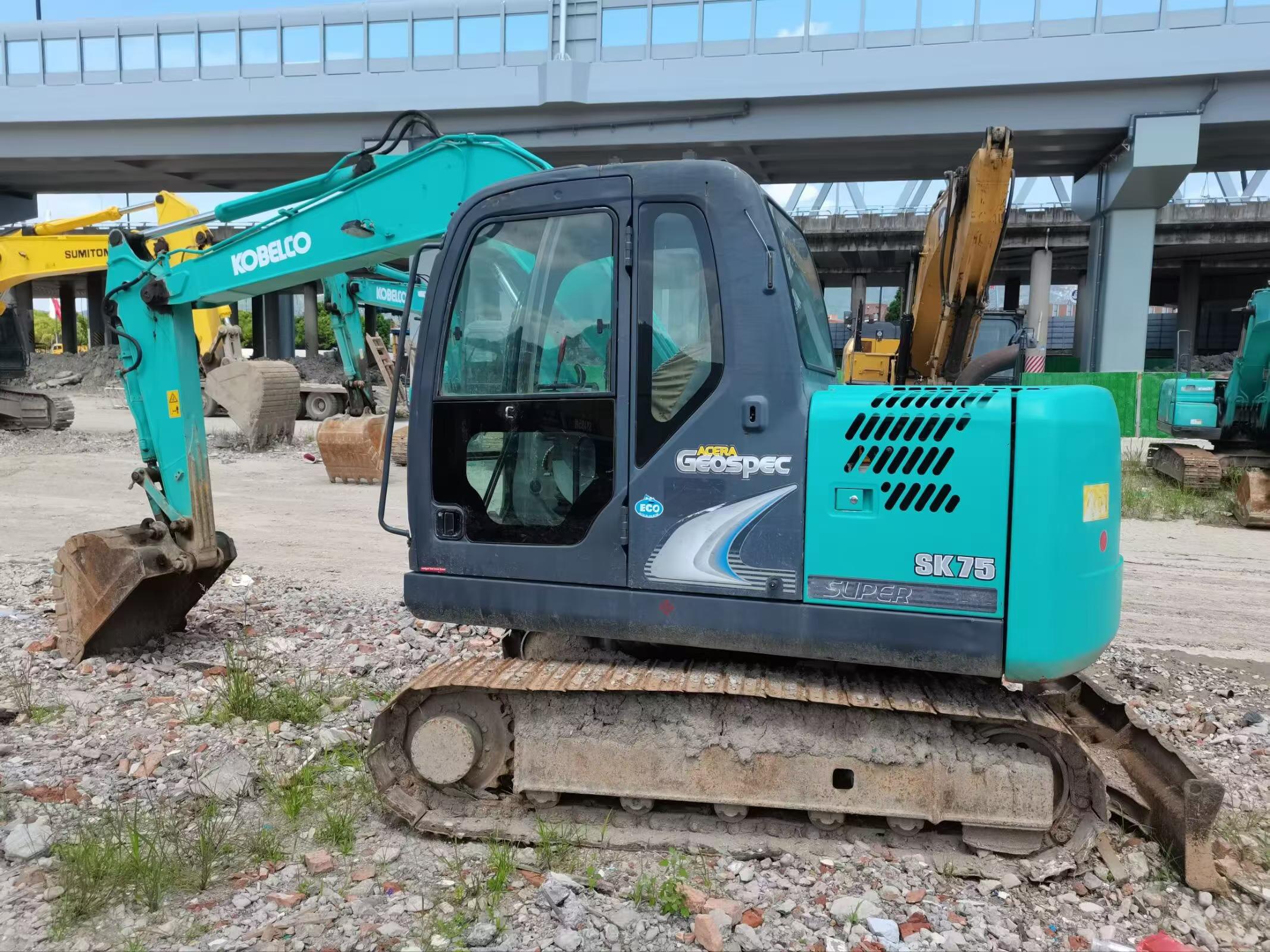

Built to outlast demanding job sites, this 2020 Kobelco SK75 mini excavator stands as proof that quality engineering holds up over time. Sourced from Zhejiang, China, and powered by a dependable ISUZU AU4LE2X 4-cylinder water-cooled engine producing 41 kW at 2,200 RPM, this proven workhorse delivers consistent performance across a wide range of earthmoving applications. A double variable displacement axial piston pump drives the hydraulic system, keeping response sharp and reliable shift after shift.
- Operating weight: 7,000 kg | 7-ton class

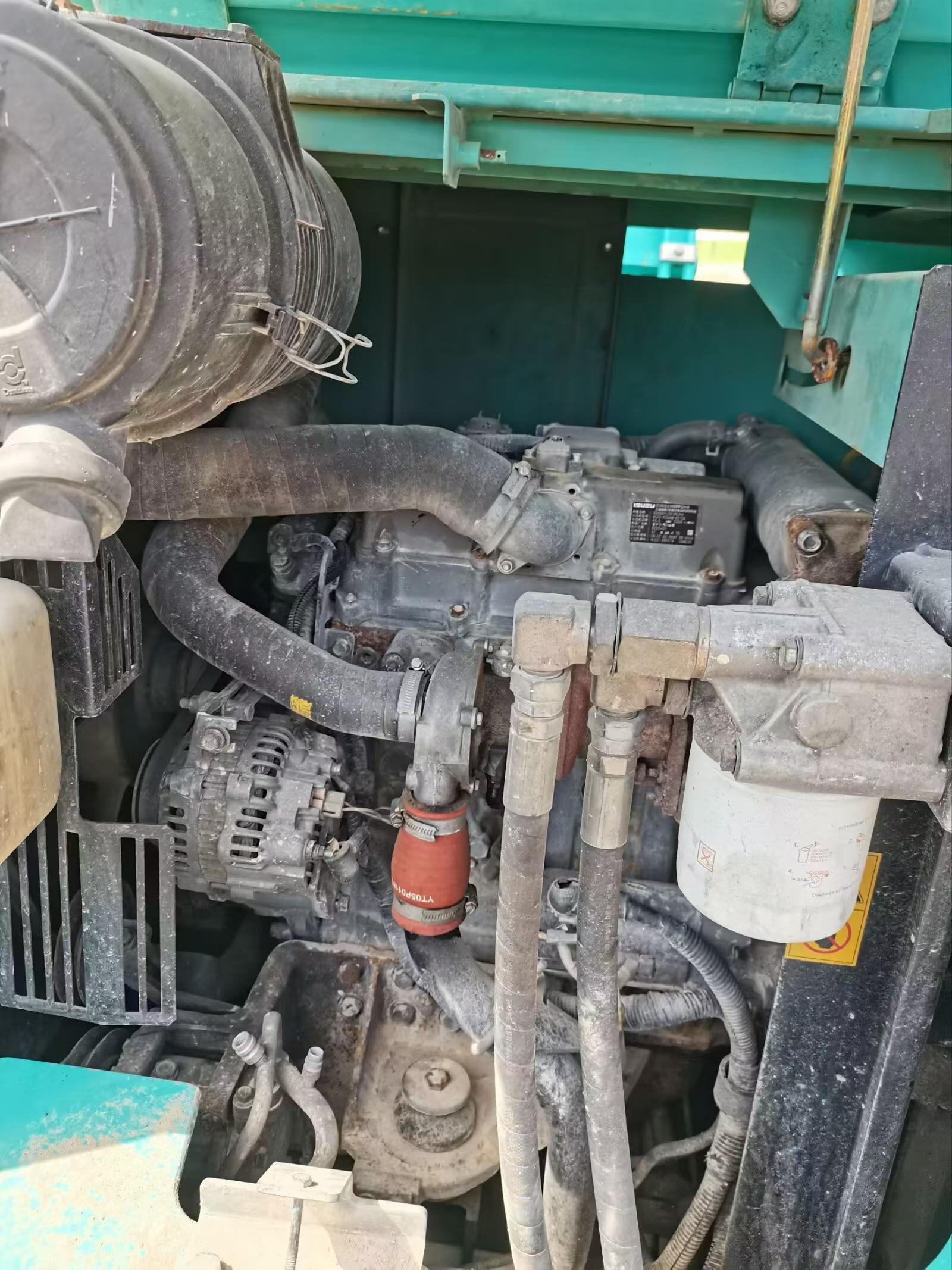

- Engine: ISUZU AU4LE2X, 4-cylinder, 2.179L displacement, water-cooled
- Rated power: 41 kW / 2,200 RPM
- Max digging depth: 4,160 mm | Max digging radius: 6,460 mm
- Max excavation height: 7,390 mm | Max unloading height: 5,330 mm
- Travel speed: 2.8 / 5.3 km/h (low/high range)
- Fuel tank: 120 L | Hydraulic tank: 72 L
- Working hydraulic circuit: 29.4 MPa | Travel circuit: 27.5 MPa
- Compact rear swing radius: 1,290 mm — ideal for confined sites
- Location: Zhejiang, China — available for global export
| Specifications | Value |
|---|---|
| No. | 1060697 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |

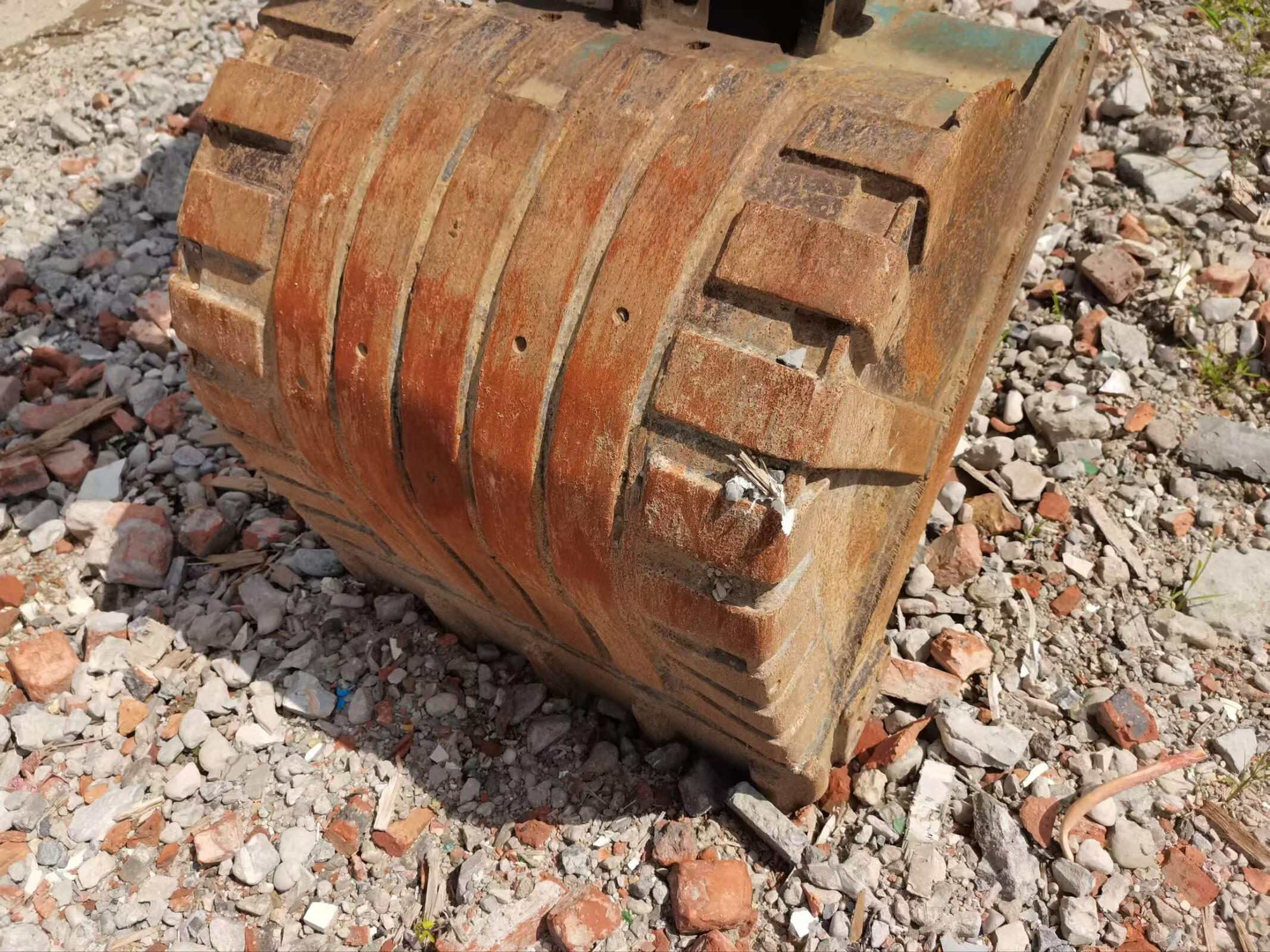

| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
