2020 Kobelco SK75

1/9

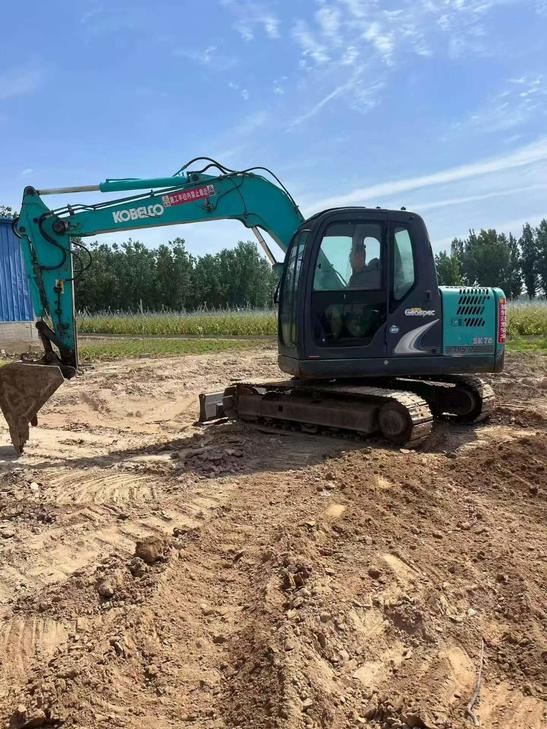

Buy Kobelco SK75 Used Excavator / 1
Buy Kobelco SK75 Used Excavator / 2
Buy Kobelco SK75 Used Excavator / 3
Buy Kobelco SK75 Used Excavator / 4
Buy Kobelco SK75 Used Excavator / 5
Buy Kobelco SK75 Used Excavator / 6
Buy Kobelco SK75 Used Excavator / 7
Buy Kobelco SK75 Used Excavator / 8
Buy Kobelco SK75 Used Excavator / 9

Product Description

This 2020 Kobelco SK75 excavator represents a well-maintained mid-size machine ready for immediate deployment. Currently located in Beijing, China, this unit features the original factory blade attachment, making it versatile for grading and backfilling operations. The SK75 is recognized in the industry for fuel efficiency and responsive hydraulic controls, qualities that remain evident in this particular machine.

  • Year: 2020
  • Model: Kobelco SK75
  • Equipped with factory blade
  • Functional air conditioning system
  • Location: Beijing, China

The machine demonstrates the reliable performance characteristics typical of Kobelco's 7-ton class excavators. Hydraulic response remains crisp, and the operator cabin includes working climate control. This excavator suits contractors seeking dependable equipment for utility work, landscaping, or light construction applications. Available for inspection in Beijing.

SpecificationsValue
No.1075286
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1075286

Brand Name:

Kobelco

Model Number:

SK75

Year:

2020

Location:

Peking China

Pub Date
