Product Description

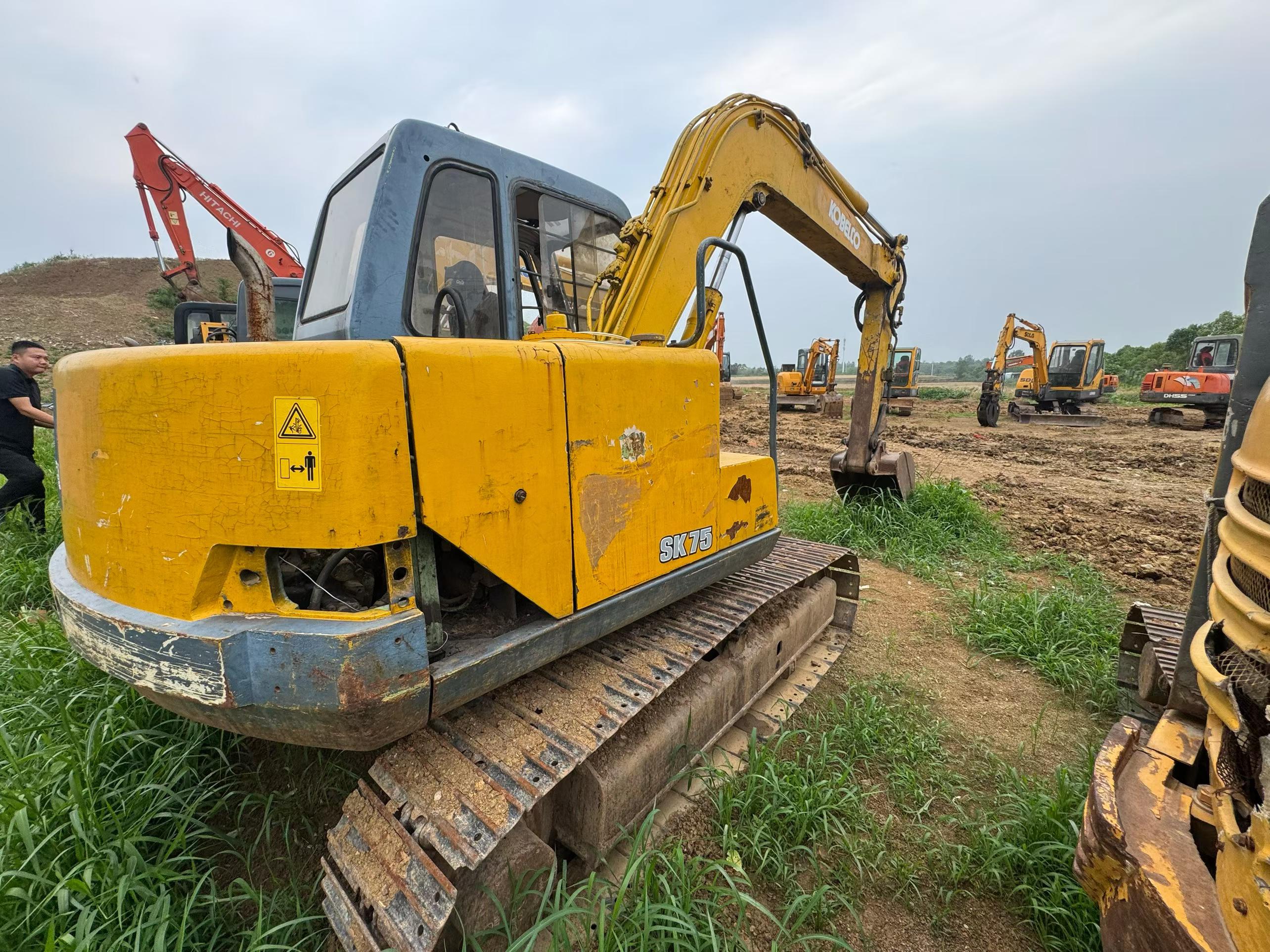

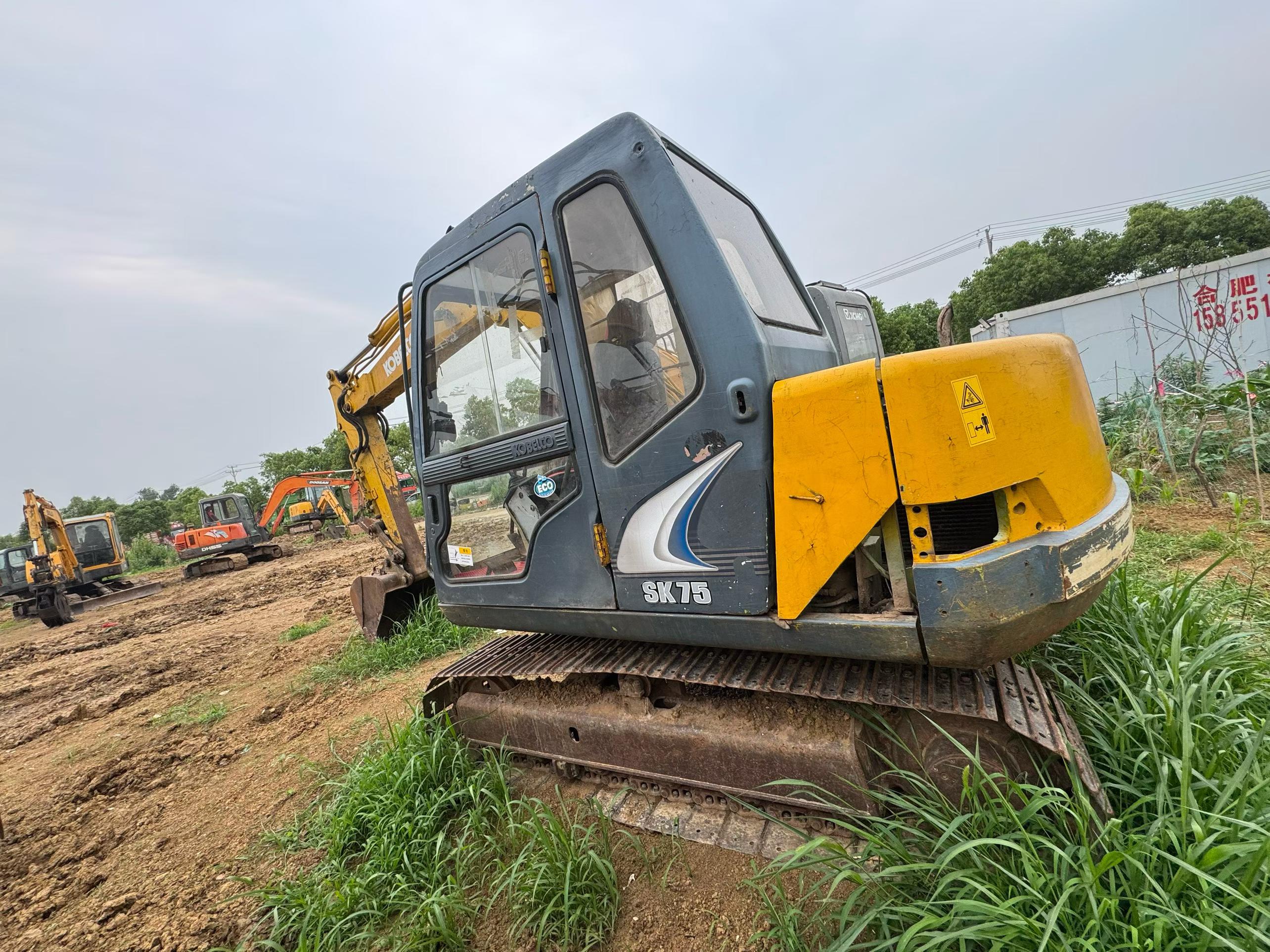

This 2020 Kobelco SK75 excavator is currently available from Sichuan, China. The SK75 is a reliable 7.5-ton class mini excavator widely recognized in the construction and earthmoving sectors for its compact footprint and versatile performance capabilities.

According to the seller, this machine's performance is verified and functional. With approximately two years of operational use, this unit represents an opportunity to acquire Kobelco's proven hydraulic technology and fuel-efficient design at a competitive price point.

Key features of the SK75 platform include:

  • 7.5-ton operating weight class
  • Compact dimensions suitable for urban construction sites
  • Kobelco's efficient hydraulic system
  • Reliable performance for excavation and material handling

This used excavator is being offered for prompt sale. Interested buyers should conduct pre-purchase inspections and verify machine condition before finalizing transactions.

SpecificationsValue
No.1077036
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
