2020 Kobelco SK75

1/6

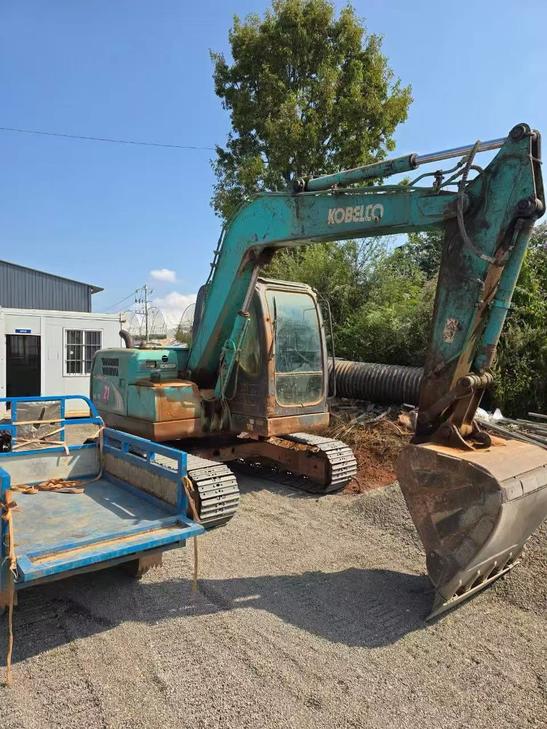

Buy Kobelco SK75 Used Excavator / 1
Buy Kobelco SK75 Used Excavator / 2
Buy Kobelco SK75 Used Excavator / 3
Buy Kobelco SK75 Used Excavator / 4
Buy Kobelco SK75 Used Excavator / 5
Buy Kobelco SK75 Used Excavator / 6

Product Description

This 2020 Kobelco SK75 excavator is currently located in Yunnan, China and available for immediate purchase. With approximately 40,000 hours of operation, this mid-size crawler excavator has been actively used in the field and comes with photographic and video documentation of its current condition.

The SK75 is a proven 7.5-ton class machine known for its fuel efficiency and reliability in construction, mining, and earthmoving applications. Kobelco's engineering delivers strong digging force and smooth operation in a compact footprint suitable for confined job sites.

Key features of this unit include:

  • Kobelco SK75 model from 2020 production year
  • Located in Yunnan Province, China
  • Photo and video documentation available
  • Suitable for medium-duty excavation and material handling

Interested buyers should request detailed inspection reports and arrange on-site verification before purchase.

SpecificationsValue
No.1163593
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1163593

Brand Name:

Kobelco

Model Number:

SK75

Year:

2020

Location:

Yunnan China

Pub Date:
