Product Description

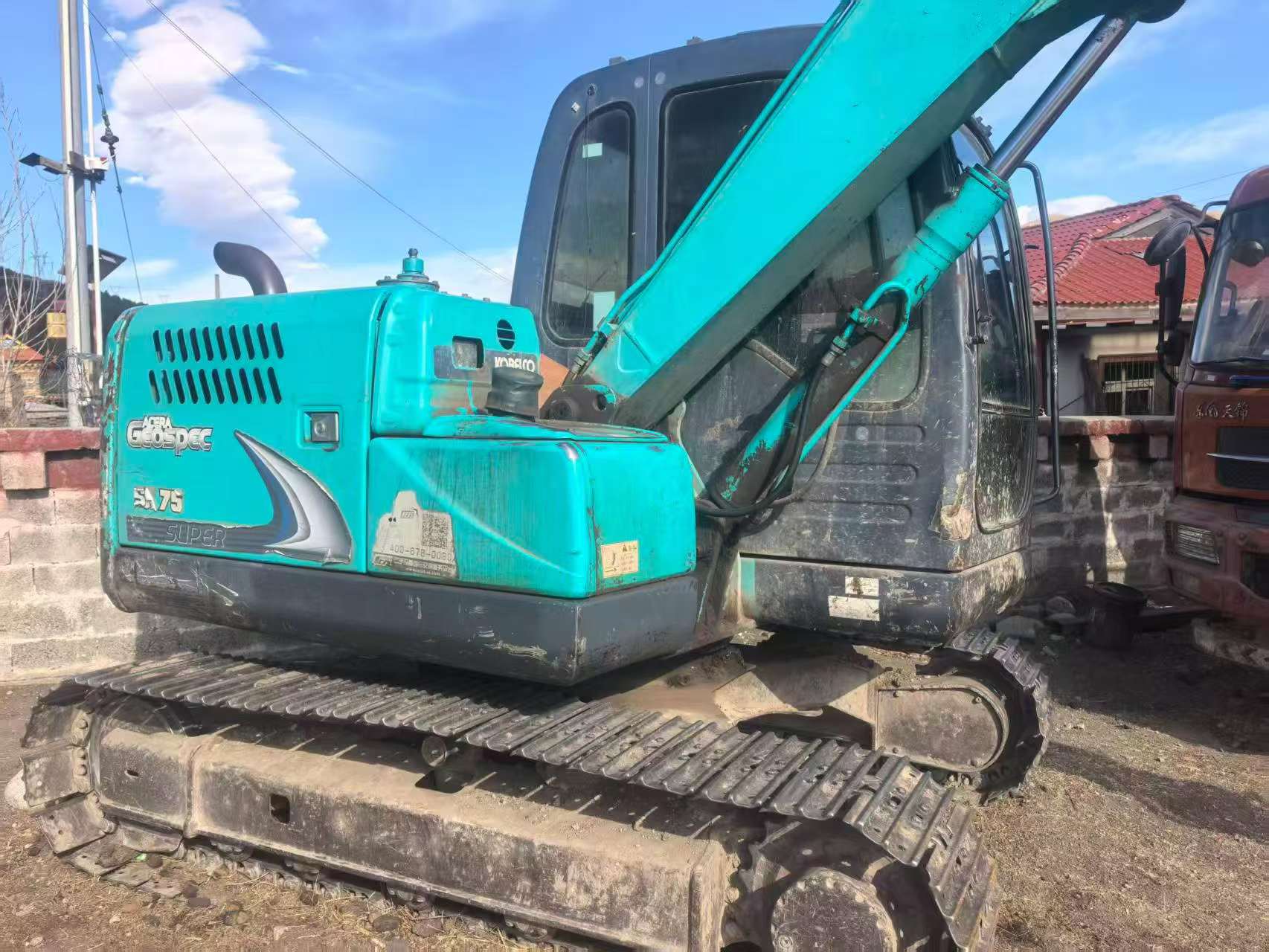

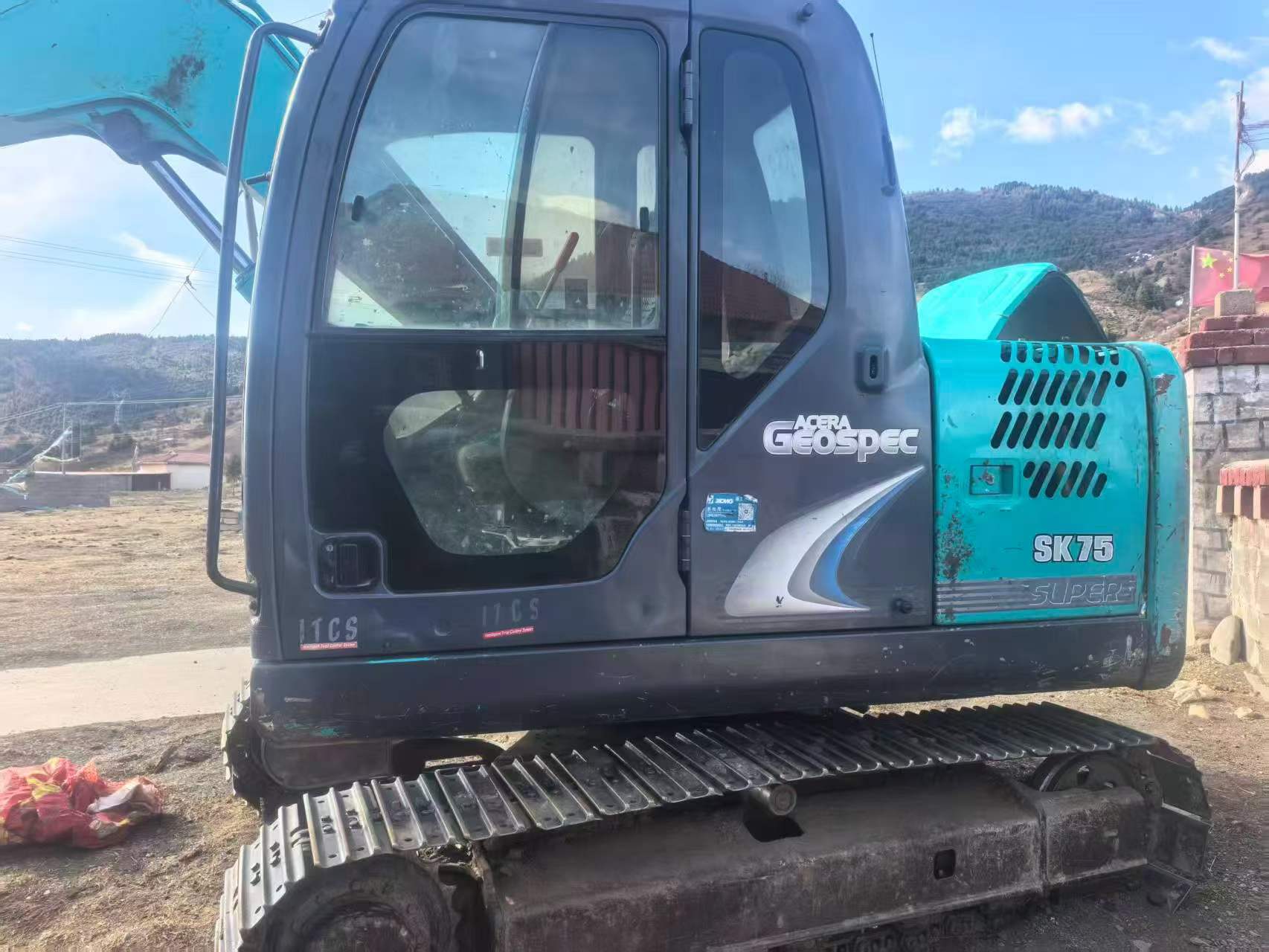

This 2020 Kobelco SK75 midi excavator offers reliable performance for contractors seeking proven Japanese engineering. Currently located in Fujian, China, this machine delivers the balance of compact dimensions and digging capability that has made the SK75 a popular choice across construction, utility, and landscaping applications.
Key features of the Kobelco SK75 include:
- 7.5-tonne operating weight class with excellent stability
- Zero tail swing design for confined job sites
- Fuel-efficient diesel engine meeting emission standards
- Hydraulic system engineered for smooth, responsive control
- Comfortable operator station with good all-around visibility
As a used unit from 2020, this excavator provides an opportunity to acquire Kobelco quality at a competitive price point. The SK75 is known for durability and serviceability, making it a practical addition to rental fleets or owner-operator businesses.
| Specifications | Value |
|---|---|
| No. | 1166548 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

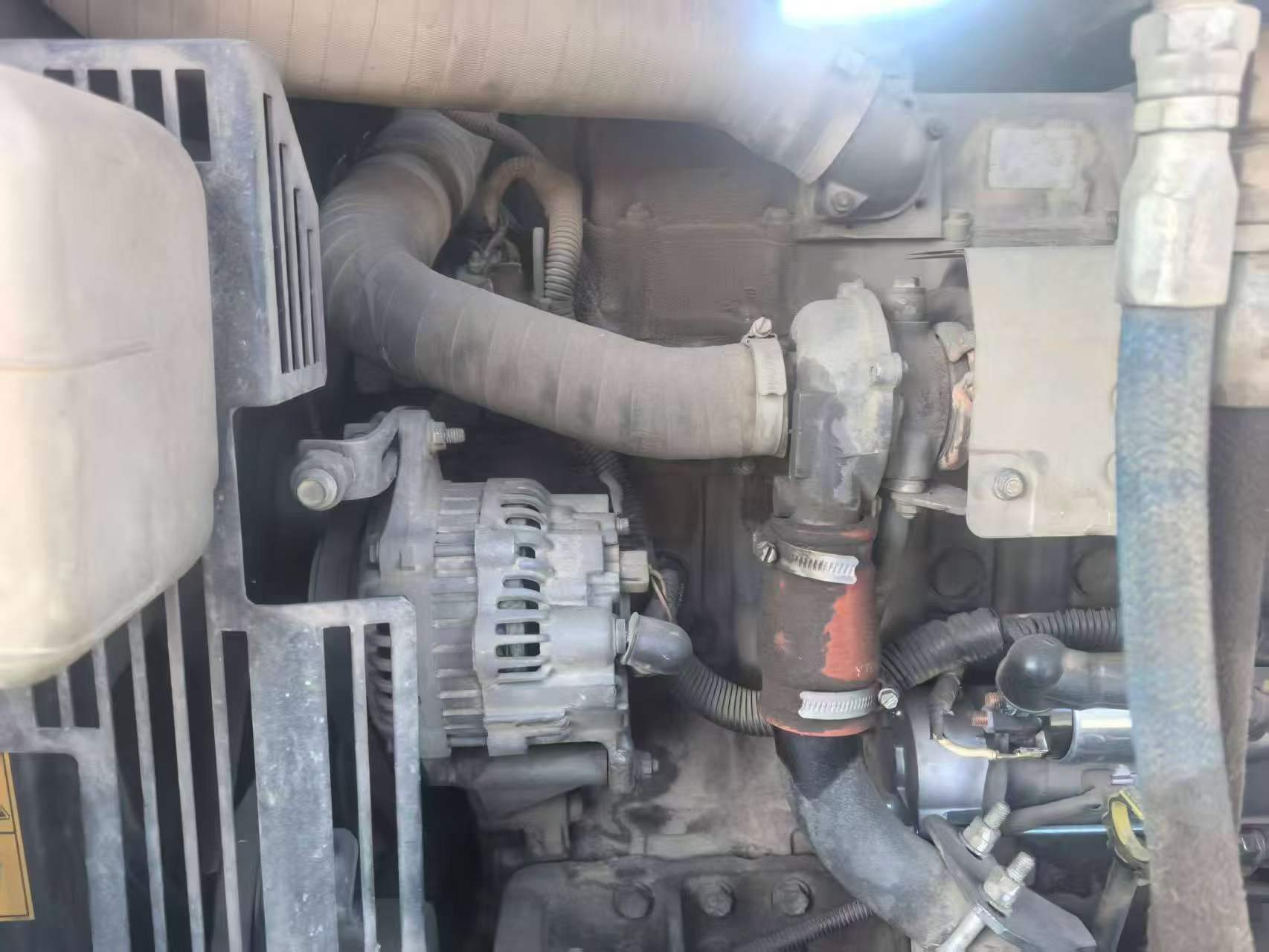

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |

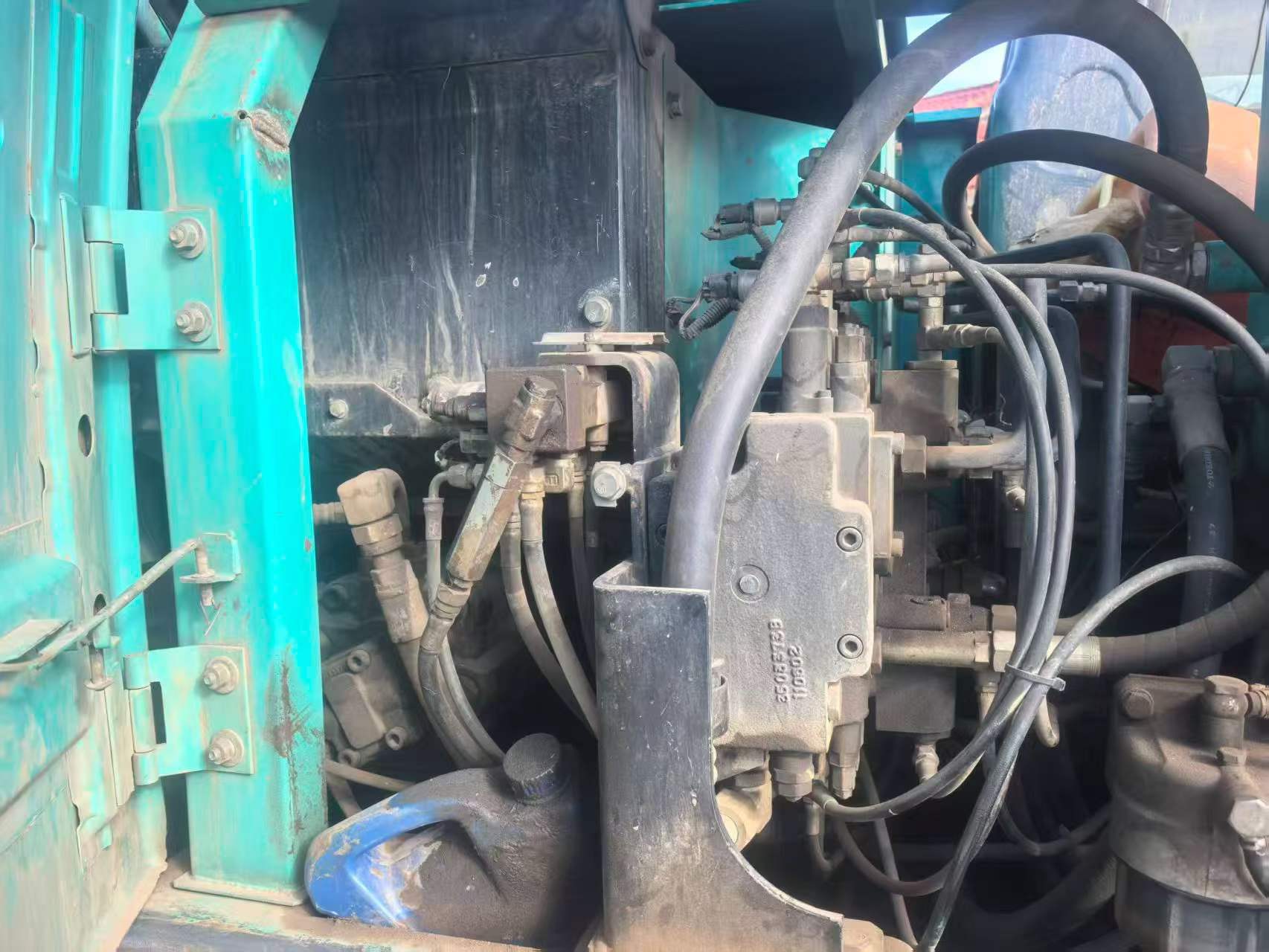

| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
