Product Description

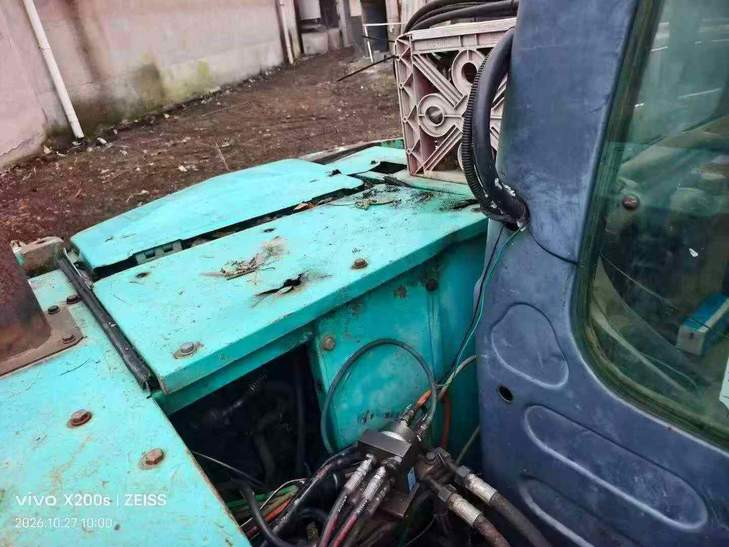

This 2020 Kobelco SK75 compact excavator offers reliable performance for construction and earthmoving applications. Currently located in Sichuan, China, this imported Japanese machine combines Kobelco's engineering heritage with practical operational capabilities suitable for contractors and equipment dealers.
Key features include:
- Compact 7.5-ton class design for versatility in confined spaces
- Fuel-efficient engine meeting emission standards
- Hydraulic system engineered for smooth operation
- Robust undercarriage and durable components
- Suitable for trenching, grading, and light demolition work
As used equipment, this SK75 presents a cost-effective option for businesses seeking proven Japanese technology. Standard pre-delivery inspection available. Contact us for detailed specifications, operating hours, and current condition assessment.
| Specifications | Value |
|---|---|
| No. | 1173971 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
