2020 Kobelco SK75

1/8
Buy Kobelco SK75 Used Excavator / 1

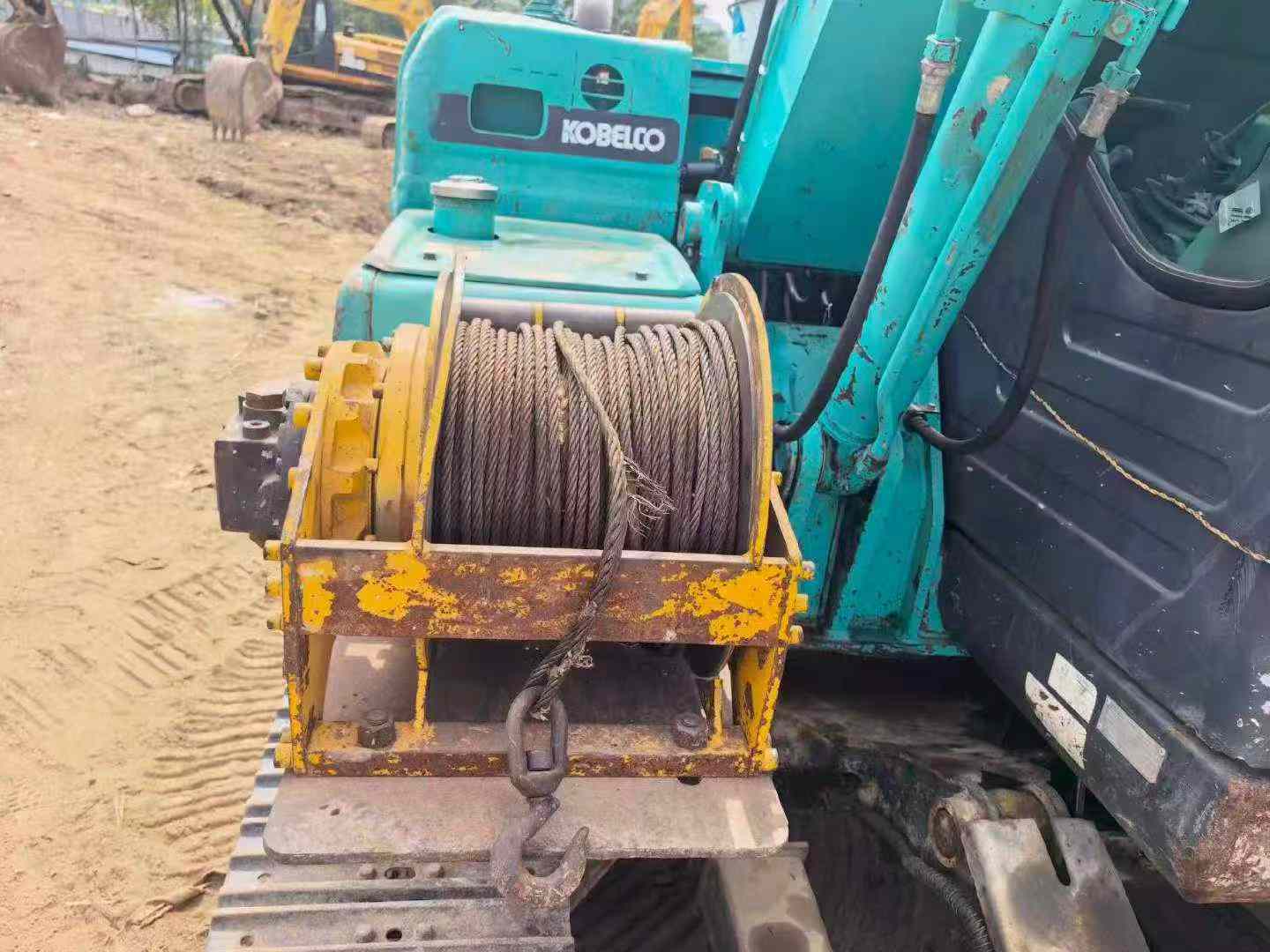

Buy Kobelco SK75 Used Excavator / 2

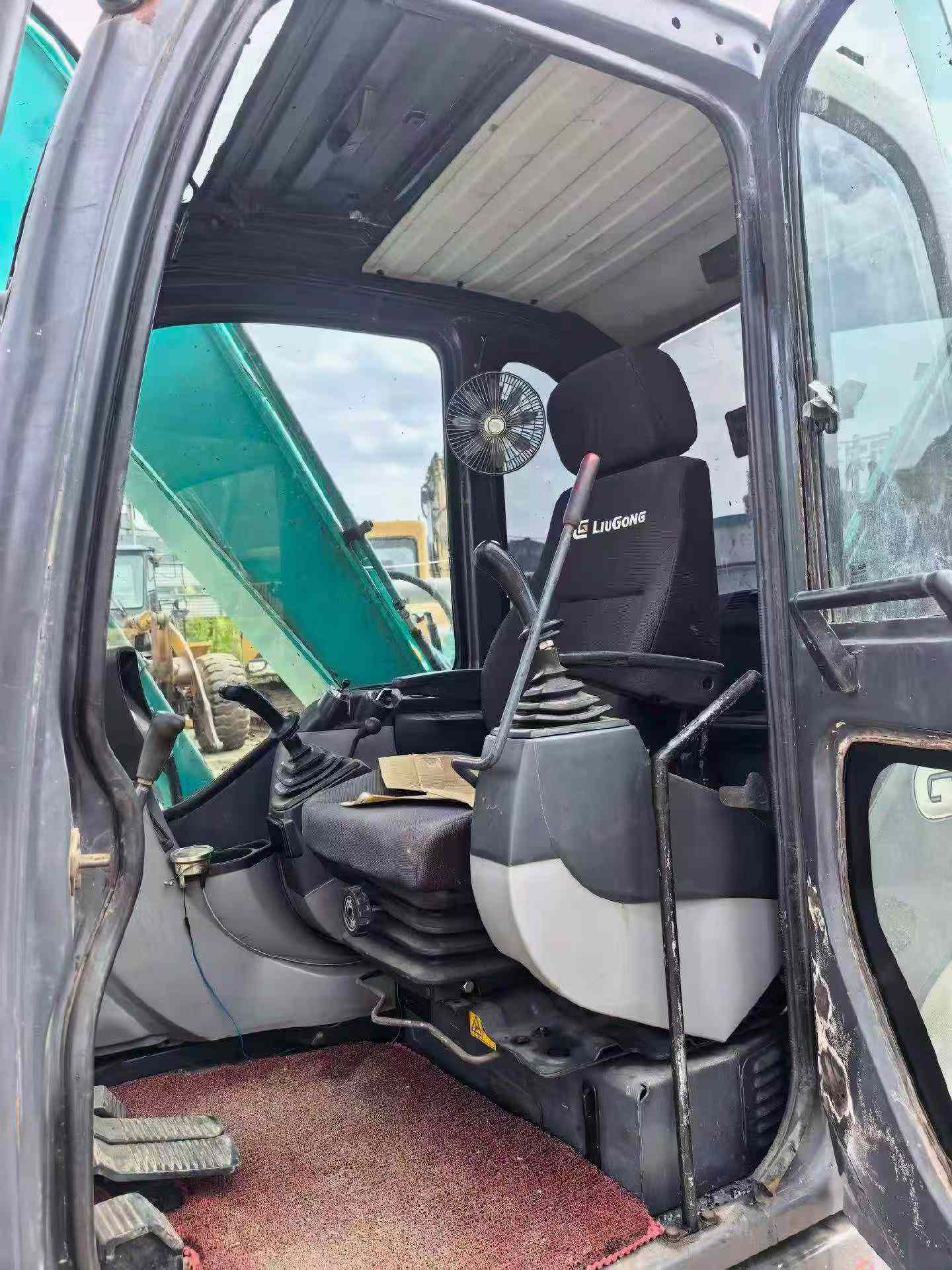

Buy Kobelco SK75 Used Excavator / 3

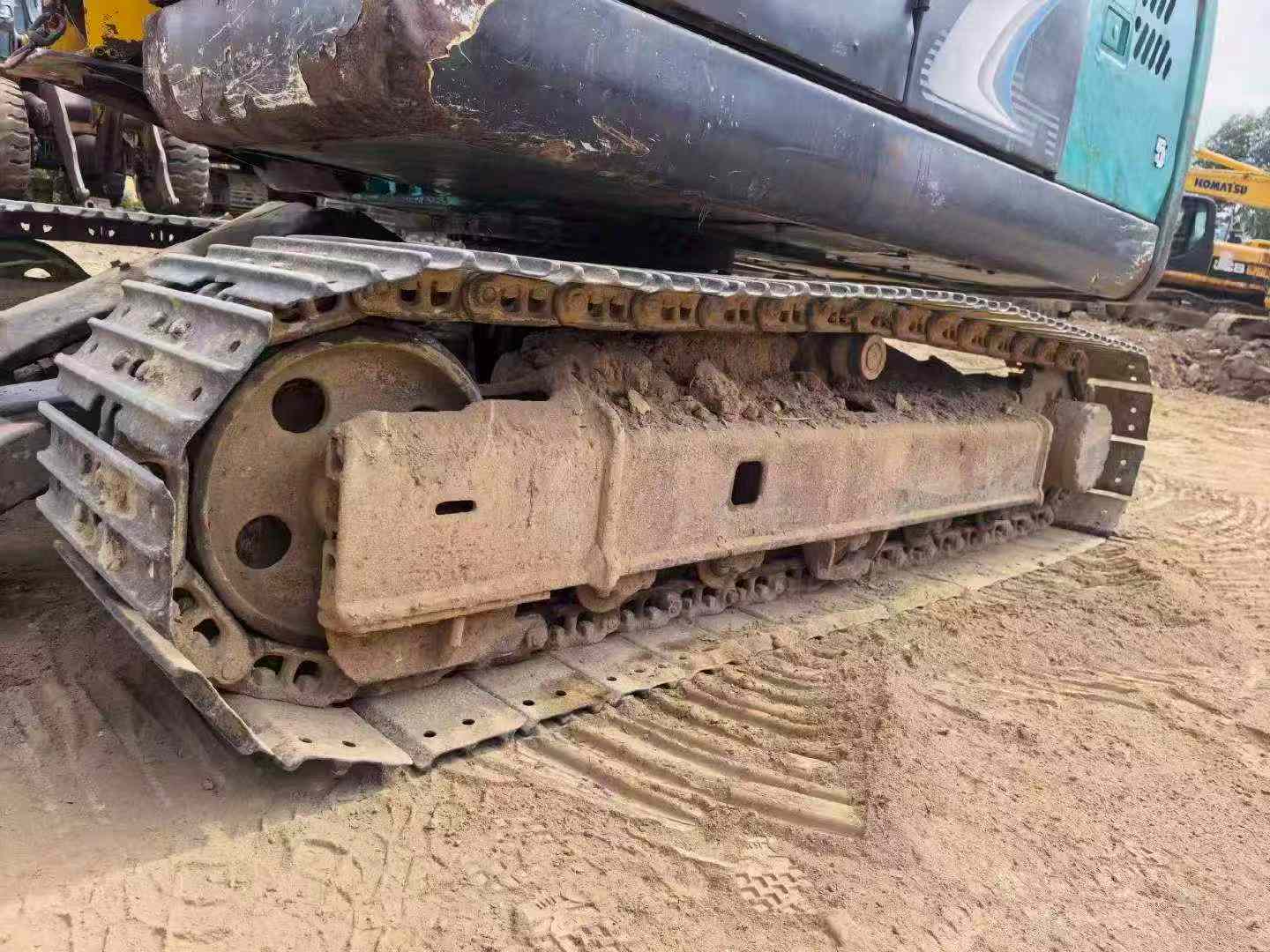

Buy Kobelco SK75 Used Excavator / 4

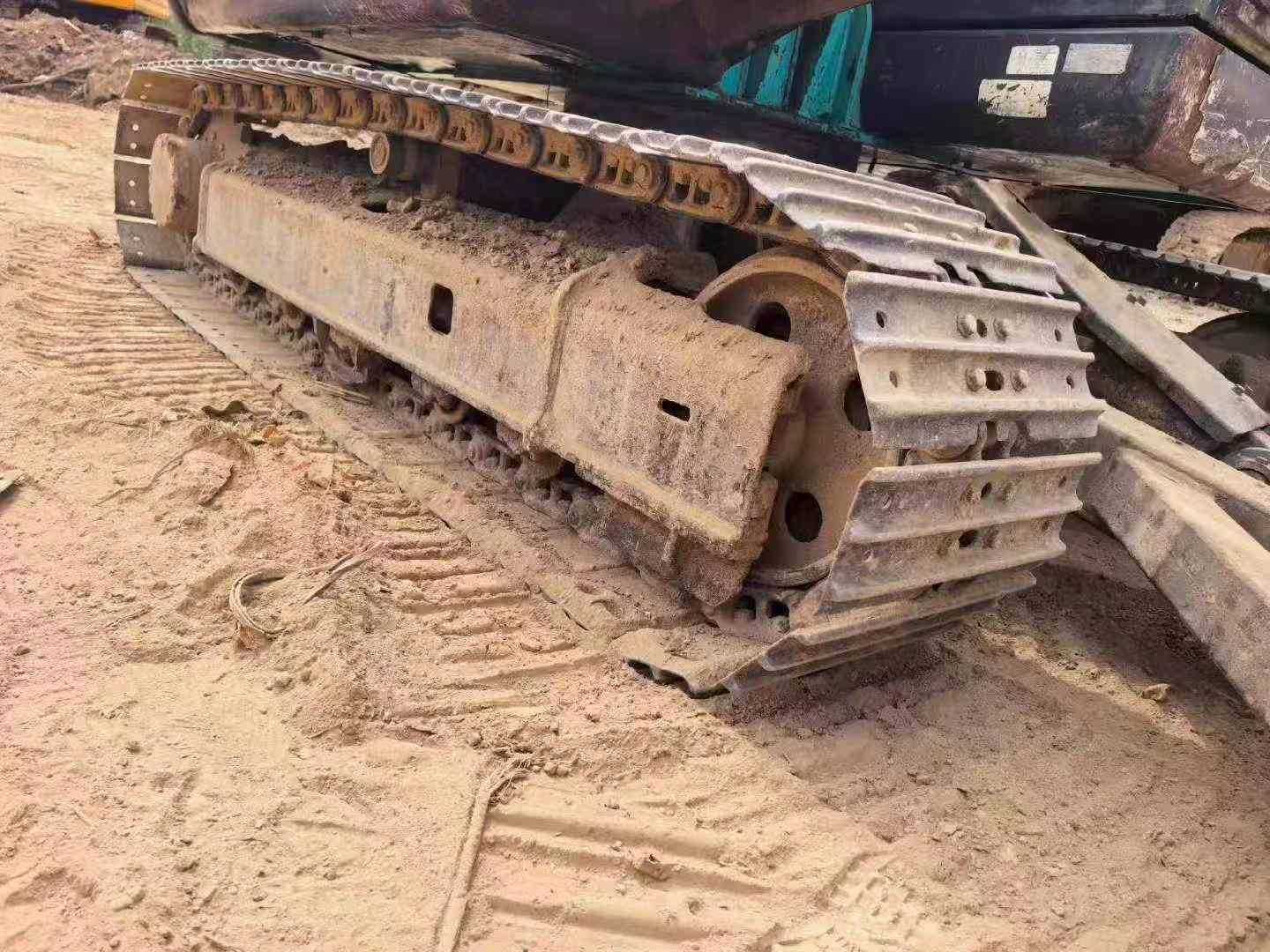

Buy Kobelco SK75 Used Excavator / 5

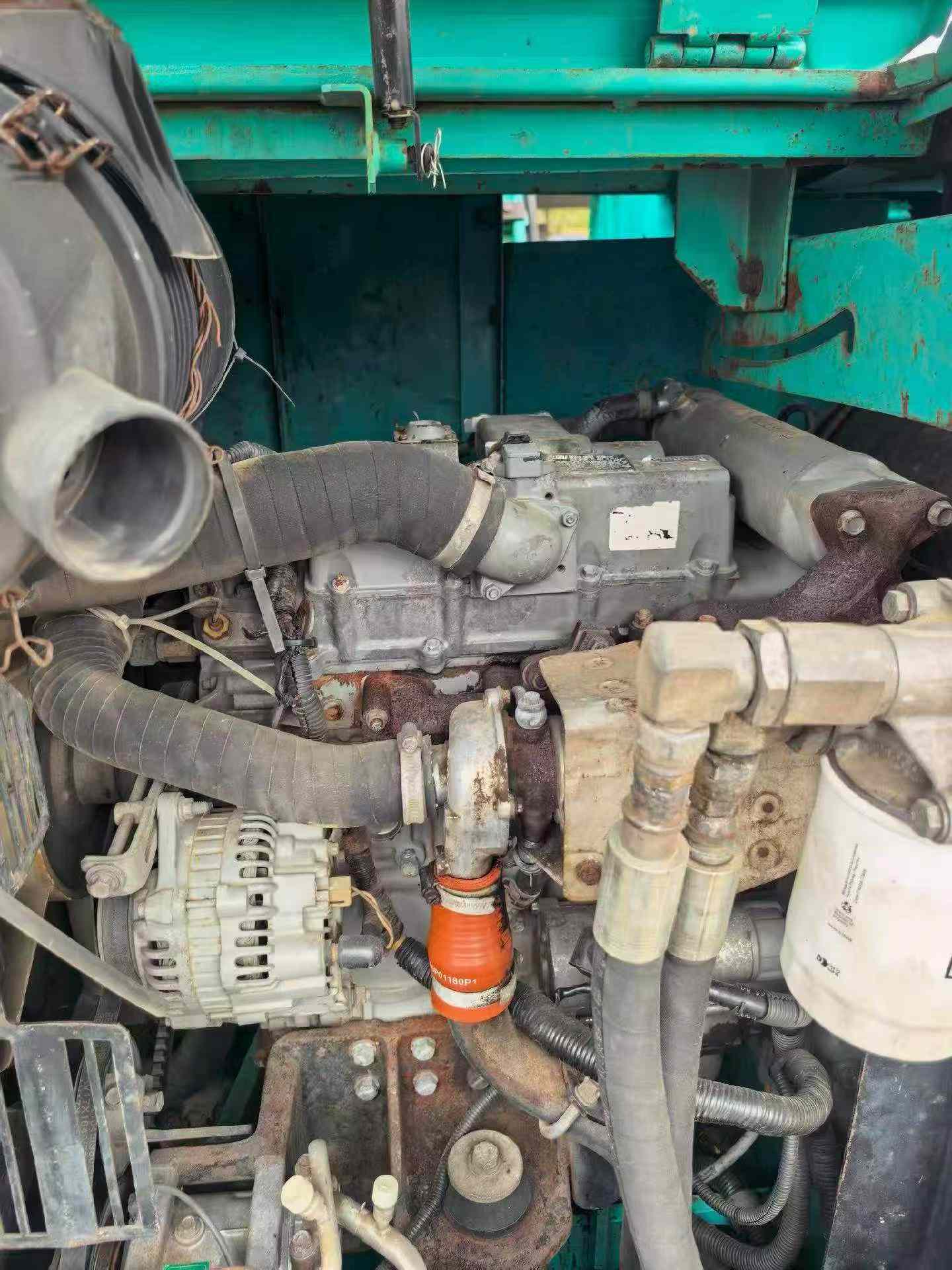

Buy Kobelco SK75 Used Excavator / 6

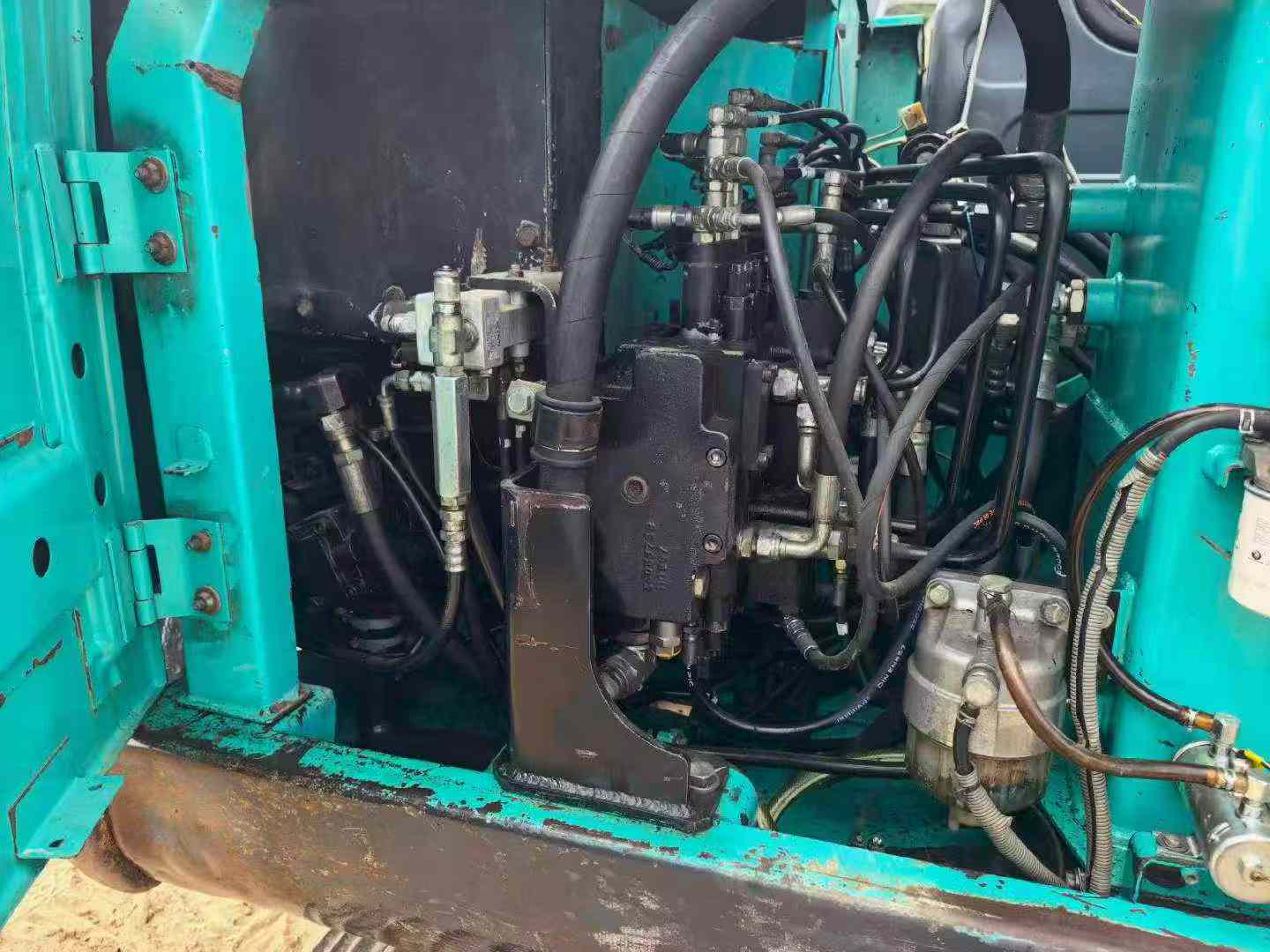

Buy Kobelco SK75 Used Excavator / 7

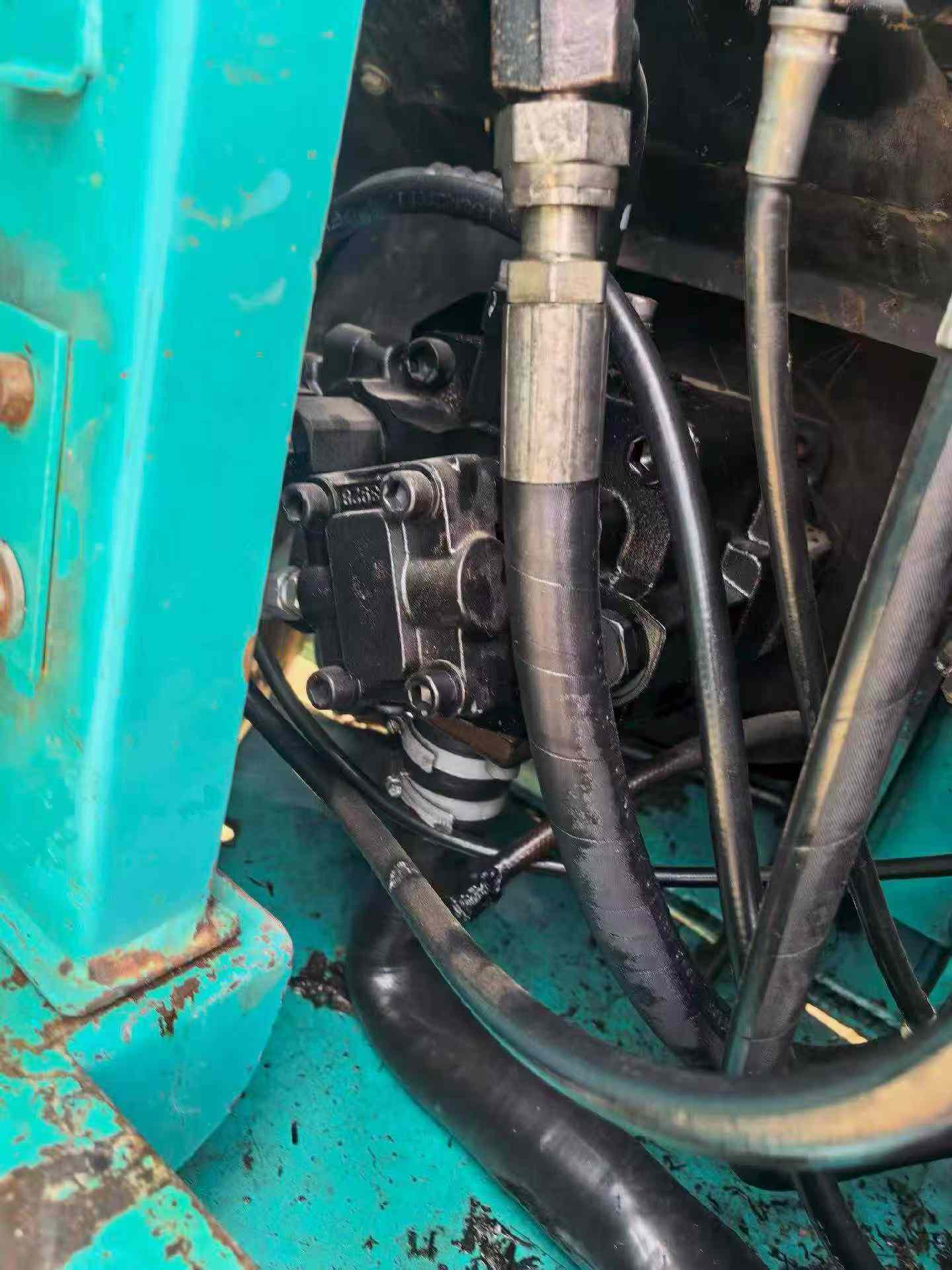

Buy Kobelco SK75 Used Excavator / 8

Product Description

Discover the reliability and efficiency of the 2020 Kobelco SK75, now available in Guangxi, China. This used excavator, equipped with a grapple and winch, is a versatile addition to any construction or demolition project. With approximately 60,000 operational hours, this machine has proven its durability and performance on various job sites. The Kobelco SK75 is known for its robust design, fuel efficiency, and ease of maintenance, making it an excellent choice for companies looking to enhance their fleet with a high-quality, cost-effective solution.

  • Year: 2020
  • Brand: Kobelco
  • Model: SK75
  • Location: Guangxi, China
  • Operational Hours: Around 60,000
  • Features: Grapple and Winch
SpecificationsValue
No.1175285
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1175285

Brand Name:

Kobelco

Model Number:

SK75

Year:

2020

Location:

Guangxi China

Pub Date:
