2020 Kobelco SK75-8

1/9
Buy Kobelco SK75-8 Used Excavator / 1

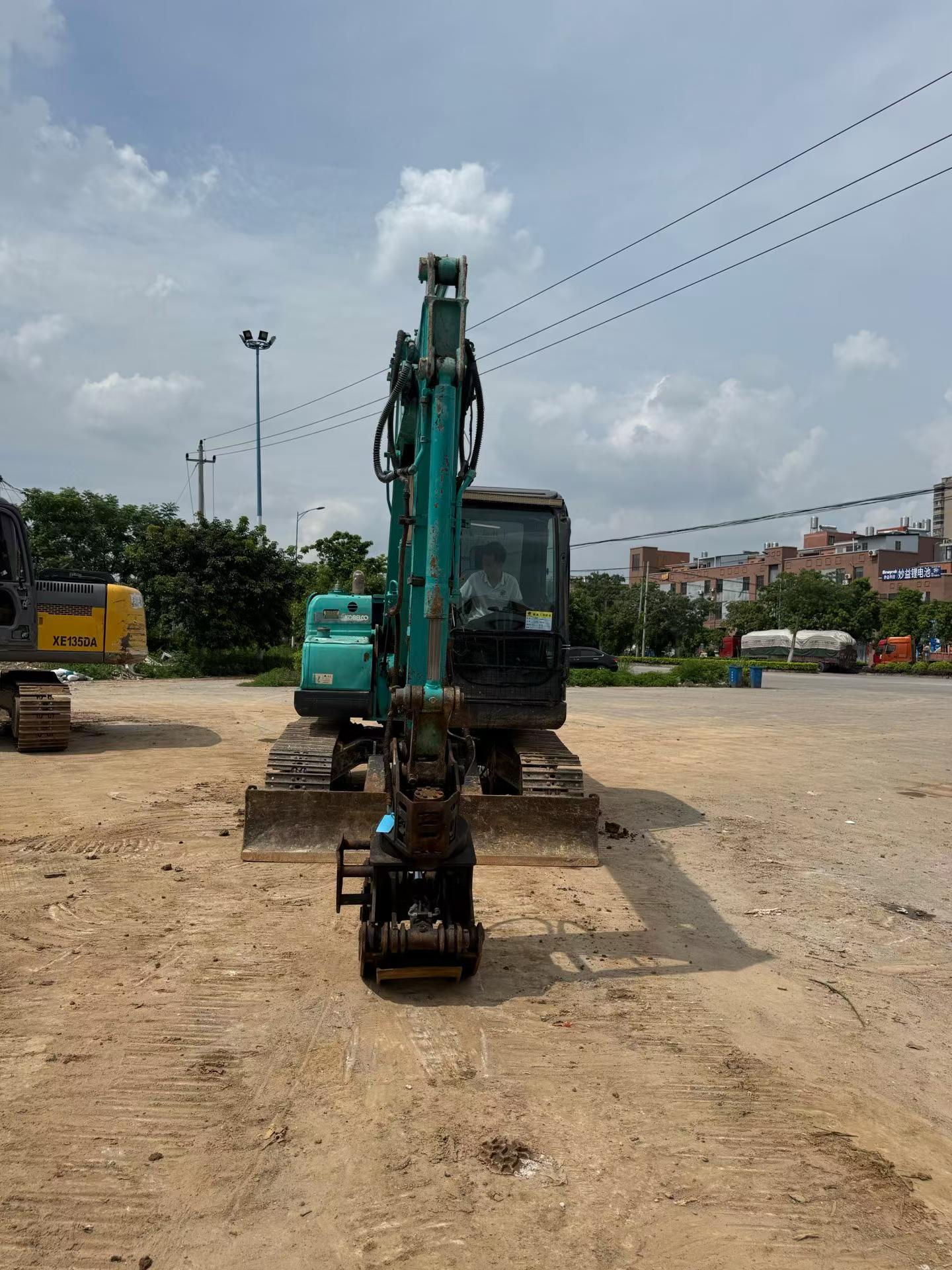

Buy Kobelco SK75-8 Used Excavator / 2

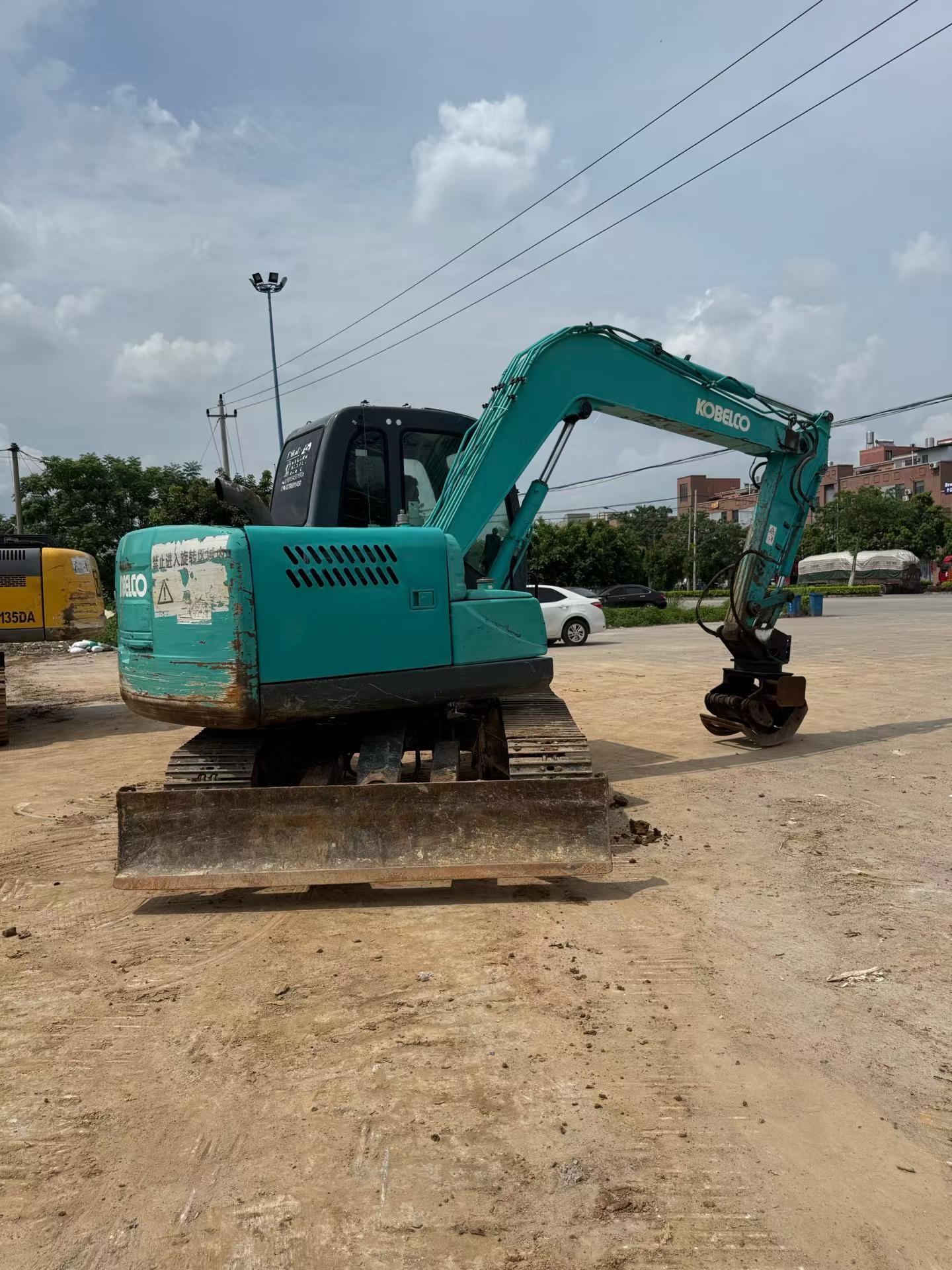

Buy Kobelco SK75-8 Used Excavator / 3

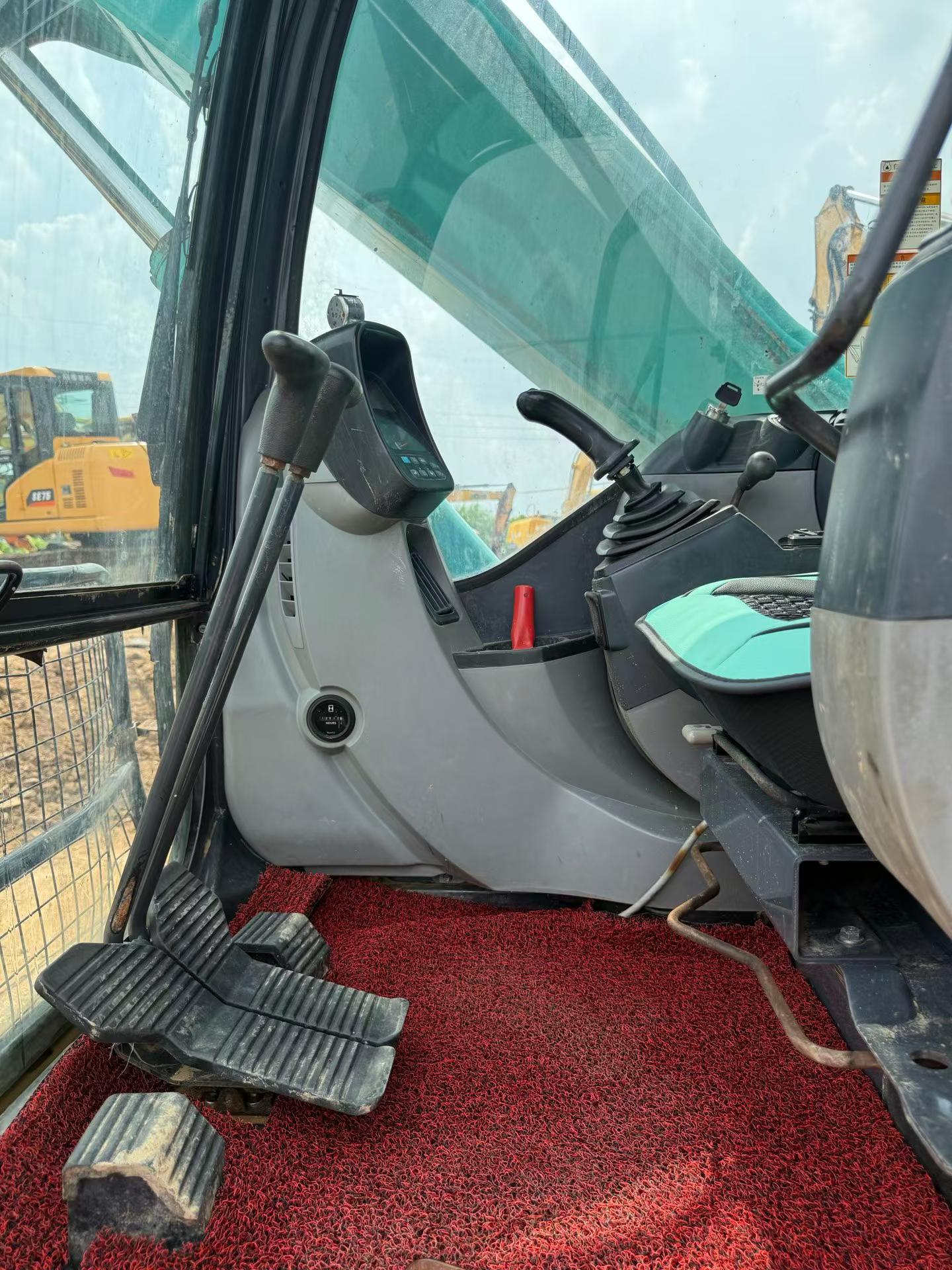

Buy Kobelco SK75-8 Used Excavator / 4

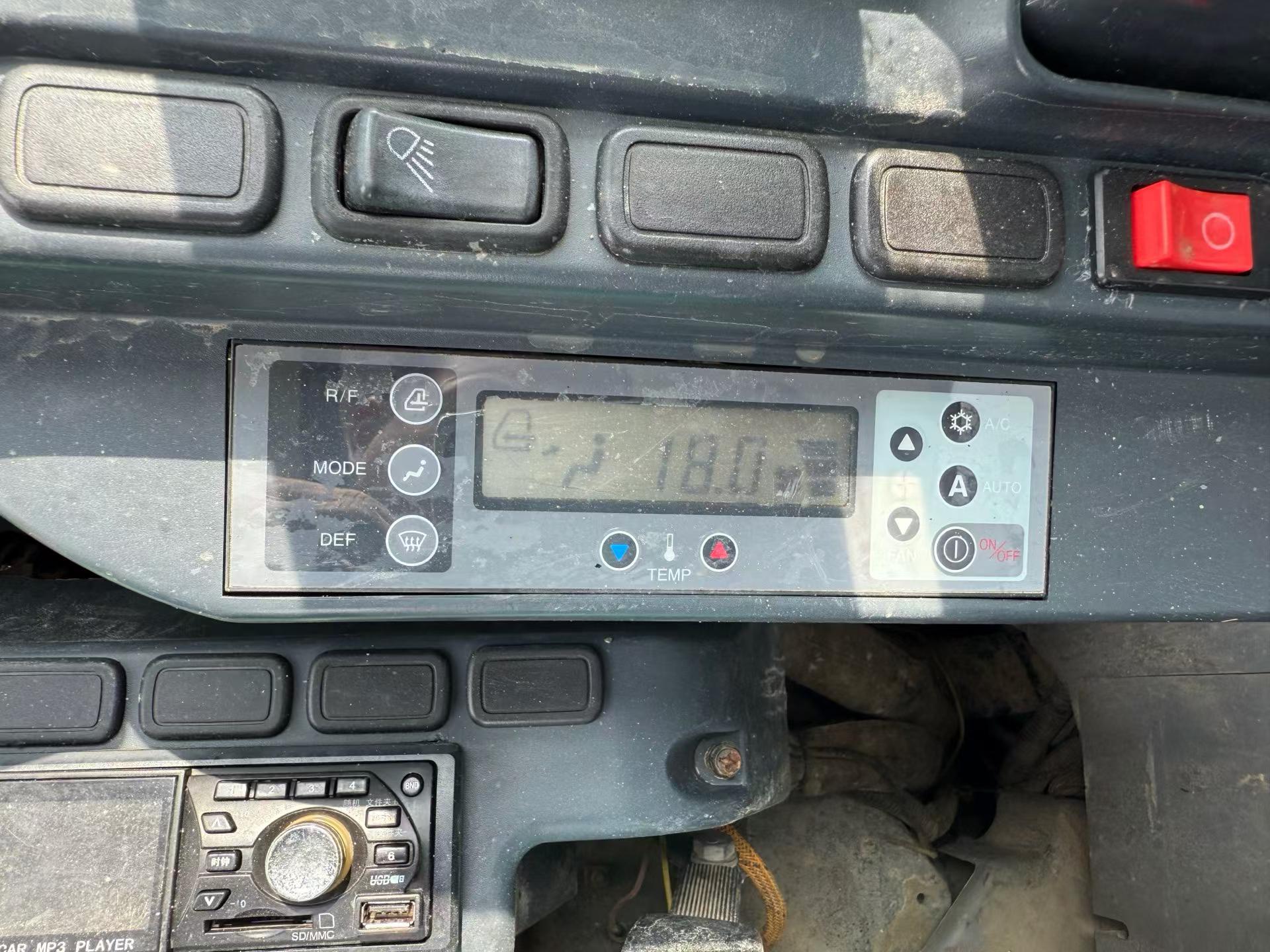

Buy Kobelco SK75-8 Used Excavator / 5

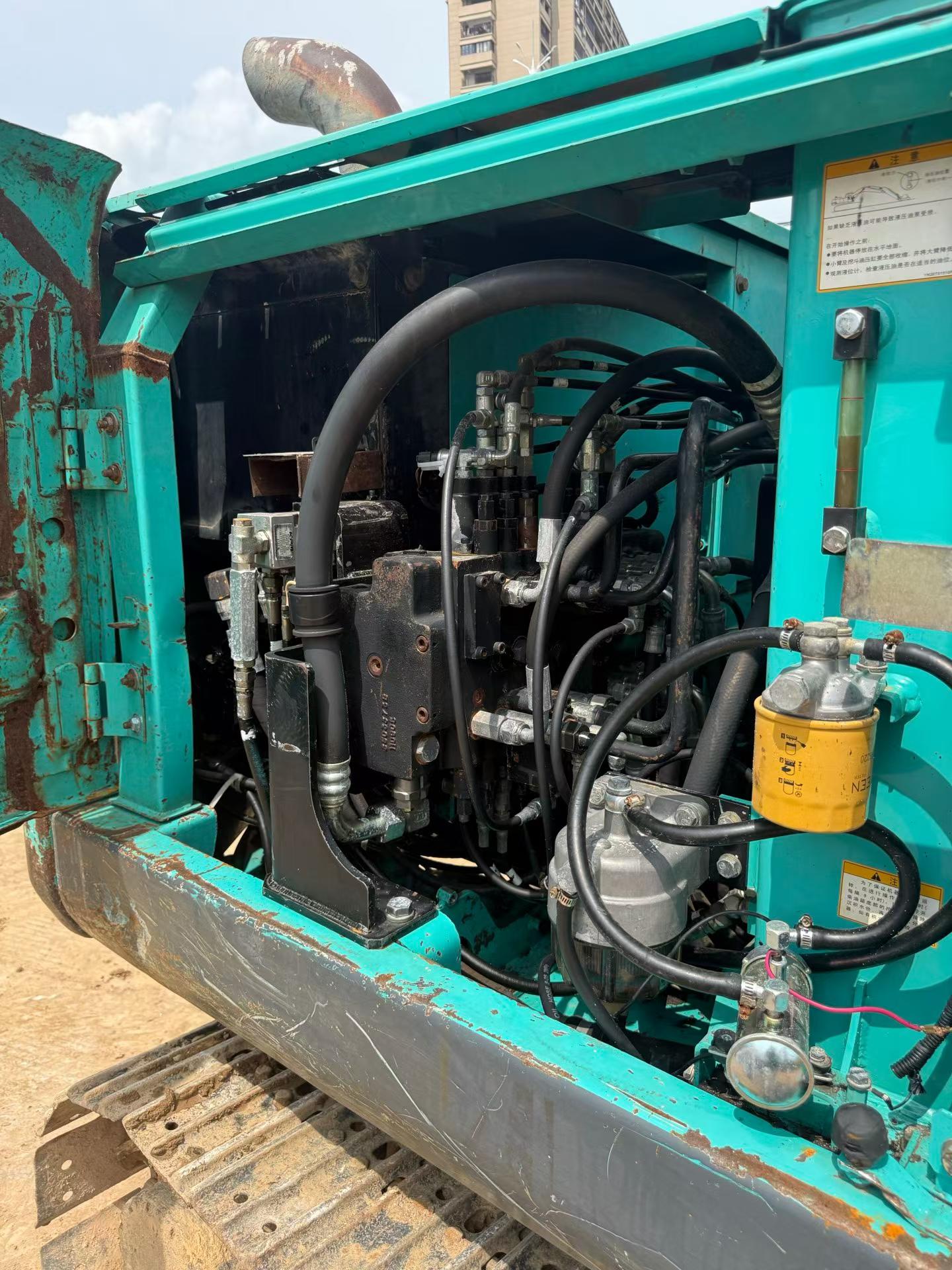

Buy Kobelco SK75-8 Used Excavator / 6

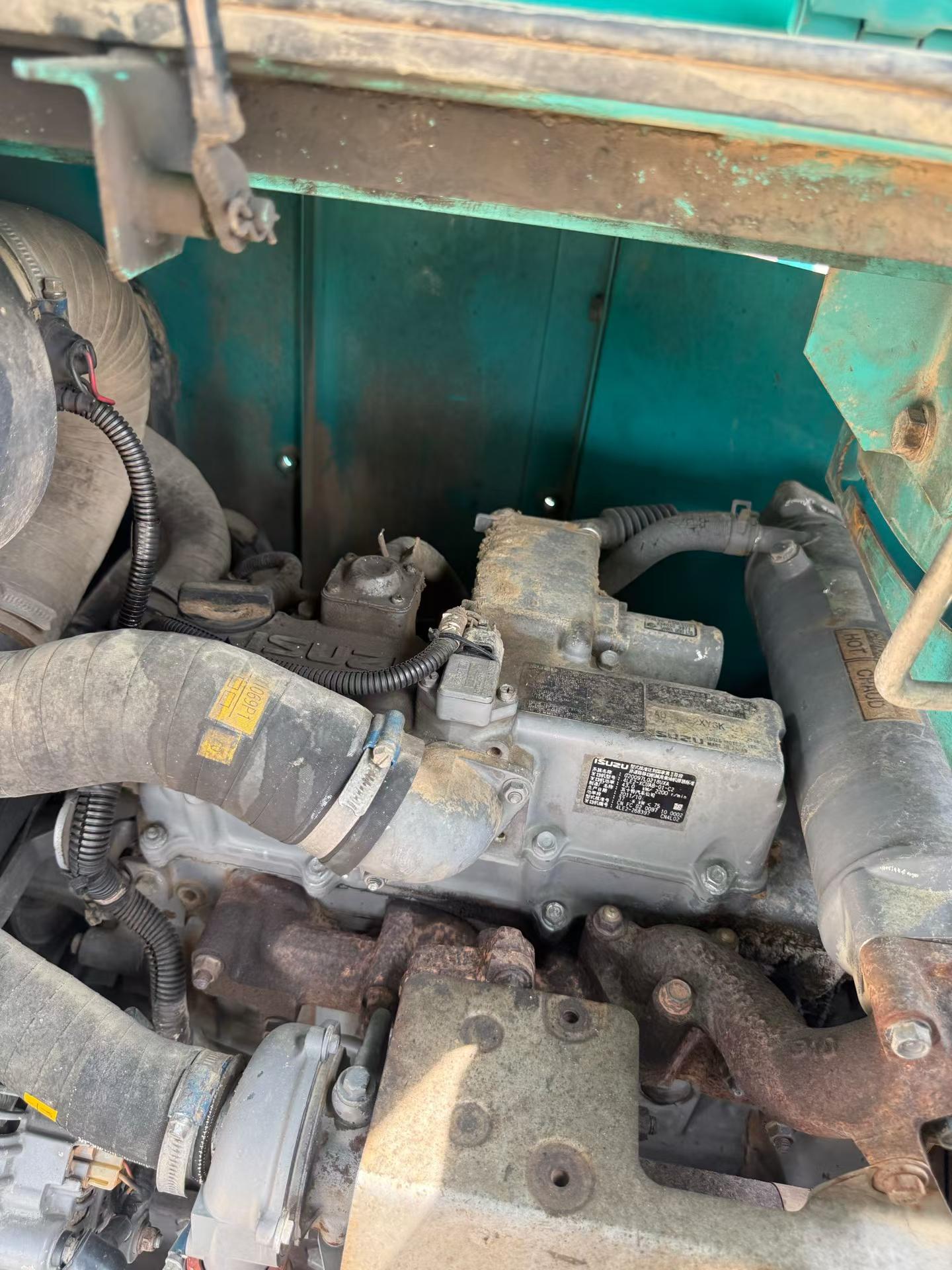

Buy Kobelco SK75-8 Used Excavator / 7

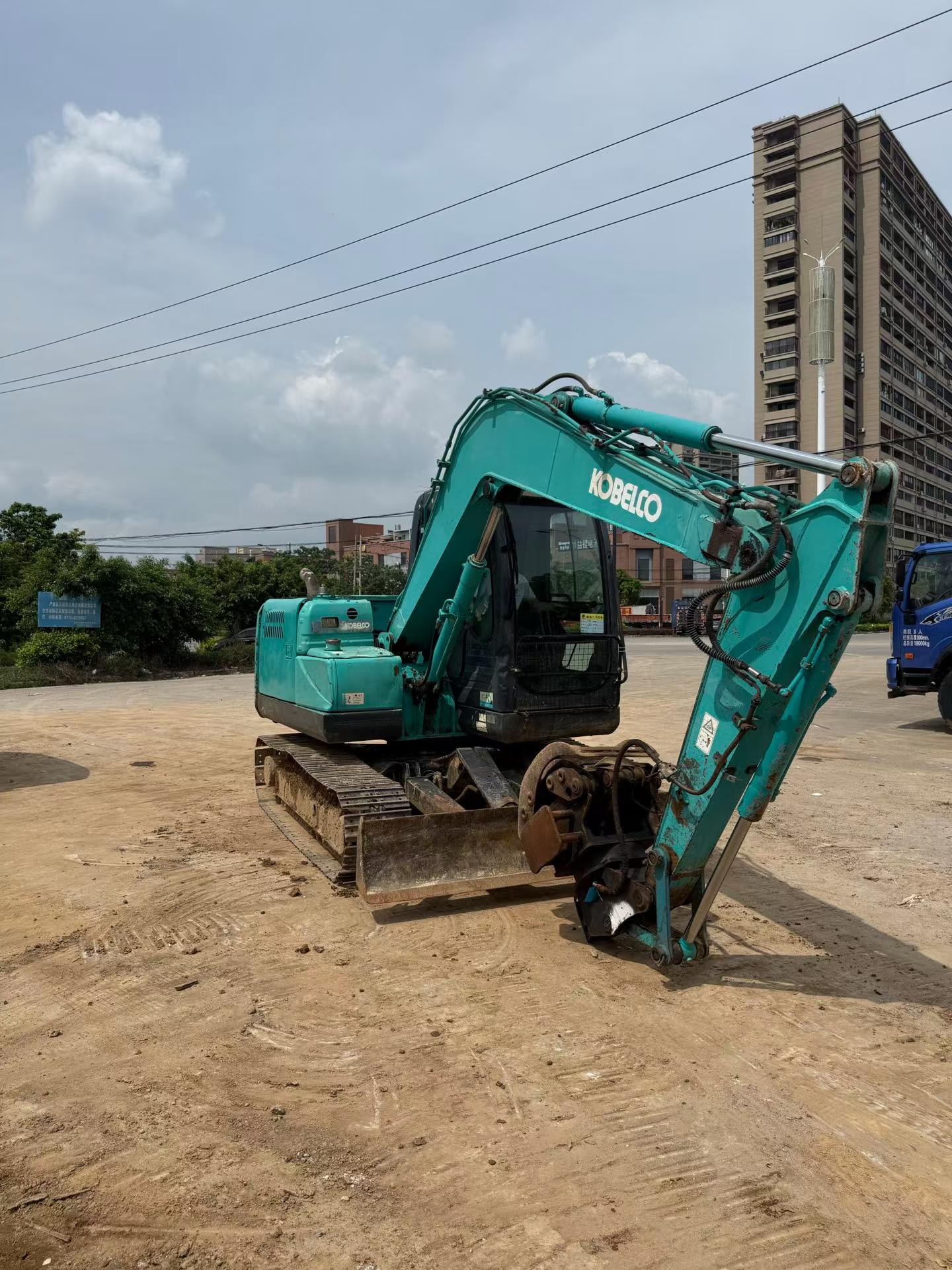

Buy Kobelco SK75-8 Used Excavator / 8

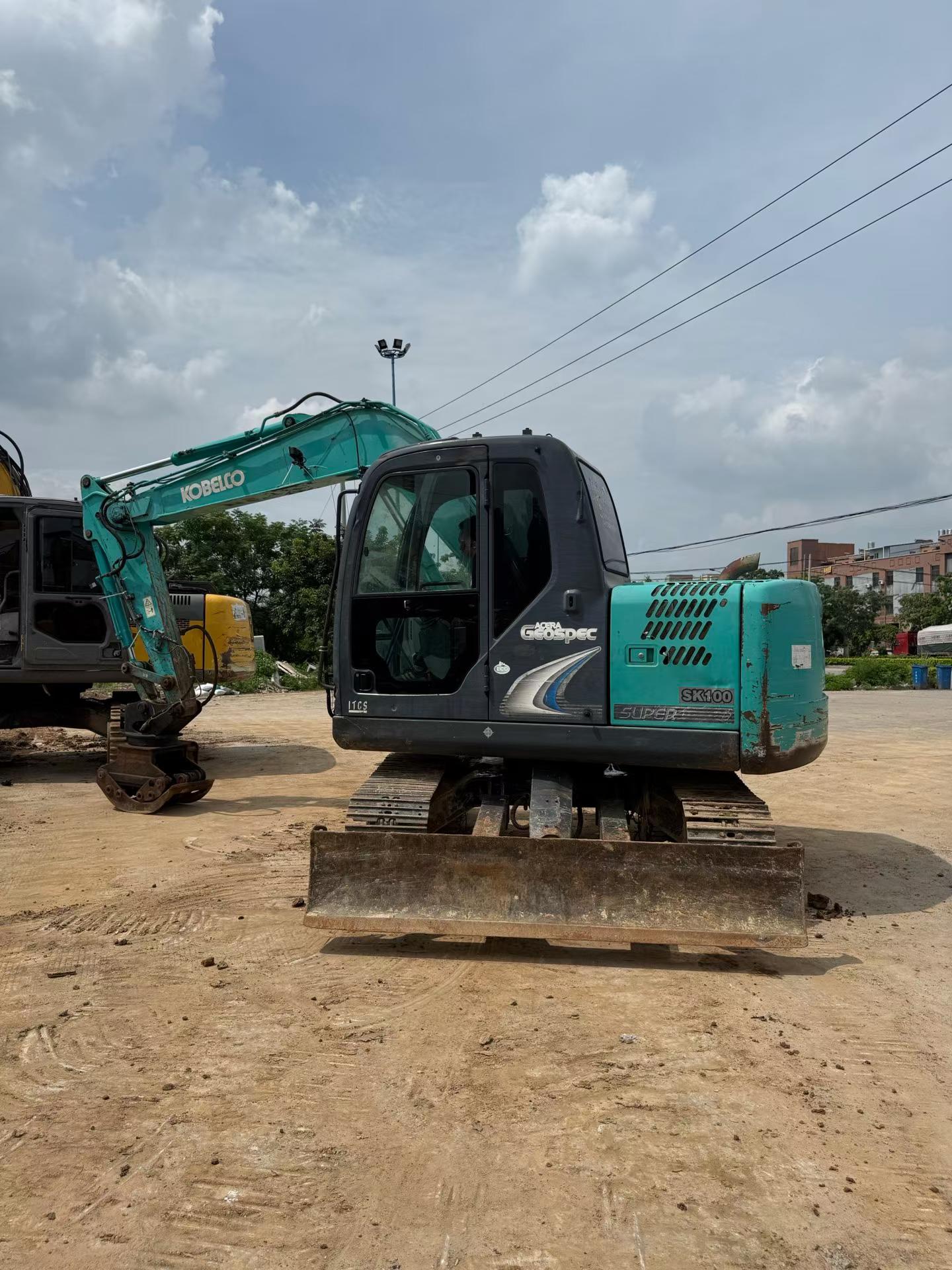

Buy Kobelco SK75-8 Used Excavator / 9

Product Description

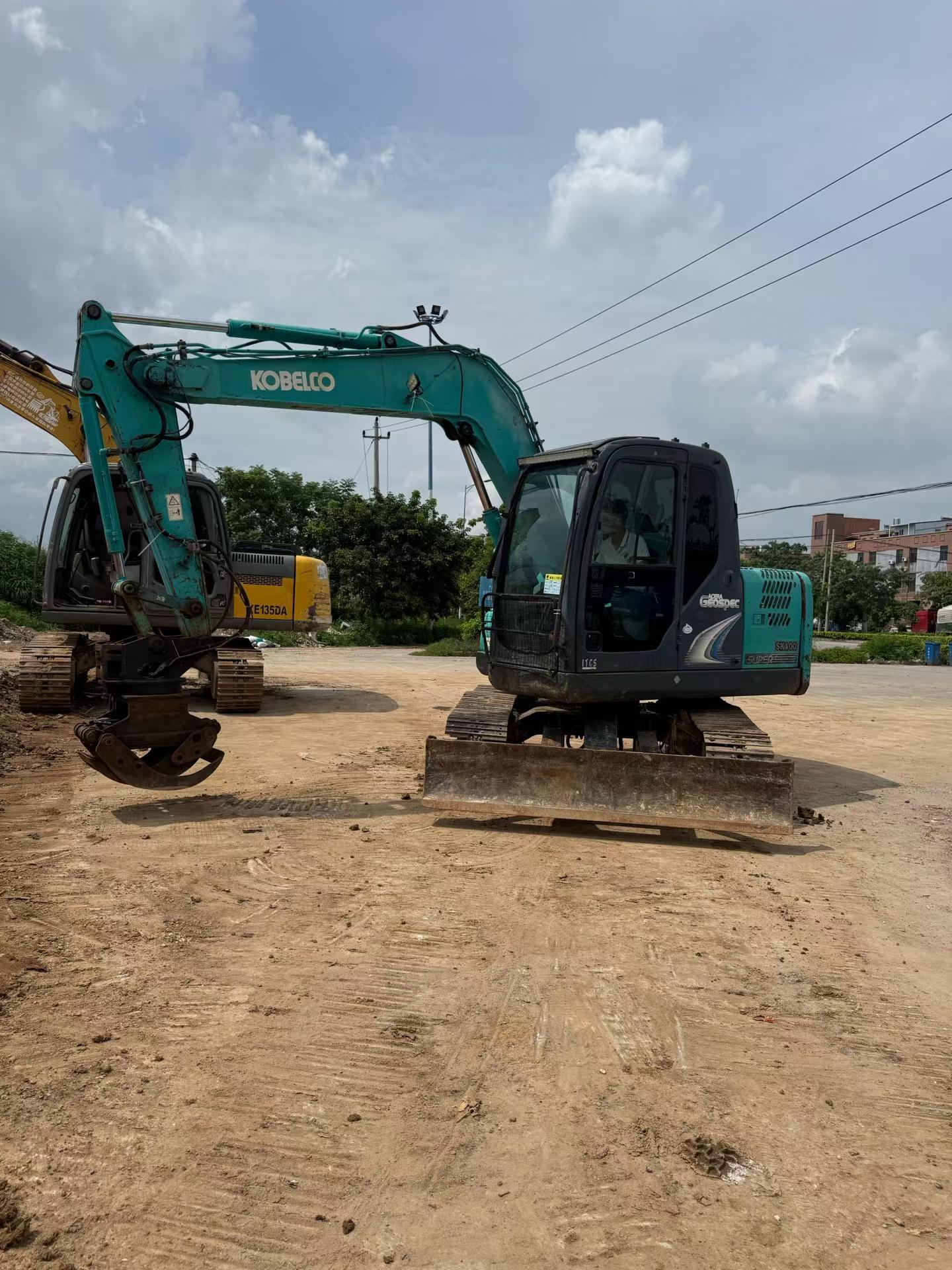

This 2020 Kobelco SK75-8 midi excavator is available from our Guangxi, China location and represents excellent value in the used compact equipment market. Factory-equipped with a hydraulic grapple attachment, this machine is ready for material handling, demolition sorting, and forestry applications straight off the trailer.

The SK75-8 delivers reliable performance with Kobelco's proven hydraulic system and fuel-efficient engine design. Operating weight approximately 7.5 tonnes with standard undercarriage configuration. This unit has been maintained in good working condition and demonstrates strong operational performance across all functions.

  • Year of Manufacture: 2020
  • Model: Kobelco SK75-8
  • Included: Hydraulic grapple attachment
  • Current Location: Guangxi, China
  • Condition: Good working order
  • Asking Price: $88,000 USD equivalent

Suitable for contractors seeking a versatile midi excavator with material handling capabilities. Inspection welcome by appointment.

SpecificationsValue
No.1095591
Tonnage (tons)7
Working weight (kg)6850
Bucket capacity (m³)0.4
Rod length (mm)1710
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAn ISUZU
Rated power (kw/rpm)42/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85*96
Maximum torque (N.m)211/1600
Number of cylinders (PCS)4
Displacement (L)2.179
Working formDirect injection, turbocharged, built-in intercooling
Ground specific pressure (Kpa)30.8
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)52.7
Rod digging force (kN)39.4
Maximum tractive force (kN)72.2
Travel speed (km/h)5.3/2.8
Maximum flow of main pump (l/min)1*132
Traveling Hydraulic Circuit (Mpa)29.4
Rotary Hydraulic Circuit (Mpa)24.5
Main pump typeVariable displacement axial piston pump
Pilot pump flow (L/min)1*18
Bucket cylinders - Number × diameter × stroke (mm)1*80*735
Bucket rod cylinders - Number × diameter × stroke (mm)1*95*833
Boom cylinders - Number × diameter × stroke (mm)1*110*916
Fuel Tank (L)140
Hydraulic Tank (L)67
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)107
Total transport length (mm)6200
Total transport width (mm)2320
Total transport height (mm)2650
Minimum ground clearance (mm)375
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1750
Total track length (mm)2830
Track gauge (mm)1870
Track plate width (mm)450
Number of track plates (single side) (PCS)39
Maximum digging radius (mm)6460
Maximum digging depth (mm)4170
Maximum excavation height (mm)7400
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3480
Bulldozer lift or depth (mm)475/305
Dodging plate width × height (mm)2320*460
Maximum excavation radius of stop surface (mm)6310
Maximum effective digging depth (mm)3810
see more

Overview

No.1095591

Brand Name:

Kobelco

Model Number:

SK75-8

Year:

2020

Location:

Guangxi China
