Product Description

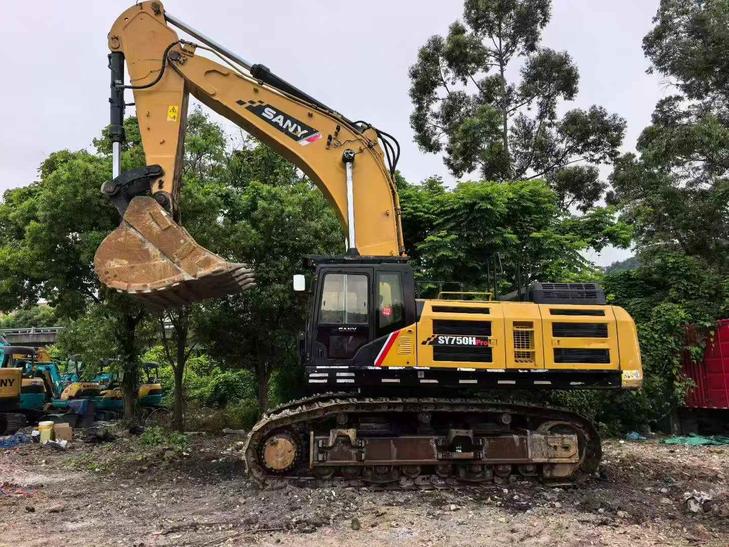

This 2021 Sany SY750H hydraulic excavator represents a robust solution for large-scale earthmoving and mining operations. Currently located in Zhejiang, China, this machine delivers the heavy-duty performance expected from Sany's flagship 75-ton class excavator line.
The SY750H features a powerful engine designed for demanding applications, combined with an advanced hydraulic system that provides efficient digging force and cycle times. Its reinforced undercarriage and spacious operator cab ensure durability and operator comfort during extended shifts.
- Year of Manufacture: 2021
- Model: Sany SY750H
- Operating Weight Class: 75 tons
- Current Location: Zhejiang Province, China
- Application: Mining, quarrying, large-scale excavation
Ideal for contractors and mining operations requiring reliable heavy excavation capacity. Inspection and shipping arrangements available upon request.
| Specifications | Value |
|---|---|
| No. | 1084897 |
| Tonnage (tons) | 75 |
| Working weight (kg) | 76200 |
| Bucket capacity (m³) | 4.6-5.6 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 377/1800 |
| Ground specific pressure (Kpa) | 110 |
| Rotation speed (rpm) | 7.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 402 |
| Rod digging force (kN) | 345 |
| Travel speed (km/h) | 4.5/2.9 |
| Total transport length (mm) | 12865 |
| Total transport width (mm) | 4320 |
| Total transport height (mm) | 4855 |
| Full cab height (mm) | 3800 |
| Minimum ground clearance (mm) | 880 |
| Minimum turning radius of front working device (mm) | 5520 |
| Back end turning radius (mm) | 4220 |
| Onboard width (mm) | 3460 |
| Total track length (mm) | 5865 |
| Track gauge (mm) | 3380/2780 |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4650 |
| Maximum height at minimum turning radius (mm) | 9780 |
| Maximum digging radius (mm) | 12050 |
| Maximum digging depth (mm) | 7620 |
| Maximum excavation height (mm) | 11200 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 4320 |
