2020 Kobelco SK75-8

1/9

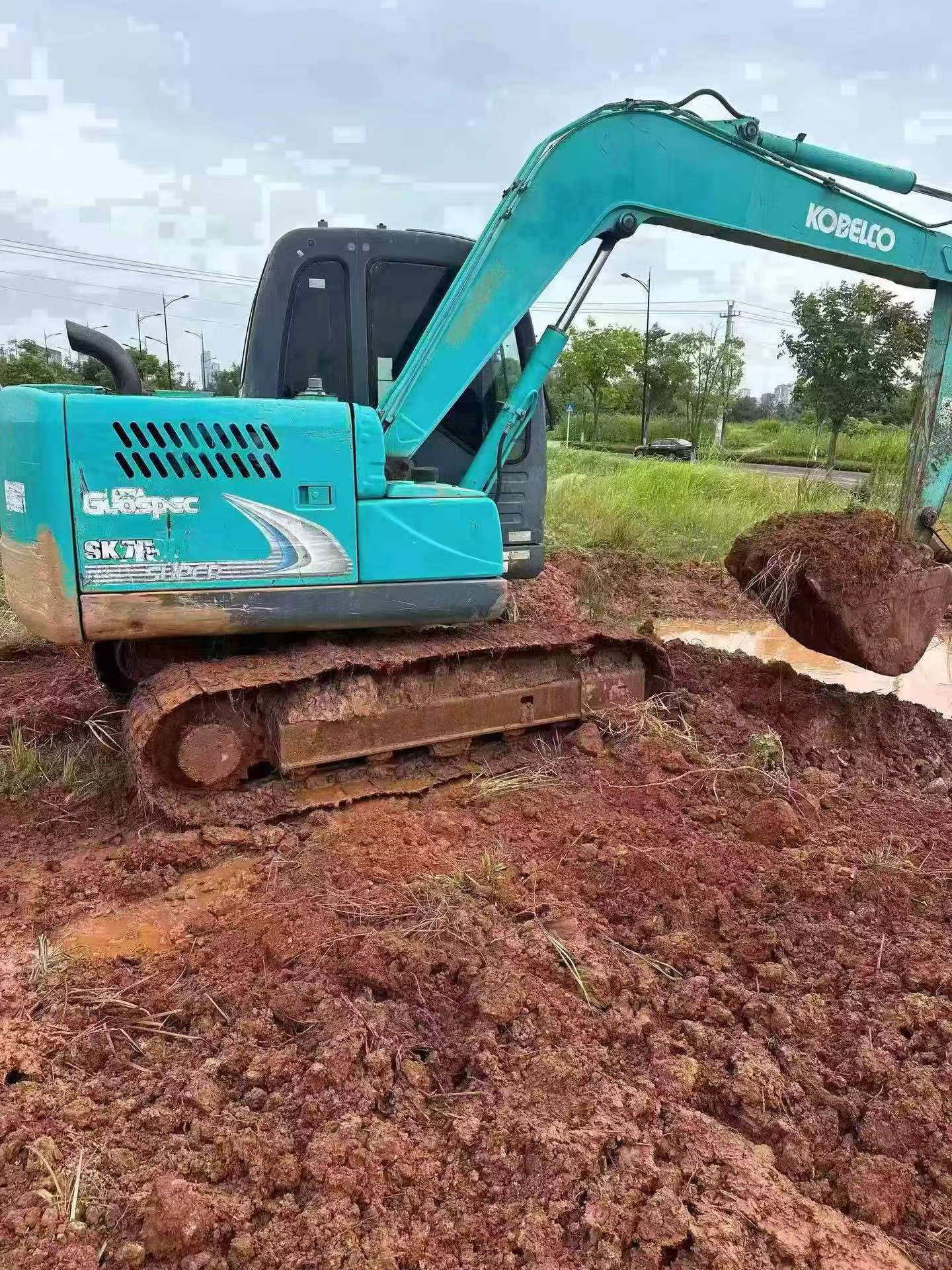

Buy Kobelco SK75-8 Used Excavator / 1
Buy Kobelco SK75-8 Used Excavator / 2
Buy Kobelco SK75-8 Used Excavator / 3

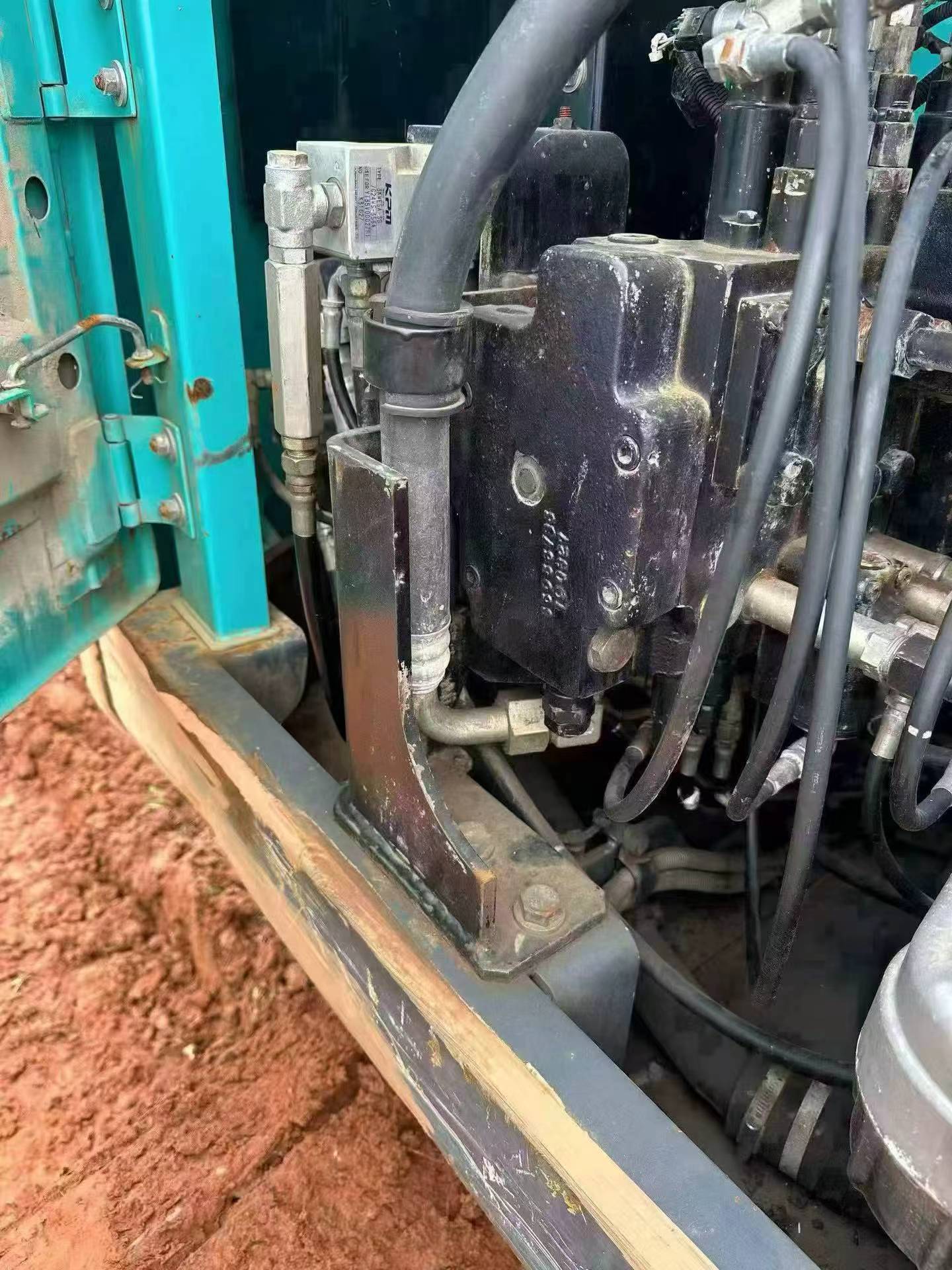

Buy Kobelco SK75-8 Used Excavator / 4

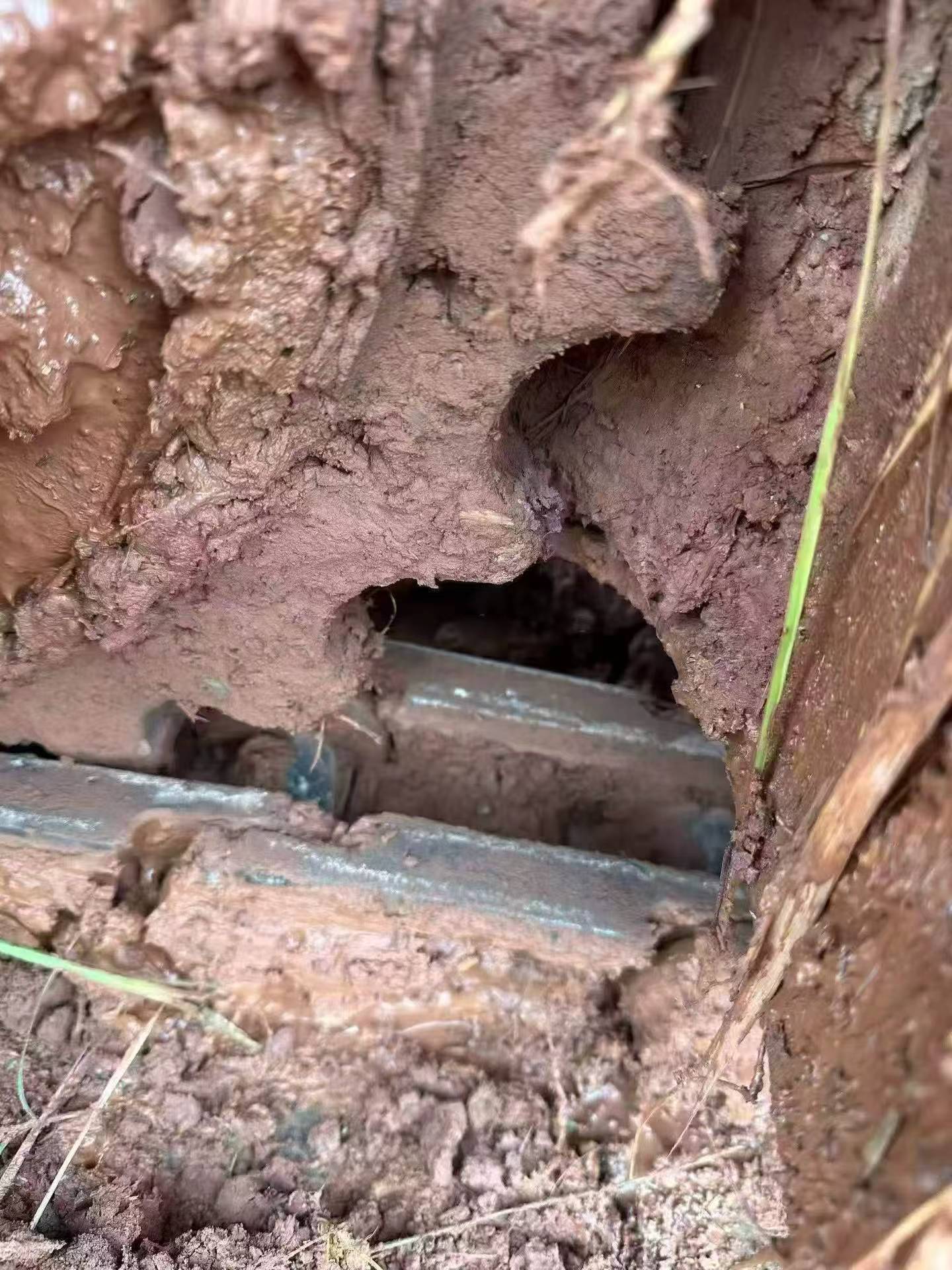

Buy Kobelco SK75-8 Used Excavator / 5

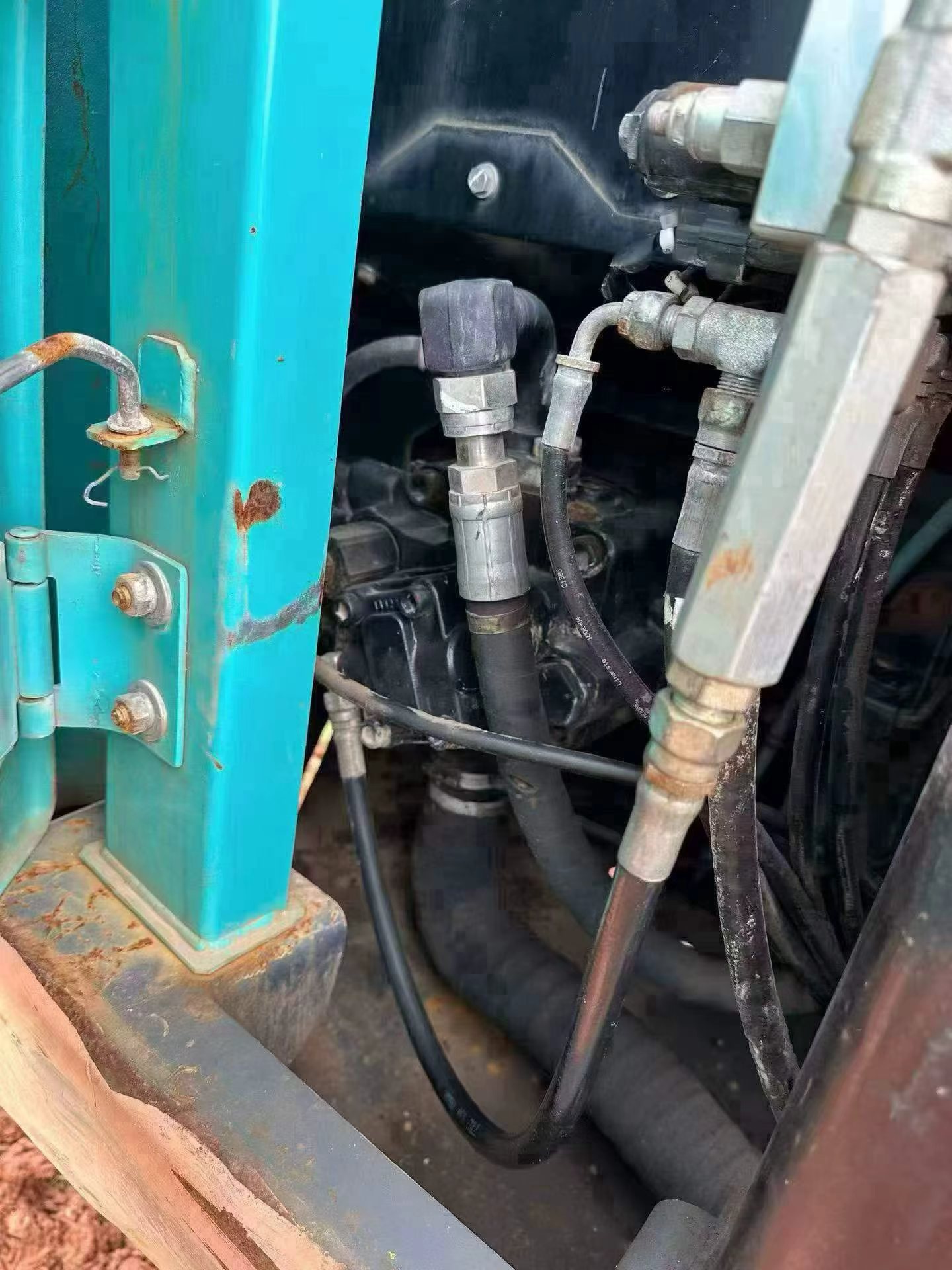

Buy Kobelco SK75-8 Used Excavator / 6

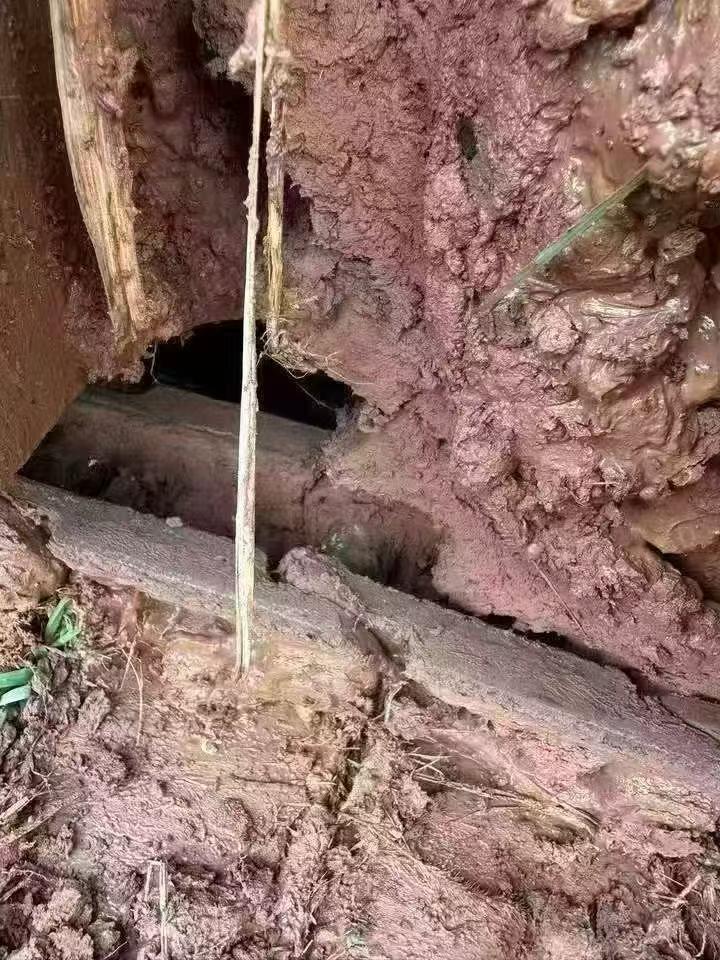

Buy Kobelco SK75-8 Used Excavator / 7
Buy Kobelco SK75-8 Used Excavator / 8
Buy Kobelco SK75-8 Used Excavator / 9

Product Description

This 2020 Kobelco SK75-8 is a used 7.5-ton class excavator, currently located at our yard in Jiangxi, China. It retains the original black main frame configuration, and the machine has stayed in working condition throughout its service life. The current owner is a contractor who is selling only to step up to a 120-class unit, which is why the asking price is set for a quick sale.

Condition notes from our yard inspection:

  • Original main frame and major components, no known structural repairs
  • Stable, predictable operation on digging, swing and travel functions
  • Engine, hydraulic pump and swing motor reported in good shape
  • Undercarriage and body panels presentable for its hours
  • Ready to load out and put straight to work after delivery

Inspection is welcome before purchase, and buyers arrange their own freight from Jiangxi. Full photo set and a walkaround video are available on request. Serious trade inquiries only.

SpecificationsValue
No.1157642
Tonnage (tons)7
Working weight (kg)6850
Bucket capacity (m³)0.4
Rod length (mm)1710
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAn ISUZU
Rated power (kw/rpm)42/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85*96
Maximum torque (N.m)211/1600
Number of cylinders (PCS)4
Displacement (L)2.179
Working formDirect injection, turbocharged, built-in intercooling
Ground specific pressure (Kpa)30.8
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)52.7
Rod digging force (kN)39.4
Maximum tractive force (kN)72.2
Travel speed (km/h)5.3/2.8
Maximum flow of main pump (l/min)1*132
Traveling Hydraulic Circuit (Mpa)29.4
Rotary Hydraulic Circuit (Mpa)24.5
Main pump typeVariable displacement axial piston pump
Pilot pump flow (L/min)1*18
Bucket cylinders - Number × diameter × stroke (mm)1*80*735
Bucket rod cylinders - Number × diameter × stroke (mm)1*95*833
Boom cylinders - Number × diameter × stroke (mm)1*110*916
Fuel Tank (L)140
Hydraulic Tank (L)67
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)107
Total transport length (mm)6200
Total transport width (mm)2320
Total transport height (mm)2650
Minimum ground clearance (mm)375
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1750
Total track length (mm)2830
Track gauge (mm)1870
Track plate width (mm)450
Number of track plates (single side) (PCS)39
Maximum digging radius (mm)6460
Maximum digging depth (mm)4170
Maximum excavation height (mm)7400
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3480
Bulldozer lift or depth (mm)475/305
Dodging plate width × height (mm)2320*460
Maximum excavation radius of stop surface (mm)6310
Maximum effective digging depth (mm)3810
see more

Overview

No.1157642

Brand Name:

Kobelco

Model Number:

SK75-8

Year:

2020

Location:

Jiangxi China

Pub Date:
