2020 Kobelco SK75-8

1/9

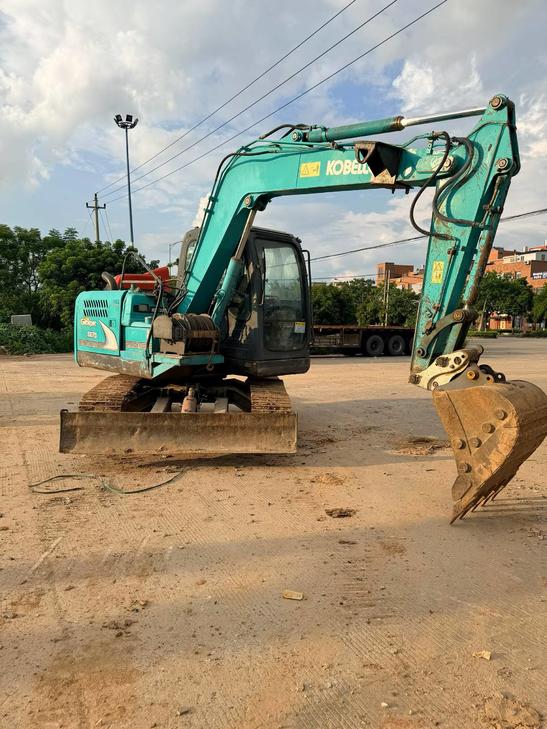

Buy Kobelco SK75-8 Used Excavator / 1
Buy Kobelco SK75-8 Used Excavator / 2
Buy Kobelco SK75-8 Used Excavator / 3
Buy Kobelco SK75-8 Used Excavator / 4
Buy Kobelco SK75-8 Used Excavator / 5
Buy Kobelco SK75-8 Used Excavator / 6
Buy Kobelco SK75-8 Used Excavator / 7
Buy Kobelco SK75-8 Used Excavator / 8
Buy Kobelco SK75-8 Used Excavator / 9

Product Description

Well-maintained 2020 Kobelco SK75-8 excavator available from Guangdong, China. This 7.5-ton class hydraulic excavator demonstrates Kobelco's commitment to fuel efficiency and operator comfort. The SK75-8 features a powerful engine combined with advanced hydraulic systems for reliable performance across construction, landscaping, and utility applications.

Key features include:

  • 2020 model year with documented maintenance history
  • Kobelco's renowned fuel-efficient hydraulic system
  • Spacious operator cabin with ergonomic controls
  • Compact footprint ideal for urban jobsites
  • Located in Guangdong, China for convenient regional delivery
  • Video and photographic documentation available upon request

This unit is priced competitively at RMB 88,000 and represents excellent value for contractors seeking reliable mid-size excavation equipment. Suitable for immediate deployment on active projects.

SpecificationsValue
No.1163115
Tonnage (tons)7
Working weight (kg)6850
Bucket capacity (m³)0.4
Rod length (mm)1710
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAn ISUZU
Rated power (kw/rpm)42/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85*96
Maximum torque (N.m)211/1600
Number of cylinders (PCS)4
Displacement (L)2.179
Working formDirect injection, turbocharged, built-in intercooling
Ground specific pressure (Kpa)30.8
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)52.7
Rod digging force (kN)39.4
Maximum tractive force (kN)72.2
Travel speed (km/h)5.3/2.8
Maximum flow of main pump (l/min)1*132
Traveling Hydraulic Circuit (Mpa)29.4
Rotary Hydraulic Circuit (Mpa)24.5
Main pump typeVariable displacement axial piston pump
Pilot pump flow (L/min)1*18
Bucket cylinders - Number × diameter × stroke (mm)1*80*735
Bucket rod cylinders - Number × diameter × stroke (mm)1*95*833
Boom cylinders - Number × diameter × stroke (mm)1*110*916
Fuel Tank (L)140
Hydraulic Tank (L)67
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)107
Total transport length (mm)6200
Total transport width (mm)2320
Total transport height (mm)2650
Minimum ground clearance (mm)375
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1750
Total track length (mm)2830
Track gauge (mm)1870
Track plate width (mm)450
Number of track plates (single side) (PCS)39
Maximum digging radius (mm)6460
Maximum digging depth (mm)4170
Maximum excavation height (mm)7400
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3480
Bulldozer lift or depth (mm)475/305
Dodging plate width × height (mm)2320*460
Maximum excavation radius of stop surface (mm)6310
Maximum effective digging depth (mm)3810
see more

Overview

No.1163115

Brand Name:

Kobelco

Model Number:

SK75-8

Year:

2020

Location:

Guangdong China

Pub Date:
