Product Description

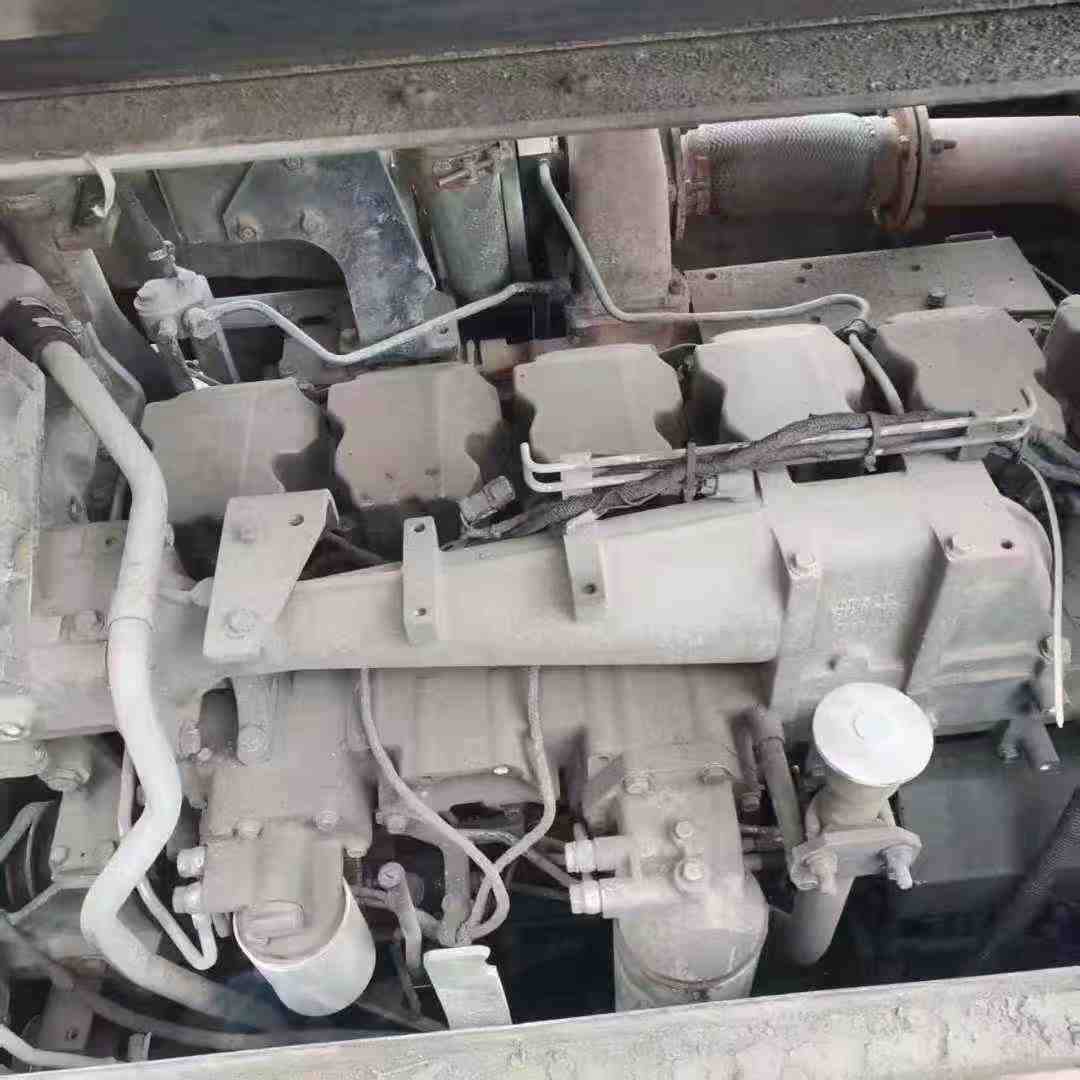

Built for operators who demand precision and power in heavy-duty applications, this 2016 Kobelco SK850 delivers exceptional performance across large-scale excavation projects. Operating at 85 tons with a working weight of 78,200-80,500 kg, this machine combines a robust Komatsu SAA6D140E-5 engine producing 370 kW at 1800 rpm with advanced hydraulic systems engineered for efficiency and control.
Operators benefit from superior visibility and stability during complex maneuvers. Key performance specifications include:
- Maximum digging reach of 13,830 mm with 8,900 mm digging depth
- Bucket capacity range of 2.8-5.4 m³ for versatile material handling
- 8.4 rpm rotation speed ensuring smooth, responsive operation
- 70% (35°) climbing ability for challenging terrain
- 33 MPa hydraulic pressure delivering consistent power under load
Currently located in Luzhou, Sichuan, this joint venture-manufactured excavator features a spacious cab with 3,940 mm full height, providing excellent sightlines to the work area. The 3,600 mm rod length and backhoe configuration offer optimal digging geometry for deep foundation work, trenching, and heavy earthmoving operations.
| Specifications | Value |
|---|---|
| No. | 1024422 |
| Tonnage (tons) | 85 |
| Working weight (kg) | 78200-80500 |
| Bucket capacity (m³) | 2.8-5.4 |
| Rod length (mm) | 3600 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu SAA6D140E-5 |
| Rated power (kw/rpm) | 370/1800 |
| Rotation speed (rpm) | 8.4 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 2.7/4.2 |
| Main overflow set pressure (Mpa) | 33 |
| Fuel Tank (L) | 960 |
| Hydraulic Tank (L) | 473 |
| Hydraulic System (L) | 856 |
| Total transport length (mm) | 14530 |
| Total transport width (mm) | 4440 |
| Total transport height (mm) | 4760 |
| Full cab height (mm) | 3940 |
| Counterweight ground clearance (mm) | 1560 |
| Minimum ground clearance (mm) | 580 |
| Total track length (mm) | 6370 |
| Track gauge (mm) | 4300 |
| Track plate width (mm) | 650/750/900 |
| Total track width (mm) | 4440 |
| Track ground length (mm) | 5140 |
| Maximum digging radius (mm) | 13830 |
| Maximum digging depth (mm) | 8900 |
| Maximum excavation height (mm) | 12110 |
| Maximum unloading height (mm) | 8340 |
| Maximum vertical digging depth (mm) | 6740 |
| Maximum excavation radius of stop surface (mm) | 13550 |
| Maximum effective digging depth (mm) | 8750 |
