Product Description

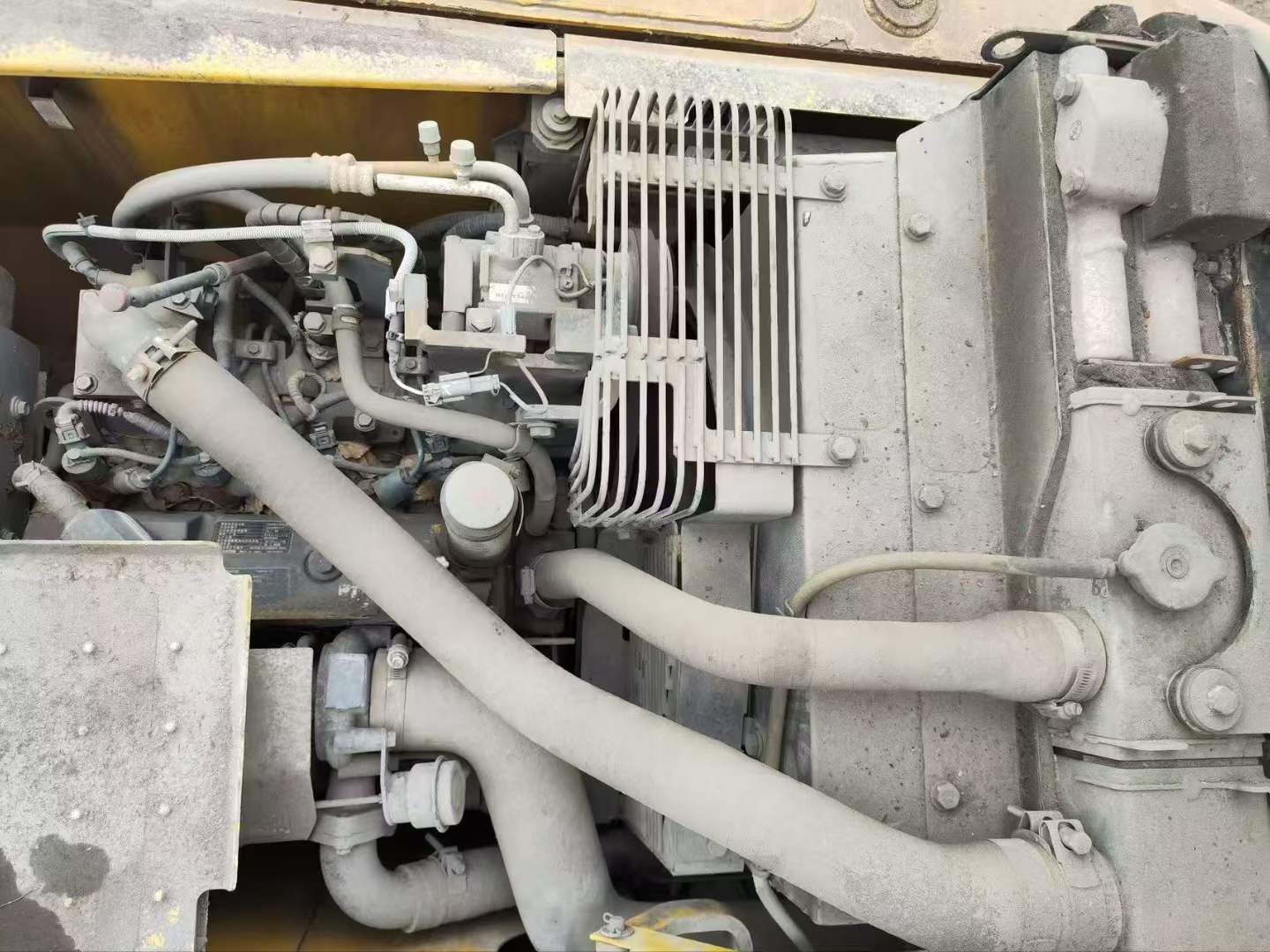

Proven in demanding conditions since 2018, this Komatsu PC110-7 excavator delivers consistent performance with 11-ton capacity and Komatsu's legendary reliability. Powered by the robust SAA4D95LE-3 engine generating 65kW at 2200rpm, this machine combines a 0.48m³ bucket capacity with 86kN digging force to handle heavy-duty excavation tasks. Water-cooled and engineered to EPA/EU Tier 2 standards, the 4-stroke direct injection system ensures efficient operation across extended shifts.
Built with joint venture precision in Jining, Shandong Province, this workhorse features a 4260mm boom and 2260mm arm configuration that reaches 7730mm maximum digging radius and 5060mm depth. Dual axial piston walking motors with parking brakes provide reliable mobility across slopes up to 70%, while the 226L/min main pump delivers hydraulic power where needed. With a 247L fuel tank and compact 7170mm transport length, this PC110-7 represents Komatsu's commitment to durability.
Key Specifications:
- Working Weight: 10,980kg with 0.37kPa ground pressure
- Maximum Digging Height: 7910mm | Unloading Height: 5650mm
- Travel Speed: 2.7-5.5 km/h with superior maneuverability
- Location: Guangzho
| Specifications | Value |
|---|---|
| No. | 1042356 |
| Tonnage (tons) | 11 |
| Working weight (kg) | 10980 |
| Bucket capacity (m³) | 0.48 |
| Boom length (mm) | 4260 |
| Rod length (mm) | 2260 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 65/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 115 |
| Displacement (L) | 3.26 |
| Working form | 4 stroke, after cooling, direct injection; Comply with 2001 EPA/EU/ Japan Level 2 emission standards. |
| Ground specific pressure (Kpa) | 0.37 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 86 |
| Rod digging force (kN) | 56 |
| Travel speed (km/h) | 2.7-5.5 |

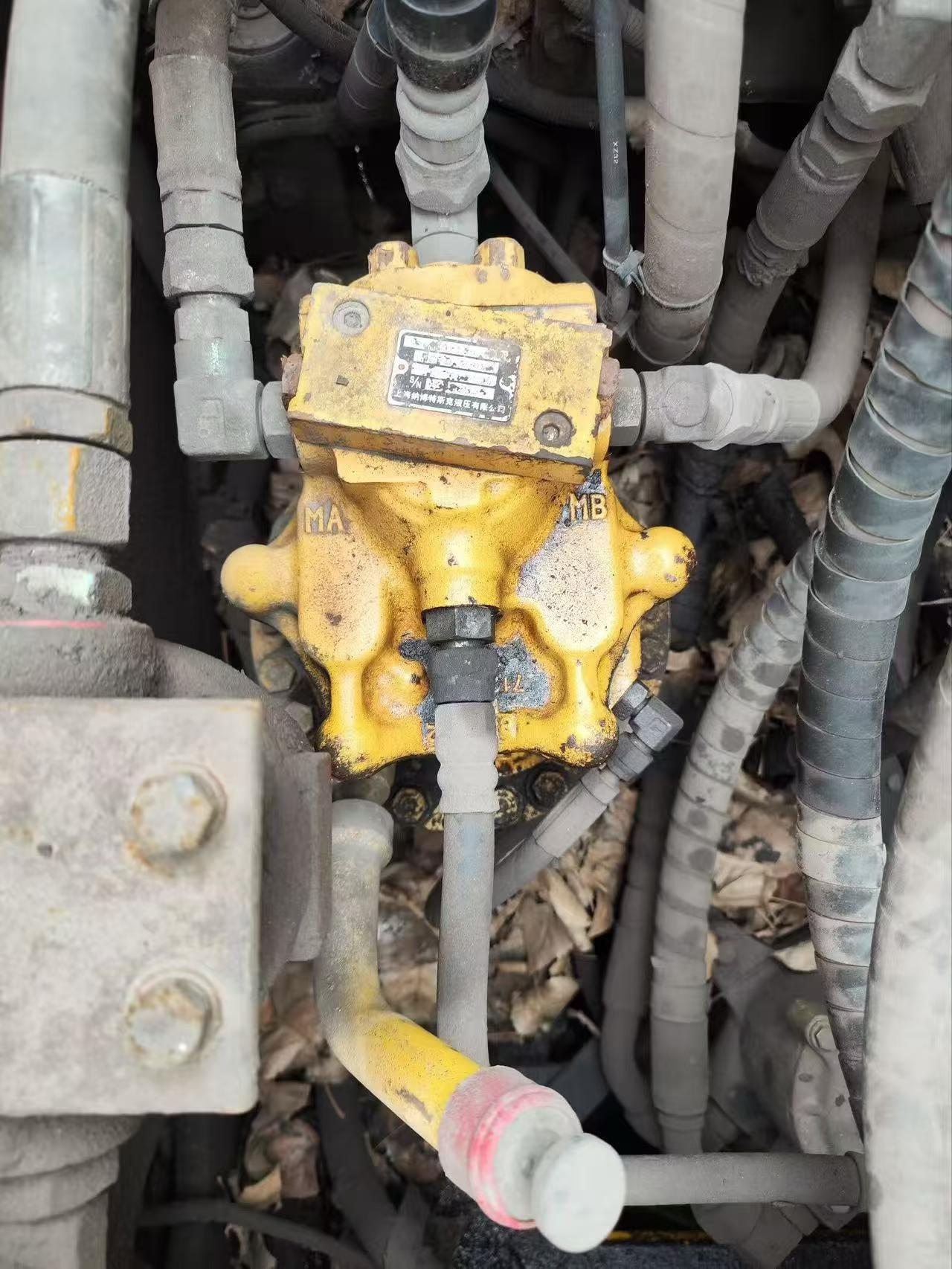

| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |

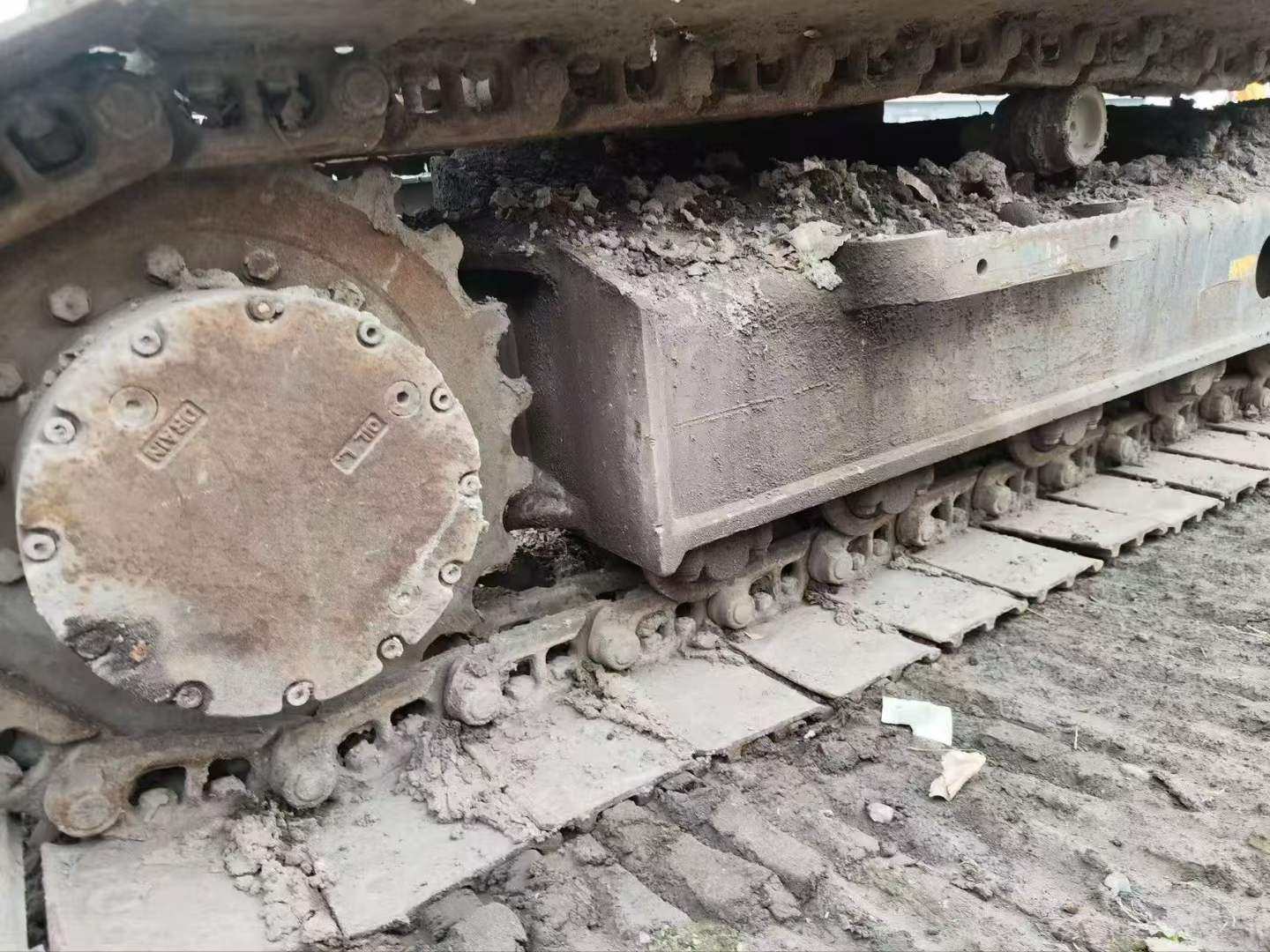

| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |

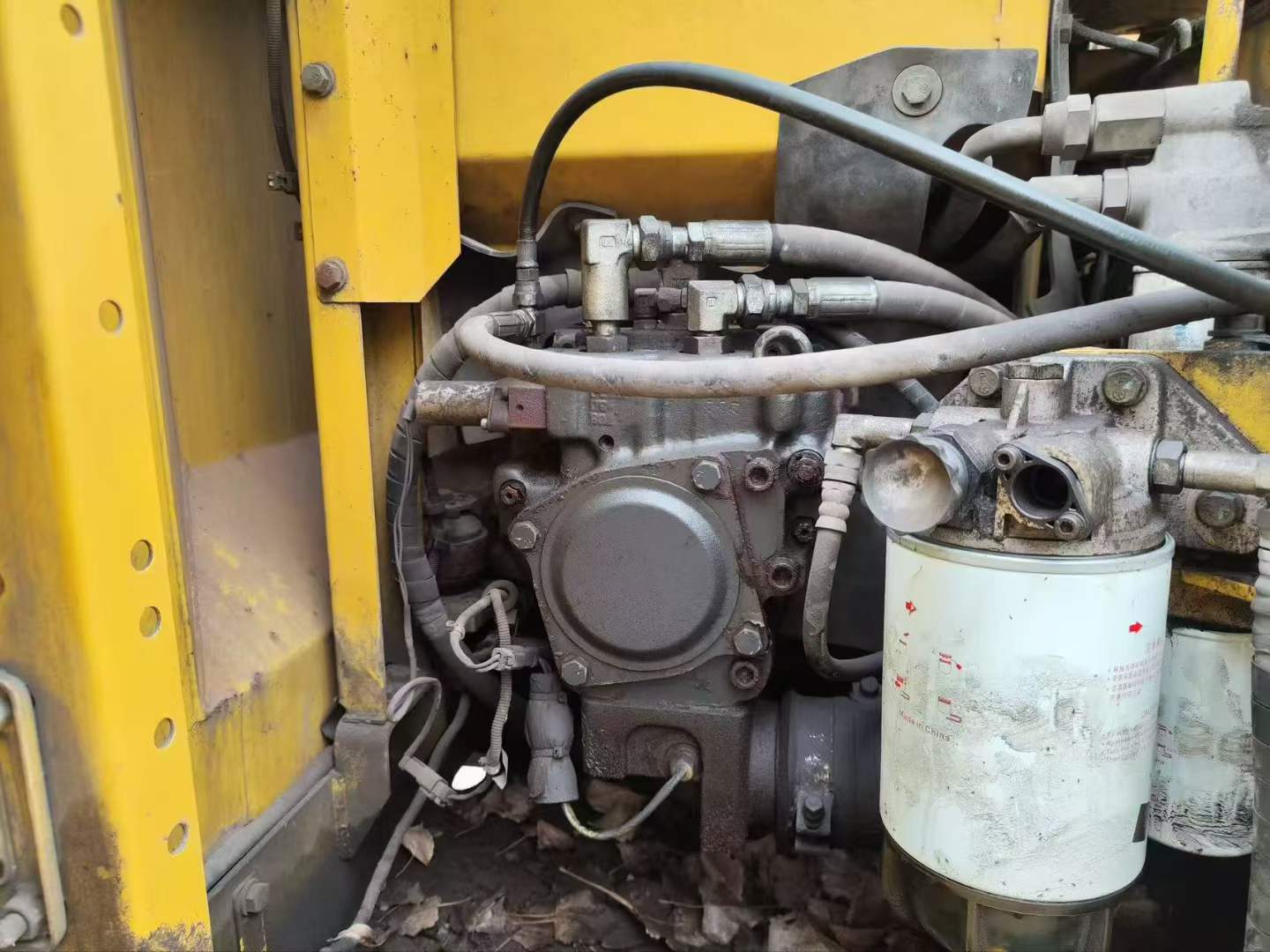

| Maximum flow of main pump (l/min) | 226L/min |
| Traveling Hydraulic Circuit (Mpa) | 355 |
| Rotary Hydraulic Circuit (Mpa) | 295 |
| Control Hydraulic Circuit (Mpa) | 325 |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 104 x 885 x 60 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 133 * 1005 * 75 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 * 980 * 65 |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7170 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2810 |
| Full cab height (mm) | 2810 |
| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |
| Total track length (mm) | 3435 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2705 |
| Maximum digging radius (mm) | 7730 |
| Maximum digging depth (mm) | 5060 |
| Maximum excavation height (mm) | 7910 |
| Maximum unloading height (mm) | 5650 |
| Maximum vertical digging depth (mm) | 4570 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 7600 |
| Maximum effective digging depth (mm) | 4730 |
