Product Description

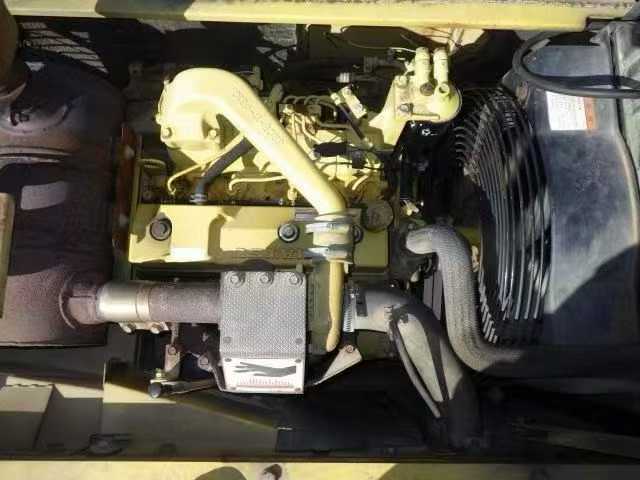

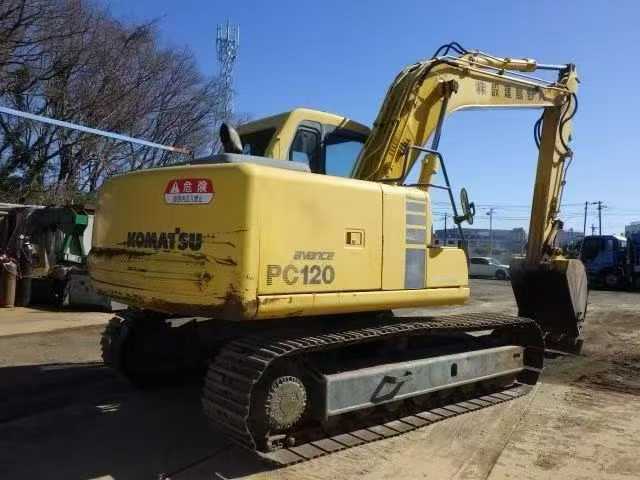

Built to endure the toughest conditions, this 1993 Komatsu PC120-6 excavator stands as proof of exceptional Japanese engineering. With over three decades of proven performance, this 12-ton workhorse demonstrates the legendary durability that made Komatsu a global leader in heavy machinery. Powered by the reliable Komatsu SAA4D95LE-3 engine delivering 64kW at 2200rpm, this machine combines water-cooled efficiency with turbocharged, intercooled diesel performance.
Currently located in Shenzhen, Guangdong, this battle-tested excavator offers:
- Maximum digging depth of 5,520mm with 8,290mm reach radius

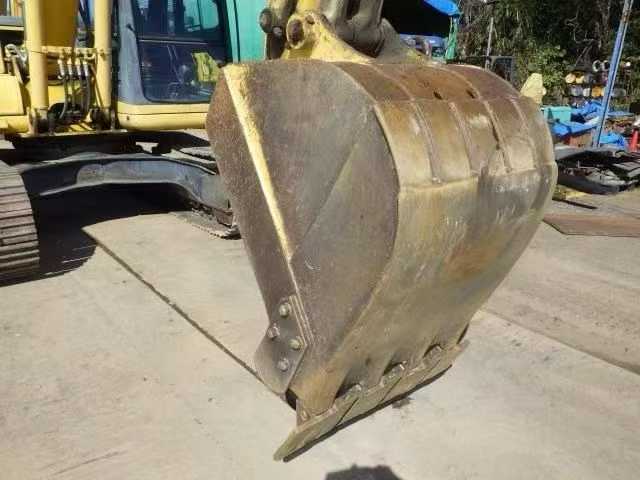

- Robust 0.5m³ bucket capacity with 8,800kN digging force
- Impressive 70% (30°) climbing ability for challenging terrain
- 226L/min hydraulic flow ensuring smooth, responsive operation
- Compact 2,110mm rear turning radius for confined worksites
Machines that survive this long don't just work—they excel. This PC120-6 represents time-tested reliability backed by Komatsu's joint venture manufacturing standards. For operators demanding proven performance over empty promises, this excavator delivers results day after day.
| Specifications | Value |
|---|---|
| No. | 1012841 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12030 |
| Bucket capacity (m³) | 0.5 |
| Rod length (mm) | 2100 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 64/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.26 |
| Working form | Direct injection, turbocharged, intercooled diesel engine |
| Ground specific pressure (Kpa) | 0.39kg/c㎡ |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 8800 |
| Rod digging force (kN) | 6300 |
| Travel speed (km/h) | 2.7-5.5 |
| Maximum flow of main pump (l/min) | 226L/min |
| Traveling Hydraulic Circuit (Mpa) | 355kg/c㎡ |
| Rotary Hydraulic Circuit (Mpa) | 295kg/c㎡ |
| Control Hydraulic Circuit (Mpa) | 30kg/c㎡ |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 325kg/c㎡ |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7599 |
| Total transport height (mm) | 2175 |
| Full cab height (mm) | 2175 |
| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |
| Total track length (mm) | 3610 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6170 |
| Maximum vertical digging depth (mm) | 4940 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8170 |
| Maximum effective digging depth (mm) | 5315 |
