2020 Komatsu PC120-6

1/6
Buy Komatsu PC120-6 Used Excavator / 1
Buy Komatsu PC120-6 Used Excavator / 2
Buy Komatsu PC120-6 Used Excavator / 3
Buy Komatsu PC120-6 Used Excavator / 4
Buy Komatsu PC120-6 Used Excavator / 5
Buy Komatsu PC120-6 Used Excavator / 6

Product Description

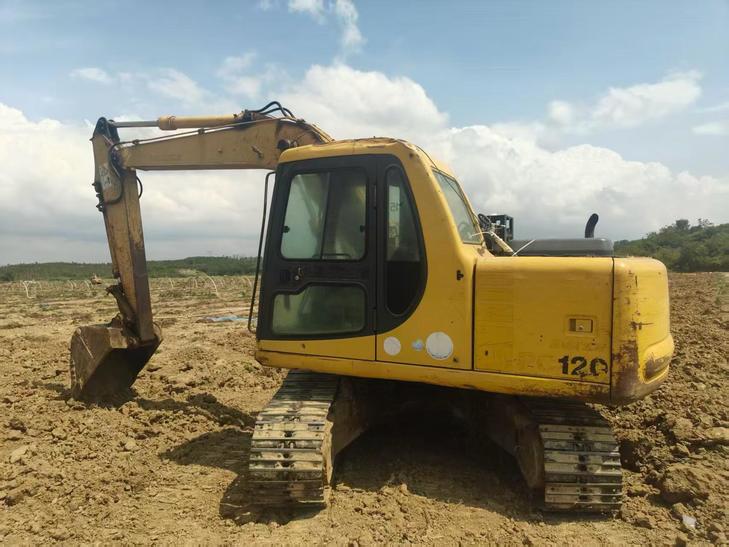

This 2020 Komatsu PC120-6 excavator is currently located in Guangxi, China, with approximately 30,000 operating hours recorded. The PC120-6 represents Komatsu's reliable mid-size excavator platform, designed for general construction, earthmoving, and utility applications.

Key features of this unit include:

  • Operating weight class suitable for medium-duty excavation tasks
  • Komatsu's proven hydraulic system for efficient digging performance
  • Compact radius design for work in confined spaces
  • Durable undercarriage built for extended service life

With over 30,000 hours of operation, this machine shows its work history and may require inspection to assess current mechanical condition. The PC120-6 is known for straightforward maintenance and parts availability across Asian markets. Suitable for contractors seeking a proven excavator platform at a competitive price point.

SpecificationsValue
No.1075349
Tonnage (tons)12
Working weight (kg)12030
Bucket capacity (m³)0.5
Rod length (mm)2100
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu Komatsu SAA4D95LE-3
Rated power (kw/rpm)64/2200
Cooling modewater-cooling
Displacement (L)3.26
Working formDirect injection, turbocharged, intercooled diesel engine
Ground specific pressure (Kpa)0.39kg/c㎡
Rotation speed (rpm)11
Climbing ability (%)70/30 °
Bucket digging force (kN)8800
Rod digging force (kN)6300
Travel speed (km/h)2.7-5.5
Maximum flow of main pump (l/min)226L/min
Traveling Hydraulic Circuit (Mpa)355kg/c㎡
Rotary Hydraulic Circuit (Mpa)295kg/c㎡
Control Hydraulic Circuit (Mpa)30kg/c㎡
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)325kg/c㎡
Fuel Tank (L)247
Hydraulic Tank (L)90
Engine Oil changes (L)11
Coolant (L)13.4
Total transport length (mm)7599
Total transport height (mm)2175
Full cab height (mm)2175
Counterweight ground clearance (mm)855
Minimum ground clearance (mm)400
Back end turning radius (mm)2110
Total track length (mm)3610
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2880
Maximum digging radius (mm)8290
Maximum digging depth (mm)5520
Maximum excavation height (mm)8610
Maximum unloading height (mm)6170
Maximum vertical digging depth (mm)4940
Bulldozer lift or depth (mm)No bulldozer
Maximum excavation radius of stop surface (mm)8170
Maximum effective digging depth (mm)5315
see more

Overview

No.1075349

Brand Name:

Komatsu

Model Number:

PC120-6

Year:

2020

Location:

Guangxi China

Pub Date
