2020 Komatsu PC120-6

1/9

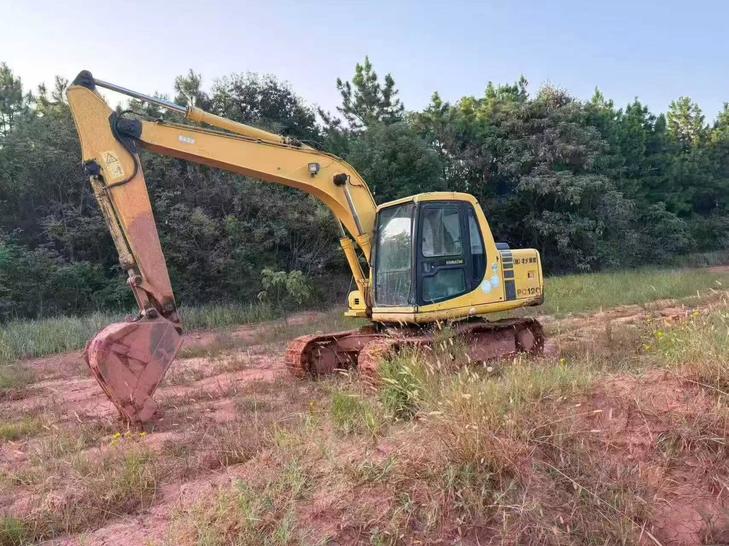

Buy Komatsu PC120-6 Used Excavator / 1
Buy Komatsu PC120-6 Used Excavator / 2
Buy Komatsu PC120-6 Used Excavator / 3
Buy Komatsu PC120-6 Used Excavator / 4
Buy Komatsu PC120-6 Used Excavator / 5
Buy Komatsu PC120-6 Used Excavator / 6
Buy Komatsu PC120-6 Used Excavator / 7
Buy Komatsu PC120-6 Used Excavator / 8
Buy Komatsu PC120-6 Used Excavator / 9

Product Description

This 2020 Komatsu PC120-6E hydraulic excavator represents a solid mid-sized solution for construction and earthmoving operations. Currently located in Jiangxi, China, this unit comes equipped with a reversing valve for enhanced operational flexibility. The machine maintains its original factory configuration throughout, indicating careful ownership and minimal modification history.

Key features include:

  • Komatsu PC120-6E model with proven reliability in the 12-ton class
  • Factory-installed reversing valve for improved hydraulic control
  • All-original components and bodywork
  • Well-maintained condition suitable for immediate deployment
  • Located in Jiangxi Province, China

This excavator offers dependable performance for contractors seeking a pre-owned Komatsu unit with transparent maintenance history and original equipment integrity. Ideal for medium-duty excavation, trenching, and material handling applications.

SpecificationsValue
No.1141970
Tonnage (tons)12
Working weight (kg)12030
Bucket capacity (m³)0.5
Rod length (mm)2100
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu Komatsu SAA4D95LE-3
Rated power (kw/rpm)64/2200
Cooling modewater-cooling
Displacement (L)3.26
Working formDirect injection, turbocharged, intercooled diesel engine
Ground specific pressure (Kpa)0.39kg/c㎡
Rotation speed (rpm)11
Climbing ability (%)70/30 °
Bucket digging force (kN)8800
Rod digging force (kN)6300
Travel speed (km/h)2.7-5.5
Maximum flow of main pump (l/min)226L/min
Traveling Hydraulic Circuit (Mpa)355kg/c㎡
Rotary Hydraulic Circuit (Mpa)295kg/c㎡
Control Hydraulic Circuit (Mpa)30kg/c㎡
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)325kg/c㎡
Fuel Tank (L)247
Hydraulic Tank (L)90
Engine Oil changes (L)11
Coolant (L)13.4
Total transport length (mm)7599
Total transport height (mm)2175
Full cab height (mm)2175
Counterweight ground clearance (mm)855
Minimum ground clearance (mm)400
Back end turning radius (mm)2110
Total track length (mm)3610
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2880
Maximum digging radius (mm)8290
Maximum digging depth (mm)5520
Maximum excavation height (mm)8610
Maximum unloading height (mm)6170
Maximum vertical digging depth (mm)4940
Bulldozer lift or depth (mm)No bulldozer
Maximum excavation radius of stop surface (mm)8170
Maximum effective digging depth (mm)5315
see more

Overview

No.1141970

Brand Name:

Komatsu

Model Number:

PC120-6

Year:

2020

Location:

Jiangxi China
