2020 Komatsu PC120-6

1/3

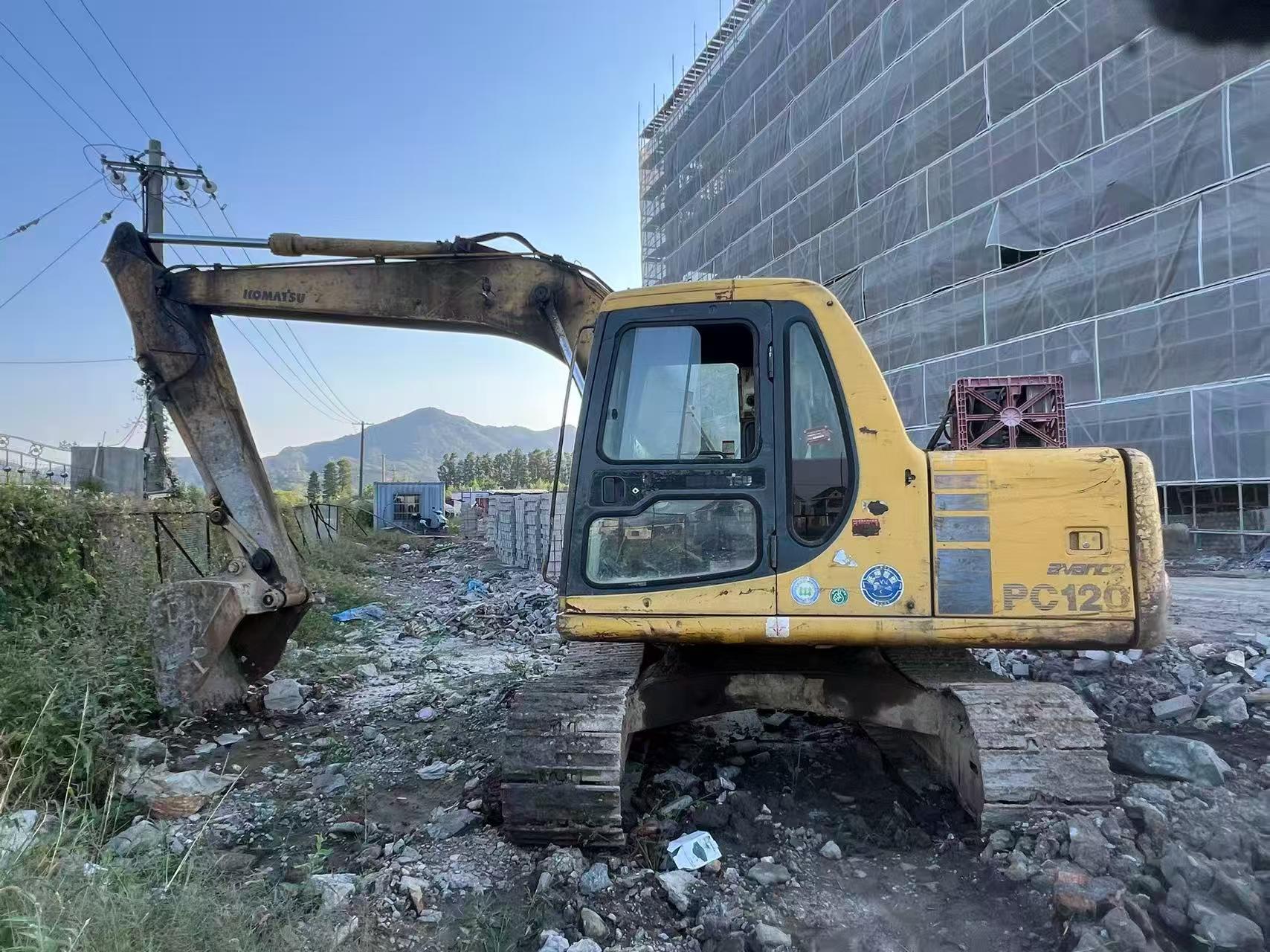

Buy Komatsu PC120-6 Used Excavator / 1

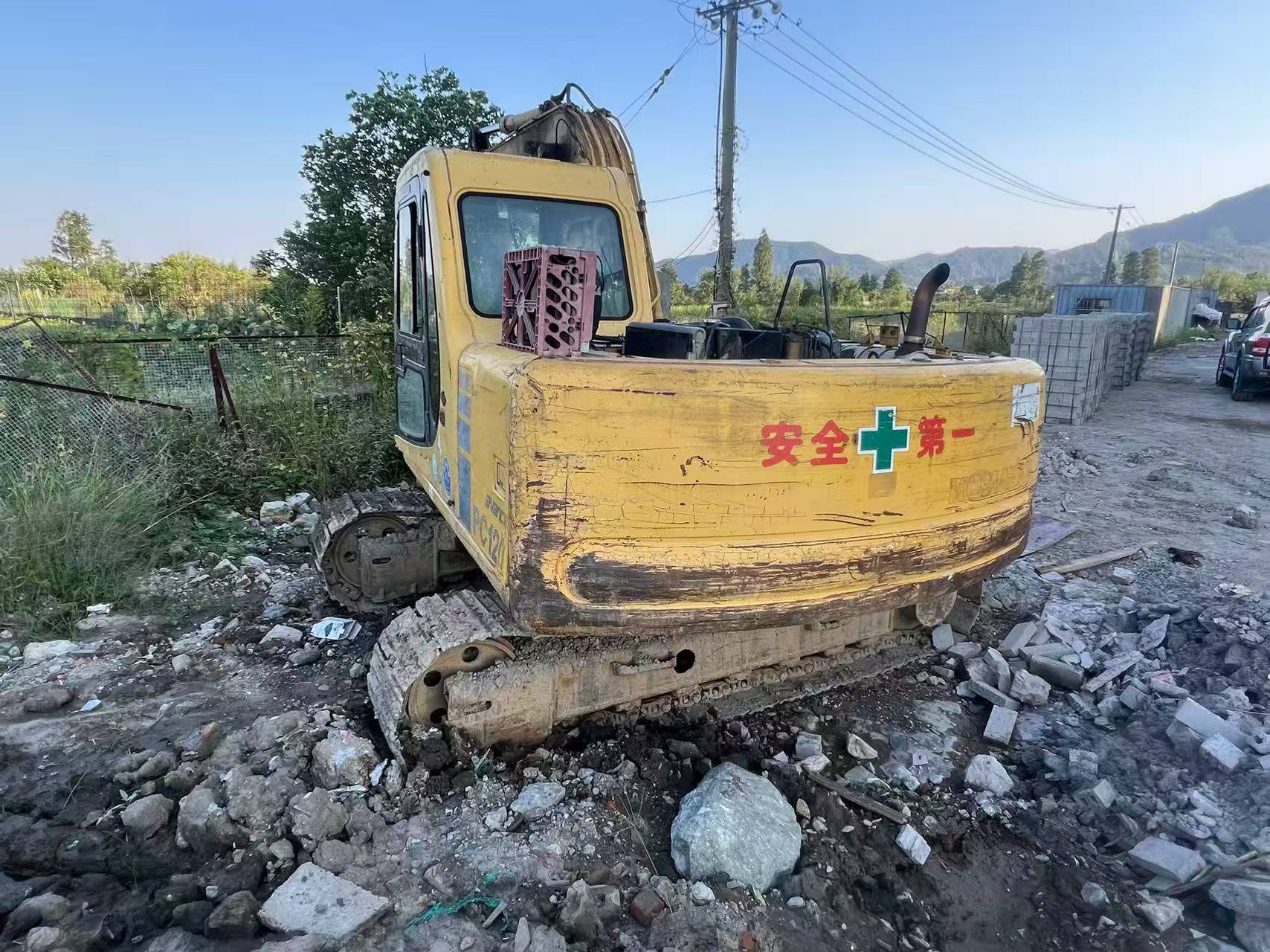

Buy Komatsu PC120-6 Used Excavator / 2

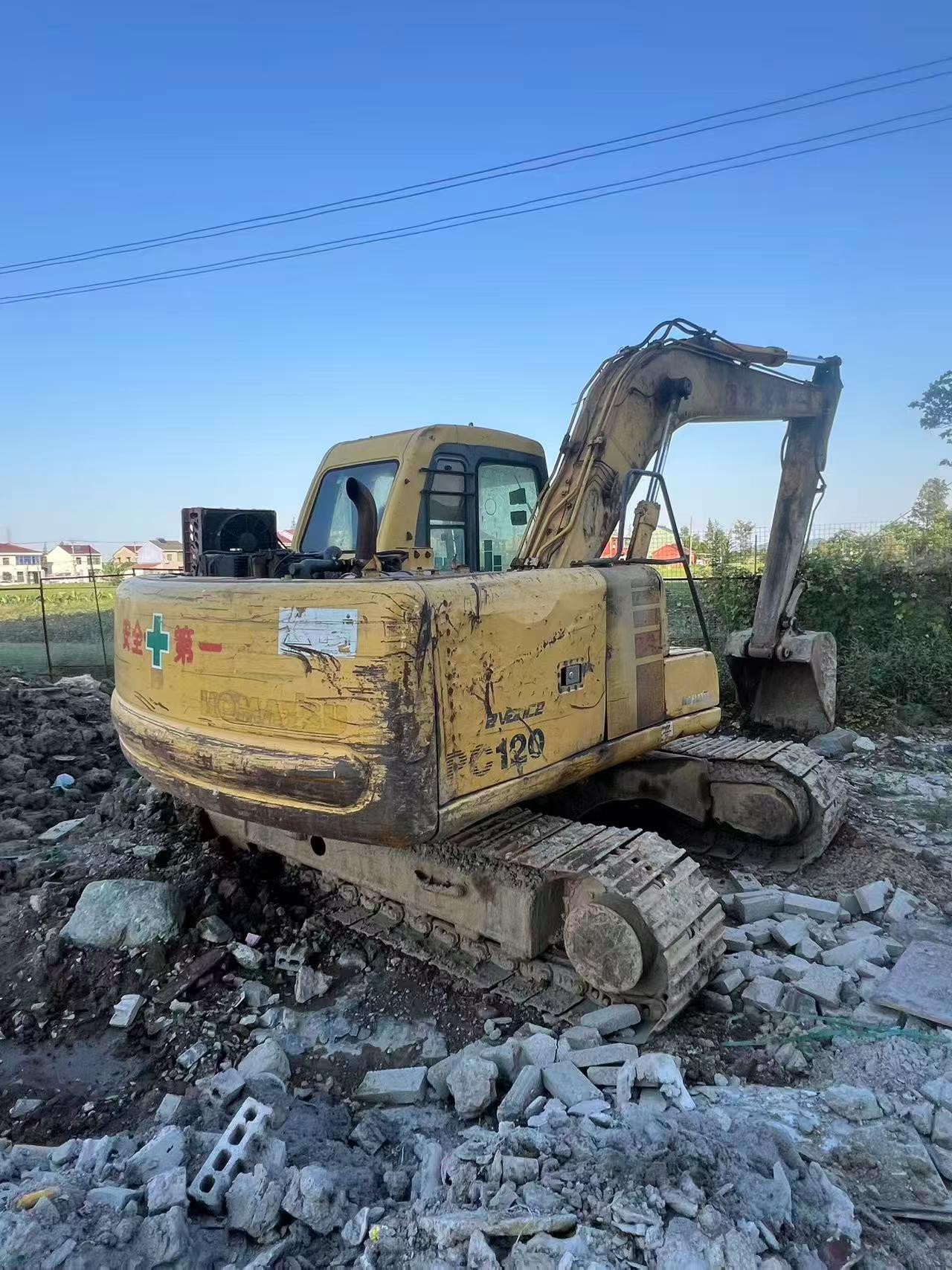

Buy Komatsu PC120-6 Used Excavator / 3

Product Description

This 2020 Komatsu PC120-6 hydraulic excavator offers proven mid-size performance for contractors and site operators. Currently located in Zhejiang, China, this machine represents Komatsu's reliable 12-ton class platform, designed for general earthmoving, utility work, and light demolition applications.

The PC120-6 series features a turbocharged diesel engine delivering efficient hydraulic power while maintaining acceptable fuel consumption for its weight class. Operators benefit from straightforward cab controls and adequate visibility for jobsite maneuvering.

  • Approximate operating weight: 12 metric tons
  • Bucket capacity range: 0.28-0.5 m³ depending on configuration
  • Hydraulic excavator with standard boom and arm
  • Suitable for infrastructure, landscaping, and utility projects

As with any used equipment, prospective buyers should arrange for independent inspection to verify current mechanical condition, hour meter reading, and remaining component life before purchase.

SpecificationsValue
No.1156911
Tonnage (tons)12
Working weight (kg)12030
Bucket capacity (m³)0.5
Rod length (mm)2100
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu Komatsu SAA4D95LE-3
Rated power (kw/rpm)64/2200
Cooling modewater-cooling
Displacement (L)3.26
Working formDirect injection, turbocharged, intercooled diesel engine
Ground specific pressure (Kpa)0.39kg/c㎡
Rotation speed (rpm)11
Climbing ability (%)70/30 °
Bucket digging force (kN)8800
Rod digging force (kN)6300
Travel speed (km/h)2.7-5.5
Maximum flow of main pump (l/min)226L/min
Traveling Hydraulic Circuit (Mpa)355kg/c㎡
Rotary Hydraulic Circuit (Mpa)295kg/c㎡
Control Hydraulic Circuit (Mpa)30kg/c㎡
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)325kg/c㎡
Fuel Tank (L)247
Hydraulic Tank (L)90
Engine Oil changes (L)11
Coolant (L)13.4
Total transport length (mm)7599
Total transport height (mm)2175
Full cab height (mm)2175
Counterweight ground clearance (mm)855
Minimum ground clearance (mm)400
Back end turning radius (mm)2110
Total track length (mm)3610
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2880
Maximum digging radius (mm)8290
Maximum digging depth (mm)5520
Maximum excavation height (mm)8610
Maximum unloading height (mm)6170
Maximum vertical digging depth (mm)4940
Bulldozer lift or depth (mm)No bulldozer
Maximum excavation radius of stop surface (mm)8170
Maximum effective digging depth (mm)5315
see more

Overview

No.1156911

Brand Name:

Komatsu

Model Number:

PC120-6

Year:

2020

Location:

Zhejiang China

Pub Date:
