2020 Komatsu PC120-6

1/6
Buy Komatsu PC120-6 Used Excavator / 1

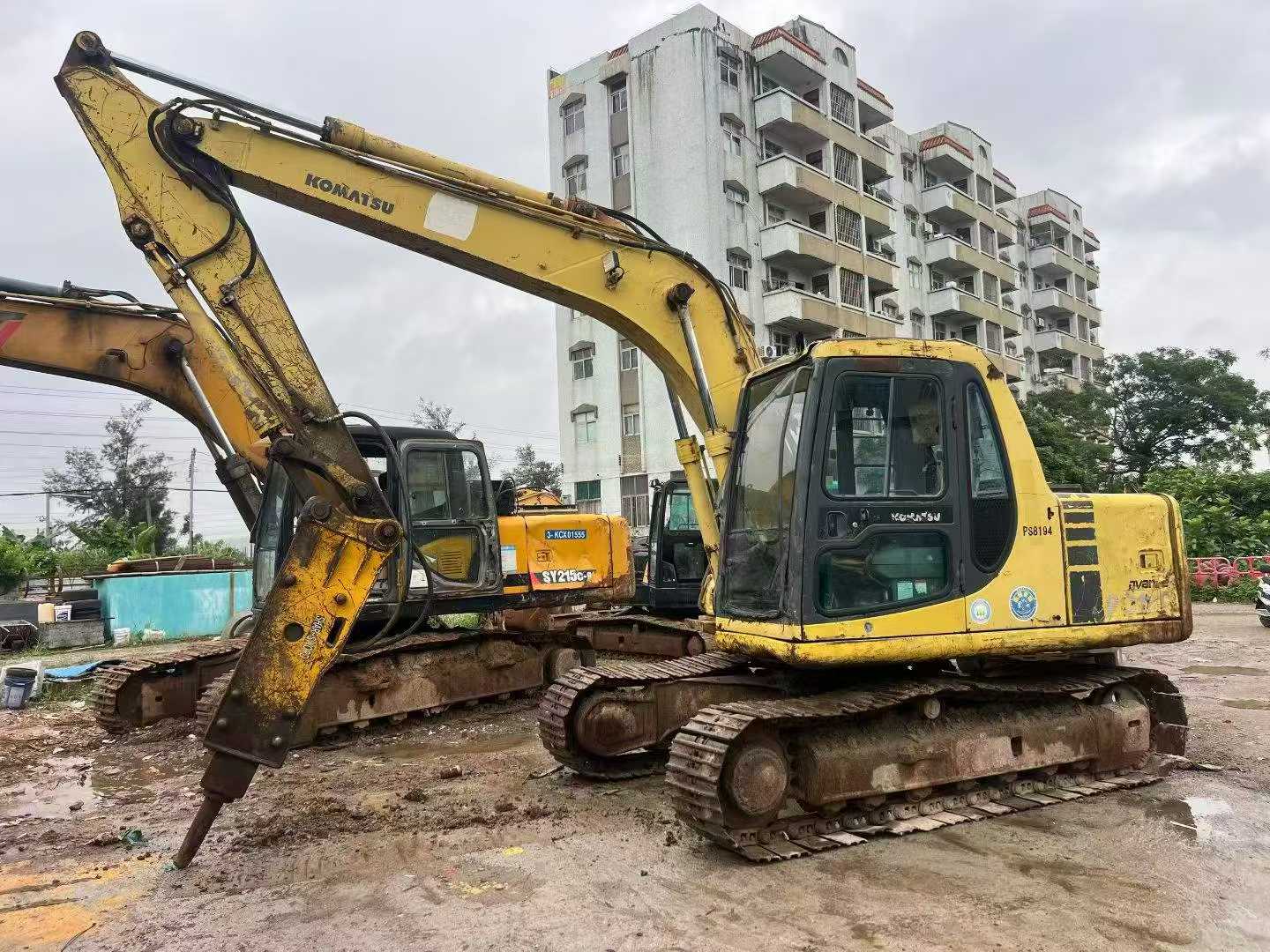

Buy Komatsu PC120-6 Used Excavator / 2
Buy Komatsu PC120-6 Used Excavator / 3

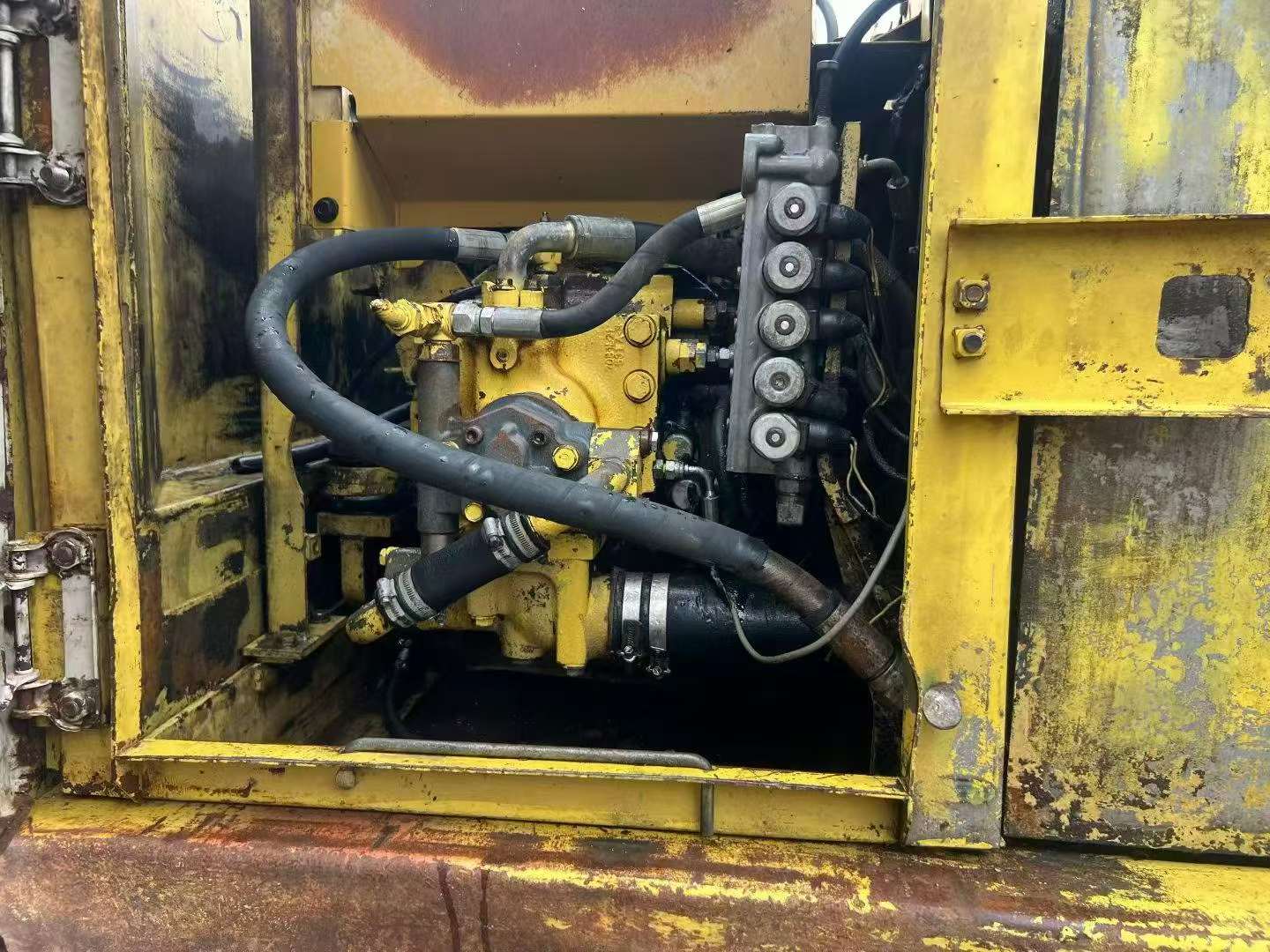

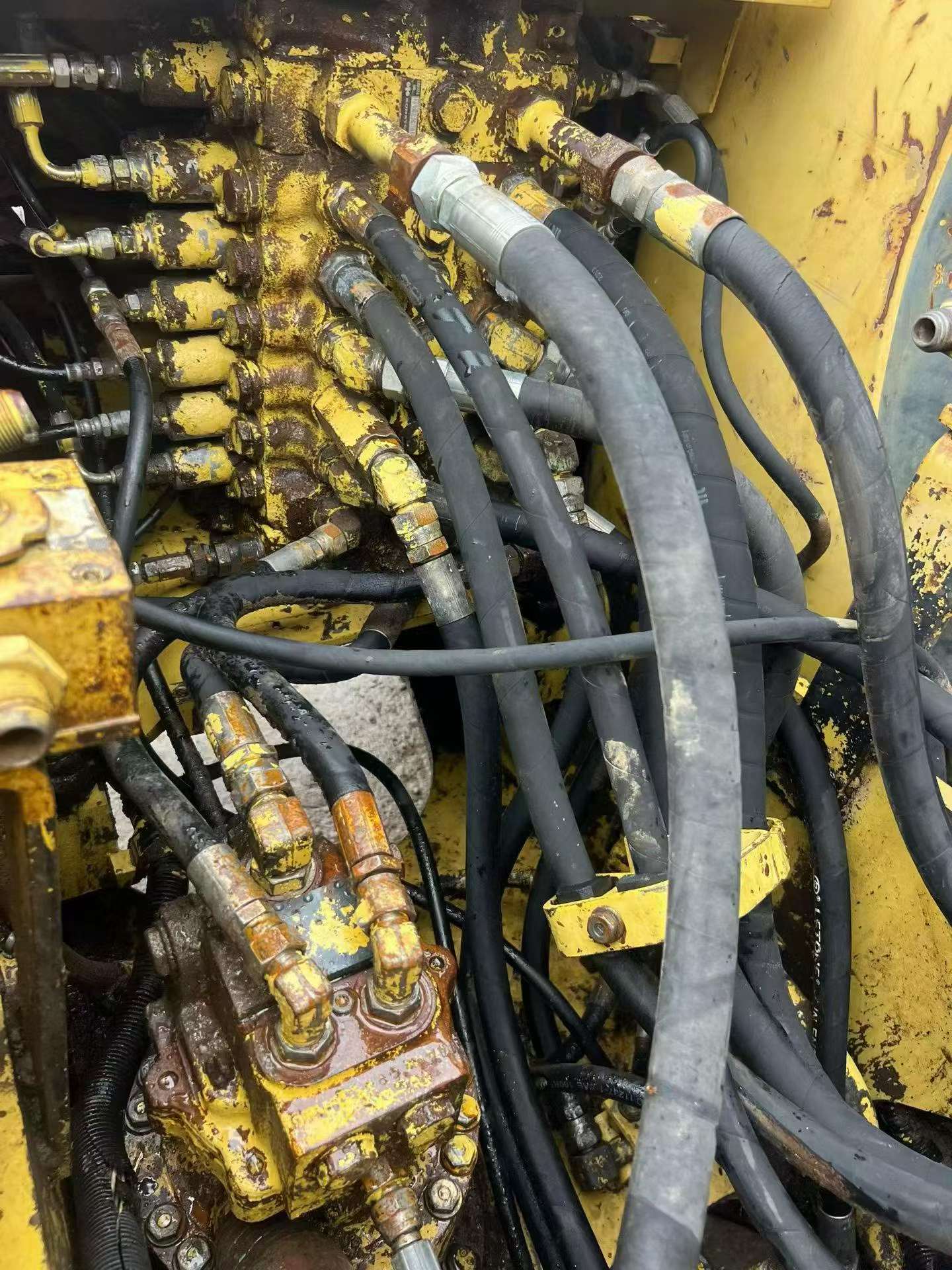

Buy Komatsu PC120-6 Used Excavator / 4

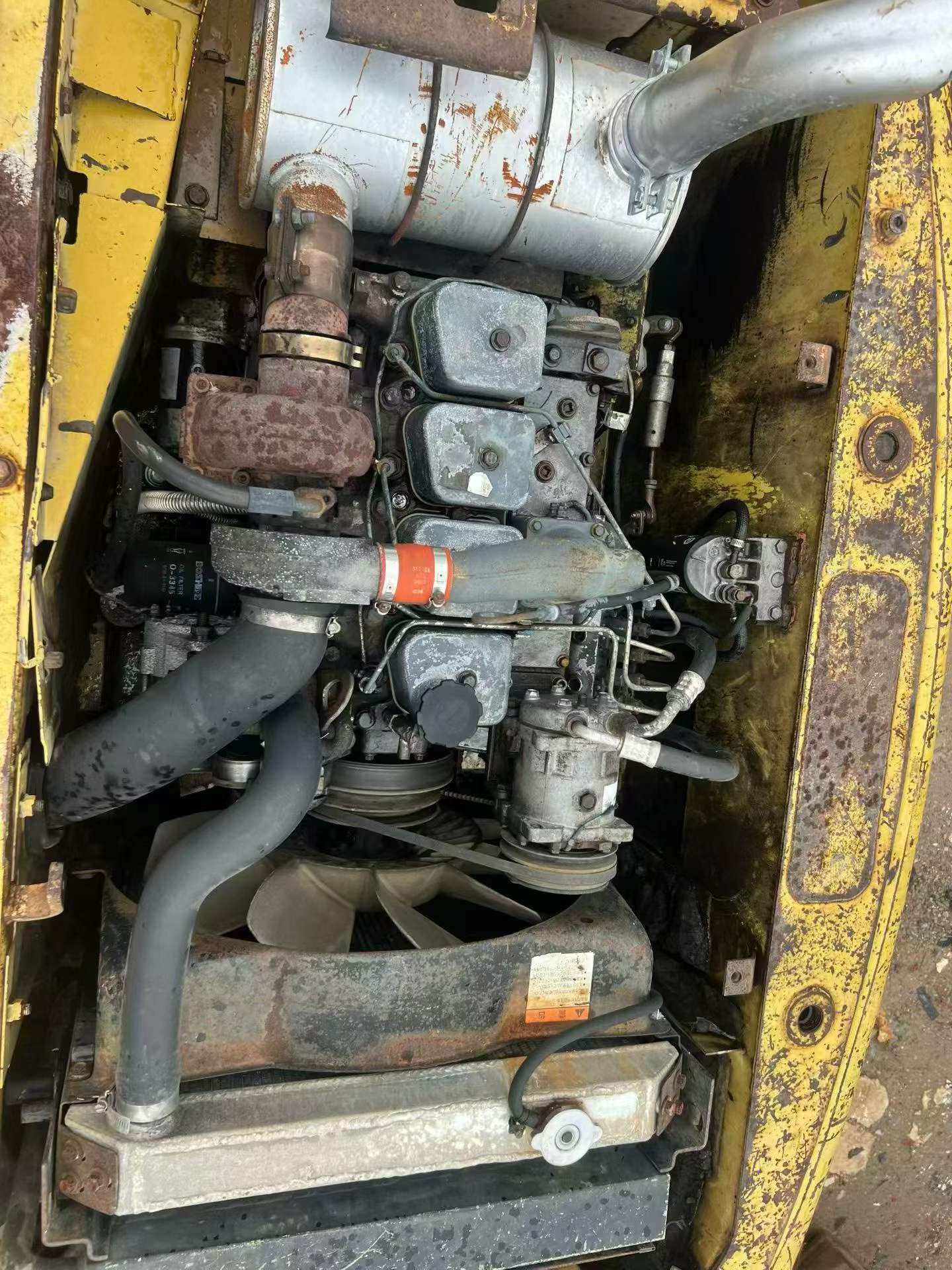

Buy Komatsu PC120-6 Used Excavator / 5

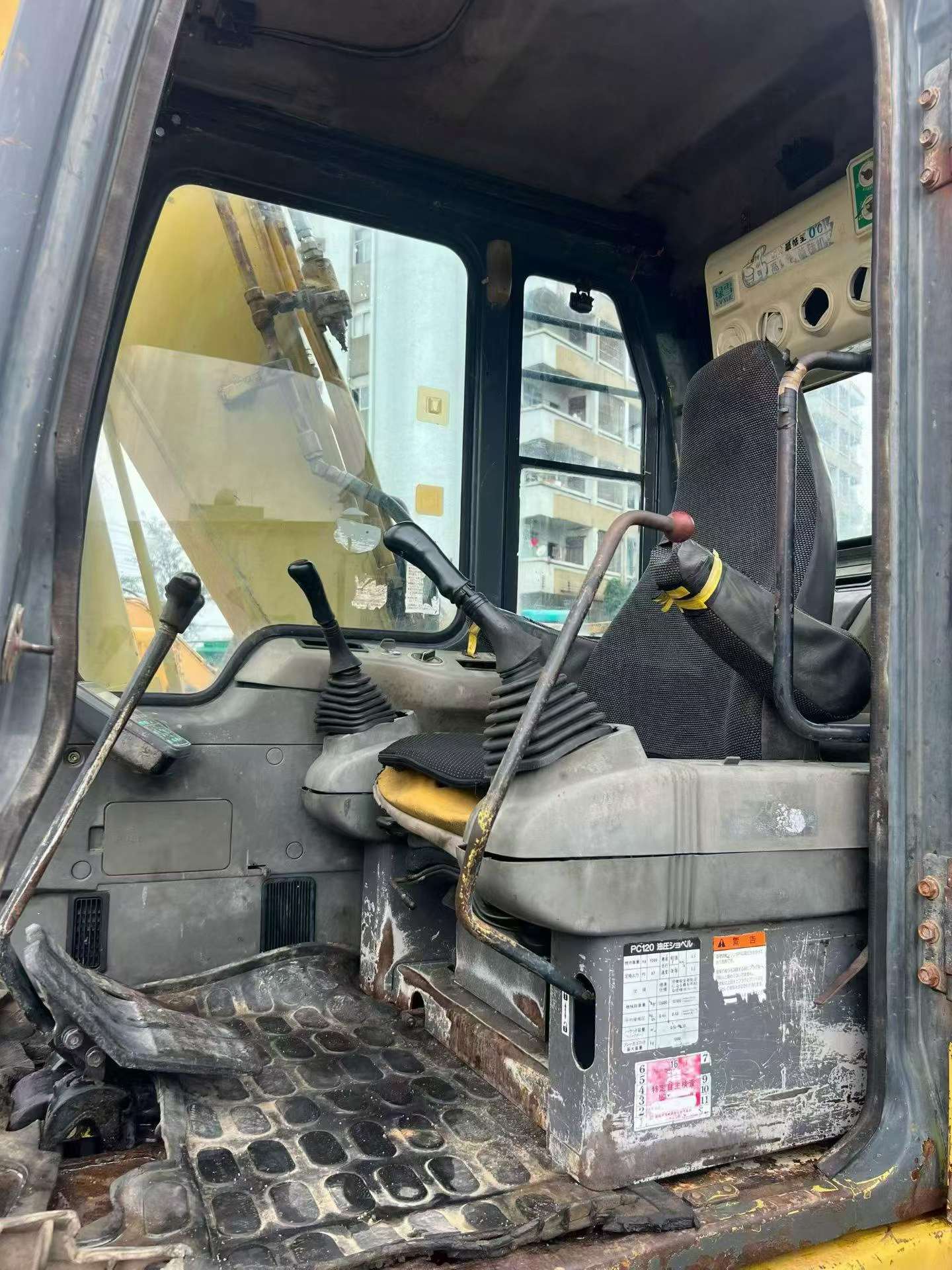

Buy Komatsu PC120-6 Used Excavator / 6

Product Description

This 2020 Komatsu PC120-6 excavator is available from Guangdong, China. Equipped with a large machine head and hydraulic breaker attachment, this mid-size crawler excavator delivers reliable performance for demolition, trenching, and general earthmoving applications.

The PC120-6 represents Komatsu's proven -6 series design, offering:

  • Operating weight class approximately 12 tons
  • Hydraulic breaker/hammer attachment included
  • Suitable for construction, demolition, and excavation work
  • Robust undercarriage and hydraulic systems
  • Well-maintained unit from Chinese market

This machine combines the durability Komatsu is known for with versatile attachments. Ideal for contractors seeking a capable mid-range excavator with breaking capabilities. Inspection welcome. Contact us for detailed specifications, service records, and shipping arrangements to your location.

SpecificationsValue
No.1171200
Tonnage (tons)12
Working weight (kg)12030
Bucket capacity (m³)0.5
Rod length (mm)2100
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu Komatsu SAA4D95LE-3
Rated power (kw/rpm)64/2200
Cooling modewater-cooling
Displacement (L)3.26
Working formDirect injection, turbocharged, intercooled diesel engine
Ground specific pressure (Kpa)0.39kg/c㎡
Rotation speed (rpm)11
Climbing ability (%)70/30 °
Bucket digging force (kN)8800
Rod digging force (kN)6300
Travel speed (km/h)2.7-5.5
Maximum flow of main pump (l/min)226L/min
Traveling Hydraulic Circuit (Mpa)355kg/c㎡
Rotary Hydraulic Circuit (Mpa)295kg/c㎡
Control Hydraulic Circuit (Mpa)30kg/c㎡
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)325kg/c㎡
Fuel Tank (L)247
Hydraulic Tank (L)90
Engine Oil changes (L)11
Coolant (L)13.4
Total transport length (mm)7599
Total transport height (mm)2175
Full cab height (mm)2175
Counterweight ground clearance (mm)855
Minimum ground clearance (mm)400
Back end turning radius (mm)2110
Total track length (mm)3610
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2880
Maximum digging radius (mm)8290
Maximum digging depth (mm)5520
Maximum excavation height (mm)8610
Maximum unloading height (mm)6170
Maximum vertical digging depth (mm)4940
Bulldozer lift or depth (mm)No bulldozer
Maximum excavation radius of stop surface (mm)8170
Maximum effective digging depth (mm)5315
see more

Overview

No.1171200

Brand Name:

Komatsu

Model Number:

PC120-6

Year:

2020

Location:

Guangdong China
