Product Description

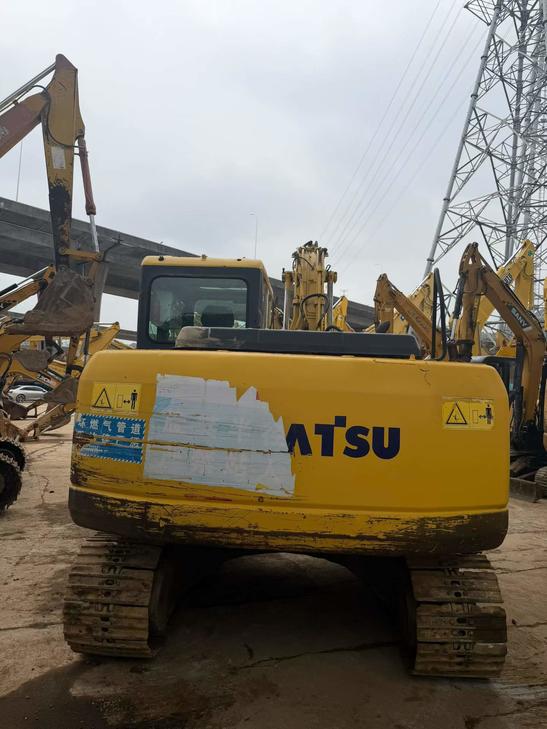

Acquiring a reliable mid-sized excavator doesn't require a new-machine budget. This 2016 Komatsu PC130-7 delivers proven 13-ton performance at a fraction of replacement cost, combining Komatsu's legendary durability with immediate operational readiness. Powered by the efficient SAA4D95LE-3 engine generating 66kW at 2200 rpm, this machine offers exceptional fuel economy through its turbocharged, intercooled diesel system with water cooling and 3.26L displacement.
With a maximum digging depth of 5,520mm and reach extending to 8,290mm, this excavator handles demanding excavation tasks with a 0.53m³ bucket capacity. Key performance metrics include 93.2kN bucket digging force, 61.8kN rod digging force, and a 226 l/min main pump flow rate ensuring responsive hydraulic power. Currently located in Guangzhou, Guangdong, this joint venture-manufactured unit represents smart capital allocation for contractors seeking Komatsu quality without premium pricing.
- Working weight: 12,600kg with 2,100mm rod length
- Maximum excavation height: 8,610mm / unloading height: 6,170mm
- Travel speed: 2.7-5.5 km/h with 70% gradeability
- Compact transport dimensions: 7,599mm length × 2,175mm height
| Specifications | Value |
|---|---|
| No. | 1021961 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12600 |
| Bucket capacity (m³) | 0.53 |
| Rod length (mm) | 2100 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 66/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.26 |
| Working form | Direct injection, turbocharged, intercooled diesel engine |
| Ground specific pressure (Kpa) | 38 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 93.2 |
| Rod digging force (kN) | 61.8 |
| Travel speed (km/h) | 2.7-5.5 |
| Maximum flow of main pump (l/min) | 226 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 30 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 32 |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7599 |
| Total transport height (mm) | 2175 |
| Full cab height (mm) | 2175 |
| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |
| Total track length (mm) | 3610 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6170 |
| Maximum vertical digging depth (mm) | 4940 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8170 |
| Maximum effective digging depth (mm) | 5315 |
