Product Description

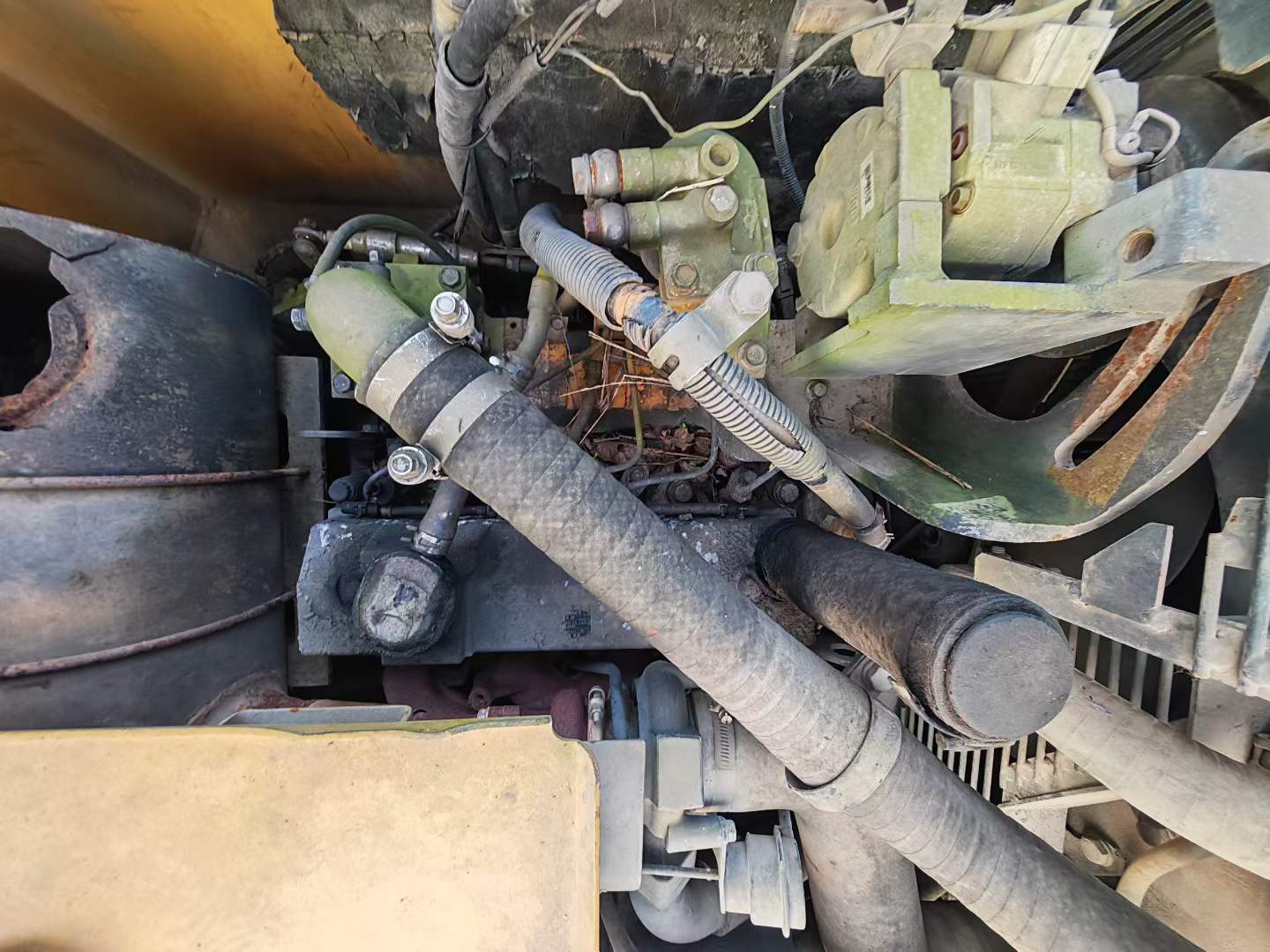

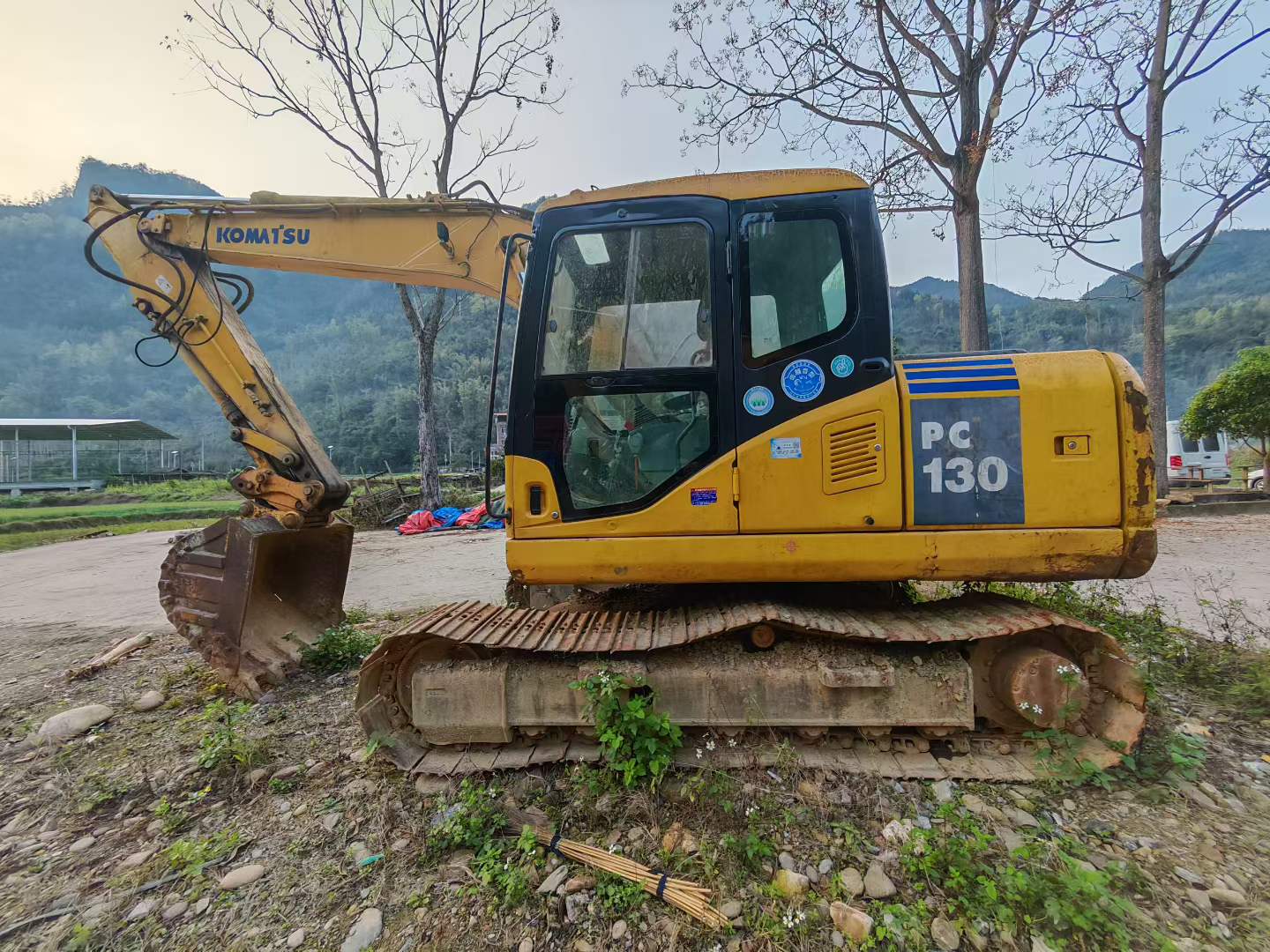

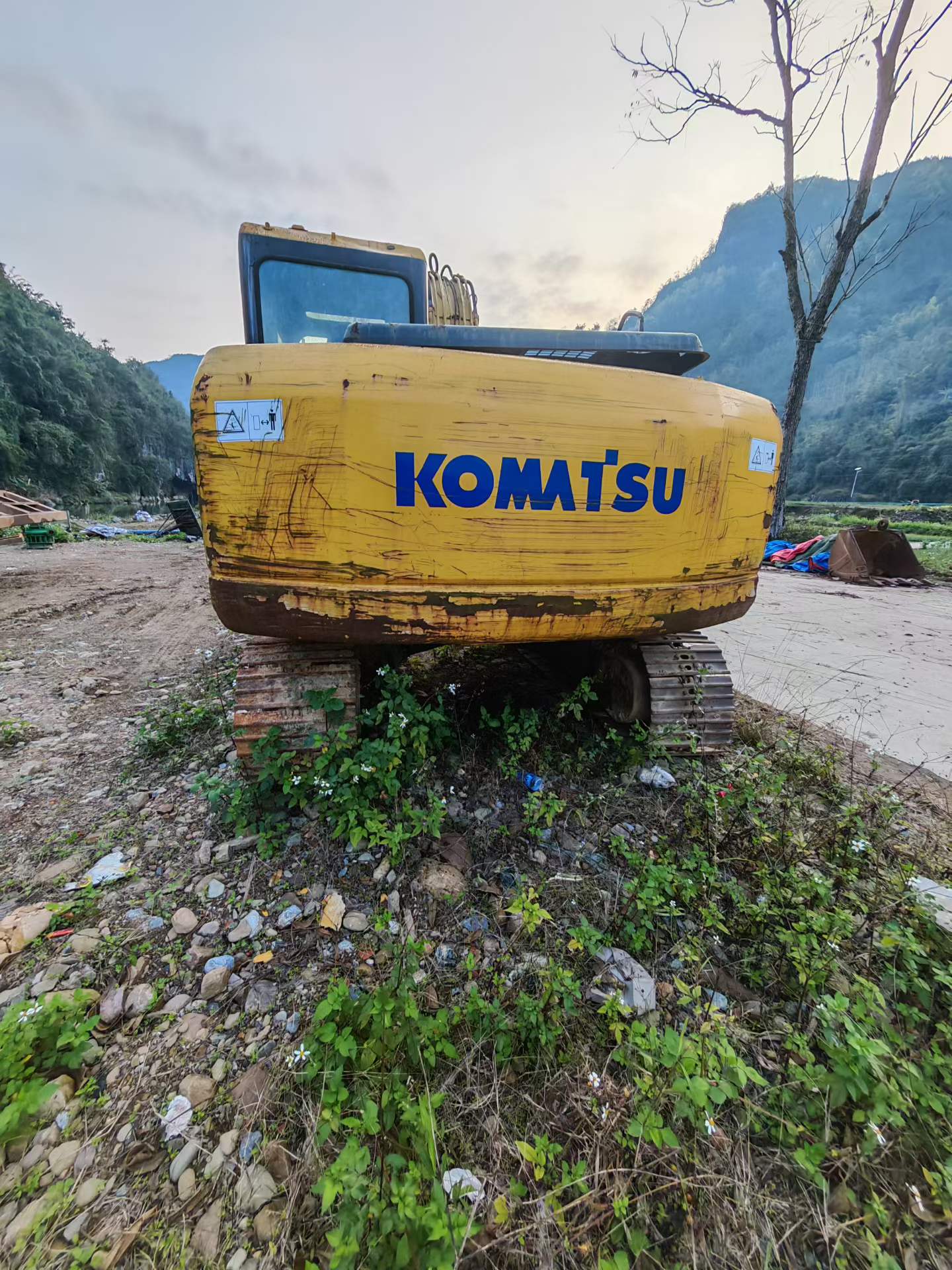

Expand your operational capacity with this 2016 Komatsu PC130-7 excavator, now available from Anhui. Built for contractors managing multiple jobsites, this 13-ton workhorse delivers consistent performance as a fleet backup or secondary unit. Powered by the proven Komatsu SAA4D95LE-3 engine producing 66kW at 2200rpm, this machine features water-cooled, turbocharged diesel technology with intercooling for sustained productivity in demanding conditions.
Equipped with a 0.53m³ bucket and 2100mm rod configuration, the PC130-7 offers versatile digging capabilities with 8290mm maximum reach and 5520mm depth. Hydraulic efficiency is maximized through a 226 l/min main pump system operating across dedicated circuits. Track dimensions of 1990mm gauge and 500mm plate width ensure stability across varied terrain, while the compact 7599mm transport length facilitates easy mobilization between sites.
- Bucket digging force: 93.2kN
- Operating weight: 12,600kg
- Fuel capacity: 247L for extended shifts
- Maximum digging height: 8610mm
- Travel speed: 2.7-5.5 km/h
Originated from Jining, Shandong Province, this joint venture-manufactured unit represents proven engineering designed for fle
| Specifications | Value |
|---|---|
| No. | 1023955 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12600 |
| Bucket capacity (m³) | 0.53 |
| Rod length (mm) | 2100 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 66/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.26 |
| Working form | Direct injection, turbocharged, intercooled diesel engine |
| Ground specific pressure (Kpa) | 38 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 93.2 |
| Rod digging force (kN) | 61.8 |
| Travel speed (km/h) | 2.7-5.5 |
| Maximum flow of main pump (l/min) | 226 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 30 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 32 |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7599 |
| Total transport height (mm) | 2175 |
| Full cab height (mm) | 2175 |
| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |
| Total track length (mm) | 3610 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6170 |
| Maximum vertical digging depth (mm) | 4940 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8170 |
| Maximum effective digging depth (mm) | 5315 |
