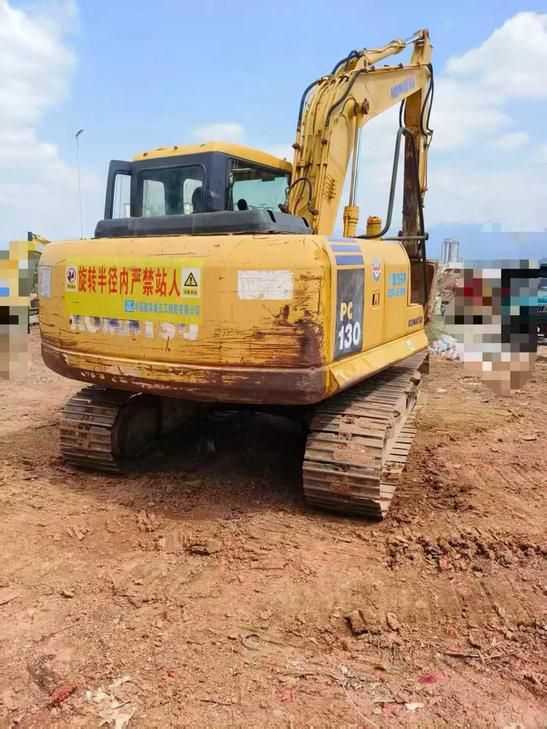

Secure immediate access to proven mid-size excavation power with this 2016 Komatsu PC130-7, currently positioned in Guangdong Maoming and ready for fast deployment to your project site. Powered by a robust Komatsu SAA4D95LE-3 turbocharged diesel engine delivering 66kW at 2200 rpm, this 13-ton workhorse combines reliable Japanese engineering with the operational capacity your job demands. Skip the factory lead times—this machine is available now for rapid mobilization across Asia-Pacific markets.
- Maximum digging reach: 8,290mm with 5,520mm depth capability
- Bucket capacity: 0.53m³ with 93.2kN digging force
- Working weight: 12,600kg for stable performance

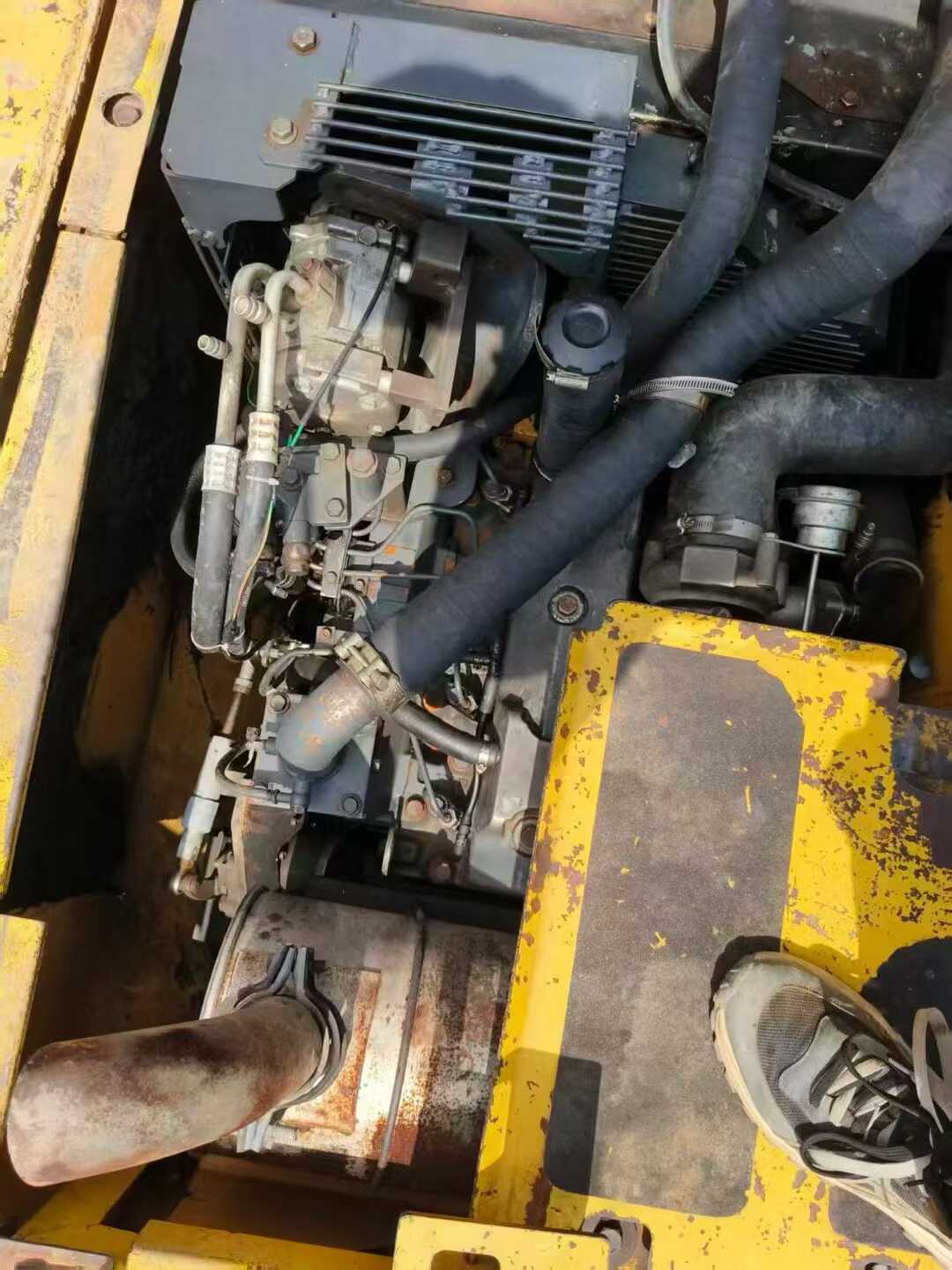

- Water-cooled 3.26L displacement engine with intercooling
- 226 L/min hydraulic flow for responsive cycle times
- Travel speed: 2.7-5.5 km/h with 70% grading ability
- Compact transport dimensions: 7,599mm length × 2,175mm height
- Located in Guangdong Maoming—fast shipping throughout Southeast Asia
Eliminate procurement delays. Contact Fair Trade Machinery today to arrange inspection and immediate delivery of this field-ready excavator.
| Specifications | Value |
|---|---|
| No. | 1028871 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12600 |
| Bucket capacity (m³) | 0.53 |
| Rod length (mm) | 2100 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 66/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.26 |
| Working form | Direct injection, turbocharged, intercooled diesel engine |
| Ground specific pressure (Kpa) | 38 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 93.2 |
| Rod digging force (kN) | 61.8 |
| Travel speed (km/h) | 2.7-5.5 |

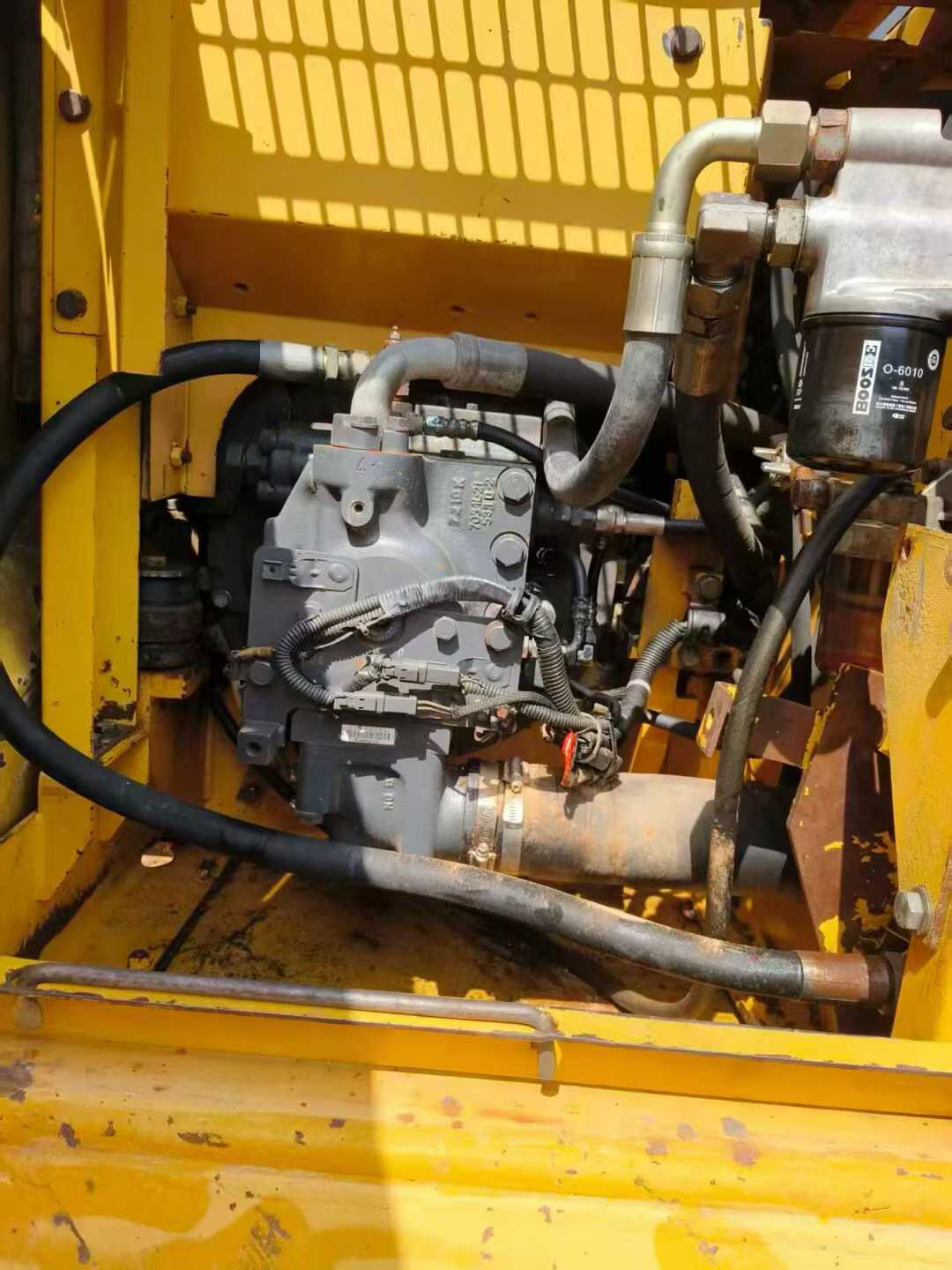

| Maximum flow of main pump (l/min) | 226 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 30 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 32 |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7599 |
| Total transport height (mm) | 2175 |
| Full cab height (mm) | 2175 |
| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |
| Total track length (mm) | 3610 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6170 |
| Maximum vertical digging depth (mm) | 4940 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8170 |
| Maximum effective digging depth (mm) | 5315 |
