Product Description

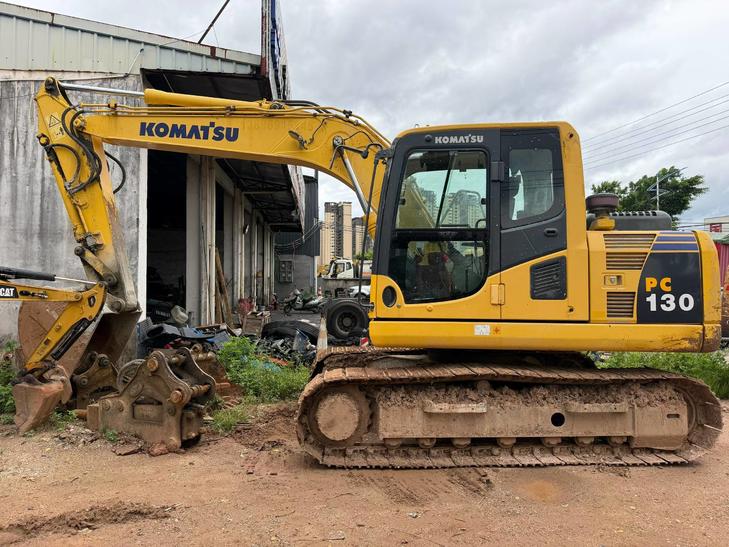

This 2020 Komatsu PC130-8M0 hydraulic excavator represents reliable mid-size excavating performance from one of the industry's most trusted manufacturers. The PC130-8M0 model offers an optimal balance of digging power, fuel efficiency, and operational versatility for contractors and construction firms seeking dependable used equipment.
Currently located in Guangdong, China, this machine features Komatsu's proven engine technology and hydraulic systems designed for demanding applications including earthmoving, trenching, and site preparation. The -8M0 designation indicates factory configurations optimized for regional performance standards.
Key attributes include:
- Operating weight class: approximately 13 tons

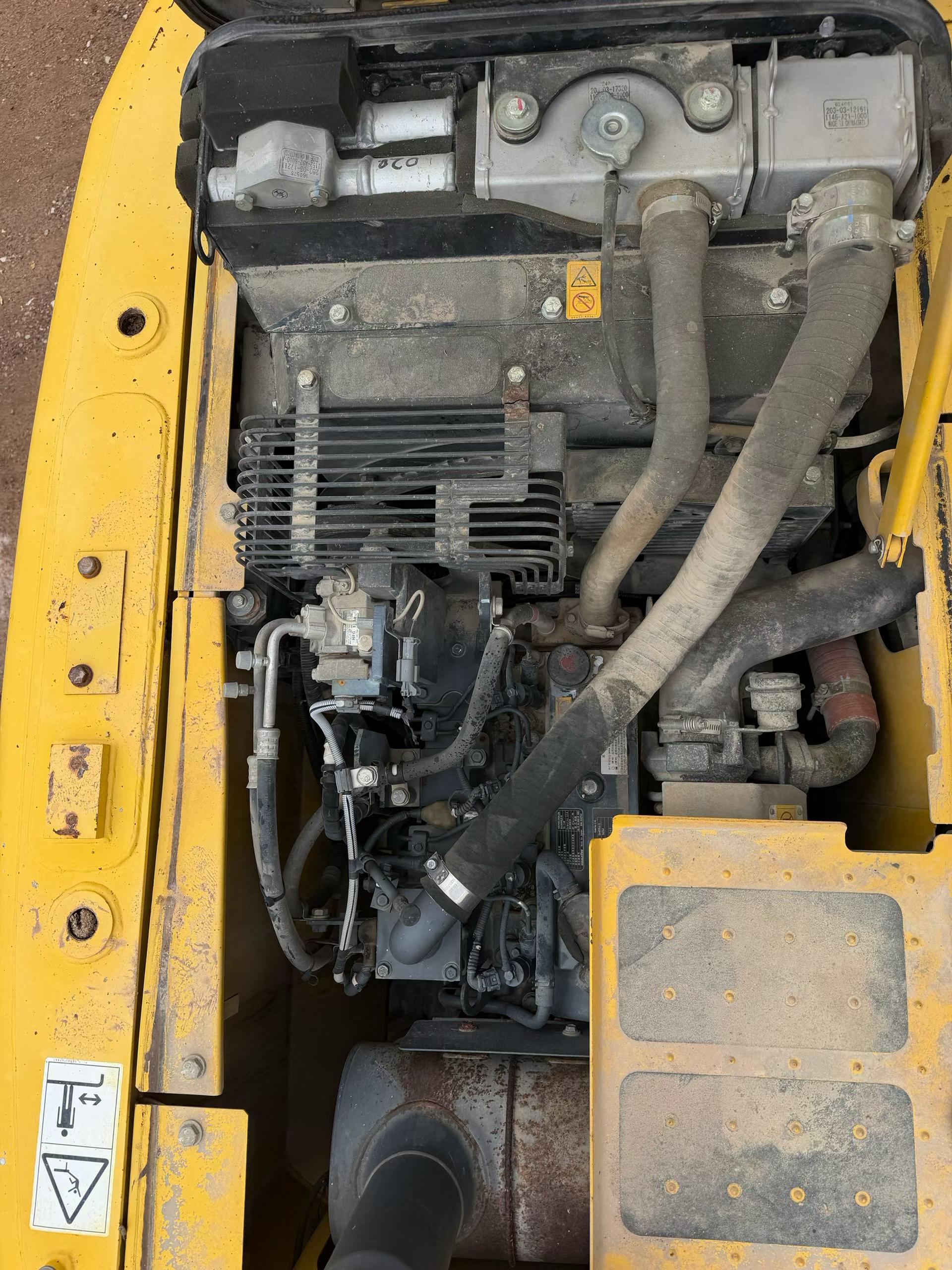

- Komatsu SAA4D107E engine platform
- Advanced hydraulic system for responsive control
- Spacious operator cabin with ergonomic layout
- Suitable for utility work, building construction, and general excavation
This pre-owned excavator offers cost-effective access to Komatsu quality engineering for operations requiring proven excavation capabilities.
| Specifications | Value |
|---|---|
| No. | 1099392 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.53-0.64 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D95LE-5 |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 115 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.26 |
| Working form | Four-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 40 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 86 |
| Rod digging force (kN) | 72.9 |
| Maximum tractive force (kN) | 122.6 |
| Travel speed (km/h) | 5.5/2.9 |
| Maximum flow of main pump (l/min) | 242 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 29.2 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-90 x 885 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 1175 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-105 x 995 |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 13 |
| Coolant (L) | 13.9 |
| Total transport length (mm) | 7590 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2885 |
| Counterweight ground clearance (mm) | 895 |
| Minimum ground clearance (mm) | 400 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2500 |
| Total track length (mm) | 3610 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 43 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8650 |
| Maximum unloading height (mm) | 6210 |
| Maximum vertical digging depth (mm) | 4900 |
| Maximum excavation radius of stop surface (mm) | 8170 |
