Product Description

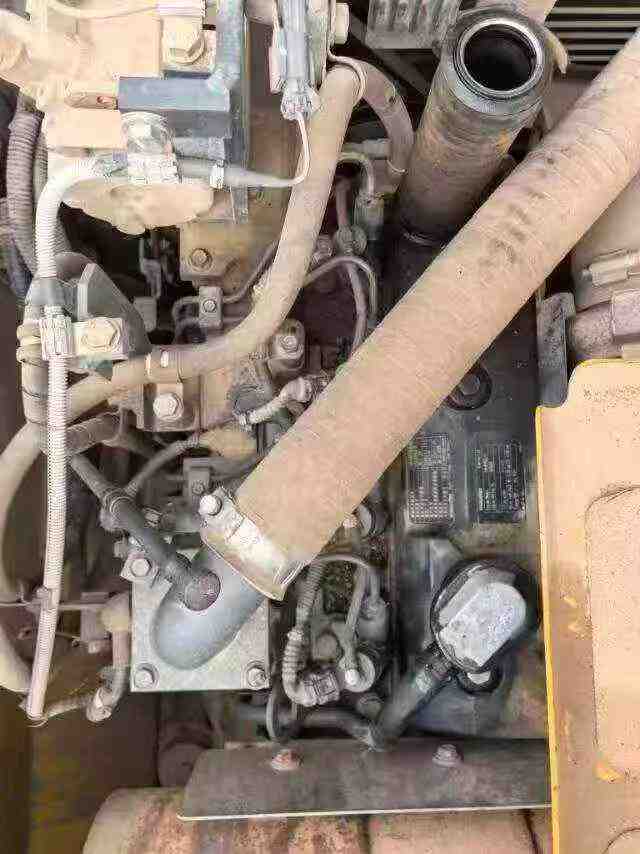

Proven in demanding conditions since 2019, this Komatsu PC15R-8 mini excavator delivers reliable performance where compact dimensions meet serious capability. Weighing just 1,650 kg with a 1-ton operating class, this machine navigates tight urban sites and confined spaces with a minimal 1,000 mm transport width and exceptional 1,070 mm rear turning radius. Built around the robust Komatsu 3D68E-N3FB engine producing 12.7 kW at 2,600 rpm, this workhorse maintains consistent power throughout extended shifts.
- Maximum digging depth of 2,160 mm with 3,640 mm excavation radius
- Efficient 0.78L displacement engine with 20L fuel capacity for extended runtime
- Compact 3,745 mm transport length fits standard trailers
- Low 29.6 kPa ground pressure protects finished surfaces
- Maximum unloading height reaches 2,500 mm for easy truck loading
- Comprehensive hydraulic system with 23L capacity ensures smooth operation
Currently located in Luzhou, Sichuan, this joint venture-manufactured excavator represents Komatsu's commitment to durability. With four years of field-proven reliability, the PC15R-8 continues performing as a dependable solution for landscaping, utility wo
| Specifications | Value |
|---|---|
| No. | 1022814 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1650 |
| Bucket capacity (m³) | 0.04/0.02 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu 3D68E-N3FB |
| Rated power (kw/rpm) | 12.7/2600 |
| Displacement (L) | 0.78 |
| Ground specific pressure (Kpa) | 29.6 |
| Travel speed (km/h) | 4.2 |
| Fuel Tank (L) | 20 |
| Engine Oil changes (L) | 2.8 |
| Coolant (L) | 3.2 |
| Hydraulic System (L) | 23 |
| Total transport length (mm) | 3745 |
| Total transport width (mm) | 1000 |
| Total transport height (mm) | 2229 |
| Full cab height (mm) | 2229 |
| Counterweight ground clearance (mm) | 437 |
| Back end turning radius (mm) | 1070 |
| Track gauge (mm) | 770 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1015 |
| Maximum digging depth (mm) | 2160 |
| Maximum excavation height (mm) | 3480 |
| Maximum unloading height (mm) | 2500 |
| Maximum vertical digging depth (mm) | 1560 |
| Maximum excavation radius of stop surface (mm) | 3640 |
