Product Description

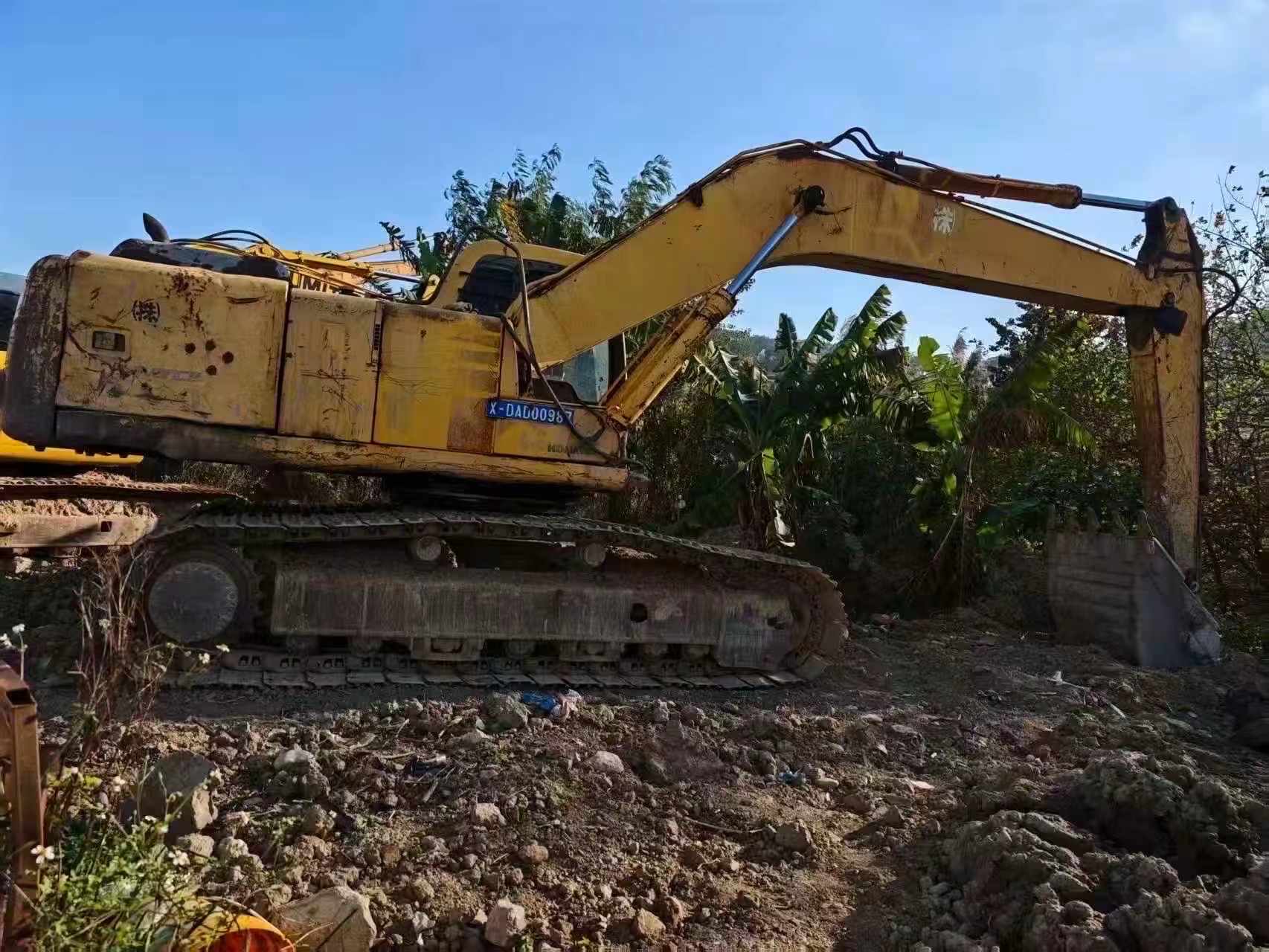

Built for operators who demand precision and control, the 2020 Komatsu PC200-6 is a proven 20-ton hydraulic excavator engineered for demanding earthmoving and excavation applications. Powered by the reliable Komatsu S6D102E 6-cylinder engine delivering 99 kW at 2,200 RPM, this machine offers consistent performance across a full range of job site conditions. Currently located in Fujian, China, and ready for inspection.

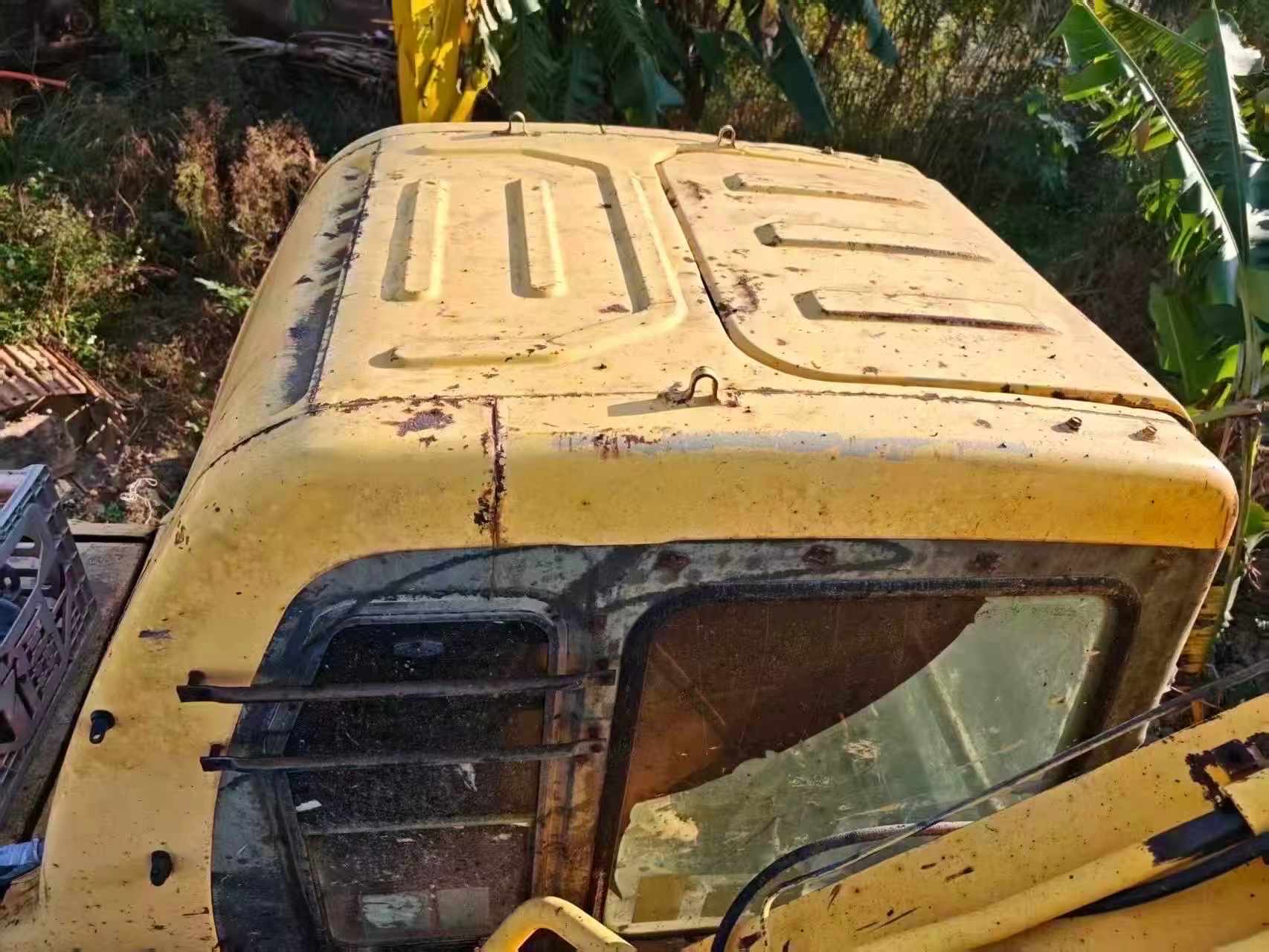

From the operator's seat, this machine provides a commanding work envelope — reaching a maximum excavation height of 8,895 mm and a maximum digging depth of 4,965 mm — while the spacious, low-noise cab delivers clear sightlines to the working attachment. The full cab height of 2,905 mm supports comfortable long-shift operation, reducing fatigue during sustained digging cycles.

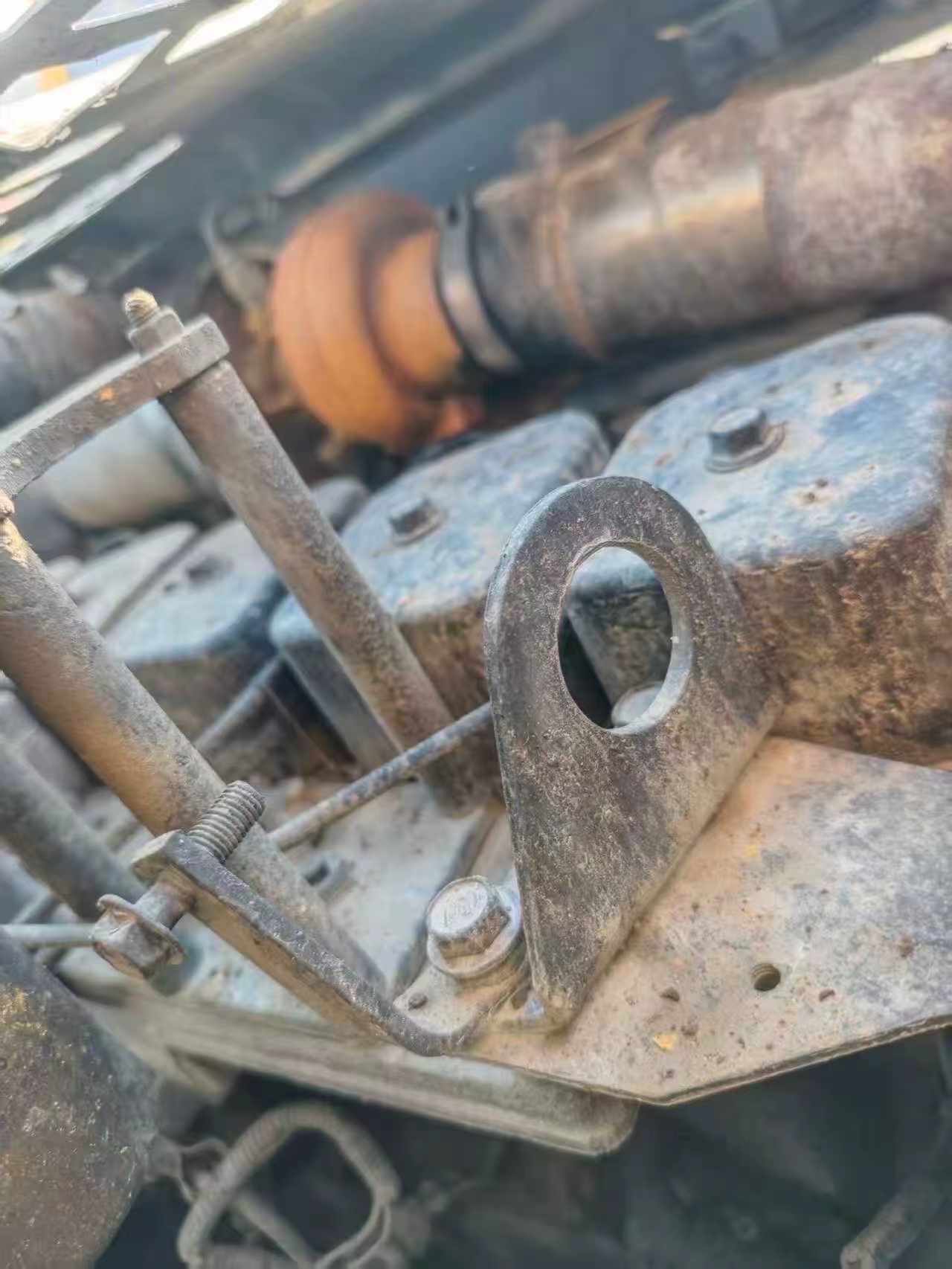

- Engine: Komatsu S6D102E | 6-cylinder | 5.9L displacement | 99 kW @ 2,200 RPM
- Bucket Capacity: 0.8 m³ backhoe bucket
- Working Weight: 19,180 kg | Ground Pressure: 44.1 kPa
- Travel Speed: 5.5 km/h | Climbing Ability: 70% / 35°

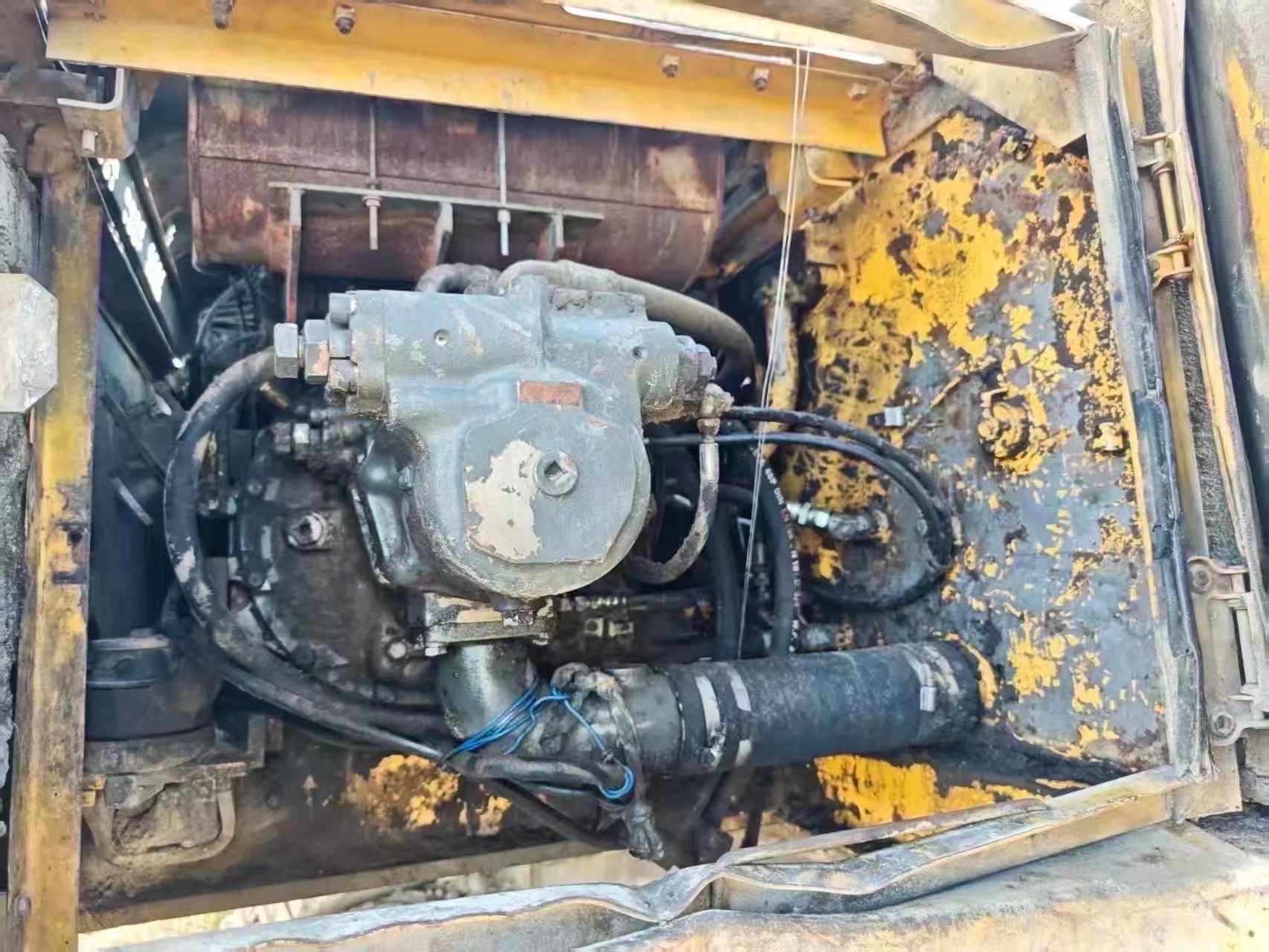

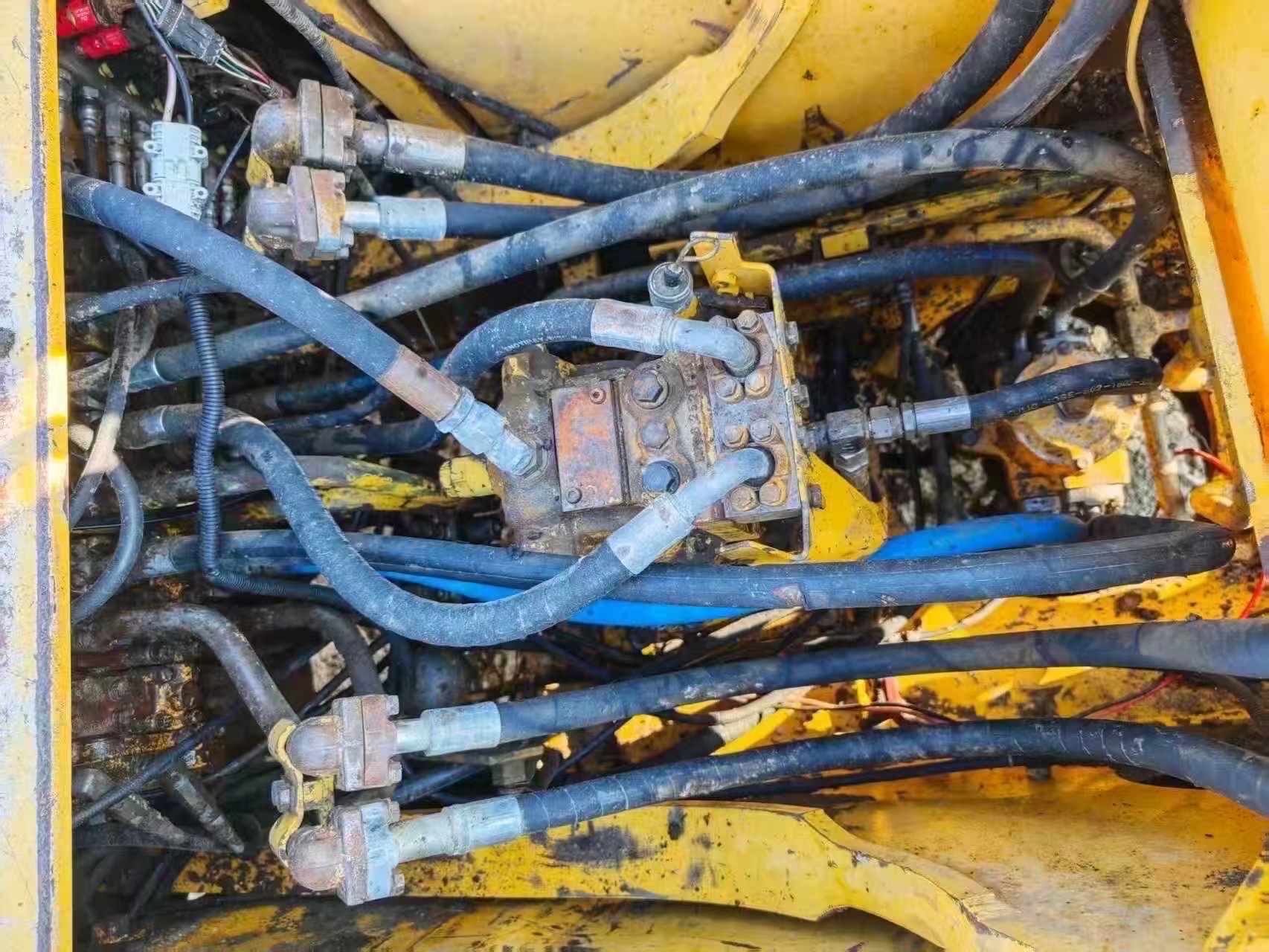

- Main Pump Max Flow: 412 L/min | System Pressure: 34.818 MPa

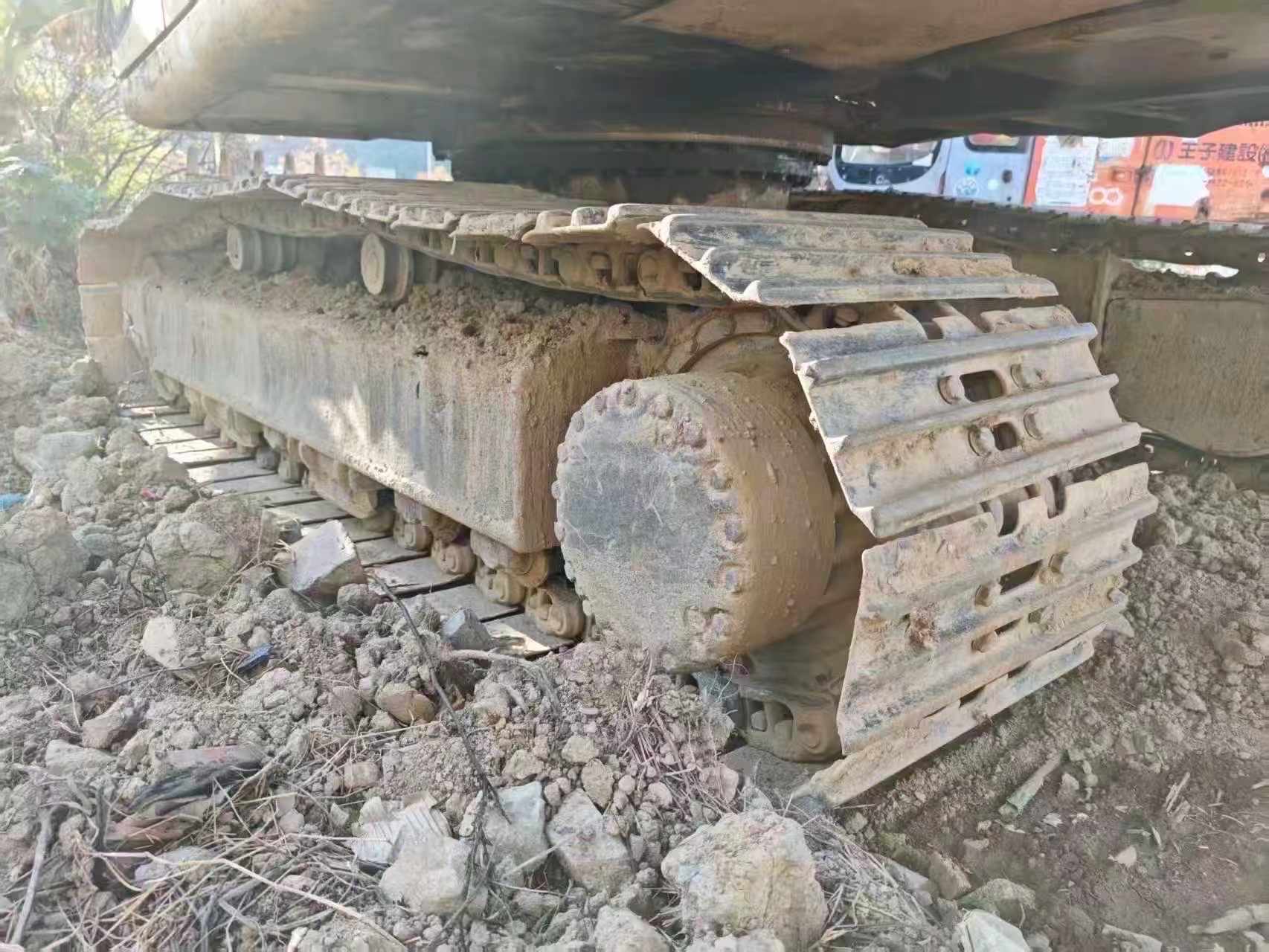

- Track Width: 600 mm plates | Track Gauge: 2,200 mm
- Fuel Tank: 340 L | Hydraulic System: 166 L
- Transport Dimensions: 9,510 mm (L) × 2,800 mm (W) × 2,985 mm (H)
- Origin: Japan-manufactured | Location: Fujian, China
| Specifications | Value |
|---|---|
| No. | 1056532 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19180 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 1840 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu S6D102E |
| Rated power (kw/rpm) | 99/2200 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.9 |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 34.818 |
| Maximum flow of main pump (l/min) | 412 |
| Fuel Tank (L) | 340 |
| Hydraulic System (L) | 166 |
| Total transport length (mm) | 9510 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2985 |
| Full cab height (mm) | 2905 |
| Counterweight ground clearance (mm) | 440 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3270 |
| Maximum excavation height (mm) | 8895 |
| Maximum unloading height (mm) | 6065 |
| Maximum vertical digging depth (mm) | 4965 |
