Product Description

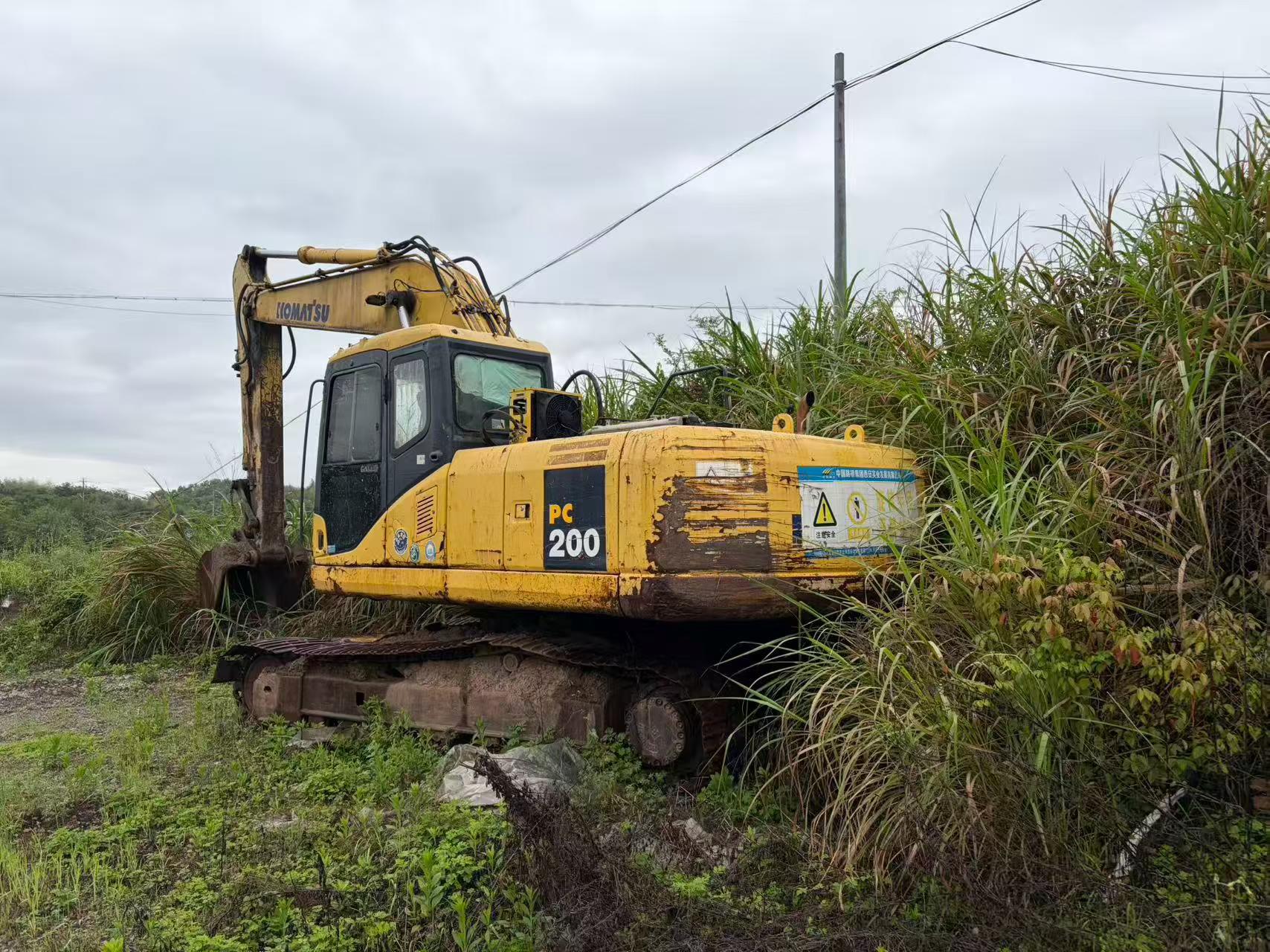

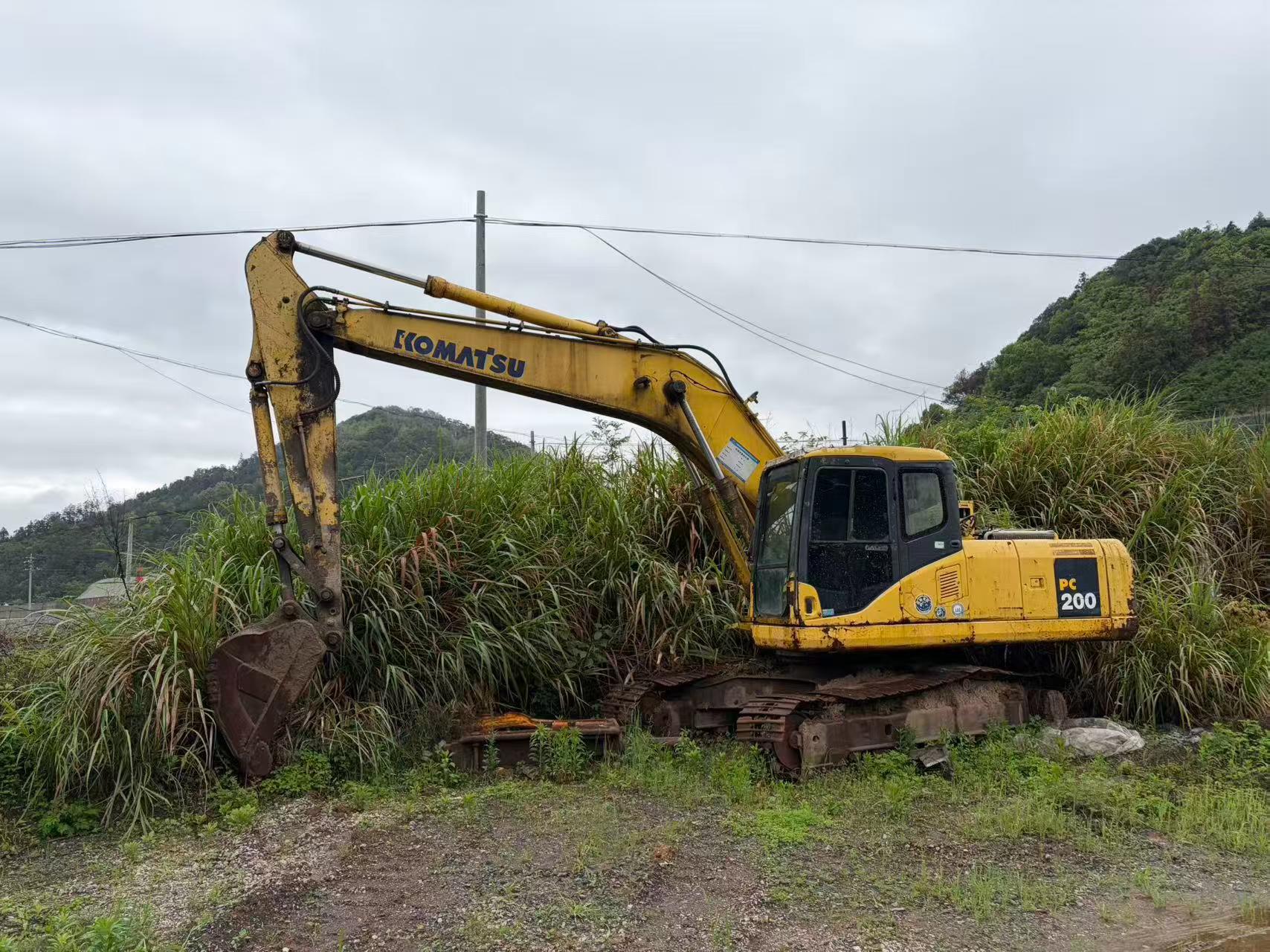

Built in Japan and proven on job sites worldwide, the 2020 Komatsu PC200-7 is one of the most dependable 20-ton excavators in the used equipment market. Komatsu's global parts network means downtime stays short and sourcing stays straightforward — a critical advantage when you're running tight project schedules.

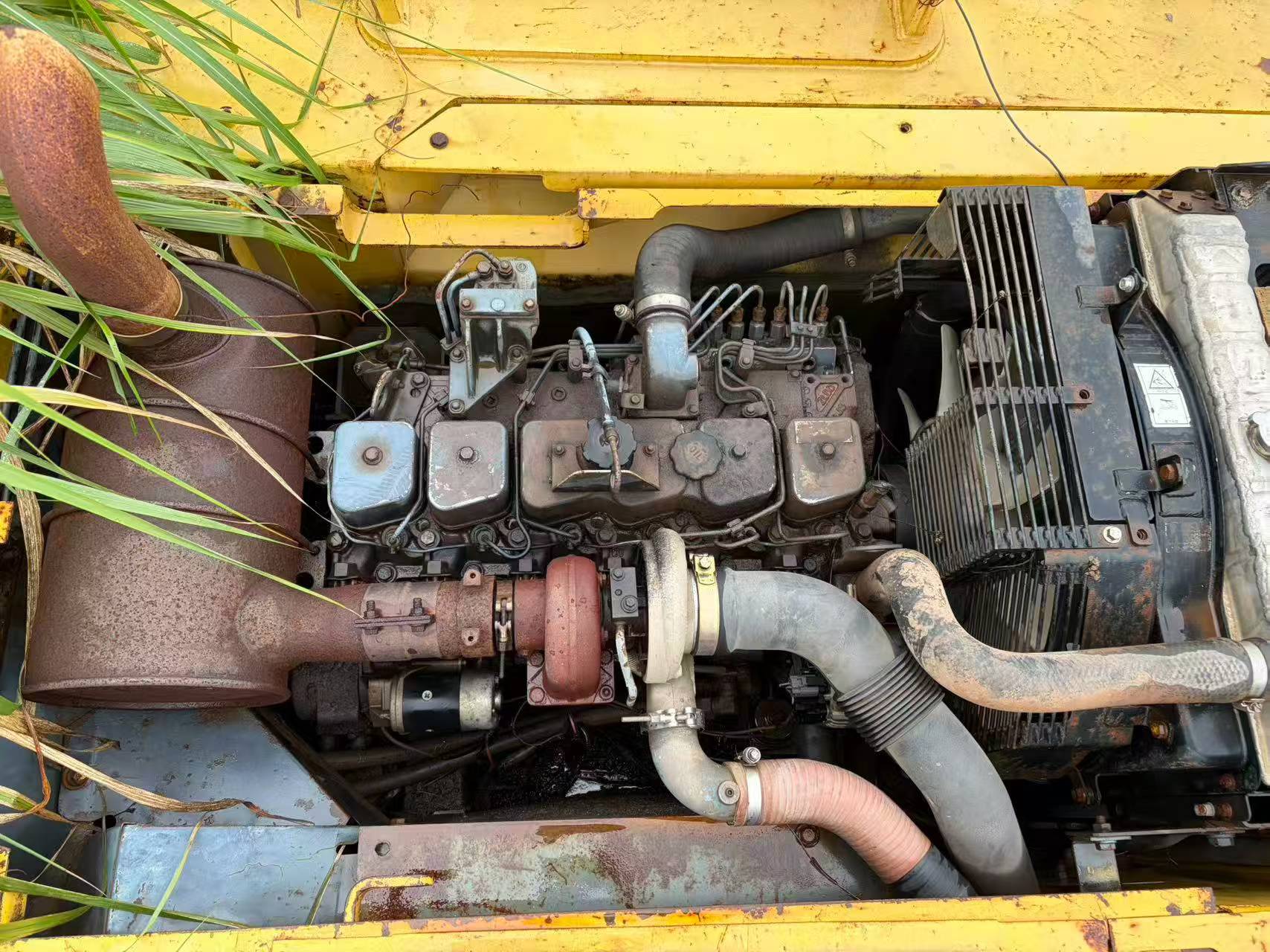

Powered by the Komatsu SAA6D102E-2 engine producing 107 kW, this machine delivers 149 kN of bucket digging force and 145 kN of arm digging force. The variable piston pump system and water-cooled 4-stroke direct injection engine ensure consistent hydraulic performance across demanding applications.
- Working weight: 20,253 kg | Bucket capacity: 0.8 m³
- Maximum digging depth: 5,380 mm | Maximum digging radius: 9,380 mm
- Maximum unloading height: 6,890 mm
- Travel speed: 12.4 km/h | Track plate width: 600 mm
- Fuel tank: 400 L | Hydraulic tank: 143 L
- Transport dimensions: 9,480 × 3,000 × 2,985 mm
Komatsu's strong resale value and broad aftermarket support make the PC200-7 a low-risk investment for contractors and fleet operators alike. Currently located in Zhejiang, China, and available for international shipping.
| Specifications | Value |
|---|---|
| No. | 1060013 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20253 |
| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 1840/2410 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 107 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Displacement (L) | 5.883 |
| Working form | 4 stroke, water cooled, direct injection |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 145 |
| Travel speed (km/h) | 12.4 |
| Maximum flow of main pump (l/min) | 2*214 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 143 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 22.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 3000 |
| Total transport height (mm) | 2985 |
| Full cab height (mm) | 2095 |
| Back end turning radius (mm) | 3270 |
| Total track length (mm) | 4080 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3000 |
| Track ground length (mm) | 3270 |
| Maximum digging radius (mm) | 9380 |
| Maximum digging depth (mm) | 5380 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6890 |
| Maximum excavation radius of stop surface (mm) | 8660 |
