Product Description

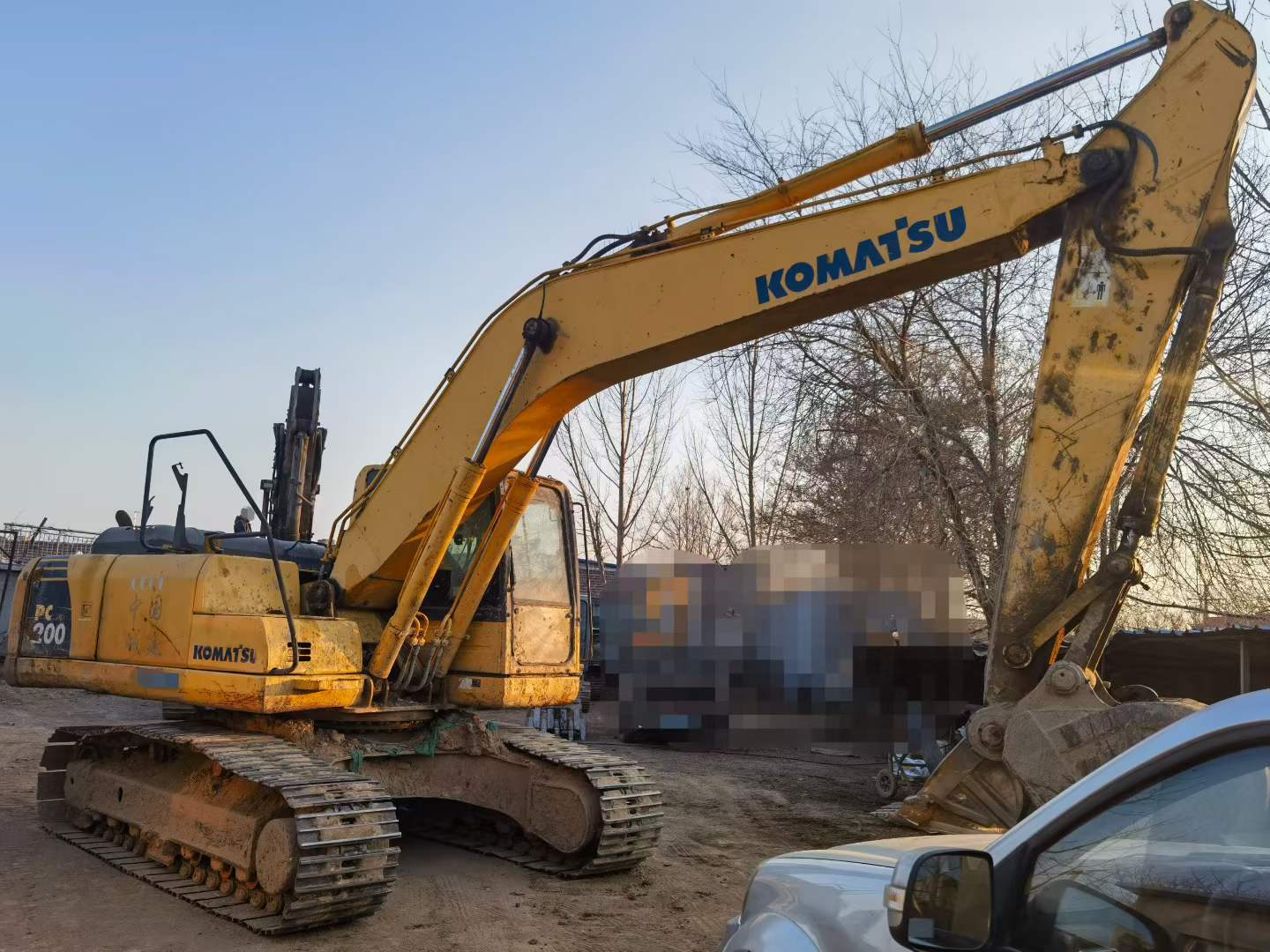

Commanding a 20-ton workhorse from Jining, Shandong, this 2016 PC200-8 delivers precision control and operational confidence for demanding excavation tasks. Powered by a Komatsu SAA6D107E-1 engine generating 110 kW at 2000 rpm, operators benefit from responsive hydraulics and a maximum flow rate of 439 l/min, ensuring smooth simultaneous functions across boom, arm, and bucket operations.

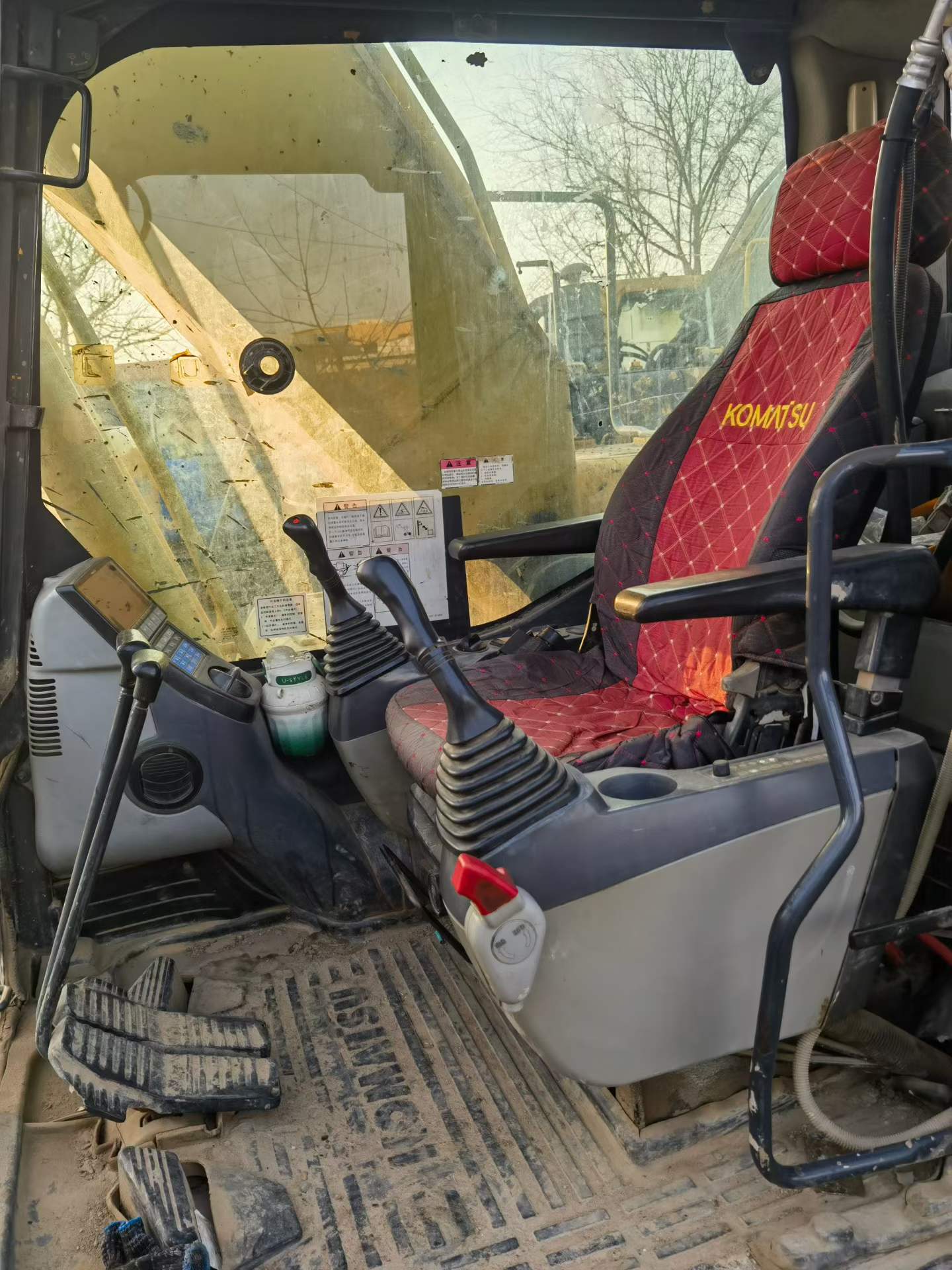

Cabin visibility remains exceptional with a 3040mm cab height and strategically positioned controls. Stability is reinforced through a 2800mm track width and 44.1 kPa ground pressure distribution, while the 2710mm rear turning radius enables confident maneuvering in confined spaces. Hydraulic precision is maintained through dedicated circuits—37.3 MPa for travel, 28.9 MPa for rotation, and 3.2 MPa pilot control—providing operators with intuitive, fatigue-reducing command over all functions.
- Working weight: 19,900 kg with 0.8 m³ bucket capacity
- Maximum digging reach: 9,875 mm with 6,620 mm depth capability
- Digging forces: 149 kN bucket, 108 kN arm
- Travel speeds: 3.0/4.1/5.5 km/h for varied terrain conditions
- Rotation speed: 12.4 rpm for efficient cycle times
| Specifications | Value |
|---|---|
| No. | 1010474 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2925 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

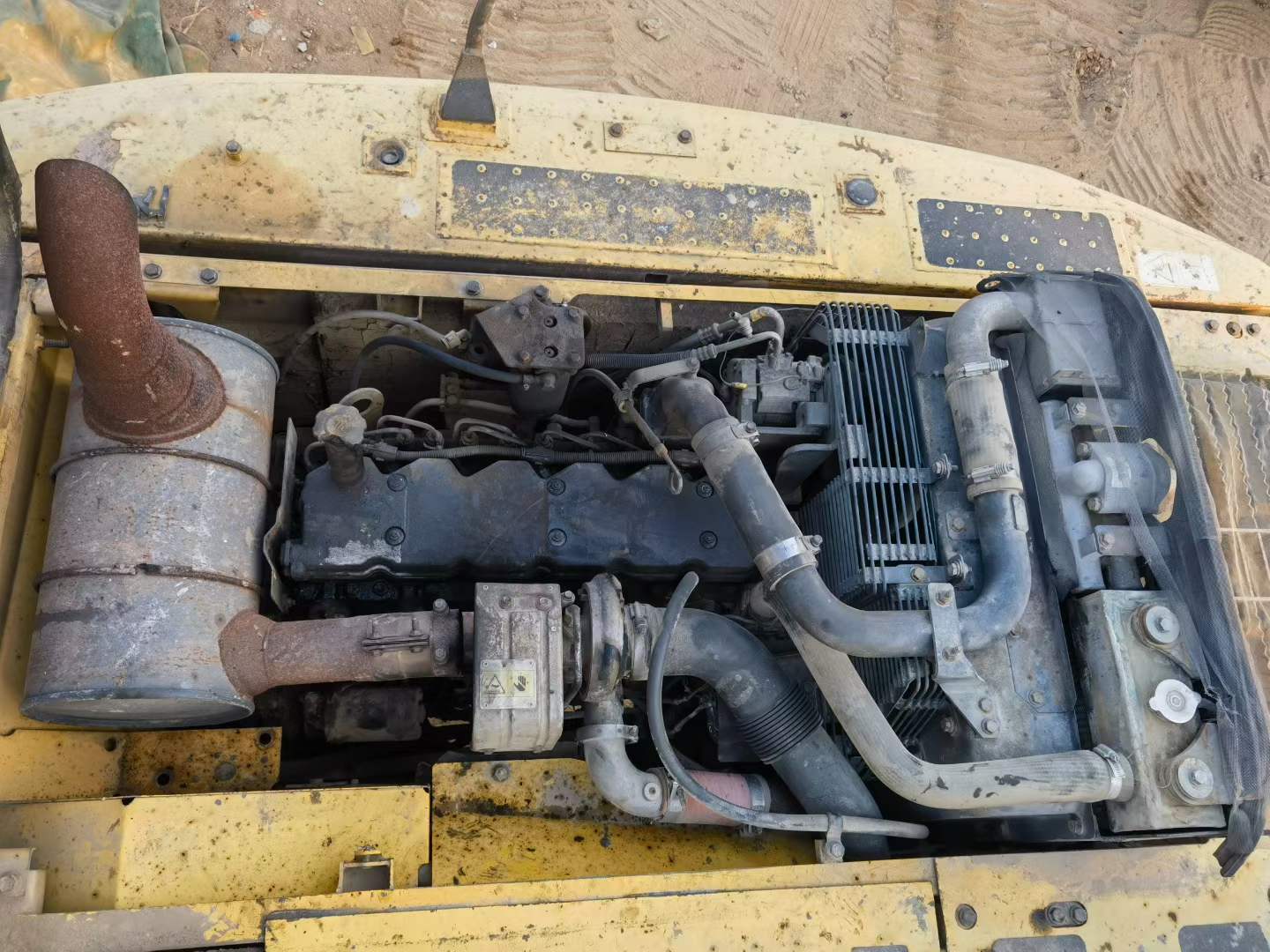

| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 3.0/4.1/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 115 * 1120 * 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 135 * 1490 * 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 1334 * 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3040 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2710 |

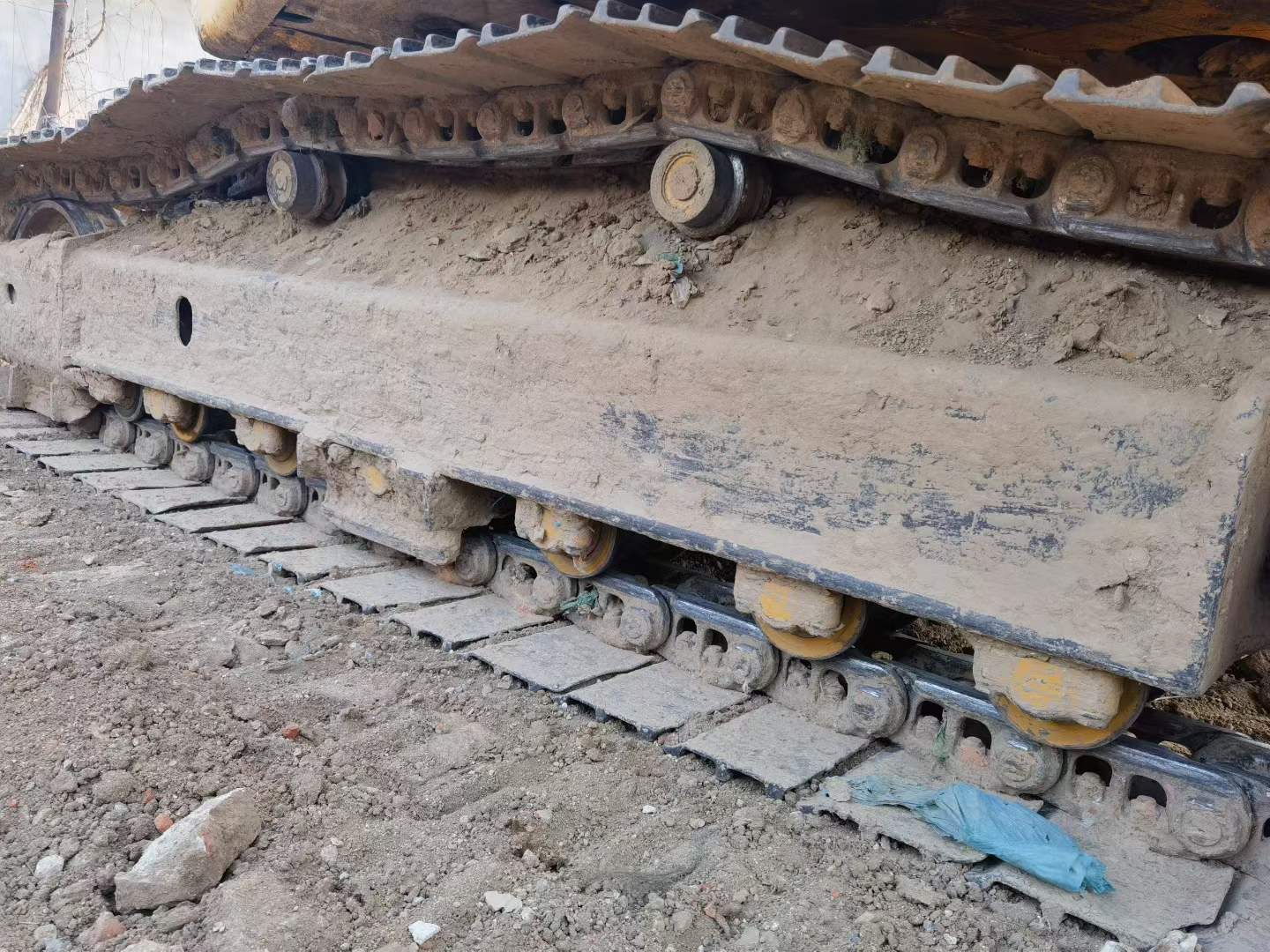

| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3275 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9700 |
| Maximum effective digging depth (mm) | 6370 |
