Product Description

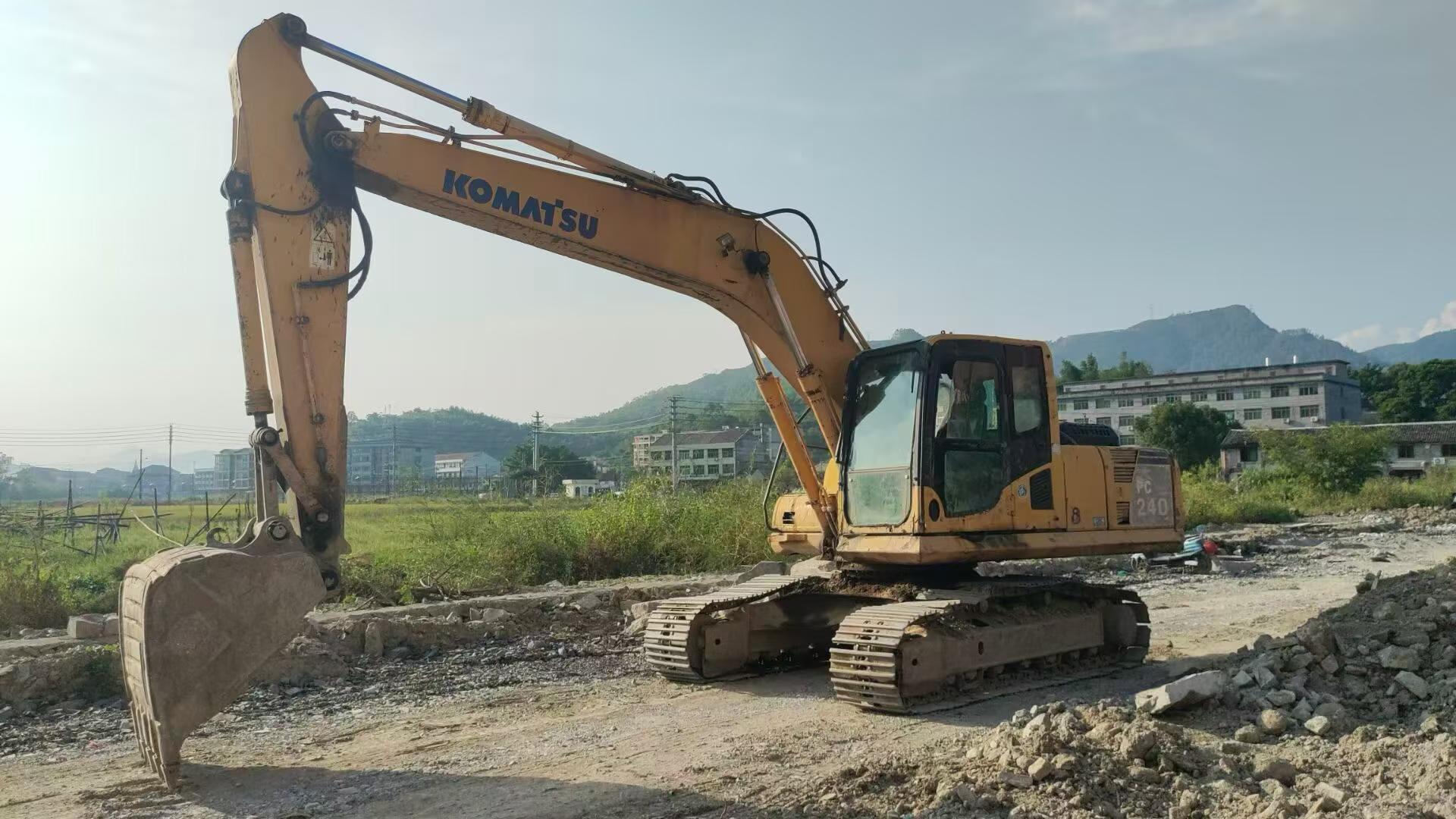

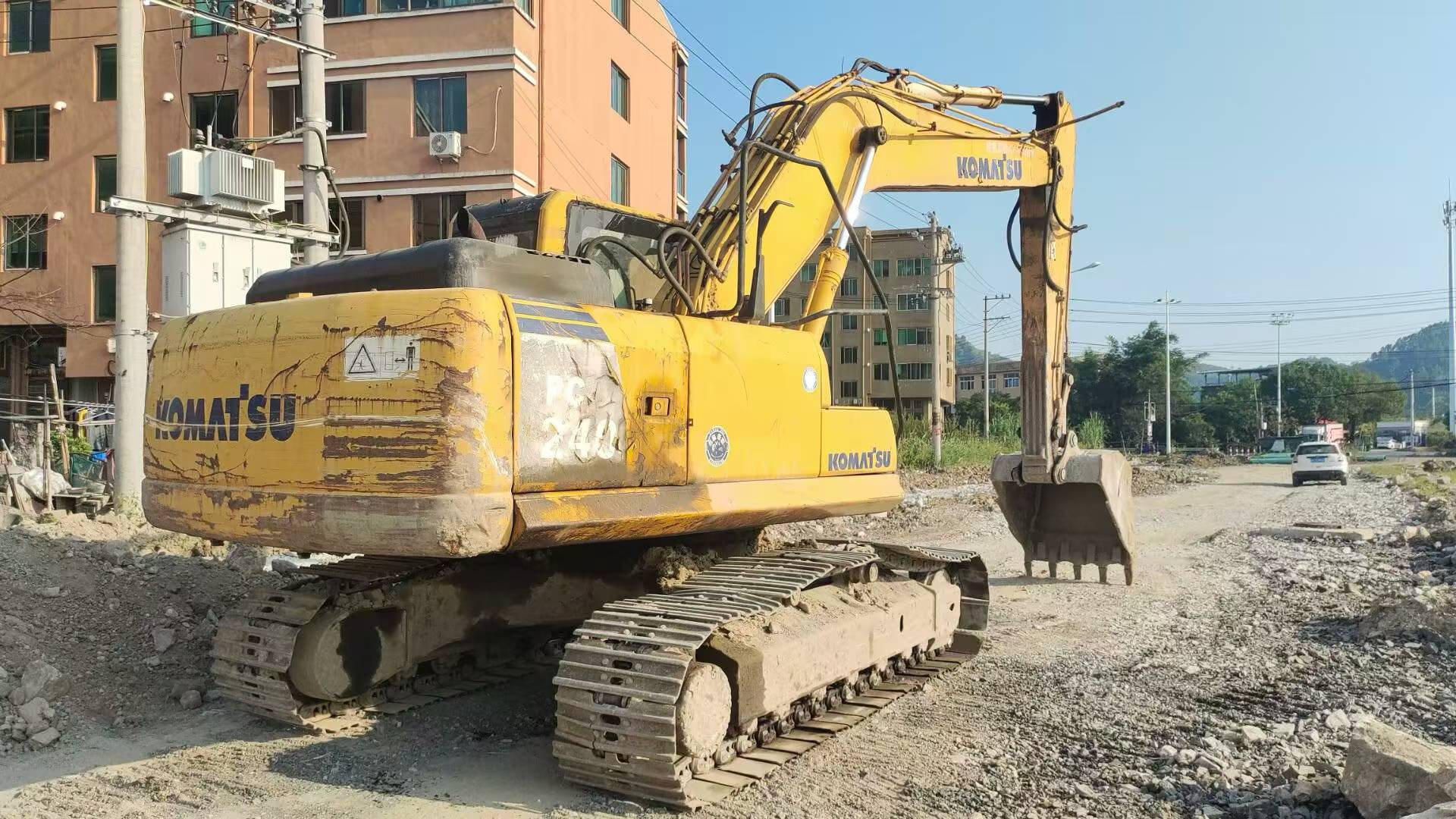

Offered from our yard in Zhejiang, China, this 2020 Komatsu PC200-8 is a 20-tonne-class hydraulic excavator suited to general earthmoving, trenching and loading work. The machine is presented as a running, work-ready unit, and it can be inspected on site or by video before any commitment.
- Year and model: 2020 Komatsu PC200-8, standard 20-tonne class

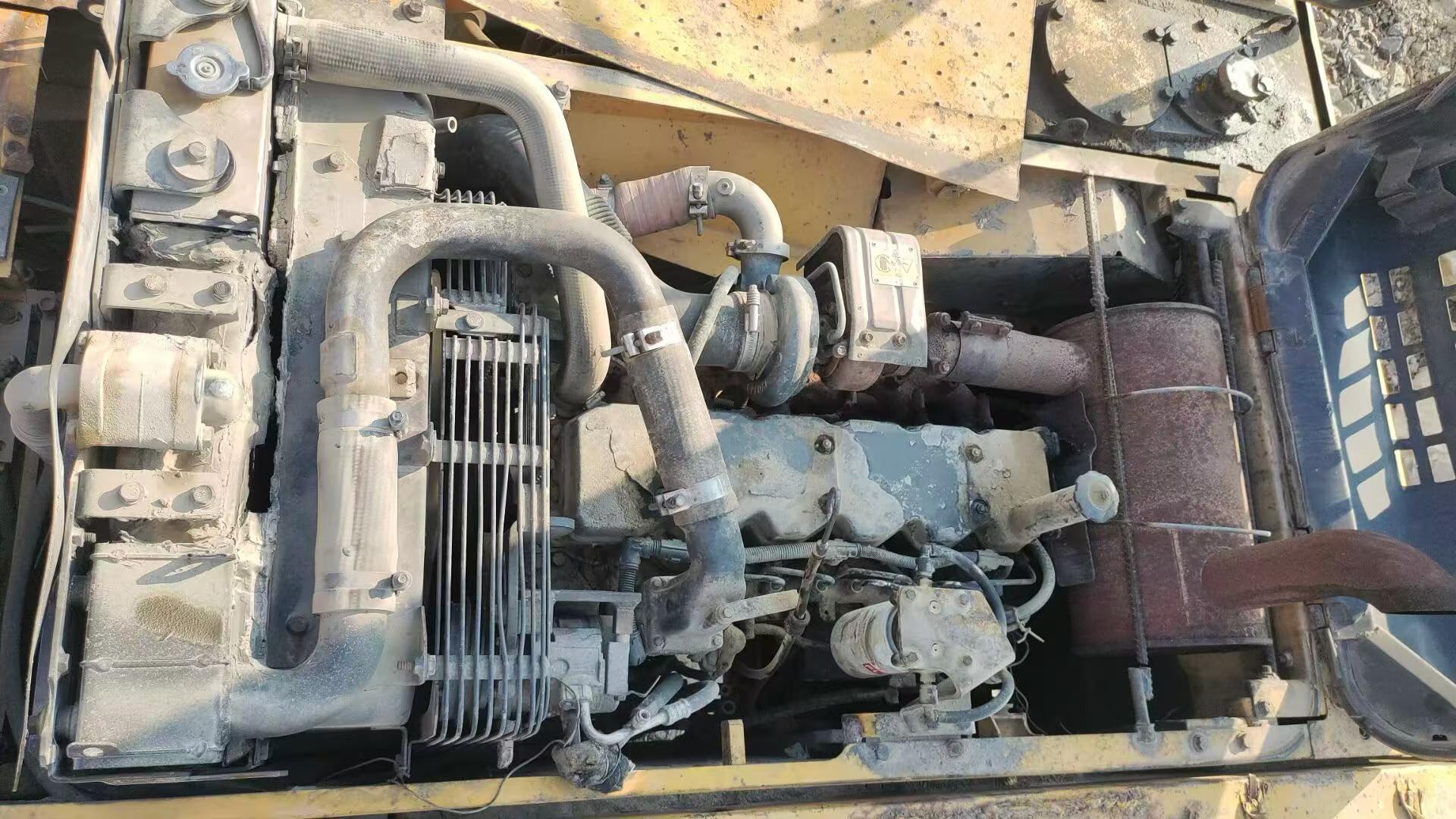

- Engine: Komatsu SAA6D107E, a common and well-supported powerplant in this size class
- Typical configuration: 0.8 m³ bucket, enclosed cab, standard boom and arm
- Location: Zhejiang, China — straightforward loading through Ningbo port for export
- Price: quoted at 50,000+ RMB; the final figure depends on inspection and shipping terms
Actual condition, undercarriage wear and meter readings are confirmed at inspection. Export documents can be arranged on request. Send us your destination port and we will follow up with an FOB quotation.
| Specifications | Value |
|---|---|
| No. | 1157395 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2925 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 3.0/4.1/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 115 * 1120 * 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 135 * 1490 * 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 1334 * 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3040 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2710 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3275 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9700 |
| Maximum effective digging depth (mm) | 6370 |
