Product Description

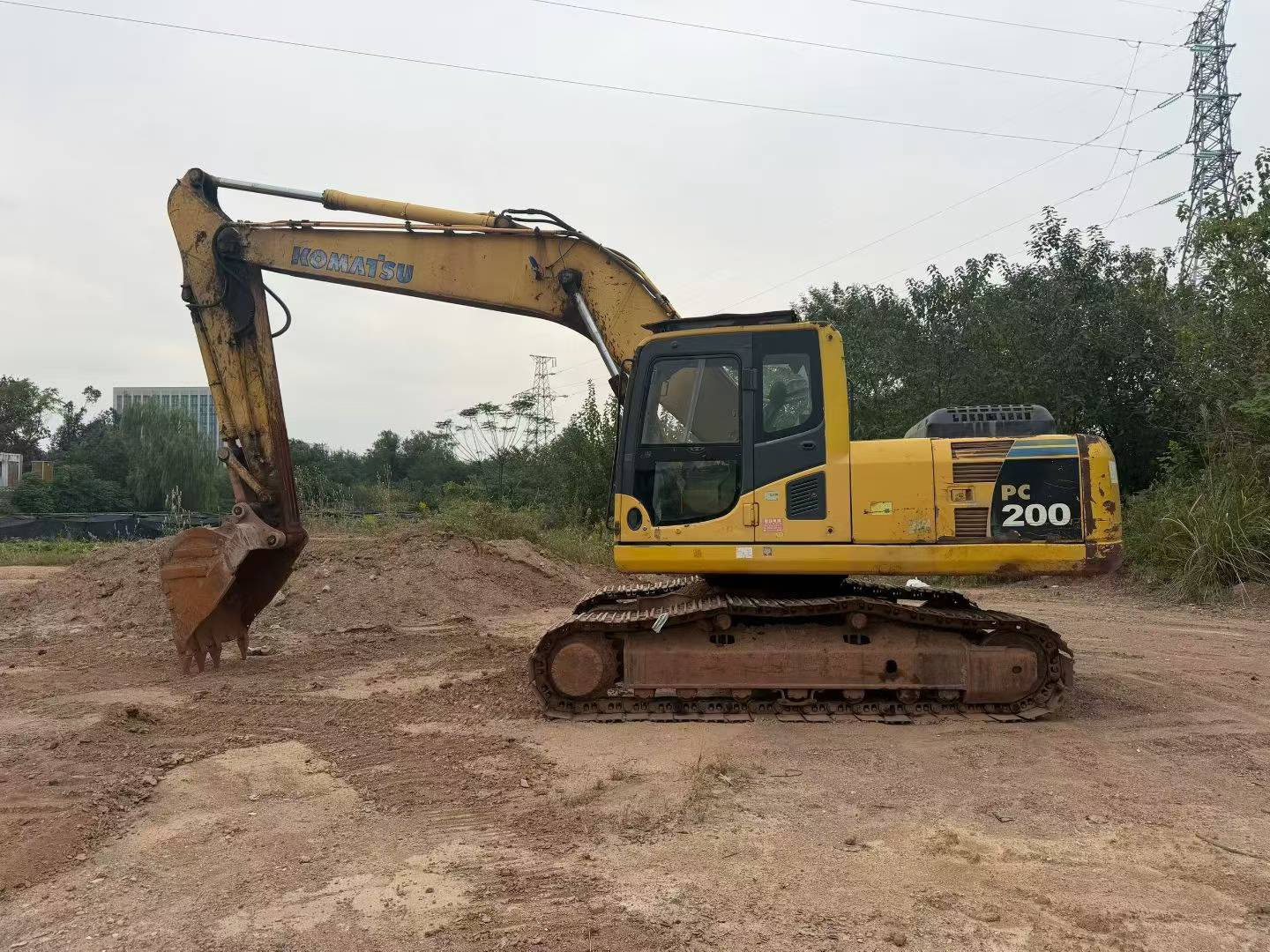

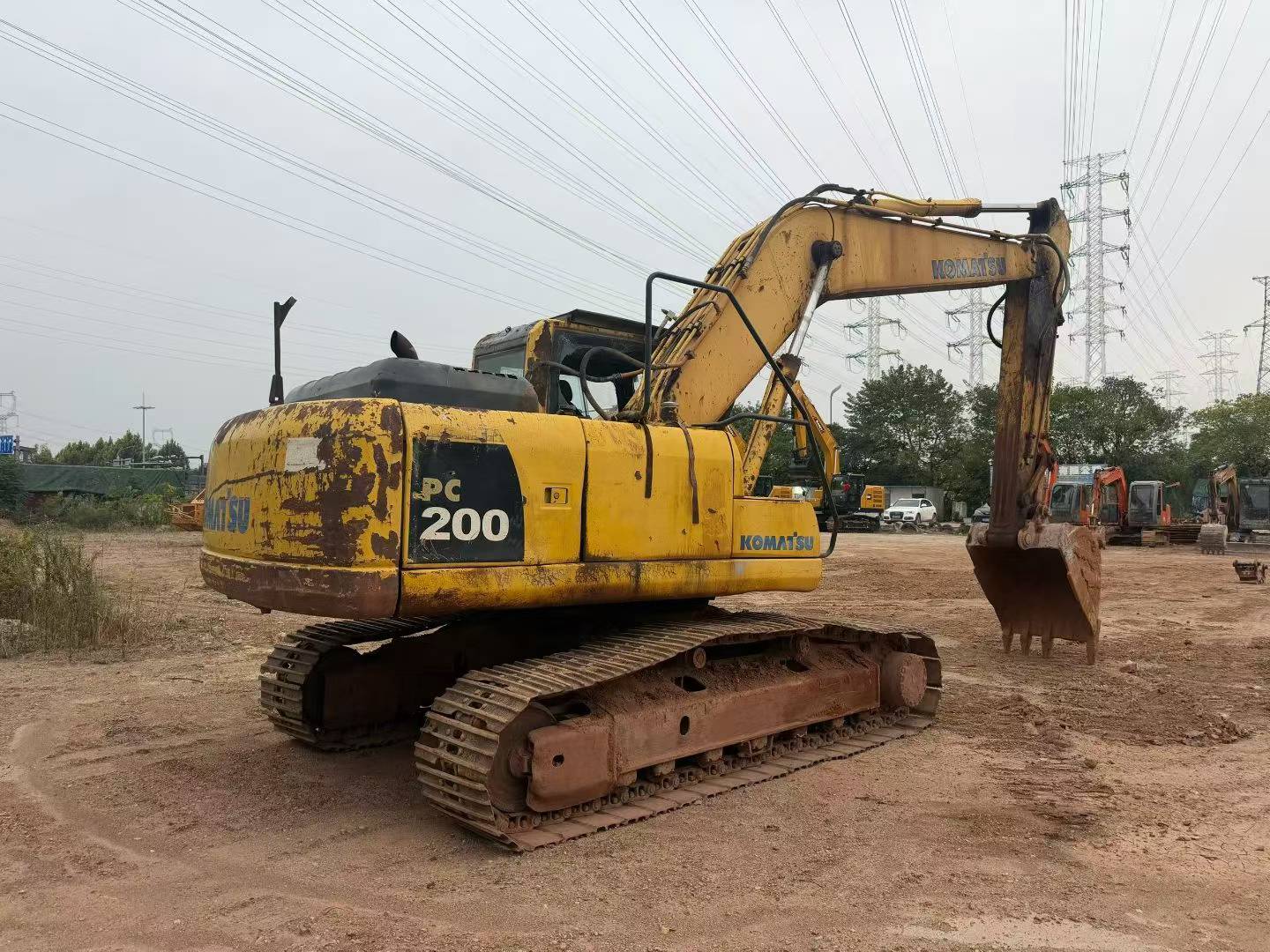

This 2020 Komatsu PC200-8 hydraulic excavator is currently available in Zhejiang, China. The PC200-8 is a proven workhorse in the 20-ton class, widely recognized for its balance of performance, fuel efficiency, and operator comfort. This unit has been maintained in working condition and is ready for deployment in construction, earthmoving, or infrastructure projects.
Key features of the PC200-8 series include:

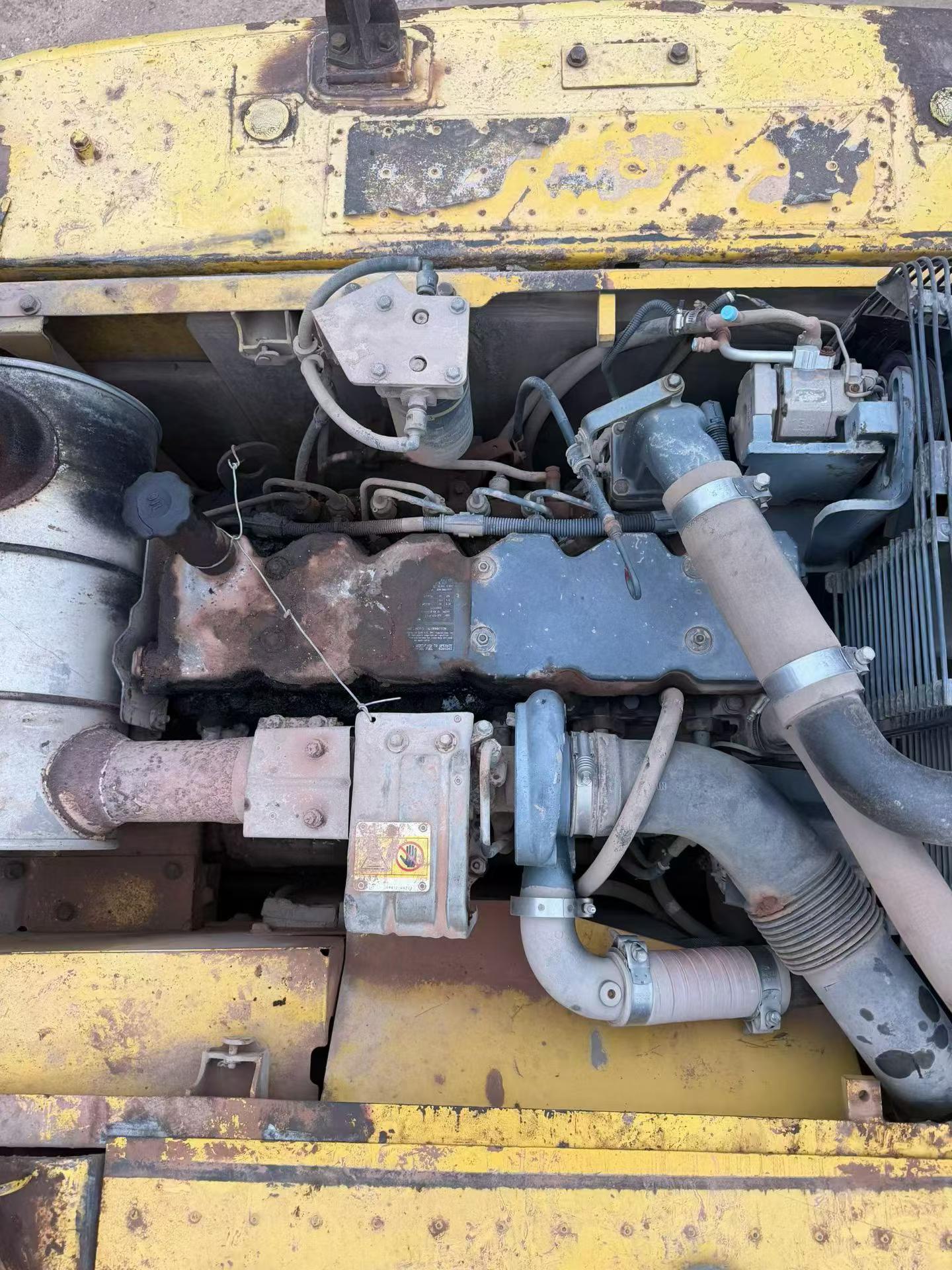

- Reliable Komatsu SAA6D107E-1 engine delivering strong digging force

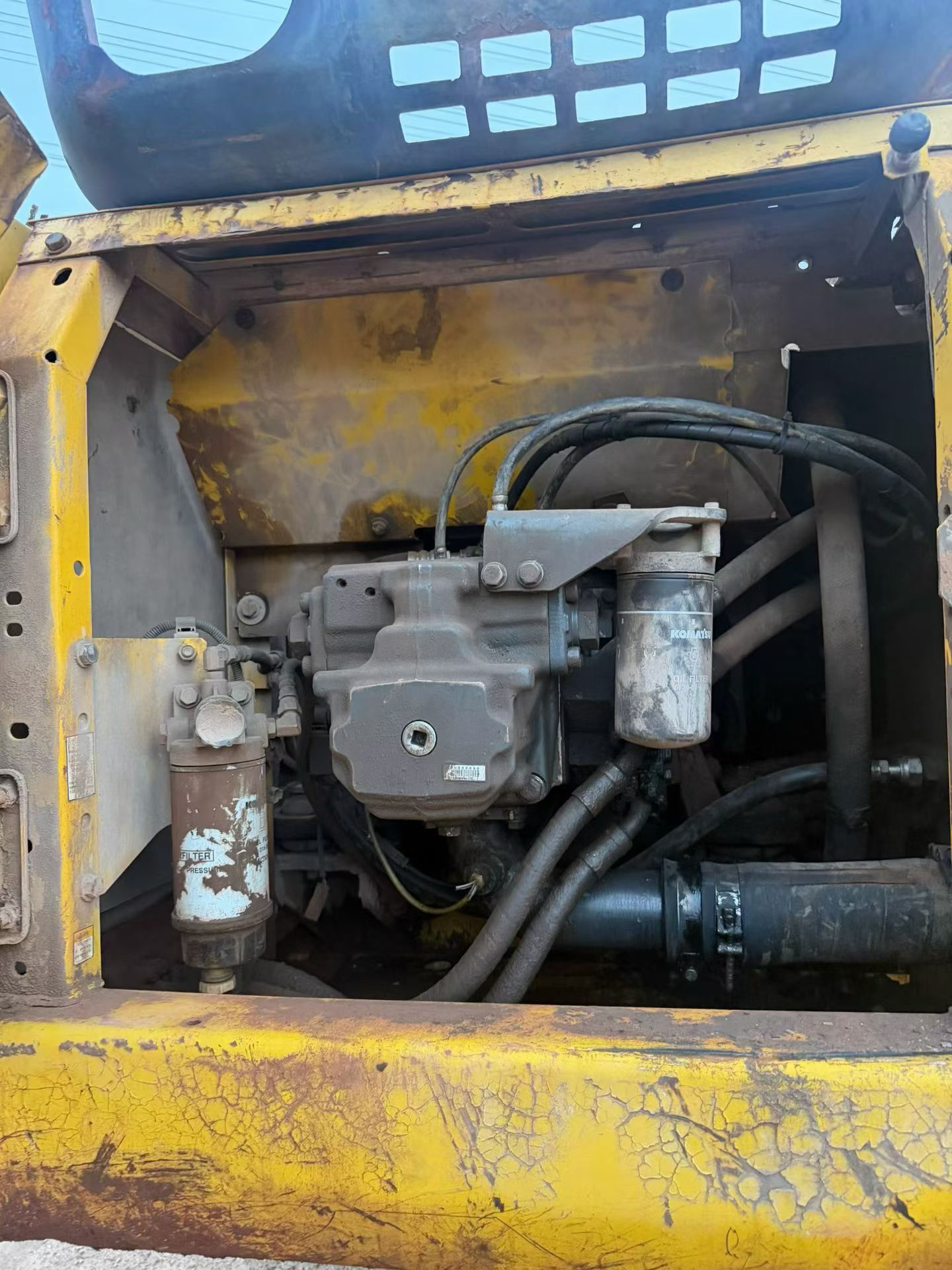

- Advanced hydraulic system for smooth operation and precise control

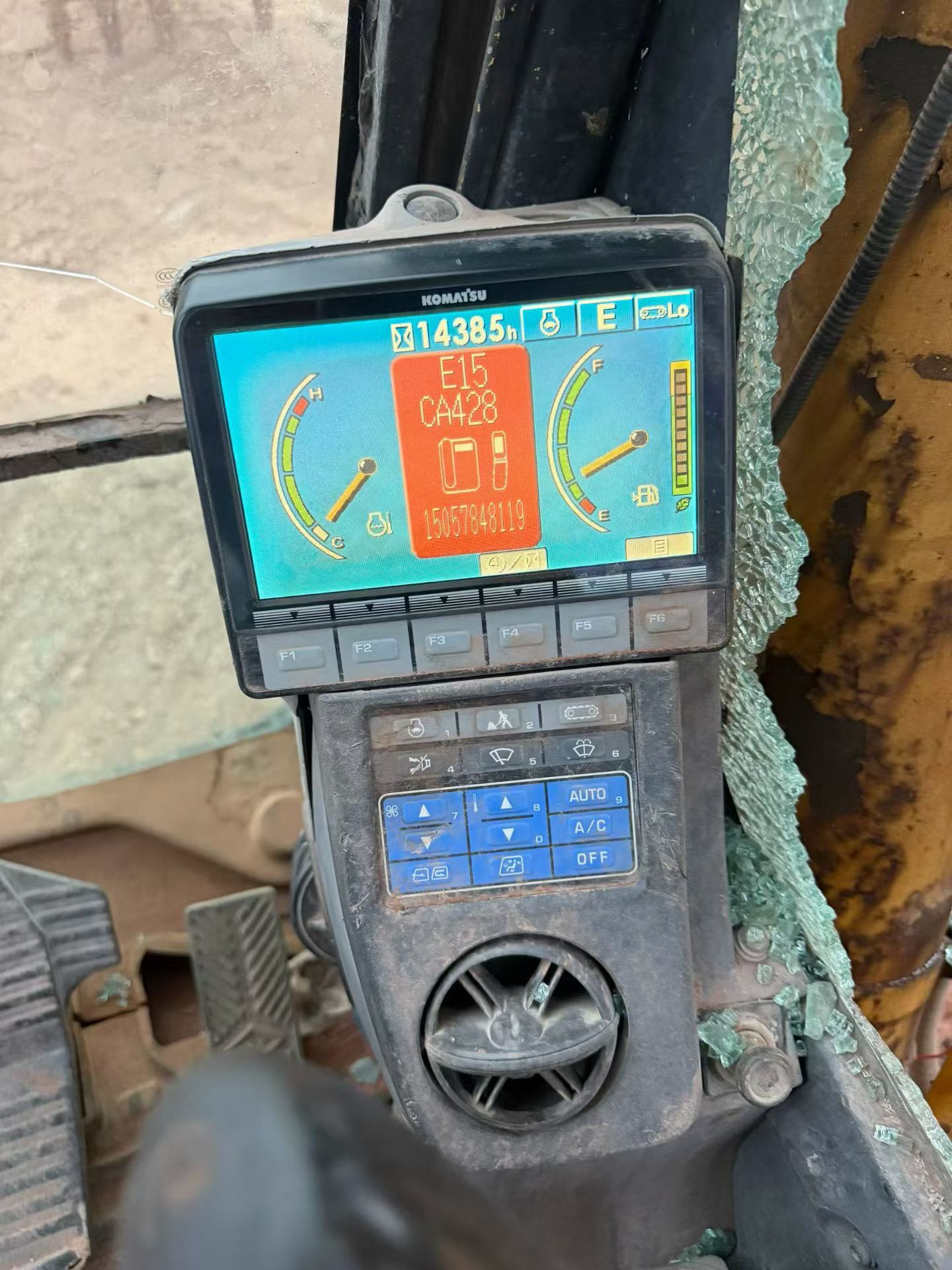

- Spacious, ergonomic cab with reduced noise levels
- Durable undercarriage designed for extended service life
- Multiple working modes to optimize fuel consumption
Ideal for contractors seeking dependable used equipment with a strong service network. Contact us for detailed inspection reports and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1168796 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2925 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 3.0/4.1/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 115 * 1120 * 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 135 * 1490 * 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 1334 * 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3040 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2710 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3275 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9700 |
| Maximum effective digging depth (mm) | 6370 |
