Product Description

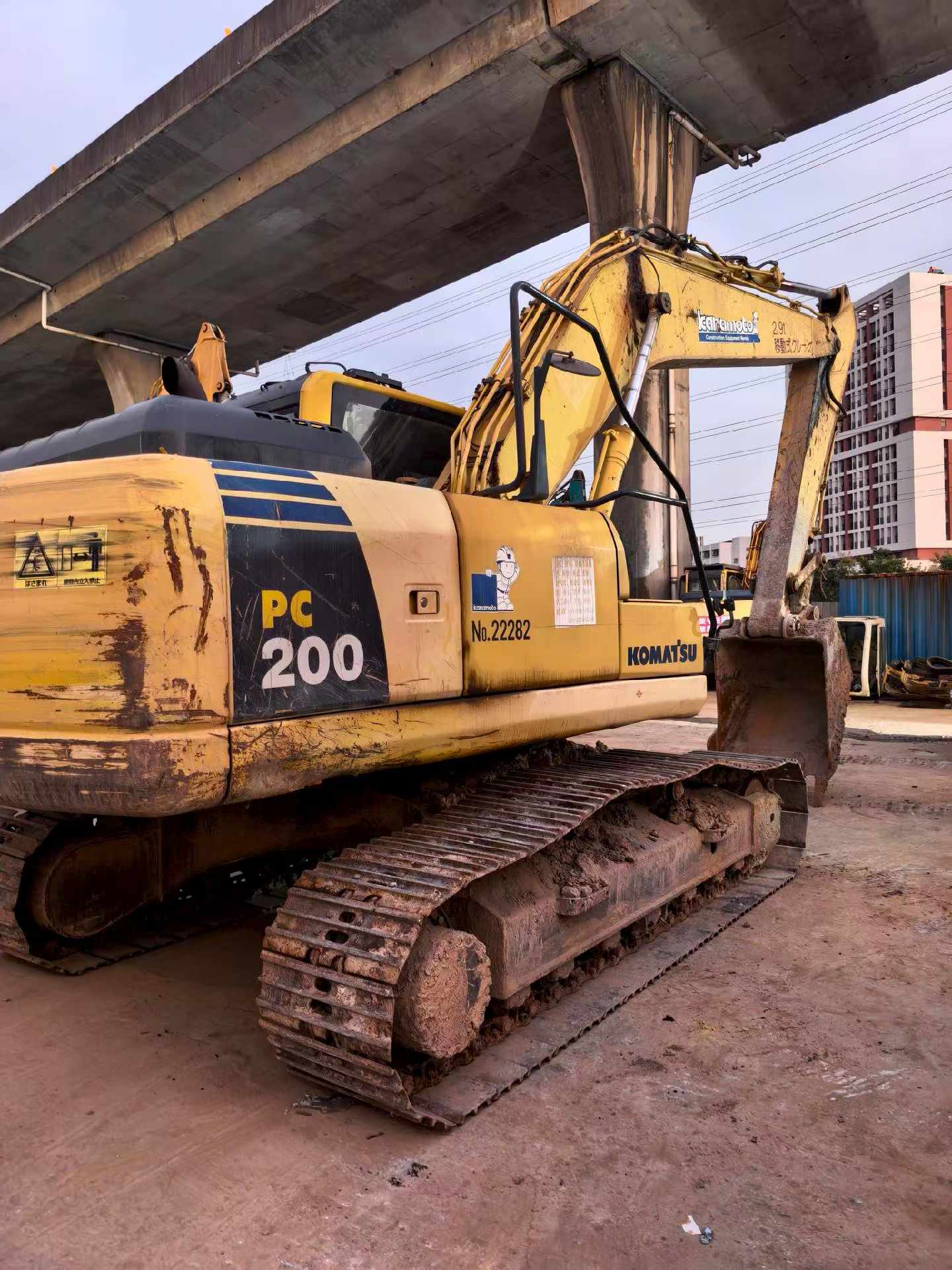

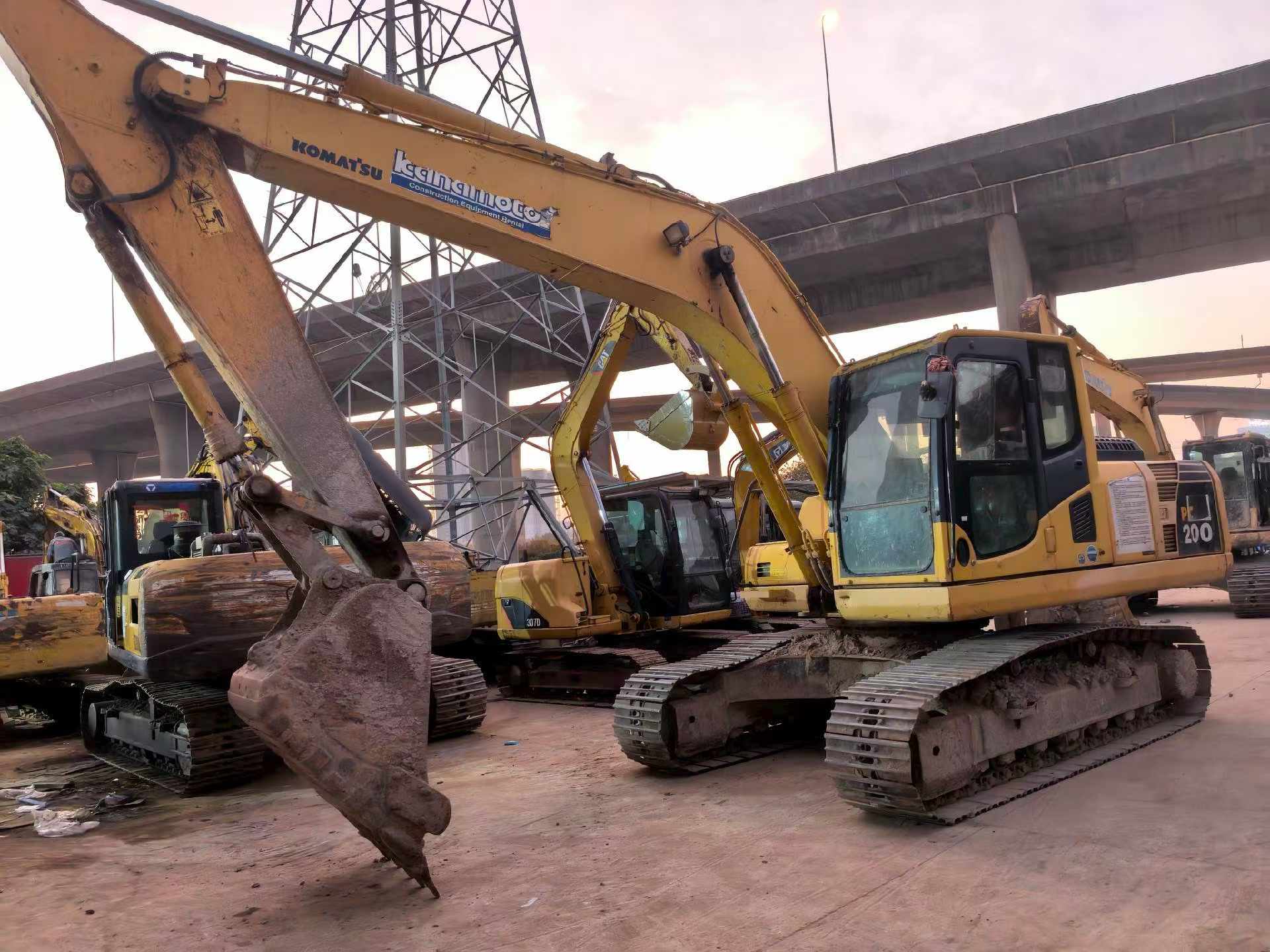

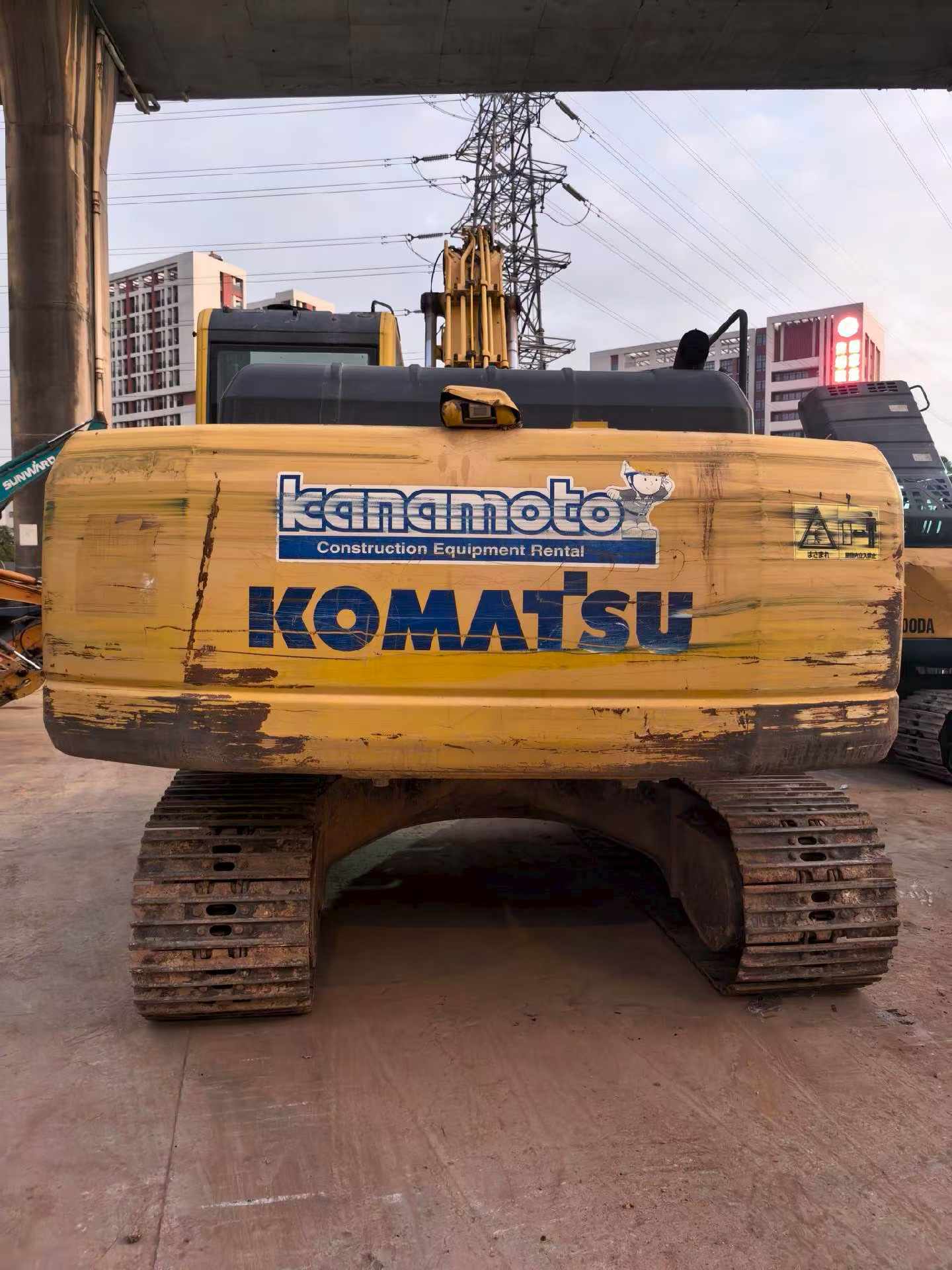

Available now in Guangzhou, Guangdong, this 2013 Komatsu PC200-8N1 hydraulic excavator delivers immediate deployment without factory wait times. Powered by a robust Komatsu SAA6D107E-1-A engine producing 110kW at 2000rpm, this 20-ton workhorse combines proven Japanese engineering with joint venture manufacturing quality. Skip the lead times and put this machine to work on your site today.
Operating at 19,500kg working weight with 0.8m³ bucket capacity, this unit offers impressive performance metrics: 149kN bucket digging force, 9875mm maximum digging radius, and 6620mm maximum digging depth. The water-cooled 6-cylinder engine with 6.69L displacement ensures reliable power delivery across demanding applications. Travel speeds of 5.5/4.1/3.0 km/h provide efficient site mobility, while the 2900mm rod length optimizes reach and versatility.
Fast deployment means faster project starts. Located in Guangzhou's logistics hub, transportation to your Guangdong site happens quickly and efficiently. With 400L fuel capacity and comprehensive hydraulic systems, this PC200-8N1 is ready for extended operation cycles immediately upon arrival.
| Specifications | Value |
|---|---|
| No. | 1006081 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19500 |
| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1-A |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 5.5/4.1/3.0 |
| Rotary hydraulic motor type | Fixed displacement axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Working Hydraulic Circuit (Mpa) | 34.8 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Hydraulic System (L) | 232 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3040 |
| Minimum turning radius of front working device (mm) | 3040 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 1110 |
| Maximum excavation radius of stop surface (mm) | 9700 |
