2020 Komatsu PC200-8N1

1/5
Buy Komatsu PC200-8N1 Used Excavator / 1

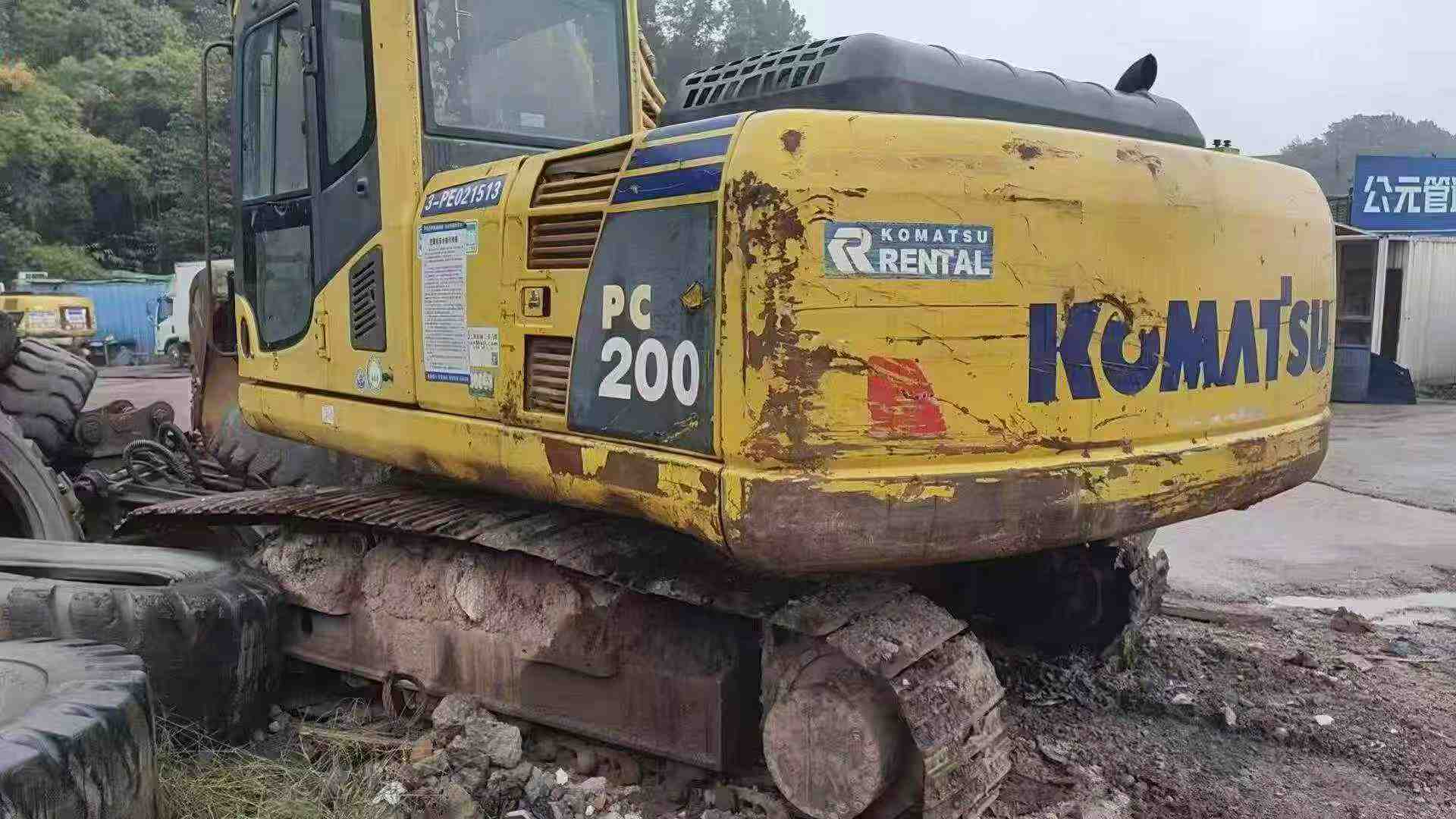

Buy Komatsu PC200-8N1 Used Excavator / 2

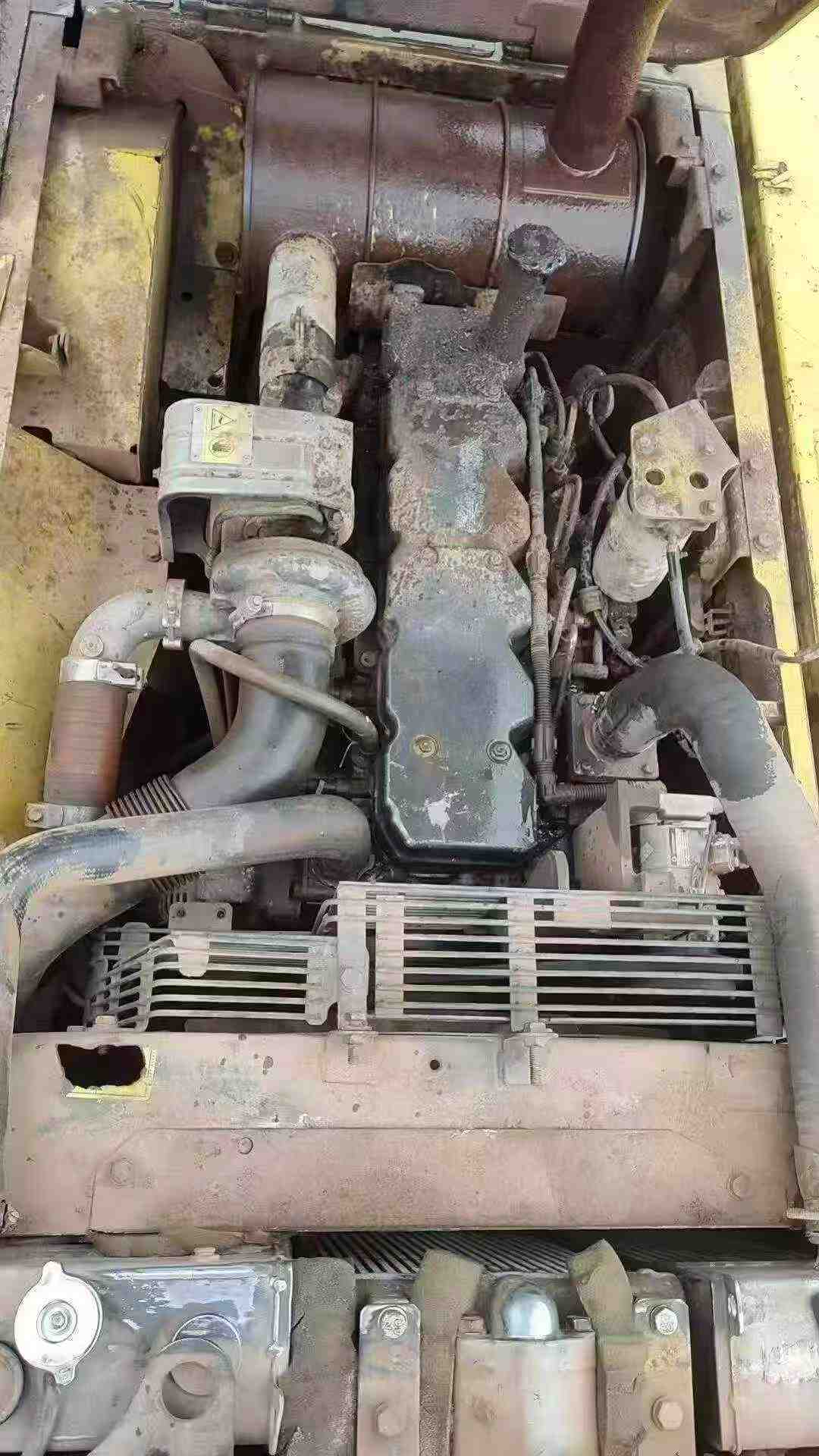

Buy Komatsu PC200-8N1 Used Excavator / 3

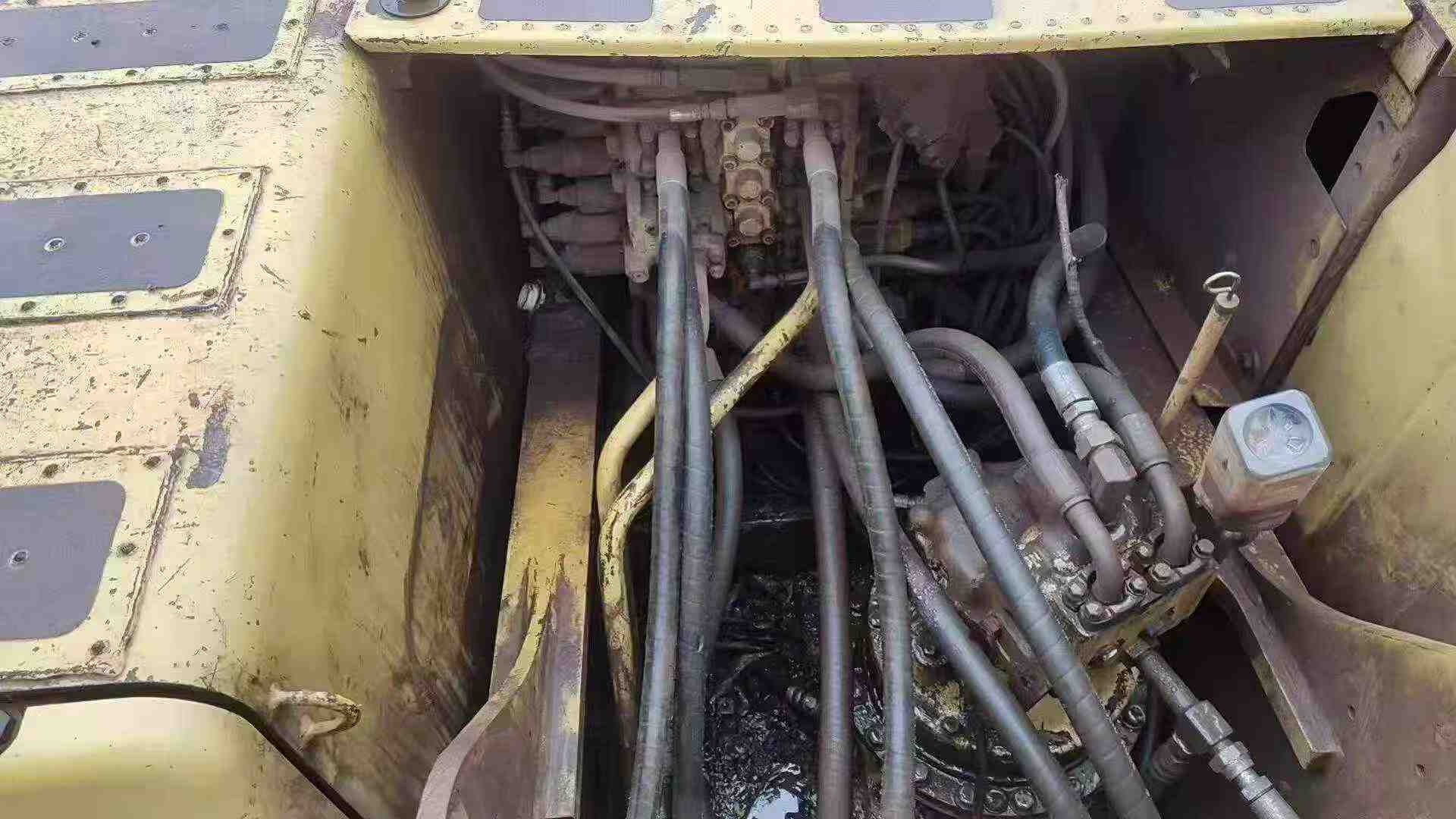

Buy Komatsu PC200-8N1 Used Excavator / 4

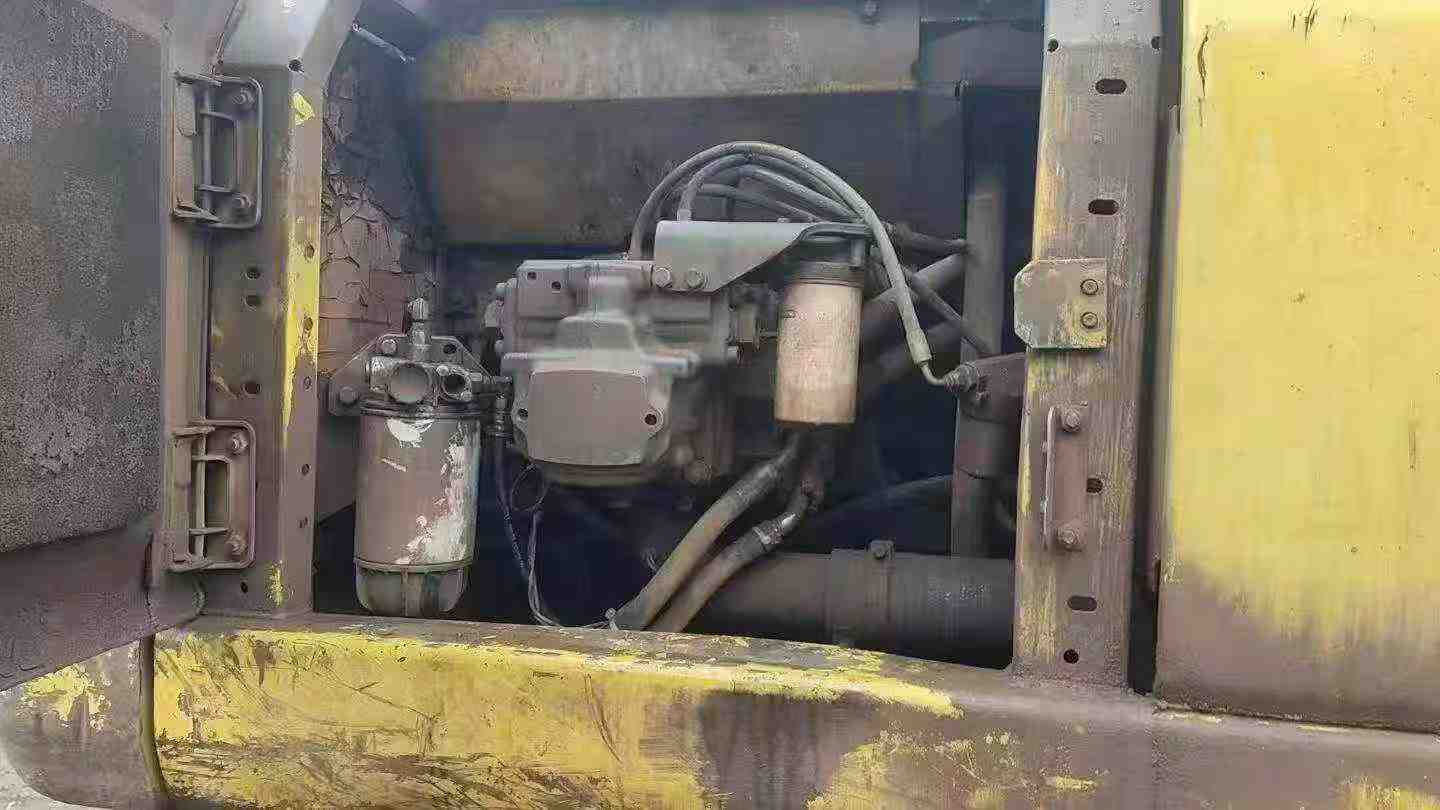

Buy Komatsu PC200-8N1 Used Excavator / 5

Product Description

Two 2020 Komatsu PC200-8N1 hydraulic excavators available as a package deal from Sichuan, China. These mid-sized crawlers offer reliable performance for earthmoving, demolition, and general construction applications. The PC200-8N1 features Komatsu's proven design with an operating weight of approximately 20 tonnes and a standard bucket capacity suited for medium-duty work.

Key features include:

  • Komatsu SAA6D107E-1 engine for fuel efficiency
  • Hydraulic system optimized for cycle times
  • Spacious operator cabin with improved visibility
  • Durable undercarriage for extended service life
  • Currently located in Sichuan Province, China

Both units are being offered together at a competitive package price. Ideal for contractors looking to expand their fleet or replace aging equipment. Inspection welcomed. Contact us for detailed specifications, operating hours, and availability.

SpecificationsValue
No.1172238
Tonnage (tons)20
Working weight (kg)19500
Bucket capacity (m³)0.8
Rod length (mm)2900
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu SAA6D107E-1-A
Rated power (kw/rpm)110/2000
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)6.69
Working formDirect injection
Ground specific pressure (Kpa)44.1
Rotation speed (rpm)12.4
Bucket digging force (kN)149
Rod digging force (kN)108
Travel speed (km/h)5.5/4.1/3.0
Rotary hydraulic motor typeFixed displacement axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Traveling Hydraulic Circuit (Mpa)37.3
Working Hydraulic Circuit (Mpa)34.8
Fuel Tank (L)400
Hydraulic Tank (L)135
Hydraulic System (L)232
Total transport length (mm)9425
Total transport width (mm)2800
Total transport height (mm)3040
Minimum turning radius of front working device (mm)3040
Back end turning radius (mm)2750
Total track length (mm)4070
Track gauge (mm)2200
Track plate width (mm)600
Maximum digging radius (mm)9875
Maximum digging depth (mm)6620
Maximum excavation height (mm)10000
Maximum unloading height (mm)1110
Maximum excavation radius of stop surface (mm)9700
see more

Overview

No.1172238

Brand Name:

Komatsu

Model Number:

PC200-8N1

Year:

2020

Location:

Sichuan China

Pub Date:
