2020 Komatsu PC210-8

1/7
Buy Komatsu PC210-8 Used Excavator / 1
Buy Komatsu PC210-8 Used Excavator / 2
Buy Komatsu PC210-8 Used Excavator / 3
Buy Komatsu PC210-8 Used Excavator / 4
Buy Komatsu PC210-8 Used Excavator / 5
Buy Komatsu PC210-8 Used Excavator / 6
Buy Komatsu PC210-8 Used Excavator / 7

Product Description

This 2020 Komatsu PC210-8 excavator offers exceptional value for contractors seeking reliable performance. Originally operated by a single owner in Fujian, China, this machine comes equipped with both hydraulic breaker attachment and bucket, providing versatility for demolition and earthmoving applications. The PC210-8 features Komatsu's fuel-efficient engine technology and advanced hydraulic systems for optimal productivity on demanding jobsites.

  • Year: 2020
  • Model: Komatsu PC210-8LC
  • Operating Weight Class: 21-ton
  • Included: Hydraulic breaker and standard bucket
  • Ownership: Single previous owner
  • Current Location: Fujian Province, China

This excavator represents a cost-effective opportunity to acquire late-model Komatsu equipment with factory-standard components. Suitable for construction, demolition, and infrastructure projects requiring a mid-sized excavator with proven reliability.

SpecificationsValue
No.1173685
Tonnage (tons)21
Working weight (kg)20630
Bucket capacity (m³)0.9
Boom length (mm)5700
Rod length (mm)2925
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

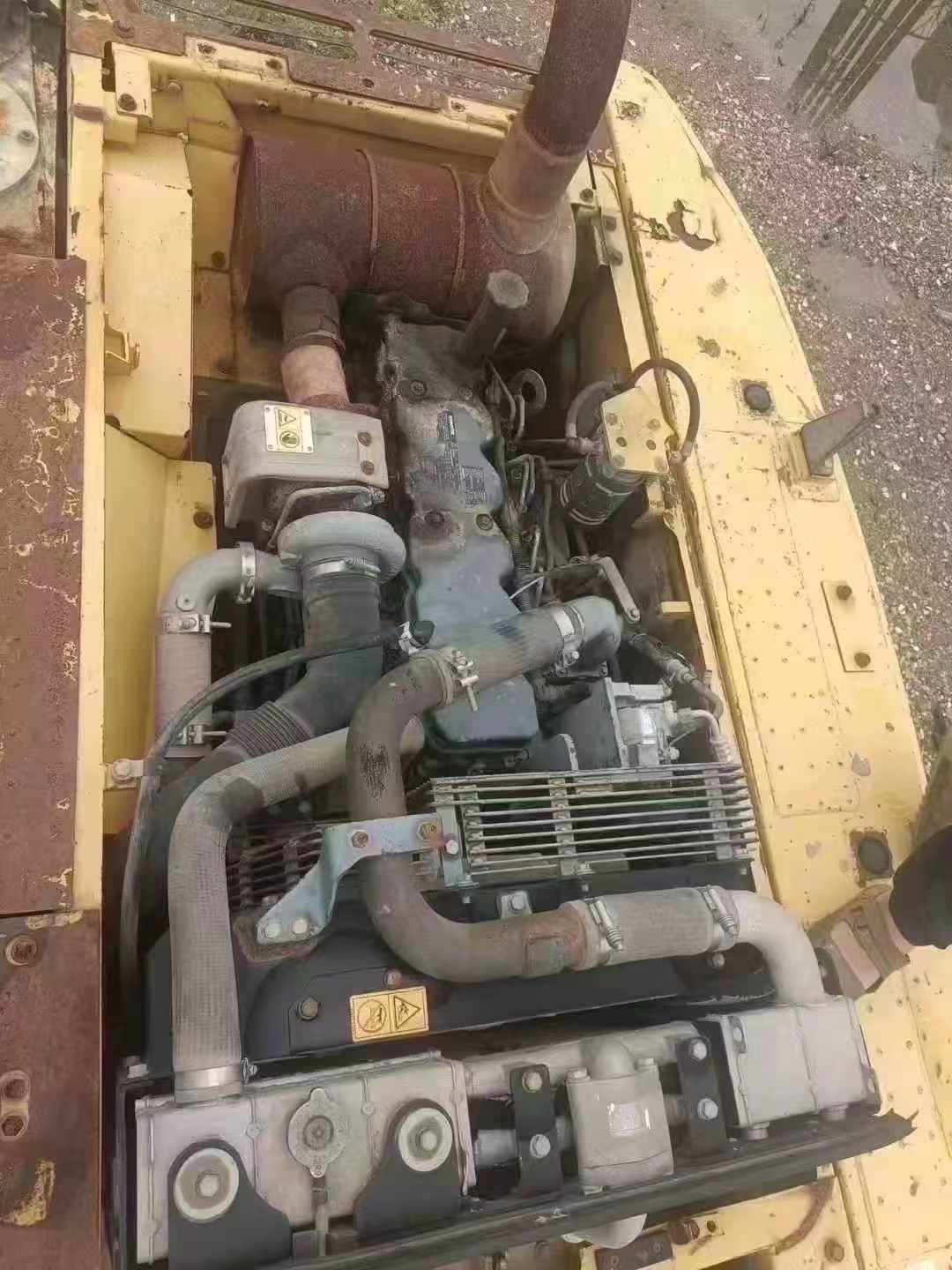

Engine typeKomatsu SAA4D107E-1
Rated power (kw/rpm)110/2000
Cooling modewater-cooling
Displacement (L)6.69
Working form6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards.
Ground specific pressure (Kpa)34.3
Rotation speed (rpm)12.4
Climbing ability (%)70/35 °
Bucket digging force (kN)149
Rod digging force (kN)108
Travel speed (km/h)3.0/4.1/5.5
Rotary hydraulic motor typeAxial piston motor ×1(rotary holding valve)
Type of walking hydraulic motorAxial piston motor ×2(with parking brake)
Maximum flow of main pump (l/min)439
Traveling Hydraulic Circuit (Mpa)37.3
Rotary Hydraulic Circuit (Mpa)28.9
Control Hydraulic Circuit (Mpa)3.2 Pilot oil circuit
Hydraulic crushing pipeline is standardno
Bucket cylinders - Number × diameter × stroke (mm)115 * 1120 * 80
Bucket rod cylinders - Number × diameter × stroke (mm)135 * 1490 * 95
Boom cylinders - Number × diameter × stroke (mm)120 * 1334 * 85
Fuel Tank (L)400
Hydraulic Tank (L)135
Engine Oil changes (L)23.1
Coolant (L)20.4
Total transport length (mm)9425
Total transport width (mm)3000
Total transport height (mm)3040
Full cab height (mm)3040
Counterweight ground clearance (mm)1085
Minimum ground clearance (mm)440
Back end turning radius (mm)2710
Total track length (mm)4070
Track gauge (mm)2200
Track plate width (mm)800
Total track width (mm)3000
Track ground length (mm)3275
Maximum digging radius (mm)9875
Maximum digging depth (mm)6620
Maximum excavation height (mm)10000
Maximum unloading height (mm)7110
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9700
Maximum effective digging depth (mm)6370
see more

Overview

No.1173685

Brand Name:

Komatsu

Model Number:

PC210-8

Year:

2020

Location:

Fujian China

Pub Date:
