Product Description

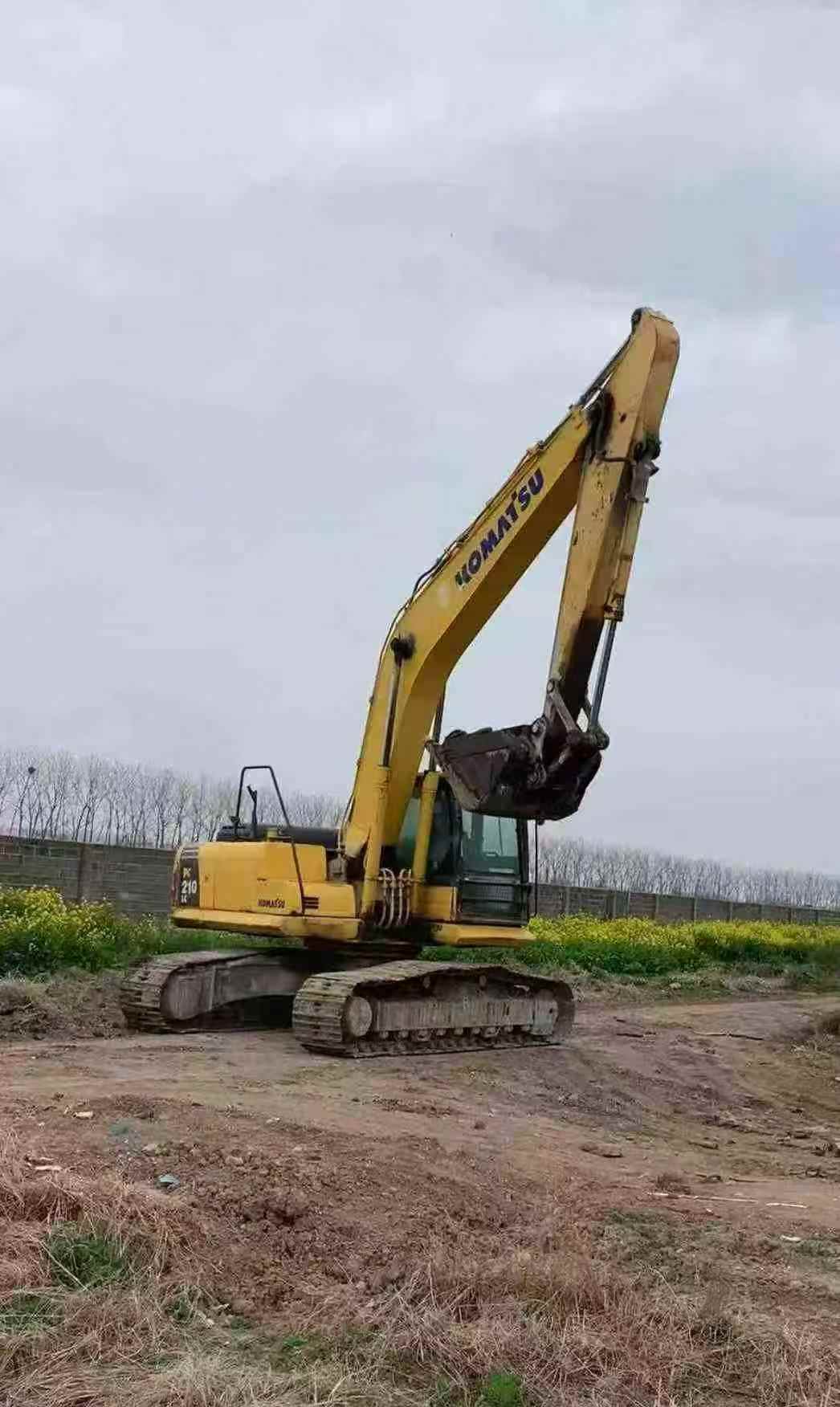

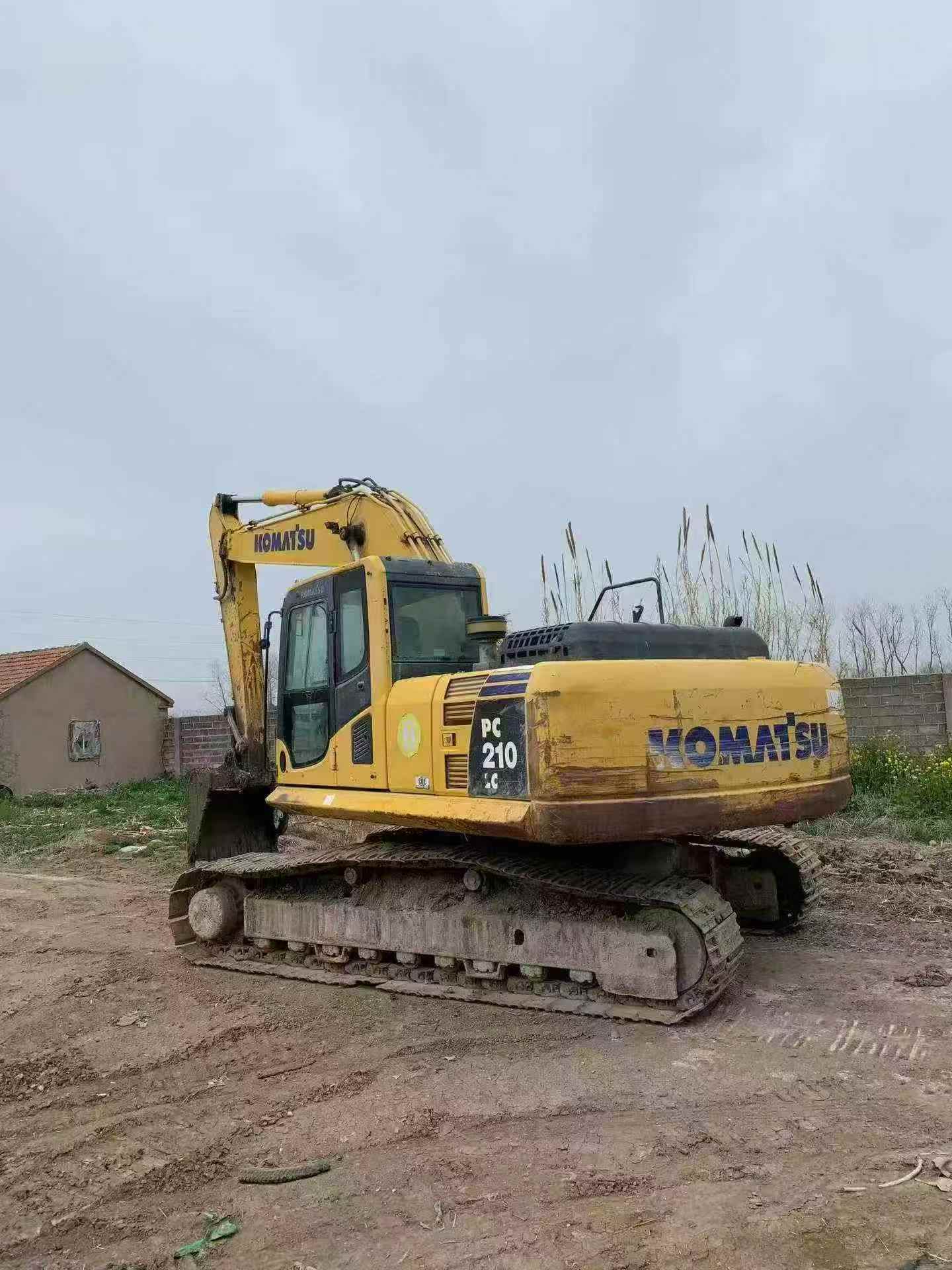

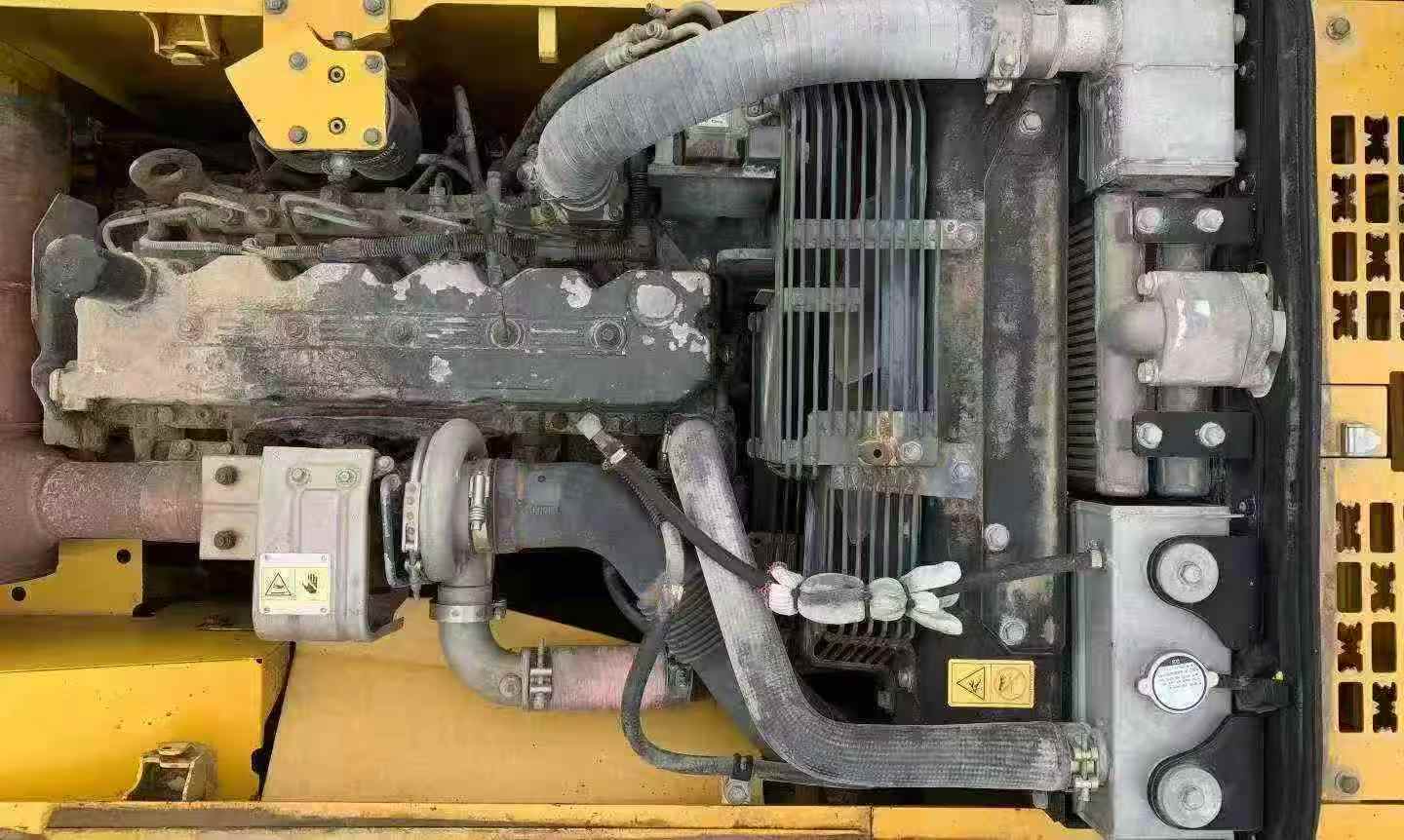

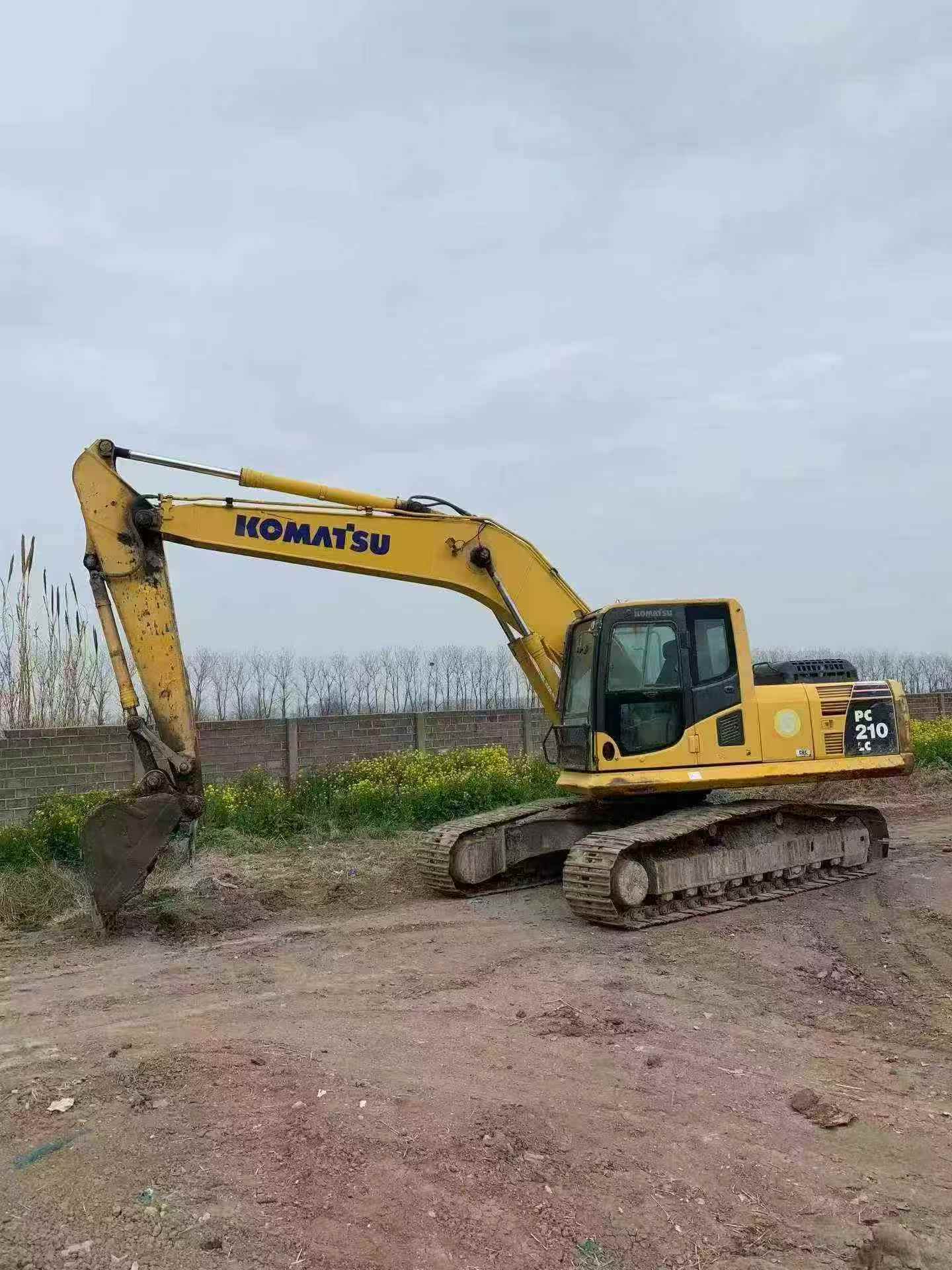

Engineered with Komatsu's proven SAA6D107E-1 engine delivering 110 kW at 2000 rpm, this 2014 PC210LC-8 represents a benchmark in 21-ton excavator performance. The 6.69-liter displacement unit drives a sophisticated hydraulic system generating 152 kN bucket digging force and 130 kN arm digging force, ensuring consistent power delivery across demanding earthmoving applications.
Built to joint venture/import standards, the PC210LC-8 features precision-engineered reach capabilities including a 9,380 mm maximum digging radius and 6,095 mm digging depth. Operating weight of 20,900 kg provides exceptional stability during full-extension operations, while the 1.0 m³ backhoe bucket optimizes material handling efficiency.
Key technical specifications:
- Maximum digging height: 9,800 mm with 6,890 mm unloading clearance
- Transport dimensions: 9,495 mm × 2,980 mm × 3,190 mm
- Travel speed: 5.5 km/h for efficient site mobility
- Vertical digging depth: 5,430 mm for trench work
Currently located in Jiangsu, this machine offers proven Komatsu durability backed by comprehensive component engineering. Immediate availability for international shipping.
| Specifications | Value |
|---|---|
| No. | 1039194 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 1 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 150(110)2000 |
| Displacement (L) | 6.69 |
| Bucket digging force (kN) | 15200 |
| Rod digging force (kN) | 13000 |
| Travel speed (km/h) | 5.5 |
| Total transport length (mm) | 9495 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3190 |
| Maximum digging radius (mm) | 9380 |
| Maximum digging depth (mm) | 6095 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 5430 |
| Maximum excavation radius of stop surface (mm) | 9190 |
