Product Description

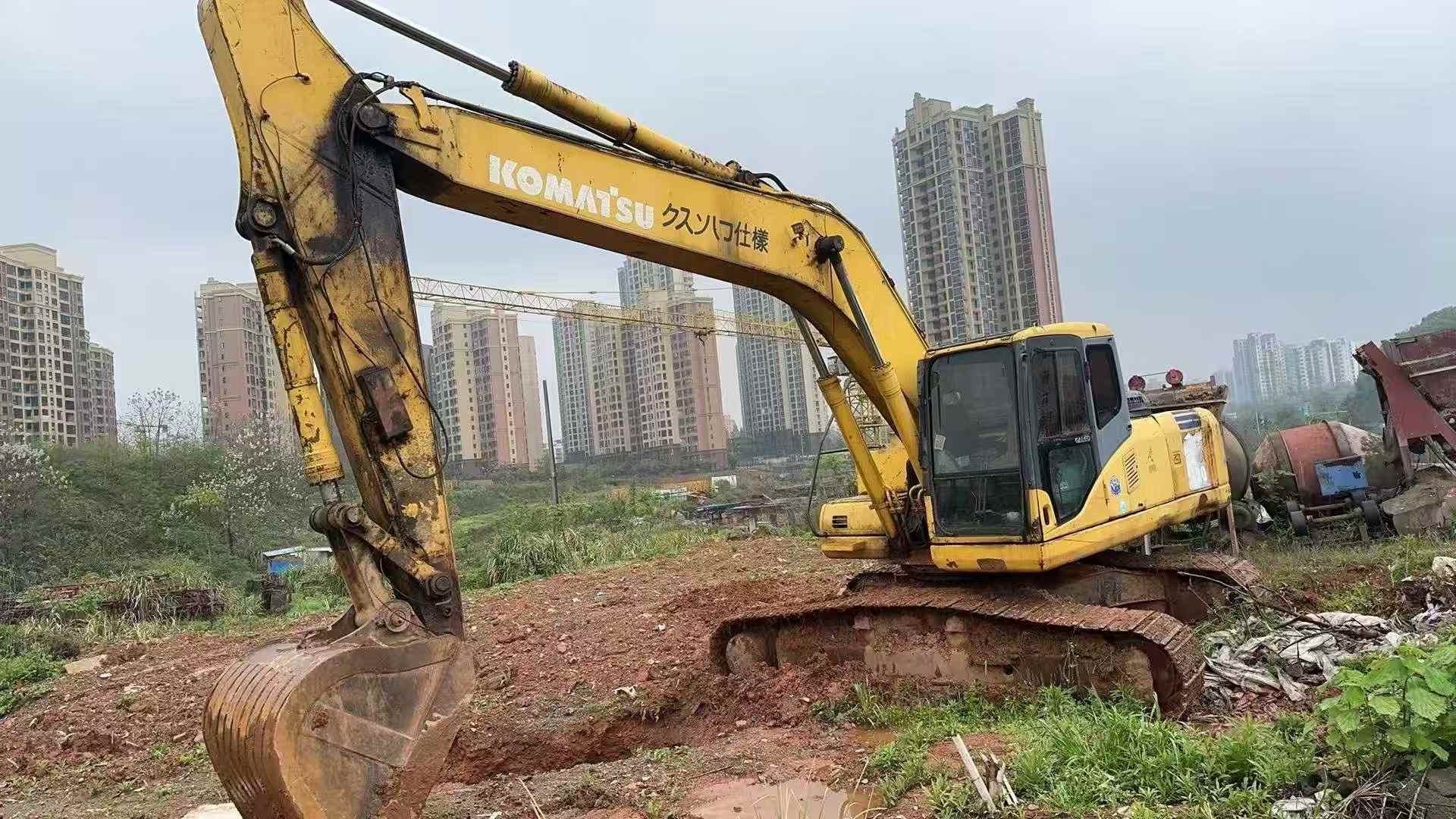

Proven performance meets lasting value in this 2016 Komatsu PC220-7 excavator, currently located in Guizhou. Operating at 22 tons with a robust 125kW Komatsu SAA6D102E-2 engine, this machine delivers reliable power for demanding excavation work. The 1.0m³ backhoe bucket generates 172kN of digging force, while the 5,850mm boom and 3,045mm arm provide a maximum digging reach of 9,270mm and depth of 5,825mm.
Komatsu's reputation for durability translates directly into lower ownership costs. Parts availability remains exceptional worldwide, minimizing downtime and keeping your operation running. The PC220-7's strong resale value protects your investment, backed by a brand recognized across every continent. This joint venture/import model features water-cooled efficiency, advanced hydraulic systems with 439 L/min flow capacity, and travel speeds up to 5.5 km/h.
- 22-ton working weight with 22,840kg operational capacity
- Komatsu SAA6D102E-2 six-cylinder engine (5.883L displacement)
- Maximum digging height: 9,665mm | Maximum unloading height: 6,715mm
- 400L fuel tank for extended operation
- Proven hydraulic system with pilot control (3.2 MPa)
| Specifications | Value |
|---|---|
| No. | 1028061 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22840 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.883 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Travel speed (km/h) | 3.1/4.2/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 * 1020 * 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 1635 * 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 130 * 1335 * 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 27.8 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9865 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3015 |
| Full cab height (mm) | 2110 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2905 |
| Total track length (mm) | 4265 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 6470 |
| Maximum digging radius (mm) | 9270 |
| Maximum digging depth (mm) | 5825 |
| Maximum excavation height (mm) | 9665 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 4750 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9070 |
| Maximum effective digging depth (mm) | 5825 |
